Lockheed F-22 Raptor
Варианты:
Lockheed - F-22 Raptor - 1990 - США
Страна: США
Год: 1990


Одноместный истребитель завоевания превосходства в воздухе
Описание
Фотографии:

Цветные фото (319)
Lockheed Martin F-22 Raptor

   В апреле 1991 года ВВС США объявили о выборе победителя в конкурсе на создание истребителя ATF (Advanced Tactical Fighter). Самолет предназначался для замены F-15 Eagle. Конкурс выиграл прототип самолета, известного ныне как F-22 Raptor, с двигателем Pratt & Whitney. Проигравшим конкурентом был Northrop/McDonnell Douglas F-23. Сформулированные в 1981 году требования к самолету ATF предусматривали разработку малозаметного истребителя, созданного по технологиям стелс, способного выполнять длительный сверхзвуковой полет на бесфорсажном режиме работы двигателей, очень маневренного, с укороченными взлетом и посадкой за счет использования плоских отклоняемых сопел двигателей. Спецификация оговаривала использование трехканальной цифровой электродистанционной системы управления, что предполагало статическую неустойчивость самолета. В системе управления вооружением предстояло использовать элементы искусственного интеллекта для уменьшения загруженности летчика при одновременном повышении эффективности его работы.
   В сентябре 1983 года компаниям "Boeing", "General Dynamics", "Grumman", "McDonnell Douglas", "Northrop" и "Rockwell" предложили принять участие в конкурсе аванпроектов. Официальный запрос был разослан в сентябре 1985 года, оценку предложений провели в июле 1986 года, а 31 октября объявили двух победителей - компании "Lockheed" и "Northrop". С ними заключили контракты на постройку каждой фирмой двух прототипов.
   Параллельно шла инициированная в 1983 году программа разработки для самолета ATF совершенно новых двигателей. Наземные испытания двигателей General Electric F120 и Pratt & Whitney F119 начались в 1986-1987 годах. В начале 1988 года Министерство обороны США одобрило изготовление летных образцов двигателей каждого из двух типов, предназначенных для установки на прототипы ATF. В октябре 1989 года Пентагон продлил на шесть месяцев программу испытаний. К этому времени определились и с основными подрядчиками программы. Компания "Lockheed" объединилась с "Boeing" и "General Dynamics", но покупка "Lockheed" (с 1995 года - "Lockheed Martin") истребительного отделения фирмы "General Dynamics" привело к сосредоточению у "Lockheed" 67,5% объемов работ.
   Прототип YF-22A с двигателями YF120 выполнил первый полет 29 сентября 1990 года, 30 октября 1991 года в воздух поднялся второй опытный самолет YF-22A, но уже с ТРДДФ YF119. В ноябре 1990 года Министерство обороны США рассмотрело предложения по окончательной отработке авиационного комплекса и его производству, после чего выбор был сделан в пользу самолета F-22 с двигателями F119. В августе 1991 года был заключен контракт на производство 11 (позже количество уменьшено до девяти) предсерийных самолетов, включая два двухместных F-22B. В конечном итоге от спарок отказались, оставив только одноместные F-22A.
   Форма самолета выбрана с учетом требований малозаметности в тех областях электромагнитных волн, которые используются в радиолокации; кромки всех открывающихся в полете створок выполнены зубчатыми, чтобы излучение РЛС противника как можно меньше отражалось в обратную сторону. Для размещения вооружения были оборудованы три внутренних отсека: один большой центральный и два поменьше в бортах фюзеляжа. Но в то же время предусмотрена и возможность монтажа четырех подкрыльевых пилонов для подвески внешних нагрузок. Бортовые электронные системы выполнены с использованием элементов искусственного интеллекта, применены волоконно-оптические линии связи. Скорость работы компьютерных систем на самолете F-22 в сравнении с системами F-15 увеличена в 16 раз, емкость памяти электронных устройств увеличена втрое. Основу наступательного целевого оборудования составляет РЛС APG-77 с активной фазированной антенной решеткой. РЛС способна сопровождать на проходе одновременно несколько воздушных целей и производить пуск ракет сразу по нескольким из них. РЛС также способна работать в режиме картографирования и как метео-РЛС. На самолете установлены система обмена информации (не сопряжена с аналогичными системами других самолетов ВВС США, что препятствует интеграции F-22 в "цифровое поле боя" и, вероятно, является главной причиной неучастия Raptor в боевых действиях), приемник GPS, аппаратура бортового комплекса обороны. В кабине установлено катапультное кресло ACES II класса "ноль-ноль". Приборное оборудование кабины выполнено на основе четырех цветных жидкокристаллических многофункциональных индикаторов и широкоугольного ИЛС (производства "Marconi").
   Основными органами управления самолетом являются боковая ручка и РУДы. К поверхностям управления относятся занимающие почти весь размах крыла предкрылки, внешние элероны, внутренние флапероны, дифференциально отклоняемые стабилизаторы и два руля направления, установленные на наклоненных наружу килях. Управление самолетом также осуществляется отклонением сопел двух двигателей, сопла отклоняются только в вертикальной плоскости в секторе +/-20°. Самолет не теряет управляемости даже на очень больших углах атаки.
   Стоимость всей программы постоянно находилась под контролем Конгресса США, внимание к ней усилилось (а критика возросла) после снижения для США высокотехнологичных угроз.
   Проектирование двухместного F-22B велось, но до постройки прототипа дело не дошло. Спарка должна была обладать всеми боевыми возможностями одноместной машины.
   В 2005 году F-22 достиг состояния первоначальной боеготовности. В 2007 году F-22 с авиабазы Элмендорф на Аляске впервые перехватили и сопровождали Ту-95МС Дальней авиации ВВС РФ.
   Модернизация самолета F-22A обходится очень дорого и ведется медленно из-за весьма устаревших элементной базы и программного обеспечения, установленных на самолете. После очередного этапа доработок F-22 получат возможность использовать УР класса "воздух-воздух" AIM-9X и AIM-120, бомбы малого диаметра (SDB). В перспективе самолет планируется хоть частично унифицировать с F-35.
   К середине 2011 года ВВС США получили почти все из 187 заказанных самолетов F-22. Шансы на продление серийного производства ничтожны. В мае 2011 года полеты всех F-22 прекратили из-за неоднократных случаев гипоксии у летчиков в полете (по этой причине, вероятно, произошла катастрофа F-22 на Аляске осенью 2010 года). Причиной гипоксии стало попадание выхлопных газов двигателей в кислородную систему. В сентябре 2011 года полеты возобновили, но в октябре вновь был отмечен случай гипоксии, и полеты снова были запрещены.


ТАКТИКО-ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

   Lockheed Martin F-22A Raptor

   Тип: одноместный истребитель завоевания превосходства в воздухе
   Силовая установка: два ТРДДФ Pratt & Whitney F119-PW-100 с отклоняемым вектором тяги, с тягой на форсаже по 155,75 кН
   Летные характеристики: максимальная скорость на большой высоте М=2,25 (2390 км/ч) с возможностью в течение 5 мин лететь со скоростью М=1,87 (1891 км/ч)
   Масса: пустого 19 700 кг; пустого снаряженного 29 300 кг; максимальная взлетная 38000 кг
   Размеры: размах крыла 13,56 м; длина 18,90 м; высота 5,08 м; площадь крыла 78,04 м2
   Вооружение ("воздух-воздух"): одна встроенная 20-мм пушка M61A2 Vulcan и до восьми УР - четыре AIM-120A/B или шесть AIM-120C-7 меньшего размера в нижнем отсеке вооружения и две УР AIM-9M в боковых отсеках вооружения
   Вооружение ("воздух-поверхность"): одна 454-кг КАБ JDAM в нижнем отсеке (и одна УР AIM-120) или четыре бомбы GBU-39 SDB и одна УР AMRAAM
YF-22
YF-22
29 сентября 1990г.: перегоночный полет до авиабазы Эдвардс осуществил Lockheed YF-22 ATF, построенный совместно с "Boeing" и "General Dynamics".
С самого начала предусматривалось, что основное вооружение F-22 будет размещаться во внутренних отсеках. Поэтому YF-22 оснастили отсеками вооружения для ракет "воздух-воздух", расположенных под и по бокам передней части центроплана.
Posing for the camera, this view of the second YF-22A illustrates the large fin/rudder area. Such large surfaces were necessary to ensure positive handling and high agility.
Первый полет YF-22
Pilot visibility is good on the YF-22A but changes to the production model will put the pilot further forward and place the intakes slightly aft, increasing the visual circumference.
YF-22
Close coupled wing and horizontal tail surfaces posed a problem for stealth-conscious designers but reflections were minimised by aligning the tail with wing sweep angles.
The broad plan of the upper fuselage/wing interface carries top decking for the engine air intakes and S-ducts to the engine.
Повреждения YF-22 без возможности восстановления. 22 апреля 1992г.: единственный летный прототип Lockheed Martin YF-22 из-за отказа системы управления потерпел аварию в испытательном полете с авиабазы Эдвардс в Калифорнии. Летчик-испытатель "Lockheed" Том Моргенфельд из-за ухудшения погоды прекратил выполнение задания, но при заходе на посадку из-за отказа системы управления возникли самоколебания отклоняемых сопел двигателя и дифференциального стабилизатора. Самолет столкнулся с землей и загорелся.
В полете - YF-22A, один из двух прототипов "Рэптора", впервые поднявшийся в небо в сентябре 1990г. За истекшие семь лет самолет прошел всесторонние испытания, по опыту которых в конструкцию предсерийных F-22A внесены необходимые изменения
In designing the YF-22A air superiority fighter, Lockheed has integrated its vast experience of low observables technology with the broad spectrum of air combat disciplines. The net result is arguably the most advanced fighter technology in the world today.
Отстав от своего соперника YF-23 на месяц и два дня из-за проблем с двигателями General Electric YF120, первый YF-22 поднялся в воздух в сентябре 1990 года, пилотируемый Дейвом Фергюсоном. На снимке хорошо видны ромбовидное крыло самолета и широко разнесенные поверхности оперения.
Разработка YF-22 всегда находилась под сильным влиянием работ по F-117, и когда в августе 1997 года самолет был продемонстрирован общественности, некоторые наблюдатели отметили его сходство с предшественником.
Lockheed/Boeing/General Dynamics YF-22. Самолет Lockheed YF-22 был медленнее YF-23, но разработчики не разделяли мнения ВВС, считавших, что высокой скорости и малой заметности достаточно. Поэтому при разработке компания "Lockheed" обратила внимание на обеспечение высокой маневренности YF-22.
The ability of an aircraft to supercruise will not only stretch combat radius but forces an adversary to expend his own fuel in order to get his aircraft to an energy state where he can engage. Both Lockheed Martin’s F-22 and Eurofighter’s EF2000 will be able to supercruise in the Mach 1.4-1.5 region. The F-22’s Pratt & Whitney F119 turbofan’s twin spools counter-rotate to reduce the gyroscopic moments set up in high angular rate manoeuvres. Illustrated here is one of the YF-22 prototypes.
Одни из самых впечатляющих снимков в ходе программы ATF Dem/Val были сделаны, когда первый YF-22 выполнял маневры в воздухе. Оснащенный противоштопорным парашютом самолет выполняет скоростную бочку.
Первой запущенной с самолета ракетой стала AIM-9 Sidewinder, размещавшаяся в боковом отсеке. Ракета была инертной, без ГСН и боевой части.
A YF-22A fires an AIM-9 from the port side weapons bay. Note the extended trapeze to which the missile had previously been attached.
Незадолго до завершения этапа Dem/Val самолет YF-22 произвел пуск инертной ракеты AIM-120C AMRAAM - своего основного оружия. AIM-120C отличается оперением уменьшенного размаха, позволяющим разместить ее на внутренней подвеске.
To ensure safe separation of AIM-120C AMRAAMs from the main weapons bay the missiles are ejected prior to rocket motor ignition. This is an early test firing of an AMRAAM from the second YF-22A.
YF-22 относится к третьему поколению малозаметных самолетов "Lockheed". Его низкая заметность позволяет ему гораздо ближе подобраться к вражескому самолету перед открытием огня, что повышает вероятность поражения цели. Самолет на переднем плане оснащен парашютом для испытаний на больших углах атаки.
Пара YF-22 над авиабазой Эдвардс. Как заявил руководитель программы Шерм Маллин: "Характеристики самолета оказались превосходными. Машина делала все, что мы от нее хотели".
Дозаправка в воздухе была отработана на раннем этапе испытаний, так что в дальнейшем время полетов было увеличено для получения максимальной отдачи. Использовались различные заправщики; в данном случае это KC-135A из 93-го авиакрыла.
The in-flight refuelling point on the YF-22A is located at approximately mid-length with the receptacle covered by a sliding door. Note the vortices shed off the wing tips due to the high weight and low speed.
As with the F-117A, radar reflections from panels and doors have been dissipated by the use of serrated edges. This is particularly apparent at the fuselage/engine nozzle junction and weapons bay.
Pursued by the aircraft it is designed to replace, the YF-22A lifts off with flaps down and leading edge devices deployed. Note the narrow nose leg retraction space.
Одно из многочисленных статических испытаний по программе ATF. YF-22 удерживается мощными цепями при проверке форсажа двигателя Pratt & Whitney YF119.
An engine test on the second YF-22A prototype shows off the boattail area but note the flaperons, ailerons and horizontal tails, all of which operate in conjunction during flight.
Летчики-испытатели, летавшие на YF-22 (слева - направо): Дэйв Фергюсон и Том Моргенфилд ("Lockheed"), Джон Бизли (GD), майор Марк Шеклфорд и подполковник Вилли Нейгл (ВВС США).
Сборка YF-22 на заводе фирмы «Локхид» в Палмдейле
F-22
Lockheed Martin’s third flying prototype of the F-22A Raptor, 91-4003 (c/n 4003), tucks up its undercarriage after getting airborne for its first flight from Dobbins Air Reserve Base, Georgia, adjacent to the Marietta production line, on March 6, 2000 with Boeing test pilot Chuck Killberg at the controls. (USAF)
Изначально предполагалось, что Raptor 01 (№4001) совершит перелет из Мариетты на авиабазу Эдвардс, где проводились летные испытания, но впоследствии самолет было решено в разобранном виде перевезти на C-5. 5 февраля 1998 года он прибыл на место.
Production of the F119 engine, powerplant of the F-22 Raptor, has discontinued and Pratt & Whitney is now providing the US Air Force with aftermarket and sustainment support.
Software-related incidents such as the pilot-induced oscillation that caused the crash on landing of the YF-22, and two Gripen accidents led to the safety of fly-by-wire systems to be questioned. However, refined software validation techniques have significantly reduced the risk of similar occurrences. All safety-critical software changes on aircraft such as the F-22, illustrated here, will be subjected to rigorous testing.
Suggesting that aircraft design is as much an art as a science, the US favours aft-tail designs with aircraft such as the Lockheed Martin F-22 Raptor, while Western Europe and Russia pursue the foreplane-delta.
F-22
7 сентября 1997г. поднялся в воздух первый из опытной серии истребителей пятого поколения Lockheed Martin/Boeing F-22A Raptor
Технология "Стелс" была использована при создании истребителя F-22 Raptor. Истребитель F-15 Eagle, которому F-22 пришел на смену, со своими рублеными формами фюзеляжа не слишком подходит под понятие малозаметного самолета.
В результате ряда доработок (наиболее существенные изменения коснулись воздухозаборников, крыла и фонаря кабины) получившийся F-22 стал более привлекательной машиной, чем YF-22. На фотографии хорошо видно крыло новой формы в плане.
9 февраля 2004г.: в очередном полете с авиабазы Эдвардс самолет Lockheed Martin F/A-22 Raptor (серийный номер 4003) достиг 5000-часового безаварийного налета в ходе летных испытаний. В этом полете самолетом управлял летчик-испытатель майор Джим Даттон.
Программа летных и оценочных испытаний F-22 не имела аналогов в истории ВВС США - разработчикам и заказчику предстояло оценить способность нового стелс-истребителя выполнять все поставленные ему задачи.
Lockheed Martin F-22 - самый современный американский истребитель, совмещающий уникальные конструкторские наработки и самое современное вооружение и БРЭО.
Было построено девять опытных машин F-22 EMD с целью изучения и отработки всех особенностей конструкции истребителя. Последние два самолета EMD и два первых серийных истребителя были задействованы в эксплуатационных испытаниях.
The two flying Lockheed Martin F-22 Raptor fighters currently under test at Edwards AFB
Первый полет F-22A под управлением Пола Метца 7 сентября 1997г.
Initial Lockheed Martin F-22A EMD aircraft with port segment of main weapons bay open (1999)
F-22 с открытыми створками среднего отсека вооружения во время летных испытаний
Raptor 02 - первый F-22, на котором был выполнен пуск УР AIM-9M (25 июля 2000 года). Ракета была практической, без боевой части, а пуск осуществлен на высоте 6096 м и на скорости М=0,7.
Пуск УР AIM-9M из бокового отсека F-22 EMD. Устаревшая УР AIM-9M является "ахиллесовой пятой" арсенала F-22, хотя ракета надежна и неоднократно проверена в реальных воздушных боях. УР AIM-9M планируется заменить на более совершенную УР AIM-9X. Планируется, что F-22 будет способен применять AIM-9X в 2012 году.
Надо отметить, что возможности американского истребителя 5-го поколения F-22 пока для отечественных авиаконструкторов недосягаемы.
F-22 Raptor 4002 fires an AIM-9 Sidewinder air-to-air missile during a separation test at 40,000 feet. Flown at a 26° angle-of-attack at only Mach 0.4, the test flight demonstrated the Raptor's ability to operate at slow speeds in a combat environment and still maintain manoeuvrability.
The second EMD F-22A taking fuel from a KC-135E from Edwards AFB (1999)
America’s future ‘supercruise’ fighter, the F-22 Raptor, made its public flying debut at the Edwards show, just after Congress agreed funds to continue the programme.
First two EMD F-22As at Edwards AFB test site (1999)
The Boeing Company has developed a new paint that will reduce the F-22 Raptor’s vulnerability to infra-red threats. The paint, referred to as a ‘topcoat’, has been applied to the second F-22 at Edwards AFB, Calif. It adds no more weight to the aircraft and is applied in a two-tone camouflage design, similar to the F-15 ‘Mod-Eagle’ paint scheme. Raptor 04 will be next to receive its new top­coat. Each application takes up to two days.
Lockheed Martin F-22A Raptor 4004, the first example equipped with a fully integrated avionics suite, is towed from the manufacturer's final assembly line at Marietta, Georgia, on January 28, 2000. Using 'lean manufacturing' techniques, the aircraft was completed with more than a 10% cost reduction over earlier examples. The aircraft will now enter Marietta's robotic coatings facility for application of the final finishes before the aircraft joins the P-22 Combined Test Force at Edwards AFB, California, later this year.
При пилотировании F-22, обладающего выдающимися высотными и маневренными характеристиками, у летчиков часто появлялась гипоксия. По этой причине в 2008 году на режим полетов F-22 были наложены жесткие ограничения.
Обладая возможностью летать выше других истребителей, летчики F-22 будут доминировать в воздушных боях. За счет сочетания сверхзвуковой крейсерской скорости, большого практического потолка, совершенного БРЭО и малозаметности Raptor в воздушном бою превосходит любой другой истребитель. Самолет также способен наносить точечные удары по наземным целям наивысшего приоритета, защищенным сильной ПВО.
The USAF’s F-22 Raptor was the progenitor of western fifth-generation stealth designs, although upgrades are required to keep it relevant as it continues through the second half of its expected service life
F-22 отличается высокой маневренностью. Отклонение носка крыла, выпуск закрылков, отклонение элеронов, стабилизаторов и рулей направления регулируются и согласуются системой автоматического управления (СМ).. На снимке: элевоны - в режиме рулей высоты, носок крыла отклонен, рули направления отклонены до упора вправо. САУ также управляет отклонением вектора тяги двигателей.
Многие эксперты склонны рассматривать F-22A как последний пилотируемый истребитель - на смену ему, вероятно, придет уже беспилотный боевой авиационный комплекс.
F-22 на 11-й международной аэрокосмической выставке Дубай Эйршоу 2009 (ноябрь 2009г.)
Самолет F-22, до поступления в войска F-35, будет оставаться единственным истребителем с размещением вооружения во внутренних отсеках. Центральные отсеки вмещают до трех УР AIM-120 каждый, боковые - по одной УР AIM-9M.
As part of the F-22A display the main and side weapons bay doors are opened during a pass to show the crowd where weapons would be carried.
An F-22A Raptor armed with four Small Diameter Bombs (SDBs). Boeing SDBs have an all-weather capability, a standoff range of 60nm and will be compatible with every US strike aircraft.
В каждом из двух основных отсеков вооружения F-22 Raptor может нести по четыре бомбы GBU-39 SDB.
An F-22 Raptor loaded with four GBU-39/B Small Diameter Bomb test articles during a loads test flight designed to ensure the GBU-39 does not exceed the aircraft's structural load boundaries.
Как и любой другой боевой самолет, F-22 располагает большим количеством технологических лючков и съемных панелей обшивки. Для уменьшения ЭПР кромки лючков и съемных панелей выполнены зубчатыми.
Two solutions to a common aim - to produce a superior air combat aircraft. With its Flanker family, Sukhoi has opted for a compromise between cost and capability, and in so doing has sacrificed stealth and some aspects of performance. In contrast, the Raptor is unquestionably the most capable combat aircraft in the world, but its cost and classified systems will severely inhibit export sales and even the numbers built for the USAF.
An F-22A Raptor from the 1st Fighter Wing at Joint Base Langley-Eustis, Virginia, pulls away from a Boeing KC-135 Stratotanker after refuelling on July 10, 2012
The F-22 Raptors, highly sophisticated as they are, could well find themselves removed from service ahead of time, despite the huge expense in development, acquisition, and sustainment
The F-22-equipped 199th Fighter Squadron, Hawaii Air National Guard based at Joint Base Pearl Harbor-Hickam is a joint air national guard-active duty squadron assigned to the Pacific Air Forces.
F-22 05-4101/TY during a demonstration at Dannelly Field, near Montgomery, Alabama.
Совершенное БРЭО обеспечивает F-22 преимущество в ведении дальнего ракетного боя, однако самолет способен эффективно вести и маневренный воздушный бой. Сверхманевренность достигнута за счет комбинации мощных двигателей F119 с управляемым вектором тяги и крылом большой площади.
Vapour billows off the top surfaces of a Raptor as Major Moga pulls a tight turn in afterburner. According to the Major, most of the manoeuvres he performs could not be flown by the USAF's previous premier fighter - the F-15.
This is the first time that Spanish fighters took part in joint training with fifth­generation US Air Force fighters.
Less than 190 operational F-22 fighters were delivered to the USAF, with the number available for use thought to be considerably lower now
An F-22 Raptor dispenses a flare used for self-protection against infrared-guided missiles.
Многоцелевой истребитель F-22 несет все вооружение во внутренних отсеках. Ракеты AIM-120 предназначены для воздушного боя, а управляемые бомбы SDB (на снимке) и JDAM позволяют с высокой точностью поражать цели на земле.
Despite the lack of potential enemy next generation fighters being developed that could seriously threaten current US fighters, huge sums of money have, and are, being spent on the F-22 and F-35. The author argues that other areas of the USAF's inventory are in more need of upgrade or replacement.
В начале работ по программе создания перспективного истребителя общее количество потребных истребителей завоевания превосходства в воздухе оценивалось в 750 самолетов. Впоследствии оно сократилось до 187, в то время как на Raptor были возложены и ударные функции.
Lockheed Martin has proposed upgrades to the low-observable external coating of the F-22. Issues with the coatings contributed to a 60% mission capable rate in 2016.
The USAF claims that “task saturation” poses a substantial threat to F-22A Raptor pilots, especially when operating in highly contested environments. These upgrades will seek to reduce pilot workload, freeing the pilot up to focus less on flying the aircraft and more on the mission at hand
F-22A Raptor - элитный истребитель ВВС США, о котором только могут мечтать летчики других стран. Хотя он уже не одинок, в России появляется свой истребитель пятого поколения.

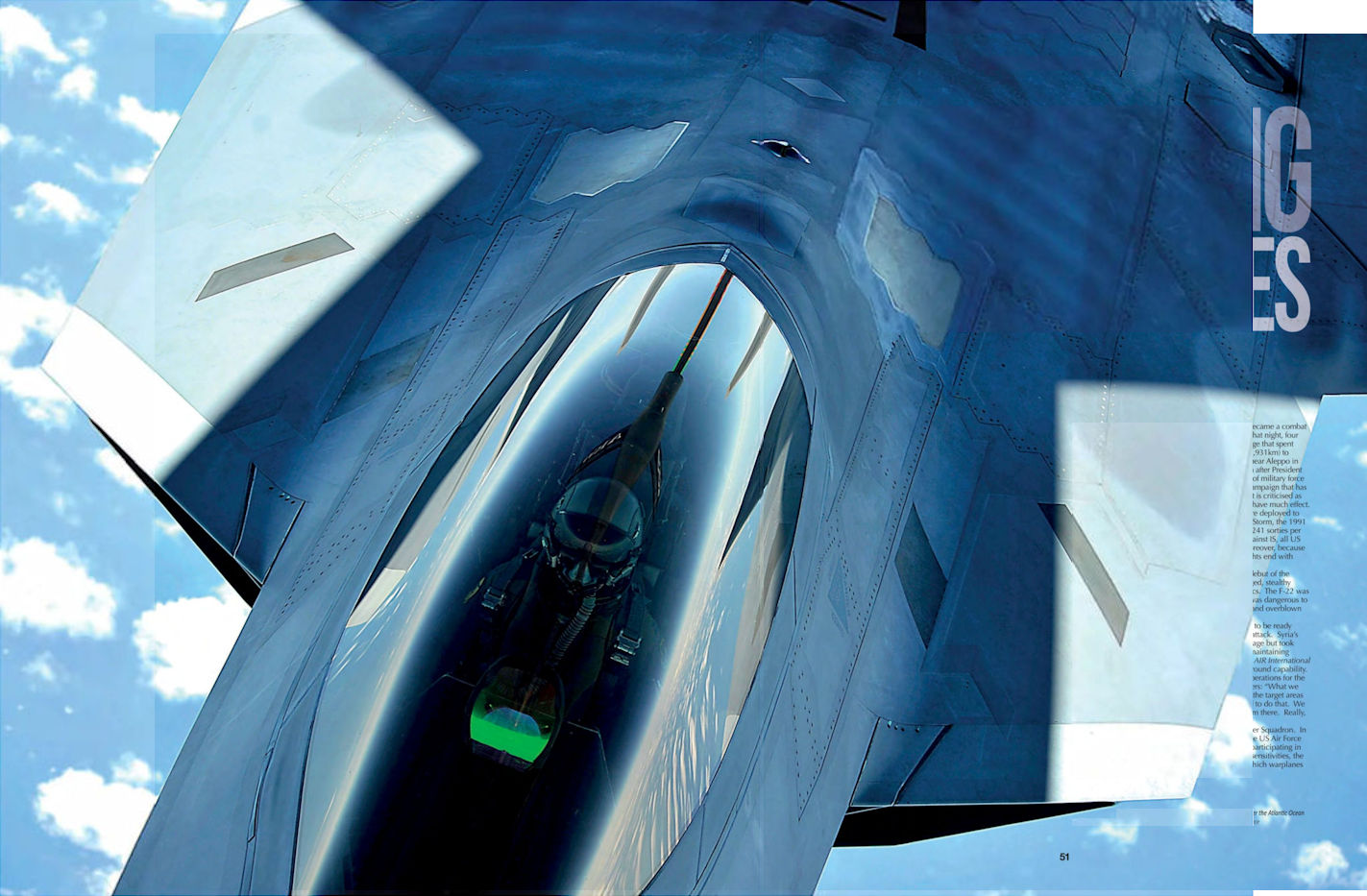

What price stealth, when cockpit glint like this could be seen from many miles away? Although the USAF says it needs up to 380 F-22 A Raptors, it is unlikely that the Pentagon will allow many more than the currently stated total of 183.
Four F-22 Raptors over fly the memorial at Marnes-la-Coquette, in the western suburbs of Paris on April 20, 2016 to mark the centenary of the La Fayette Escadrille.
Самолеты, принимавшие участие в учениях «Cope Taufan 2014»: «Хорнет», МиГ-29, Су-30МКМ и «Хок» ВВС Малайзии, американские F-22 и F-15.
Совместный полет F-22 ВВС США и МиГ-29 ВВС Малайзии, учения «Cope Taufan 2014»
F-15 и F-22
Чтобы достойно противостоять истребителями F-22, пилотам "агрессоров" пришлось тщательно изучить все достоинства и недостатки как F-22, так и своих самолетов. F-15 обладает большей радиолокационной заметностью по сравнению с F-22.
B-2A в сопровождении истребителей F-22
Сопровождение ракетоносца Ту-95МС ВКС России самолётом F-22A из 3-го иакр ВВС США
KC-135 привлекаются к испытаниям самолетов новых типов. KC-135 с авиабазы Грэнд-Фокс в Северной Дакоте дозаправляет F-22 во время летных испытаний истребителя, ноябрь 2005 года.
A 411th Flight Test Squadron F-22A Raptor takes on fuel in-flight from a KC-135R on August 19, 2008. What is unusual is that the fuel being transferred was a 50/50 mix of normal and synthetic composition.
At the extreme end, F-22 stealth fighter were used at a cost-per-flight-hour of around $70,000.
A US Air Force KC-10 Extender refuels an F-22 Raptor after strike operations in Syria.
An F-22 Raptor refuels from a KC-135R Stratotanker over the Atlantic Ocean during a mission from Langley Air Force Base.
An F-22 Raptor receives fuel from a KC-135 Stratotanker during a mission in support of Operation Inherent Resolve.
Размещение ракет AMRAAM на внешней подвеске под крылом
A crew chief tows an F-22 aircraft on the flight line at Tyndall Air Force Base, Florida, Oct. 21, 2018. Ground immediately adjacent to the flight line is strewn with debris torn from buildings during Hurricane Michael.
The forward fuselage of this F-22 shows visible signs of repairs to the low-observable coatings.
The F-22A Raptor was originally intended to have distributed radar arrays either side of its forward fuselage, although this appears to have been abandoned for reasons of cost
A 1st Fighter Wing F-22 pilot and crew chief prepare to launch a jet for take-off at Langley.
Atlantic Trident provided opportunities to see four of the world’s most advanced fighter aircraft alongside one another. A Rafale C shares the end of runway ramp with an F-22 awaiting take-off clearance for an afternoon mission.
Four F-22s taxy to departure from runway 24.
Heat haze from the F-22A Raptor's engines blur the background in Malcolm Hill's photograph of the USAF's premier combat aircraft.
На снимке видно ограниченное число образующих плоскостей планера. Боковые поверхности носовой части фюзеляжа, кромки воздухозаборников и килей расположены вдоль одной плоскости. Это сделано для уменьшения ЭПР самолета.
F-22A
An F-22 parked on the flight line on a foggy morning at Langley Air Force Base, Virginia.
Starting next year, fifth-generation aircraft will be integrated into the TLP courses.
Major Michael 'Deep' Frye, 95th FS weapons officer was one of the first participants of a TLP course at Albacete in 2012, at the time he flew F-15Es from RAF Lakenheath with the 48th Fighter Wing.
A Raptor pilot taxies his silvery Raptor painted in the Have Glass colour scheme on to the end of runway ramp at Holloman Air Force Base.
A crew chief signals the pilot to prepare to taxi on the flight line at Kadena Air Base, Japan during a deployment to the Okinawa base. The airman and aircraft are assigned to the 525th Expeditionary Fighter Squadron based at Joint Base Elmendorf-Richardson, Alaska.
An airman signals to the pilot to apply the brakes, ready for the chocks to be placed against the main wheels for final checks, on the end of runway ramp at Holloman.
Note the difference in nose height between the first and second aircraft. Forward landing gear leg on the second aircraft appears to be higher.
F-22 Raptors from the Langley-based 1st Fighter Wing at Kadena Air Base, Okinawa, during a temporary duty deployment to the South China Sea super base.
A US Air Force F-22 Raptor flanked by an F-16C Fighting Falcon and a Republic of Korea Air Force F-15 Slam Eagle at Osan Air Base following a 12-aircraft formation show of force.
The Raptor, Typhoon and Hornet pilots that participated in the training pose for posterity to commemorate the first visit of fifth-generation aircraft to Albacete Air Base and the TLP.
Major Paul D 'Max’ Moga is in his second year as the F-22A demonstration pilot and is supported by ten other airforce personnel. This year the Raptor will be flown at 22 US airshows, as well as Fairford and Farnborough.
An F-22 Raptor assigned to the 27th Expeditionary Fighter Squadron pulls out of its parking shelter for a strike mission over Syria.
An F-22 Raptor inside one of the less damaged hangars at Tyndall Air Force Base, Florida following the passage of Hurricane Michael.
F-22
Airman 1st Class Jennifer Craig and Australian Major Matthew Harper prepare an F-22 Raptor for departure from Joint Base Elmendorf-Richardson, Alaska.
Предполетный осмотр для F-22 имеет большее значение, чем для самолетов предшествующих поколений. Raptor построен с использованием технологий малозаметности (стелс). Форма планера создана так, чтобы сигнал от РЛС противника отражался лишь в нескольких направлениях.
By 2030, the F-22 Raptor will be one of the oldest fighter types in US Air Force service.
An Airman assigned to the 94th Aircraft Maintenance Unit reattaches a panel after performing maintenance on an F-22's avionics systems at Nellis.
The F-22’s canopy is a one-piece design featuring, what looks like, an integrated bow frame to reduce the aircraft's radar cross section and its weight.
Fifteen discrete bombs marks on the side of the forward fuselage of F-22 05-4086.
Major Moga climbs steeply as part of his routine in the F-22A. Normally he flies a Langley AFB aircraft (tail-code ’FF’), though if performing at another Raptor base an example from the resident fleet will be used to save costs. In this case a Raptor from Elmendorf AFB, Alaska was utilised.
Самый современный истребитель Lockheed Martin F-22 - первый в мире истребитель "пятого поколения". Высокие летные характеристики, предельная маневренность, малая заметность и комплексная обработка информации разных датчиков соединены в одном корпусе - все эти качества имеют очень высокую цену.
To date, the USAF only has approval to buy 183 F-22A Raptors. However, General Moseley has always stated that in his opinion the minimum number required is 381.
Currently, two PACAF bases are due to receive the F-22A Raptor - Elmendorf in Alaska and Hickam on Hawaii. The first PACAF unit to get the type was the 90th Fighter Squadron which had been operating F-15E Strike Eagles. The two types are pictured in a formation over Alaska just prior to the unit relinquishing its last F-15Es.
The Tu-95MS is the principal aircraft used by the Russian Air Force for high-profile 'show of force' patrols.
В ноябре 2007 года новейшие истребители ВВС США F-22, только недавно прибывшие на базу Элмендорф на Аляске, были срочно подняты на перехват российских Ту-95МС. Обратите внимание на ПТБ, который несет американский истребитель.
В ноябре 2007 года пара F-22A с авиабазы Элмендорф выполнила первый перехват "вероятного противника", в роли которого выступил российский Ту-95МС. На фотографии видно, что Raptor несет подвесные топливные баки.
Первый в карьере "Рэптора" перехват "неустановленной воздушной цели", 22 ноября 2007г.
In August 2012 the Alaska-based 477th Fighter Group and 525th Fighter Squadron became the first operational F-22 units to drop GBU-39s. Flying from Hill AFB, the F-22s dropped the GBU-39s on the Utah Test and Training Range as part of the USAF's Weapons System Evaluation Programme.
Первые F-22A прибыли на авиабазу Элмендорф 8 августа 2007 года. Суровые климатические условия, как оказалось, оказывают негативное влияние на работоспособность стелс-покрытия самолетов, что требует более объемного техобслуживания.
Истребители F-22A с подвесными топливными баками выруливают на взлетную полосу авиабазы Элмендорф, Аляска, 2019 г.
A crew chief looks over her tools before preparing an F-22 Raptor for a training mission at Nellis Air Force Base.
Whilst the first six F-22As for the 3rd Wing at Elmendorf Air Force Base, Alaska, were delivered to the unit on August 8, 2007, Lockheed Martin continues to progress with production. Seen here test flying recently from Marietta, Georgia, still unpainted, is the 100th Raptor, 05-4100 (c/n 4100) 'AK', which will also shortly be delivered to the 3rd Wing.
Although the YF-22As have long been retired, the KC-135R fleet is likely to be providing tanker support to the Raptor for the majority of its service life.
The USAF demonstrated the MUM-T data-sharing capabilities of its gatewayONE payload during a series of test flights that culminated on December 9, 2020. On that day, a USAF-operated F-22A Raptor and F-35A Lightning II flew in formation with a Kratos Defense XQ-58A Valkyrie unmanned combat air vehicle (UCAV) from the Air Force Research Laboratory for the first time
This formation of a F-117A and its successor, the F-22A, make an interesting comparison in approaches to stealth. The advent of supercomputers, after the Nighthawk had been designed, allowed the radar cross-section of compound curves to be predicted. This is why the B-2 and F-22 are not faceted.
F-22 91-4009/ED releases a GBU-31 JDAM; the first air-to-surface weapon cleared for operational use on the Raptor.
Несмотря на небольшую массу боевой части (17 кг) бомба малого диаметра GBU-39 SDB обладает значительной эффективностью за счет большой проникающей способности. Снимок сделан во время испытательных сбросов SDB с F-22.
F-22 91-4009/ED releases four GBU-39 test vehicles over the Pacific Sea Test Range off the coast of southern California. This was the first four-bomb ripple release of GBU-39s undertaken as part of the Increment 3.2A test programme.
Сброс КАБ GBU-32
The first guided launch of the AIM-9X Sidewinder from an F-22 Raptor was made on February 26, 2015, by Major Christopher Guarente, from the 411th Flight Test Squadron based at Edwards Air Force Base, California.
The AIM-9 Sidewinder air-to-air missile has been carried by F-22s since the type’s initial operational capability declaration in December 2005. Today the 411th Flight Test Squadron is testing the AIM-9X version which features jet vane control.
Основным вооружением F-22, как и большинства западных истребителей, является УР "воздух-воздух" AIM-120 AMRAAM. Raptor вооружается УР AIM-120 с оперением уменьшенного размаха; только такие УР помещаются в фюзеляжных отсеках вооружения Raptor. УР "воздух-воздух" во внутренних отсеках американских истребителей не размещались с 1988 года, когда были списаны последние F-106 Delta Dart.
F-22 Raptor 03-4058/FF assigned to the 1st Fighter Wing based at Langley Air Force Base, Virginia live fires an AIM-120 AMRAAM.
F-22 из 1-го истребительного авиакрыла выполняет сброс GBU-32 JDAM с инертной боевой частью. На F-22 возлагаются задачи поражения наземных целей, на протяжении короткого периода самолет даже обозначался как F/A-22.
The F-22 Raptor-equipped 94th Fighter Squadron based at Langley Air Force Base, Virginia used Red Flag 15-1 as a final work-up exercise before deploying to US Central Command’s Area of Operation in early April 2015.
Gear up and away! A 1st Fighter Wing F-22A Raptor departs on an afternoon mission. The Raptors worked with the F-35A as part of the USAF’s 4th/5th generation aircraft integration
The Fiscal Year 2023 budget request proposes a reduction of more than 30 F-22 Raptor fighters
At Red Flag 19-3, the F-22-equipped 94th Fighter Squadron was given the core function of air superiority to provide air-to-air support to Blue air.
Lockheed Martin's F-22A Raptor will make its European debut in July 2008, appearing at RIAT and the Farnborough International Airshow.
F-22
Undisputed star of the show was the F-22A Raptor, which participated in the flying programme on the opening day. It is testament to the interest shown in it that even the 'hardened' aviation press and trades people stopped in their tracks to watch it display.
Undoubtedly the most outstanding air superiority aircraft now in service, the F-22A’s high cost is limiting the number of aircraft the USAF will be allowed to buy. The Raptor's price tag and use of sensitive systems may also dictate whether any other nation can afford, or indeed, would be allowed, to buy them.
3 марта 2006г.: второй эксплуатант самолетов F-22A - 94-я эскадрилья ВВС США "Hat in the Ring" - получил первые два истребителя Raptor на своей базе в Лэнгли, Вирджиния. Эти два самолета присоединились к F-22, уже находившимся в строю 27-й эскадрильи 1-го истребительного крыла с той же авиабазы Лэнгли.
Истребитель P-51D «Мустанг» в совместном полете с истребителем F-22A, совершившим первый полет спустя 50 лет после «рождения» «Мустанга»
At most airshows in the US the Raptor will fly in formation with another USAF demonstration fast-jet, like this F-15E Strike Eagle, and Heritage Flight aircraft such as the World War Two era P-51 Mustang pictured. At present there are no plans for the F-22A to fly in formation with other aircraft at the UK airshows.
F-22 в совместном полете с F-15
Lockheed Martin F-22A Block 20 Raptor 04-4077 of the 1st Fighter Wing based at Langley AFB, Virginia, flown by F-22 Demonstration Team pilot Major Paul Moga, formated with the RAF Aerobatic Team, the Red Arrows, on June 18, 2008 at a practice for the base's AirPower Over Hampton Roads airshow.
An F-22 Raptor, a Typhoon FGR4 and a Rafale C fly in formation during a mission flown from Langley Air Force Base as part of Exercise Trilateral on December 7, 2015.
F-22 Raptor 08-4155/FF flies alongside a KC-135R Stratotanker assigned to the 434th Air Refueling Wing based at Grissom Air Reserve Base, Indiana, after conducting aerial refuelling during Exercise Northern Lightning 18-2.
F-22 09-4185/FF, one of six to stage through RAF Lakenheath homebound to Langley after a six-month deployment.
Red Flag 2007
F-22 Raptor from the Langley-based 1st Fighter Wing at Kadena Air Base, Okinawa, during a temporary duty deployment to the South China Sea super base.
US Air Force/1st Fighter Wing/27th Fighter Squadron F-22A Raptor 03-4049 'FF' touches down at Hickam Air Force Base, Hawaii, on February 7, 2007 for a layover before continuing to Kadena Air Base, Japan. The aircraft was one of 12 Raptors from the unit deploying to Kadena on the type's first operational overseas deployment. Although they were planned to fly on to Kadena on February 10, the aircraft turned back to Hickam shortly after departure after a 'software issue' affecting the navigation system was discovered. It was later revealed that as the first pair of aircraft crossed the International Date Line, multiple computer systems on the Raptors 'crashed', including fuel sub-systems, navigation computers and some communications. Although numerous attempts were made in flight to re-boot the systems, this was to no avail and they were forced to return to Hawaii, using their support tankers as guides, in the absence of any navigation systems. Within 48hrs, a software fix had been developed and installed, but then this had to be thoroughly tested before it was considered safe for the aircraft to continue. As a result, the first two aircraft did not arrive at Kadena until February 16, with the remainder following over the next few days.
Silver by nickname, silver by paint scheme. The F-22 is sometimes referred to as the silver bullet. This example looks particularly silver in the bright light and wears tail markings for the 1st Fighter Wing.
An F-22 Raptor taxies to the runway prior to strike operations in Syria on September 23, 2014. These aircraft were part of a large coalition strike package that was the first to strike ISIL targets in Syria.
Across generations; a fourth-generation RAF Typhoon FGR4 alongside a fifth-generation F-22 Raptor.
F-22 Raptors taxi to runway 26.
F-22 Raptor from the Langley-based 1st Fighter Wing at Kadena Air Base, Okinawa, during a temporary duty deployment to the South China Sea super base.
Часть бывших корейских T-38 была отремонтирована и снова начала службу в ВВС США как недорогая машина для имитации самолетов противника для истребителей F-22 на авиабазах Лэнгли и Тиндалл. На снимке: T-38, окрашенный в черный цвет, на одной стоянке с F-22A в Лэнгли, апрель 2011 года.
F-22A из состава 1-го истребительного авиакрыла на авиабазе «Аль Джафра», 30 ноября 2009 г.
Seven F-22 Raptors parked on the 411th Flight Test Squadron flight line on August 10, 2016. Interestingly, the aircraft third in from the camera, F-22 07-4132/ED, is shown with an external weapon load comprising a single AIM-9X Sidewinder and a single AIM-120D AMRAAM carried on a guided missile launcher fitted to the left wing underwing pylon.
A pilot assigned to the 27th Expeditionary Fighter Squadron climbs into an F-22 Raptor at Al Dhafra Air Base. The unit deployed to the US Central Command area of operations in late March 2014.
The 1st Fighter Wing/27th Fighter Squadron flew F-22A Raptors from Joint Base Langley-Eustis each morning. Clearly evident here are the stealthy lines of the jets parked on the ramp for a turnaround and participation in the afternoon’s proceedings
F-22A
Некоторые считают F-22 лучшим истребителем мира. Влияние F-22 в общем-то прослеживается в облике российского истребителя пятого поколения ПАК-ФА и китайского J-20.
A pair of F-22A Raptors from the 15th/154th Wing at Joint Base Pearl Harbor-Hickam, Hawaii, fly in formation over the clouds. This latest round of upgrades aims to equip the USAF’s 185-strong Raptor fleet with the Thales-developed Scorpion HMCS and an IRST sensor
F-22 и F-15 на учения «Cope Taufan 2014»
Истребители ВВС Малайзии и ВВС США в совместном полете
Учения «Cope Taufan 2014», На старт выруливают малайзийские «Хоки» и «Рэптор» ВВС США

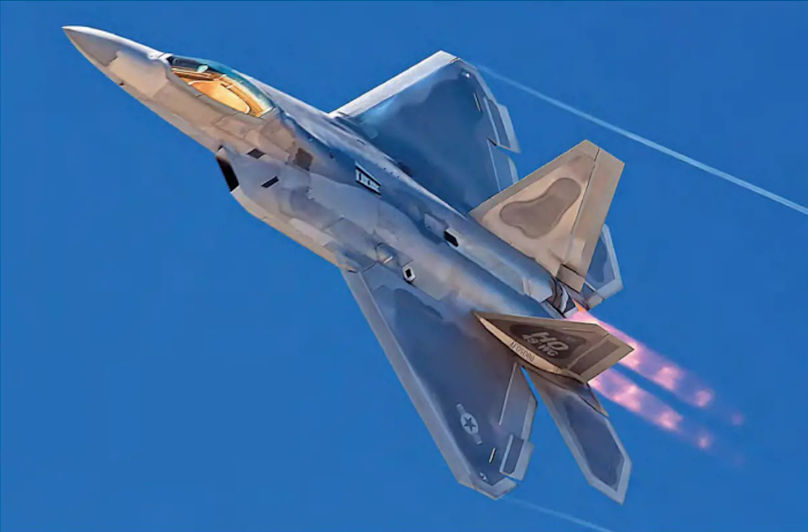

The first two Lockheed Martin F-22A Raptors for the 49th Fighter Wing at Holloman AFB, New Mexico, arrived at the base on June 2, 2008, adorned with the 'HO' codes previously worn by the wing's F-117A Nighthawks. The aircraft will join the 7th Fighter Squadron (FS), which was reactivated on May 17 under the command of Lt Col Michael Hernandez. The 7th FS is due to be operational and combat ready with 18 F-22As from November 1, 2009 - it will later be rejoined by the 8th FS as additional Raptors arrive. Both will share their F-22As with an AFRC squadron.
F-22 04-4078/'HO' is one of 21 Raptors assigned to the 7th Fighter Squadron at Holloman AFB, New Mexico. Transfer of the 21 aircraft to Tyndall AFB, Florida was 'frozen' by the delay in passing the National Defense Authorization Act and is now due to take place in 2014.
An F-22, in the markings of the now stood down 7th Fighter Squadron based at Holloman Air Force Base, drops an inert 1,000 lb GBU-32 JDAM on White Sands weapon range: the same class of munition used by F-22s on September 23, 2014 against ISIL targets in Syria.
A six-ship of F-22 Raptors flying over the White Sands range, near Alamogordo, in New Mexico.
Air Force Reserve Command’s 44th Fighter Group is a reserve associate unit to Air Combat Command’s 49th Wing.
An airman pulls a pair of chocks out to the end of runway ramp to park the jet during final checks before take-off.
Американские «Рэпторы» на авиабазе Кадена
Although seen here in afterburner, the F-22 can fly supersonically in dry power. This has huge advantages in reducing the fuel consumption in supersonic flight and minimising the infra-red signature.
The 411th Flight Test Squadron is currently conducting missile launches of the D-model of the AIM-120 AMRAAM missile as part of the Increment 3.2B test programme.
Истребителю пятого поколения F-22A приходится тесно сотрудничать с боевыми самолетами предыдущих поколений.
Боковые отсеки вооружения предназначены для размещения УР AIM-9. Чтобы ГСН ракеты захватила цель, створки отсека необходимо открыть, а ракету выдвинуть из отсека (как на снимке).
America's silver bullet, the F-22 Raptor, this example from Tyndall Air Force Base, Florida.
The upper surfaces of the F-22’s wing and fuselage are covered in panels finished in different shades of coating.
Учебный самолёт Нортроп T-38 «Тэлон» и два истребителя Локхид Мартин F-22A 43-й иаэ
F-22 и F-35
Each squadron assigned to the 325th FW is represented in this formation, including the 43rd FS, which is the F-22A training unit. Leading the flight is the wing commander's aircraft and to its left is the 325th Operations Group commander's F-15C.
Pratt & Whitney designed the F119 engine with a two-dimensional vector exhaust nozzle. The convergent-divergent nozzle can be vectored upwards or downwards by 20 degrees.
Истребитель F-22A
В сентябре 2015 года авиабазу Эмари посетила пара F-22
A 95th Fighter Squadron pilot exits his F-22 at Spangdahlem Air Base, Germany, at the start of the unit’s European deployment.
With this latest round of upgrades, the USAF also seeks to enhance the Raptor's situational awareness capabilities, while reducing pilot workload and amplifying their decision-making skills
Albacete Air Base is getting ready to include fifth-generation aircraft in the TLP.
By creating a predictive maintenance capability to the Raptor fleet, the USAF could mitigate unscheduled equipment downtime and failures, and better maintain the overall reliability and availability of the type
Weapons loaders assigned to Virginia Air National Guard's 192nd Maintenance Group inspect a universal ammunition loading system at Langley Air Force Base.
Airmen prepare to load an AIM-120 AMRAAM missile into the left hand side internal weapons bay of an F-22.
Подвеска ракеты AMRAAM
Пусковая установка для ракеты AIM-9X
В боковых отсеках установлены трапециевидные пусковые установки LAU-141A, сочетающие механизм выпуска и направляющую для ракеты.
Airmen use a portable maintenance aid for reference during loading of a AIM-9 Sidewinder missile.
A pilot checks the captive training missile during his walk around inspection of the aircraft before an afternoon mission.
This ramp shot shows an LAU-141/A trapeze-type launcher loaded with a captive training version of an AIM-9M Sidewinder missile.
Airmen prepare to load a 1,000 lb GBU-32 JDAM into the right hand side internal weapons bay of an F-22.
Airmen prepare to load a 1,000 lb GBU-32 JDAM into the right hand side internal weapons bay of an F-22.
Подвеска УАБ GBU-32 в отсек самолёта F-22A. 411-я инструкторская эскадрилья
GBU-32 JDAM с инертной боевой частью подвешена в одном из главных фюзеляжных отсеков вооружения F-22. В отсеке возможно подвесить две такие бомбы, но зазор между ними будет минимальным. JDAM позволяет F-22 наносить удары по наземным целям.
A weapons specialist guides a GBU-39 into the main weapons bay of an F-22.
A maintainer removes a panel from an F-22 Raptor in preparation to apply low observable coatings.
Airmen install an auxiliary power unit into an F-22 Raptor. The repair is uncommon and considered heavy maintenance.
Airmen read data from the F-22 aircraft on a portable maintenance aid.
A crew chief uses a PMA to prepare the forms to release the aircraft to the pilot.
Maintainers troubleshoot the communications, navigation and identification system on an F-22 Raptor assigned to the 95th Expeditionary Fighter Squadron.
Антенна РЛС AN/APG-77(V)1
The APG-77 radar's T/R module array as published by Northrop Grumman.
Top: A crew chief assigned to the 1st Aircraft Maintenance Squadron based at Langley Air Force Base, Virginia, sweeps debris off an F-22 at Tyndall Air Force Base, Florida on October 18, 2018.
Bottom: This shot shows how much debris collected on the low- observable surfaces of an F-22 during Hurricane Michael.
Top: The backdrop of this shot of a crew chief sweeping debris off an F-22 shows the type of hangar used for aircraft maintenance at Tyndall and its damaged condition after Hurricane Michael.
Bottom: Approximately 40 crew chiefs and avionics specialists assigned to the 1st Aircraft Maintenance Squadron travelled from Langley to Tyndall to assist with returning F-22s to flight operations.
Ремонт радиопоглощающего покрытия на истребителе F-22A
Aircrew egress systems technicians with 15th Maintenance Squadrons perform a post-maintenance inspection on a F-22 Raptor ACES 2 ejection seat prior to installation into the aircraft in 2013 at Joint Base Pearl Harbor-Hickam, Hawaii
Highest-thrust Western fighter engine is the Pratt & Whitney F119 two-shaft afterburning turbofan seen here in full afterburner with a generic two-dimensional nozzle, at Pratt & Whitney’s test facilities in West Palin Beach, Florida. Developed for the Lockheed F-22, the HP compressor has only six stages - four fewer than the F100, and three fewer than the F110. To further reduce the number of mechanical components, one of the goals of the ATF engine programme, the rotors are integrally bladed.
Thrust vectoring significantly increases roll and pitch rates, particularly at high angles of attack, where conventional aircraft fear to tread. The P&W F119-PW-100's two-dimensional, thrust vectoring, convergent-divergent nozzle is controlled by the aircraft fly-by-wire system.
Испытания двигателя YF-119
The F-22 Raptor's thrust vectoring F119.
Управление вектором тяги дает возможность существенно повысить маневренные возможности самолета. Так, например, установленный на истребителе F-22A двигатель Pratt & Whitney F119-PW-100 имеет сопла, отклоняемые в вертикальной плоскости.
GE had been working on adaptive engine systems in the years prior to the launch of Advent in 2007, including parts of the Advanced Tactical Fighter competition in the 1980s that eventually became the F-22 Raptor. This was a valuable learning process alongside early S&T work in previous programmes in the 1990s and early 2000s
A new metallic 3D-printed part for the F-22 Raptor
