Caproni-Campini CC.2 / N.1
Страна: Италия
Год: 1940


Двухместный опытный самолет
Описание
Фотографии
Caproni Campini N.1

   В 1931 году инженер Секондо Кампини основал компанию для исследования реактивного движения, а в 1939 году он изготовил силовую установку, которую установили на самолете, собранном фирмой "Caproni" для летных испытаний. Машина, названная Caproni Campini N.1 (иногда неверно обозначается СС.2), представляла собой свободнонесущий низкоплан с большим фюзеляжем и убирающимися наружу стойками основного шасси. Первый полет он совершил на аэродроме фирмы в Талиедо, пригород Милана, 28 августа 1940 года. Цельнометаллический самолет имел двухместную кабину с тандемным расположением членов экипажа и оснащался звездообразным двигателем Isotta-Fraschini, установленным в передней части фюзеляжа и приводившим в движение компрессор с переменным углом установки лопаток, подающий воздух высокого давления в камеру сгорания, где происходило смешение сжатого воздуха с топливом, его последующее воспламенение, сгорание и истечение через реактивное сопло переменного сечения. Использование такого примитивного форсажа обеспечивало самолету скорость 375 км/ч. Самолет стал одним из пионеров реактивной авиации, хотя и оказался техническим тупиком. Сегодня он хранится в Музее науки и техники в Милане.


ТАКТИКО-ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

   Caproni Campini N.1

   Тип: двухместный опытный самолет
   Силовая установка: один звездообразный двигатель Isotta-Fraschini мощностью 900 л. с. (671 кВт) с приводом на трехступенчатый воздушный компрессор
   Летные характеристики: максимальная скорость на оптимальной высоте 375 км/ч
   Масса: пустого 3640 кг; максимальная взлетная 4195 кг
   Размеры: размах крыла 15,85 м; длина 13,10 м; площадь крыла 36,00 м!
30 ноября 1941 года Марио де Бернарди и инженер Педаче пролетели на самолете Caproni Campini N.1 расстояние 270 км от Талиедо до Гуидонии со средней скоростью 209 км/ч. Хотя N.1 выполнил важную задачу первопроходца, в конечном счете, он оказался эволюционным тупиком.

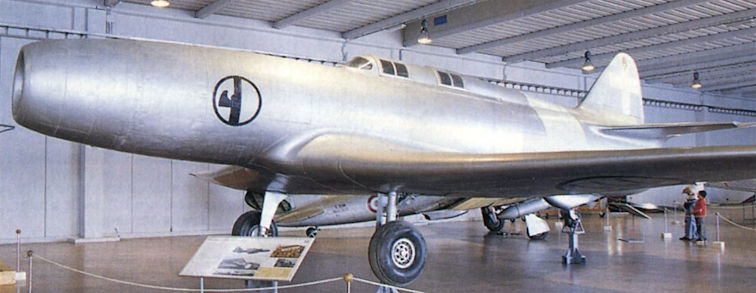

Preserved in excellent condition, the second C.C.2, c/n 4850, later serialled MM.488, is displayed at the Museo Storico dell’Aeronautica Militare at Vigna di Valle on Lake Bracciano, north of Rome.
Силовая установка, которую спроектировал для самолета итальянский авиаконструктор Марио Кастольди, в сущности не имела перспектив, но, тем не менее, позволила опробовать пилотируемый летательный аппарат на реактивной тяге.
One of the few air-to-air photographs taken of the type, this possibly shows the first prototype, c/n 4849, during its flight from Taliedo to Guidonia in November 1941. Note that the cockpit canopies remain open - most Italian aviators of the time disliked enclosed cockpits.
The Caproni-Campini N.I was, chronologically, the world's second jet aircraft to fly, this feat taking place at Milan on 27 August 1940, one year and three days after the He 178's maiden flight. On paper, the N.l's propulsion system embodied several very advanced concepts, including an afterburning, high by-pass turbofan. What it turned out to be was a 'Mickey Mouse' compound contraption of a 900hp Isotta-Fraschini driving a ducted fan, with a fuel-guzzling afterburning combustor ring thrown in. The overall result of this means of propulsion can be determined from the machine's top level speed of 205mph at 9,800 feet, increased by a mere 28mph at the same altitude with afterburner working. Some indication of fuel consumption can be gleaned from the fact that the machine had to alight at Pisa for fuel while making a 169-mile cross-country flight between Milan and Rome. Testing of the N.I ceased in the spring of 1941.
Another photograph of Mario de Bernardi and engineer Giovanni Pedace aloft in the first prototype. Campini explained after the aircraft’s arrival that “high speed was not the object of this first public flight”, which was just as well as it managed an average speed of only 135 m.p.h. over the 295 miles between Taliedo and Guidonia.
The coloured fasces on the fuselage, later replaced by a stylised black variant, suggests this is the second prototype, possibly during its initial taxying tests on August 8, 1940. This aircraft made its first flight on August 27 the same year, to become the world’s first two-seat jet-powered aircraft to fly.
The first C.C.2, serialled MM.487, at Guidonia before Italy’s capitulation in September 1943. In his official intelligence report for Mediterranean Allied Air Forces after his visit in June 1944, Sqn Ldr F.E. Pickles noted that “the Experimental Establishment at Guidonia is completely demolished” and that Campini had moved his workshops to northern Italy.
28 августа 1940г.: первый полет выполнил итальянский экспериментальный самолет Caproni-Campini N. 1, оснащенный примитивной реактивной силовой установкой в составе звездообразного поршневого мотора Isotta Fraschini, приводящего в действие компрессор, который нагнетал воздух в камеру сгорания, куда подавалось топливо. Топливо воспламенялось, и газы истекали через сопло переменного сечения, создавая реактивную тягу.
The first Campini-Caproni C.C.2 undergoing static testing at the Caproni factory at Taliedo. The entire rear of the aircraft could be removed to enable inspection of the effect of fuel burning in the annular mixing channel.
The C.C.2 at Guidonia, with its c/n, 4849, and serial, MM.487, on the rear fuselage. When the airfield was overrun by the Allies, it was found dismantled with components scattered among the demolished remains of the once-busy Experimental Establishment.
The static test fuselage outside the workshop at Taliedo in 1937. The fuselage comprised four main sections: the air intake in the nose; the three-stage ducted fan unit; the main section housing a circular coolant radiator, Isotta-Fraschini engine and “afterburning” equipment, and the tail section with adjustable ‘‘bullet’’.
The two C.C.2s nearing completion in their adjacent jigs in the Caproni workshop at Taliedo. Both went on to undergo extensive ground testing, and both undertook flight testing. Given the Caproni construction numbers 4849 (No 1) and 4850 (No 2), they were later given the military experimental serials MM.487 and MM.488 respectively.
The fuselage was of conventional construction, made up of a cylindrical structure of 62in (157-5cm) outer diameter at its widest point, within which was fitted an inner skinning of 56in (142-25cm) diameter, according to later Allied measurements.
With the nose intake section removed, the C.C.2 reveals its three-stage axial-fan assembly. Despite the Italian Air Ministry and Caproni having spent a combined total of nearly 16m lire over eight years on the project, Pickles said it “did not merit serious attention”.
The interior of one of the two C.C.2 prototypes at Taliedo.
Secondo Campini (in hat and overcoat) gives last-minute instructions to test pilot Mario de Bernardi before a test flight of one of the C.C.2s. One of Italy’s most distinguished aviators, de Bernardi chalked up many of the nation’s aeronautical achievements. In 1959, aged 65, he suffered a heart attack while flying an aerobatic routine in Rome; he managed to land the aircraft but died shortly afterwards.
Giovanni Pedace (left) and Mario de Bernardi in the cockpits of the first C.C.2 in November 1941, when they made the Taliedo-Guidonia flight.
Gen s.a. Francesco Pricolo, Chief of the Air Staff during 1939-41, surveys the cockpit of the “motorjet”-powered Campini-Caproni C.C.2, as covered in detail by the author in TAH6.
The first C.C.2 following its forced landing on April 9, 1942. The damage was restricted to the tailwheel and its fairing, parts of the rear fuselage and one wing rib in the undercarriage recess. A valve in the port wheel-retracting gear had seized owing to dry packing leathers.
Campini’s American patent drawings, dated December 17, 1935. Key: A) ovoid cabin; B) enshrouding cylinder; C) two-stage centrifugal compressor; D) radial engine; E) rectifier radiator; F) combustion space; G) annular mixing channel; H) discharge nozzle; J) cone for varying nozzle orifice; K) controlled lateral orifices.
The Campini-Caproni C.C.2: a piston-powered jet engine
