Parnall. Самолеты

<...>
   В 1929 году появился самолет Elf - двухместный биплан со складывающимися крыльями и двигателем A.D.C. Hermes I мощностью 105 л. с. Самолет конструкции Боласа был показан на 7-й лондонской международной авиавыставке в Олимпии в июле 1929 года и стал своего рода ответом компании "Parnall" на созданную ею модель Moth. Впрочем, ответ был неудачным. Были построены всего два самолета, первый из них с двигателем Hermes II мощностью 120 л. с. хранится сегодня в летном состоянии в коллекции "Shuttleworth Trust".
<...>

Flight, June 1929

BRITISH AIRCRAFT AT OLYMPIA

GEORGE PARNALL & CO.

   OF the two complete aircraft to be exhibited on this stand, one will be the little "Peto" two-seater designed for service with submarines, while the other will be the new "Elf," a private owner's two-seater machine rather beyond the light 'plane class, fitted with the A.D.C. "Hermes" engine.

   Certain features upon which the designers have concentrated in producing the Parnall "Elf" are: Improved view of pilot and passenger by seating them behind the top centre-section, which has been dropped almost to eye level; reduced maintenance cost and elimination of all truing-up, by adopting a Warren girder-type rigid-wing bracing; improved performance by efficient design and extra power; and the reduction of folded dimensions to a very small figure so as to enable the machine to be wheeled through an ordinary gateway.
   From the three-view general arrangements it will be seen that the Parnall "Elf" is a biplane, with the top plane considerably larger than the bottom, and the wings staggered in relation to each other. Furthermore, the wings are swept back in order to get the centre of lift far enough back to bring the passenger behind the top centre-section. The only other unusual external feature in the wing design is the use of strut bracing throughout, the interplane struts forming a Warren girder as seen in front elevation. Visitors to Olympia will also notice that the fuselage is of generous dimensions, giving very roomy cockpits.
   The fuselage is a semi-monocoque structure, with a light internal framework and three-ply covering. The dual controls are built up as a complete unit, and during construction the whole fuselage can be finished, with the exception of this unit, which is then slipped into place through the bottom of the fuselage. The two seats have pans for air cushions, or if the machine is employed for training purposes, or it is otherwise desired to do so, parachute packs may take the place of the air cushions. The fact that both cockpits are aft of the wings should enable both occupants to make use of their parachutes.
   A Smith's type instrument board is provided for the pilot. The dual controls make use of cranks and connecting tubes instead of cables and pulleys, the tubes being visible externally, sloping upwards from the sides of the fuselage to the cranks on the aileron tubes in the top plane.
   An extra large compartment for luggage, capable of taking one or two suitcases, guns, fishing rods, golf clubs or tent, etc., is situated immediately behind the pilot's cockpit, while forward of the passenger's cockpit there is an auxiliary locker for tool kit and a spare can of petrol.
   The biplane wings are of orthodox construction, with spindled I-section spars and wooden ribs. The drag bracing inside the wings is by tie rods, while the incidence bracing between the interplane struts is streamline wire. The ailerons extend the full span of the top plane only and have steel tube spars or torque tubes, terminating at the inner end in cranks by means of which they are operated via the sloping tubes previously referred to. The trailing edge of the lower plane is a separate unit, and has a steel tube spar similar to that of the ailerons. The trailing portion of the lower wing is not, however, used as ailerons, the arrangement being merely incorporated in order to reduce the folded width of the machine by permitting the bottom plane trailing edge to be hinged down for folding. With the wings folded, the overall folded width is but 7 ft. 11 in. The incidence of the tail plane is adjustable while the machine is on the ground, but there is no tail trimming gear for use in the air.
   The undercarriage of the "Elf" is of the "split" type, with the inner ends of the bent axles hinged to a small cabane below the fuselage floor. Normally the telescopic legs are of the compression rubber block type, but if desired a double-acting oleo leg can be fitted at extra cost. The tail skid is a leaf spring clamped to the underside of the fuselage. It is provided with a quickly replaceable cast-iron shoe.
   As already mentioned, the power plant chosen for the Parnall "Elf" is the new A.D.C. "Hermes" engine. This is mounted on a welded steel tube structure in the nose of the fuselage, the mounting being a detachable unit attached by four bolts to the fuselage proper, from which it is separated by a fireproof bulkhead. The cowling, of sheet aluminium, almost entirely encloses the engine, with the exception of a narrow slit in front and some louvres for the escape of the air. Deflector plates are fitted inside the cowling to direct the air flow on to the cylinder heads. The petrol system is of the engine-driven pump type, the pump keeping the fuel constantly supplied to a small gravity tank in the top centre section. This tank has a capacity of 3 gallons, while the main petrol tank, mounted in the fuselage, has a capacity of 20 gallons.
   The main dimensions of the Parnall "Elf" are :- Length overall, 22 ft. 10 1/2 in.; wing span, 31 ft. 3 1/2 in.; wing area 195 sq. ft.; width, folded, 7 ft. 11 in.; height, 8 ft. 6 in.; wheel track, 5 ft. 6 in.
   The tare weight is 900 lbs., and the "Aerobatics" Certificate of Airworthiness covers a gross weight of 1,500 lbs., so that the disposable load may be at least 600 lbs. This leaves a good margin for luggage, &c.
   The "Elf" having but recently been completed, actual performance figures are not yet available, but following is the estimated performance :- Full speed at ground level, 116 m.p.h.; at 5,000 ft., 112 m.p.h.; cruising speed, 103 m.p.h.; stalling speed, 40 m.p.h. The ground rate of climb is 800 ft./min., and the ceiling 16,000 ft. The range is approximately 400 miles.
   If desired the Parnall "Elf" can be fitted with a twin-float undercarriage, when it should be a very useful seaplane.
<...>

Flight, April 1930

AIRCRAFT FOR THE PRIVATE OWNER

ELF

   PRODUCED by George Parnall and Co., of Bristol, the "Elf" is a private owner's machine that is rather heavier than most other light aircraft. It is fitted with the "Cirrus-Hermes" engine, and the designers have concentrated on certain points which make this machine somewhat different from the majority of light 'planes.
   Both seats are placed behind the top centre section with the object of giving both the pilot and passenger a better view, and the centre section itself has been dropped to eye level. The wing bracing is in the form of rigid Warren-girder strut bracing which eliminates all necessity for truing up or adjusting wires, a job which is usually associated with biplanes. Particular attention has also been paid to the question of folding, and the overall width when folded has been kept down to a very small figure.
   The fuselage is very roomy and consequently the cockpits are very comfortable. It is built on the semi-monocoque principle, with a comparatively light internal structure covered with ply-wood.
   The controls, including the dual controls, are built as a separate unit, and can be placed in position through the bottom of the fuselage when this is finished. Luggage is very amply provided for by a large compartment behind the pilot's cockpit, and in front of the passenger's cockpit there is also a locker which can be utilised for a tool kit and a spare can of fuel.
   The wings are of normal construction with spindled spruce spars and spruce and ply-wood ribs, and the covering is fabric. The ailerons are operated by tubes and also have tubular spars, and the trailing edge of the lower wings, of a corresponding width to the ailerons, is built as a separate unit, so that it can be folded up when the wings are folded and thus reduce the overall width in this condition.
   The fuel arrangements are somewhat different to the normal machine of this class, as the main fuel tank is in the fuselage and holds 20 gallons, and an engine-driven pump supplies fuel from this tank to a small gravity tank, holding 3 gallons, in the centre section, from whence it is fed to the engine by gravity.
   Throughout, the general idea of the "Elf" has been to produce a machine which requires no complicated upkeep and which, through its sturdiness, will give the private owner no trouble at all without having to have constant expert attention, hence the rigid wing bracing and the ply-wood covered fuselage.

Flight, November 1932

British Aircraft

George Parnall & Co.
Yate Aerodrome, Gloucestershire

   A LARGE number of experimental aircraft types have been built by George Parnall & Co. during the last ten years or so. Some of these have been built to the order of the Air Ministry, while others have been civil types, mostly of small size and low power.
   The Parnall "Elf" is a two-seater light biplane fitted with Cirrus-Hermes engine, and is chiefly remarkable for its unorthodox wing bracing, which is in the form of struts arranged in a Warren girder, and has the advantage of requiring no rigging after the machine leaves the shops. The "Elf" has an overall length of 22 ft. 10 in. (6,97 m.), a wing span of 31 ft. 3 in. (9,53 m.), and a wing area of 195 sq. ft. (18,1 m2.). The tare weight is 900 lb. (409 kg.) and the loaded weight 1,500 lb. (682 kg.). The maximum speed is 116 m.p.h. (187 km./h.) and the cruising speed 103 m.p.h. (166 km./h.). The range at cruising speed is 400 miles (645 km.).
Elf был неудачным конкурентом de Havilland Moth. Всего построили два самолета. Изображенная машина находится в коллекции "Shuttleworth Trust" в Олд Уорден, Бедфордшир.
PARNALL "ELF" (A.D.C. "Hermes").
A NEW BRITISH TWO-SEATER "NOT-SO-LIGHT 'PLANE": The Parnall "Elf," fitted with " Cirrus-Hermes" engine, will be exhibited at Olympia. Note the Warren Girder wing bracing.

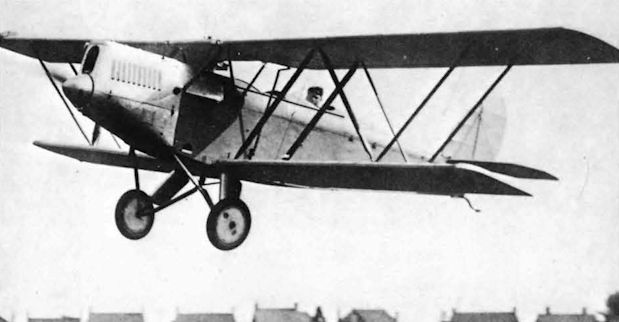

The unmarked prototype Elf being flown by F.G. Miles in July 1929 at Yate, Gloucestershire.
Parnall Elf 2-seater light aeroplane. (Cirrus Hermes engine.)
The unmarked prototype Elf being flown by F.G. Miles in July 1929 at Yate, Gloucestershire.
The unmarked prototype Elf being flown by F.G. Miles in July 1929 at Yate, Gloucestershire.
Two-seat private-owner and sporting biplane, with 105hp (78kW) Cirrus Hermes (Elf Mk.I) or 120hp (89kW) Cirrus Hermes II (Elf Mk.H) four-cylinder, air-cooled, inlines - three built. The Elf proved to be Harold Bolas' last design for George Parnall and Co before he left the company to undertake new ventures in the USA. G-AAFH illustrated.
The prototype bearing the registration marks G-AAFH. This Elf was later sold to Lord Apsley of Badminton, Gloucestershire.
Harold Bolas standing in front of Parnall Elf G-AAFH.
G-AAIN is seen at the Fifty Years of Flying event at Hendon in July 1951.
Two views of the third Elf which featured horn-balanced rudder, half-span ailerons and 120 h.p. A.D.C. Hermes engine.
The Parnall Elf followed the Imp in 1929. Of the three Elfs built, G-AAIN survives and the AIR PORTRAITS plate shows Tony Haig-Thomas at the controls on August 30, 1981.
The big event of the day was the first public flight since the late 'forties of Parnall Elf Mk II G-AAIN, which took to the air in the evening. Its first flight after restoration had taken place on June 25, 1980, only four days earlier. Built in 1932, it was once owned by Lord Apsley, and was acquired by the Shuttleworth Trust in July 1951. Powered by a 120 h.p. ADC Hermes II engine, it is reported to fly quite sedately. The Warren girder wing bracing is distinctive. It should be a regular performer once minor problems have been resolved.
Mr. Norman Edgar's depot with three of his Parnall "Elfs" and a "Wee Bee" lined up for inspection.
The prototype at Yate with wings folded.
STRENUOUS BUT USEFUL: There was a close finish in the "Utility Race" between the crews of a Parnall "Elf" and a De Havilland "Puss Moth," the latter arriving on the ground first but gliding a long way, while the "Elf" was landed very near the finishing line.
The Phillips & Powis "Desoutter" (Hermes) piloted by Mr. S. Cliff winning by a short head from Mr. Norman Edgar in the "Elf" (Hermes).
On the Parnall Stand: In the foreground the "Peto" seaplane designed to work with submarines. Behind it the "Elf" two-seater civilian machine.
One of veterans undergoing rebuilds at Old Warden is Parnall Elf G-AAIN, photographed on March 27, 1978.
Other Shuttleworth aircraft showing the results of much painstaking effort are the 1929 Parnall Elf, which should fly again this year
The Interplane struts on the Parnall "Elf" are arranged as a Warren girder. Sketches show strut ends and fittings.
View from above into cockpit of "Elf," showing lower end of joystick and aileron cranks.
The ailerons in the "Elf" are operated by crank levers and external tubes, the flaps having torque tubes and cranks.
The tail skid of the Parnall "Elf" is a laminated steel spring with replaceable cast-iron shoe.
Attachment of wood ribs to torque tube in "Elf" ailerons.
A hinged lever, normally folded flat against the spar, holds the folded "Elf" wing in place against the fuselage.
Engine Mounting on Parnall "Elf" and detail of it's attachment to Fuselage
Parnall "Elf" A.D.C. "Hermes" Engine
