Seversky SEV-2PA / AT-12

Поиск по сайту:

Seversky - P-35 - 1936 - США Seversky - Executive - 1938 - США

Страна Country: СШАUSA

Год Year: 1937

Two-seat convoy fighter

Варианты Variants

Seversky - P-35 - 1936 - СШАUSA
Seversky - SEV-2PA / AT-12 - 1937 - СШАUSA
Republic - P-43 Lancer - 1940 - СШАUSA
Republic - P-44 - 1940 - СШАUSA

Seversky P-35

<...>
На основе P-35 был разработан экспортный двухместный 2PA Guardsman с мотором Wright R-1820 Cyclone мощностью 1000 л. с. 20 таких самолетов продали Японии, два - СССР, Швеция заказала 52 истребителя-бомбардировщика 2PA, но получила только две машины, остальные отошли USAAC, правда, в несколько ином виде. Истребители-бомбардировщики USAAC не требовались, поэтому самолеты использовались как учебные для повышенной подготовки летчиков и обозначались AT-12.

Показать полностью

Flight, October 1940

FIGHTER and DIVE BOMBER
Ambitious Claims Advanced for New American

  REPORTED to be in fairly large-scale production at Farmingdale, N.Y., for an unspecified purchaser, the Republic Aviation Corporation's "Guardsman" combines the duties of two-seater fighter and dive bomber. It would appear that the "Guardsman" is the name given to the Republic 2-PA which was illustrated in Flight of March 14, 1940. The engine is a Pratt and Whitney Twin-Row Wasp of about 900 h.p., and it is claimed that the machine is "the world's fastest and most heavily armed two-seater fighter." That claim seems open to considerable doubt, especially as the speed originally claimed for the 2-PA ordered by Sweden was only 310 m.p.h.
  Even this speed is, of course, attained when the machine is used as a two-seater fighter. When the six bombs are carried externally, the speed is probably reduced by something like 50 m.p.h., possibly more, and this fact should be borne in mind when trying to assess the merits of the "Guardsman."
  When used as a dive bomber (and incidentally it is rather amusing to read the maker's statement that the machine is capable of releasing 1,350 lb. of high-explosive bombs simultaneously "while hurtling earthward at speeds in excess of 370 miles per hour") the "Guardsman" carries one 750 lb. bomb under the fuselage and six 100 lb. bombs under the wings. The fuselage bomb is carried in a special tilting rack which enables the bomb to drop clear of the airscrew when released on the dive.
  Defensive armament includes three 30-calibre guns, two of which are fixed and synchronised to fire through the airscrew disc, while the third, rear, gun is carried on a rotatable mounting and capable of being fired in almost all directions. This armament differs from that of the 2-PA ordered by Sweden, which carried two large-bore and three rifle-calibre guns.
  With permissible overload of fuel the "Guardsman" is stated to have a range of 1,800 miles. The climb is 3,000 ft. in the first minute, and the ceiling is more than 30,000 ft.

Показать полностью

Описание:Description:

Seversky P-35
Flight, October 1940
FIGHTER and DIVE BOMBER

Aeroplane Monthly 1984-12 / A.Lumsden, T.Heffernan - Probe Probare (9)

FRANK B. MORMILLO’s plate features the Seversky AT-12 of Planes of Fame over its base at Chino, California.
Aeroplane Monthly 1989-04

FRANK B. MORMILLO'S photograph features three aircraft of the Air Museum at Chino, a Vought F4U-1 Corsair, Seversky 2PA/AT-12 and Douglas SBD-5 Dauntless.

Другие самолёты на фотографии: Another planes on the photo: Douglas SBD Dauntless - СШАUSA - 1939 Vought F4U Corsair - СШАUSA - 1940
Air Enthusiast 1999-11 / J.Cupido - Stepping Stone to the 'Jug'
Air Enthusiast 1999-11 / J.Cupido - Stepping Stone to the 'Jug'
Air Enthusiast 1999-11 / J.Cupido - Stepping Stone to the 'Jug'
Air Enthusiast 1999-11 / J.Cupido - Stepping Stone to the 'Jug'
Aeroplane Monthly 1993-12 / H.Levy - Seversky (1)

In 1937 the X-BT was re-engined with an 850 h.p. Wright R-1820-G2 Cyclone and offered as the SEV-2PA Convoy (i.e. Escort) Fighter. It had flaps and drooping ailerons.
Aeroplane Monthly 1993-12 / H.Levy - Seversky (1)

The 2PA-3B, which appeared in 1939, was an aerodynamically refined version of the Convoy Fighter with a long-range internal fuel tank and increased span. A Cyclone replaced the Twin Wasp.
Aeroplane Monthly 1984-12 / A.Lumsden, T.Heffernan - Probe Probare (9)
Регистрационный номерRegistry number: NX2586 [4]
Seversky SEV-2PA NX2586, photographed at Martlesham during its evaluation in March 1939.
Aeroplane Monthly 1984-12 / A.Lumsden, T.Heffernan - Probe Probare (9)
Регистрационный номерRegistry number: NX2586 [4]
Another view of the SEV-2PA NX2586 at Martlesham Heath. When this aircraft visited Supermarine at Southampton on March 29 Jeffrey Quill took the opportunity of flying it while Maj Seversky tried his hand at flying a Spitfire.
After reading the feature Republic's 'Jug' in AE89, Peter Green has forwarded this photo of Seversky 2PA-200 NX2586 at Martlesham Heath, Suffolk, on March 13, 1939. The aircraft is thought to have been appraised by the test team, though not taken on charge by the Air Ministry - hence no RAF serial. The layout of the 'Sever/Sky' lettering on the fuselage is of interest, too. Neither this aircraft nor its visit are referred to in the article, but the registration is the one previous to the demonstrator that went to Sweden in 1939.
Авиация и Время 1997-02 / В.Михеев - "Белые" самолеты для Красной Армии /Аэроархив/
Регистрационный номерRegistry number: NX2586 [4]
Двухместный истребитель SEV-2PA-L "Конвой Файтер"
Flight 1937-09 / Flight
Регистрационный номерRegistry number: R189M
The American Republic 2-PA as supplied to Sweden. It has heavy fixed-gun armament and one free gun on a manually-operated mounting. The rear cockpit fairing is retractable.
Авиация и Время 1997-02 / В.Михеев - "Белые" самолеты для Красной Армии /Аэроархив/

Для своего времени крыло SEV-2PA-L было хорошо механизировано
Aeroplane Monthly 1984-12 / A.Lumsden, T.Heffernan - Probe Probare (9)

A Seversky 2PA-L destined for Russia seen at Floyd Bennett Field.
Aeroplane Monthly 1984-12 / A.Lumsden, T.Heffernan - Probe Probare (9)
Flight 1937-10 / Flight

YET ANOTHER U.S. DESIGNATION: Major Alexander de Seversky takes off in the so-called "Convoy Fighter" (Wright Cyclone).
Air International 1992-10 / Fighter A to Z

The SEV-2PA-L built in 1938 for export to the Soviet Union
Aeroplane Monthly 1993-12 / H.Levy - Seversky (1)

The Russian government purchased two Convoy Fighters in 1938, one SEV-2PA-L landplane, seen here, and one amphibian, and acquired production rights. They had 1,000 h.p. Wright R-1820-G3 Cyclones and could carry two 0-50in or 0-30in calibre machine-guns on the nose and two in the wings. A movable 0-50in calibre gun was fitted in the rear cockpit, and 250lb bombs could be carried on underwing racks.
Jane's All the World Aircraft 1938 / 03 - All the world's aeroplanes

"Конвой Файтер" в полете
The Seversky 2-PA-L Two-seat Convoy Fighter (1,000 h.p. Wright "Cyclone" engine).
Aeroplane Monthly 1994-01 / H.Levy - Seversky (2)
Регистрационный номерRegistry number: NX1291 [3]
The late James Doolittle landing at Roosevelt Field in his DS-1 Executive (DS stood for Doolittle Special). The aircraft was purchased by Shell Oil Company for use by Doolittle in experimental flying, and also as an executive transport with a passenger carried in the rear seat. He took delivery of the Seversky on September 7, 1937. He told Howard Levy that his last logged flight in the aircraft was made on June 19, 1940. The characteristic wing planform was later to become a distinctive feature of the Republic P-47 Thunderbolt, a direct descendant of the Seversky monoplanes.
Aeroplane Monthly 1994-01 / H.Levy - Seversky (2)
Регистрационный номерRegistry number: NX1291 [3]
Jimmy Doolittle’s DS-1. It was later ferried to Roosevelt Field by an unknown pilot, and collided with the wind-tee on landing. It is thought that the oil on the windscreen obscured the pilot’s view; the damage was considerable.
Aeroplane Monthly 1994-01 / H.Levy - Seversky (2)
Регистрационный номерRegistry number: NX1291 [3]
Howard Levy later photographed NX1291 dismantled at Roosevelt Field when numerous aircraft were being prepared for shipment to England before America’s entry into the war. Was the DS-1 one of those aircraft?
Aeroplane Monthly 1994-01 / H.Levy - Seversky (2)
Регистрационный номерRegistry number: NX1384 [3]
Jackie Cochran taxying in at Floyd Bennett Field, New York, in the Seversky AP-7 NX1384 after winning the 1938 Bendix Race, which netted her $12,500 in prize money. Cochran was the first woman to fly faster than sound (in a Canadair Sabre Mk 3); she died on August 9, 1980, aged 74.
Aeroplane Monthly 1994-01 / H.Levy - Seversky (2)
Регистрационный номерRegistry number: NX1384 [3]
Maj Alexander de Seversky in Jackie Cochran’s AP-7, bearing her race No 13, at Floyd Bennett Field.
Aeroplane Monthly 1994-01 / H.Levy - Seversky (2)
Регистрационный номерRegistry number: NX1384 [3]
NX1384 again, possibly Cochran’s AP-7 reworked with the aft-retracting faired undercarriage replaced by a new inboard-swinging fully-retracting main gear. Access for a passenger was via an entrance door/window aft of the pilot’s cockpit.
Air International 1992-10 / Fighter A to Z

The amphibious SEV-2PA-A. also for the Soviet Union.
Flight 1938-04 / Flight
Регистрационный номерRegistry number: NX1307 [3]
AMPHIBIAN FIGHTER - Virtually the so-called “Convoy” fighter with amphibian gear, this machine is seen before being dismantled for shipment from America to Russia. If the wings are used as tanks a range of 6,000 miles is claimed to be possible. By interchanging wing panels and power units the machine can be used as a trainer, for observation, or as a light bomber. Quantity production in Russia is probable.
Aeroplane Monthly 1993-12 / H.Levy - Seversky (1)
Регистрационный номерRegistry number: NX1307 [3]
NX1307, the SEV-2PA-A amphibian for Russia, had an experimental 1,000 h.p. XR-1820 Cyclone.
Авиация и Время 1997-02 / В.Михеев - "Белые" самолеты для Красной Армии /Аэроархив/
Регистрационный номерRegistry number: NX1307 [3]
Амфибия SEV-2PA-A
Авиация и Время 1997-02 / В.Михеев - "Белые" самолеты для Красной Армии /Аэроархив/

Швеция стала третьей страной, получившей SEV-2PA-L
Flight 1940-11 / Flight

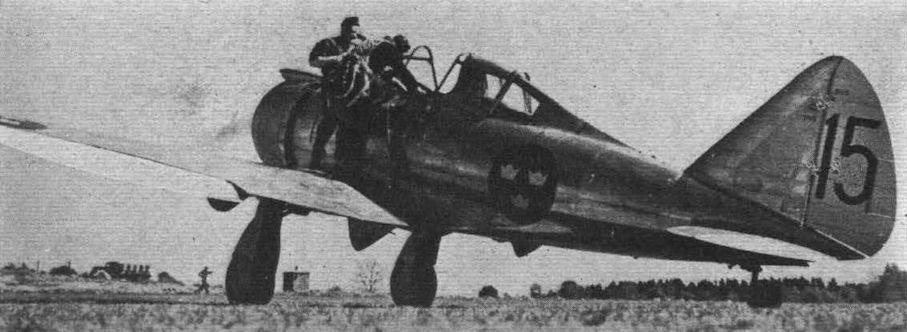

A ROYAL REPUBLICAN: It would appear that, after all, Sweden has taken delivery of some of her American aeroplanes. Here is a Republic Aviation Corporation "Guardsman" of the Royal Swedish Air Force about to make a flight.
Flight 1940-10 / Flight

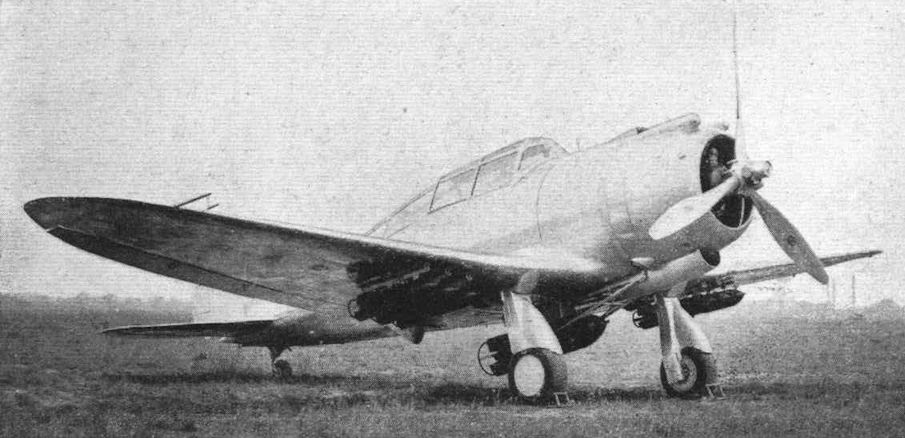

The Republic "Guardsman" two-seater fighter and dive bomber.
Flight 1940-10 / Flight

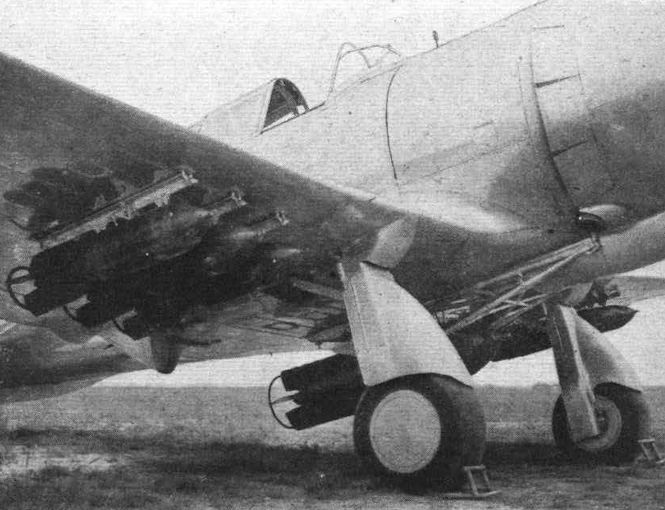

Offensive armament comprises one 750 lb. bomb and six 100-pounders.
Мировая Авиация 240

После запрета правительством США поставки 50 двухместных 2PA-204L Швеции эти самолеты как AT-12 поступили на вооружение авиации Армии США. На самолетах остались приборы, проградуированные в метрической системе. AT-12 ограниченно использовались как учебные в начальный период Второй мировой войны.
Aeroplane Monthly 1994-01 / H.Levy - Seversky (2)

Another view of the modified AT-12 taken as the pilot waves “so long” to photographer Howard Levy at Logan Airport, Massachusetts. The added ventral and dorsal fins were a modification carried out by the Test Center at Wright Field.
Aeroplane Monthly 1994-01 / H.Levy - Seversky (2)

The Swedish government also ordered 50 of the two-seat 2PA series aircraft. Carrying the factory designation 2PA-204A, they were intended to serve as dive-bombers. Only two reached Sweden; the onset of war diverted the remaining aircraft to the US Army Air Corps as AT-12 Guardsmen. The 2PA was essentially a P-35A with a lengthened fuselage to accommodate the second seat; a further 5ft was added to the wingspan. In addition to two 0-30in machine-guns carried in the nose and another carried in the rear cockpit, a total of 1,350lb of bombs could be carried. Pictured here at Logan Airport, Mass, is an AT-12 modified by the AAC Flight Test Center at Wright Field.
Мировая Авиация 232

На учебных AT-12 стояли моторы Pratt & Whitney R-1830-45 мощностью 1050 л. с., самолеты перевооружили 12,7-мм и 7,62-мм пулеметами.
Aeroplane Monthly 1994-01 / H.Levy - Seversky (2)
Регистрационный номерRegistry number: N55539 [2]
Seversky AT-12 N55539, minus wheel fairings, seen shortly after restoration. It is currently based at Chino, California, with the Air Museum Planes of Fame Collection.
Aeroplane Monthly 1979-01 / F.Mormillo - Gathering of Eagles
Регистрационный номерRegistry number: N55539 [2]
Republic AT-12 N55539, a rare example of the US Army advanced trainer which was adapted from Model 2PA fighter-bombers intended for Sweden.
Aeroplane Monthly 1984-12 / A.Lumsden, T.Heffernan - Probe Probare (9)

Close-up view of one of the 20mm cannons, mounted well inboard of the wing.
Aeroplane Monthly 1984-12 / A.Lumsden, T.Heffernan - Probe Probare (9)

View showing the location of the two forward-firing guns and the neat installation of the Twin Wasp engine, easily accessible for maintenance.
Air Enthusiast 1999-11 / J.Cupido - Stepping Stone to the 'Jug'
Flight 1937-09 / Flight

View of the new Seversky two-seater fighter developed for the export market, showing the installation of the free Browning gun. The engine is an 850 h.p. Cyclone G. Major. Alexander de Seversky is seen "up front."
Flight 1939-03 / Flight

The Seversky amphibian fighter
Aeroplane Monthly 1984-12 / A.Lumsden, T.Heffernan - Probe Probare (9)

Two views of the Seversky's .50 calibre Browning aft-facing gun.
Aeroplane Monthly 1984-12 / A.Lumsden, T.Heffernan - Probe Probare (9)
Регистрационный номерRegistry number: NX2586 [4]
The scene on April 1, 1939 when Maj Seversky made a forced landing in NX2586 at Croydon, narrowly avoiding the demolition of a sports pavilion. The aircraft was shipped back to the Seversky factory at Farmingdale, Long Island. In October that year the company became the Republic Aviation Corporation.
Flight 1940-01 / Flight

Referred to by the manufacturers as a "convoy" fighter this two-seater Seversky is simply a long-range two-seater fighter with six front guns (four synchronised) and one free gun.
Air International 1992-10 / Fighter A to Z

The land-based SEV-2PA-L two-seat fighter was built for export to Japan, where it was known as the A8V1.
Авиация и Время 1997-02 / В.Михеев - "Белые" самолеты для Красной Армии /Аэроархив/

Схема двухместного истребителя SEV-2PA-L
Авиация и Время 1997-02 / В.Михеев - "Белые" самолеты для Красной Армии /Аэроархив/

Схема амфибии SEV-2PA-A
Flight 1938-01 / Flight

General arrangement of the Seversky Executive. The type is intended for specific duties - high-speed transport.
