SIAI-Marchetti SF.260/Alenia Aermacchi SF-260
15 июля 1964 года итальянская компания "Aviamilano Costruzioni Aeronautiche" подняла в воздух прототип нового трехместного моноплана, спроектированного под руководством инженера Стелио Фрати и получившего обозначение Aviamilano F.250. Новая машина имела цельнометаллическую конструкцию и низкорасположенное крыло, оснащенное элеронами Фрайза и щелевыми закрылками с электроприводом.
Самолет имел концевые вспомогательные топливные баки и оснащался двигателем Avco Lycoming O-540-A1D5 мощностью 250л.с.Шасси - трехопорное, с электроприводом и управляемой носовой стойкой. В закрытой кабине располагались три человека - двое на креслах впереди бок о бок, а третий - сзади на одиночном кресле.
С самого начала предполагалось, что F.250 будет выпускаться по лицензии компанией "SIAI-Marchetti" под обозначением SF.260 и с более мощным вариантом двигателя O-540.
ТАКТИКО-ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
SIAI-Marchetti SF.260W Warrior
Тип: трехместный УТС и легкий штурмовик
Силовая установка: один ПД Textron Lycoming O-540-E4A5 мощностью 260 л. с. (194 кВт)
Летные характеристики: максимальная скорость горизонтального полета без внешних подвесок на уровне моря 305 км/ч; максимальная скороподъемность на уровне моря 381 м/мин; практический потолок 4480 м; боевой радиус в варианте легкого штурмовика при полете по профилю "большая-малая-большая высота" - 556 км
Масса: пустого снаряженного 830 кг; максимальная взлетная 1300 кг
Размеры: размах крыла по концевым топливным бакам 8,35 м; длина 7,10 м; высота 2,41 м; площадь крыла 10,10 м2
Вооружение: максимальной массой до 300 кг
Описание:
- SIAI-Marchetti SF.260/Alenia Aermacchi SF-260
- AleniaAermacchi (SIAI-Marchetti) SF.260
Фотографии
-
Мировая Авиация 236
Тунис приобрел 12 самолетов SF.260 Warrior (один из них изображен здесь с блоками НАР) и девять SF.260C. По состоянию на 2013 год в строю оставались лишь две машины.
-
Air International 1984-08 / P.Steinemann - Rotors over Brunei
Siai Marchetti SF.260W from No 3 Squadron, which is based at Brunei International Airport and is responsible for all aircrew training.
-
Jane's All the World Aircraft 2000 / 2-02 - AIRCRAFT - FIXED-WING - MILITARY/CIVIL
Aermacchi SF-260E fitted with weaponry (1998)
-
Air International 1986-08 / C.Pocock - Singapore Sting
Siai Marchetti SF.260s of No 150 Sqn which is responsible for the training of forward air controllers in addition to pilot training.
-
Air Pictorial 1999-07
Belgian AF SF-260M ST-34 at Beauvechain in the experimental white scheme.
-
Air International 2000-04 / Talkback
At present, the Belgian Air Force SIAI Marchetti SF.260M and Agusta SF-260D primary training aircraft carry a ‘Vietnam’-style camouflage scheme of brown, grey and two shades of green undersurfaces, with an orange tail, fuselage band and wingtip fuel tanks. To increase their conspicuity, two SF.260s were painted in experimental high-visibility colour schemes.
-
Air International 2019-04 / Airscene
The tail of SF-260M+ ST-02 has received this commemorative paint scheme.
-
Air International 2011-06 / News
To mark the 65th anniversary of the Belgian Air Force and 60 years after permission was granted to establish its first official display team, 'The Red Devils' (Les Diables Rouges) have been reformed. The yellow and red scheme of the SIAI Marchetti SF.260Ds flown by the 'Hardship Red' display team have been replaced by this new red one. ST-03, -04, -23 and -27 have been repainted so far and will be joined by ST-02 soon. The 'Red Devil's last performed in the 1977 airshow season flying Fouga Magisters.
-
Air International 1979-07 / ??? - Seven-Thousand-Island Air Cover ... the Philippine Air Force
One of the 100th Training Wing's complement of Siai Marchetti SF 260MPs.
-
Air International 1997-01 / K.van der Plas - Flying together
Before Sabena’s Flying School moved to the United States, apprentice pilots were trained on the SIAI Marchetti SF 260 Warrior. Seen here is OO-SMM at the international air meeting on June 24. 1990 at Bierset.
-
Air International 2000-02 / Airscene
Devoid of nationality markings, apart from the tricolour rudder, this is the fifth of 30 Aermacchi SF-260Es on order for the Fuerza Aerea Mexicana (FAM or Mexican Air Force) seen at the manufacturer’s Venegono airfield on December 23, 1999. During pre-delivery test flying the aircraft have, at the request of the FAM, worn no nationality markings, been largely flown in primer, the example here being the first to be seen painted in the yellow trainer scheme, but still without full markings.
-
Air International 2019-04 / Airscene
This camouflaged SF-260 seen at Florennes Air Base has since been painted in the modern grey colour scheme.
-
Мировая Авиация 236
SF.260 хорошо продавался в Африке. ВВС Замбии продолжают эксплуатировать SF.260MW в качестве учебных и легких штурмовиков.
-
Мировая Авиация 151
Легкие штурмовики F-337G Lynx из 4-й эскадрильи ВВС Родезии (базировались в Торнхилле) были дополнены учебно-боевыми/легкими ударными самолетами Genet (SIAI Marchetti SF.260W Warrior) двойного назначения из 6-й эскадрильи (на фотографии на переднем плане), базирующимися в Нью-Сарум.
Другие самолёты на фотографии: Cessna O-2/336/337 Skymaster - США - 1961
-
Air International 2014-06 / R.Niccoli - Training to Fly, Training to Fight /Military/
An unspecified engine problem has grounded the AMI's T-260Bs.
-
Air International 2014-09 / R.Niccoli - Training the Itlaian Way /Military/
No orders have been announced yet for the SF-260TD but the company says it's marketing the aircraft to existing customers and potential new buyers.
-
Jane's All the World Aircraft 2000 / 2-11 - AIRCRAFT - MANUFACTURER
Aircraft currently offered by Aermacchi comprise the SF-260 (nearest), M-260TP Redigo, S.211, MB-339 and AMX (1999)
Другие самолёты на фотографии: Aermacchi MB.339 - Италия - 1976Embraer, Aermacchi AMX - International - 1984SIAI-Marchetti S.211 - Италия - 1981Valmet L-90 Redigo - Финляндия - 1983
-
Мировая Авиация 24
Оснащенный турбовинтовым двигателем SF.260TP хорошо подходил для начальной подготовки пилотов.
-
Air International 1991-06 / In print
Другие самолёты на фотографии: SIAI-Marchetti S.211 - Италия - 1981
-
Мировая Авиация 236
Начиная с 1976 года, ВВС Италии приобрели 46 самолетов SF.260AM. Около 40 сохранившихся машин в 2013 году входили в состав 70-го авиаполка, дислоцированного в Латине, и использовались в качестве учебных.
-
Мировая Авиация 109
В 1985 году ВВС Шри-Ланки (SLAF) начали программу перевооружения, заказав самолеты SF.260TPS (на снимке) и вертолеты Bell 206 и 212 для борьбы с ТОТИ.
-
АвиаМастер 2001-05 / М.Жирохов - Война в "раю" /Горячая точка/
Легкие штурмовики SIAI SF-260W из 1-й "тренировочной" эскадрильи ВВС Шри Ланки. На заднем плане - бывшая демонстрационная машина фирмы SIAI.
-
Air International 2014-09 / R.Niccoli - Training the Itlaian Way /Military/
The SF-260TD’s right wing includes an infrared sensor which streams pictures to one of the cockpit displays to assist pilots flying at night and in poor weather.
-
Jane's All the World Aircraft 2000 / 2-03 - AIRCRAFT - FIXED-WING - MILITARY
Layang 1 prototype conversion of SF-260M to SF-260TP (1999)
-
Jane's All the World Aircraft 1966 / 02 - Aircraft
Aviamilano F.250 three-seat light aircraft, which will be produced by Siai-Marchetti
-
Jane's All the World Aircraft 1974 / 01 - Aircraft

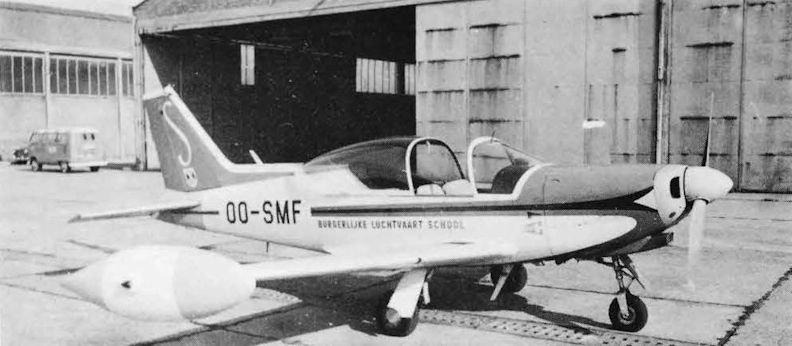

SIAI-Marchetti SF.260 three-seat light aircraft, in Sabena Belgian World Airlines insignia
-
Jane's All the World Aircraft 1980 / Encyclopedia of Aviation - Aircraft A-Z - v5
SIAI-Marchetti SF.260MS.
-
Air Enthusiast 1972-09 / Airdata File
SIAI-Marchetti's Warrior is the latest variant of the SF260, with additional weapon-carrying capability.
-
Air Enthusiast 1973-03 / Airscene
SIAI-Marchetti reports that Phase 1 testing of the SF.260W Warrior has recently been completed. The Warrior is an armed and strengthened version of the SF.260 MX, and is illustrated here with underwing rocket pods.
-
Jane's All the World Aircraft 1974 / 01 - Aircraft
SIAI-Marchetti SF.260W Warrior, armed version of the SF.260MX military trainer
-
Jane's All the World Aircraft 1975 / 01 - Aircraft
SIAI-Marchetti SF.260W, armed version of the SF.260MX, with two underwing rocket pods
-
Jane's All the World Aircraft 1976 / 01 - Aircraft
SIAI-Marchetti SF.260MX two/three-seat military trainer photographed during inverted flight
-
Авиация и Время 2012-04
31 июля 2012г. компания Alenia Aermacchi поставила 900-й учебно-тренировочный самолет SF-260, который стал самым массовым итальянским самолетом послевоенного периода. За 46 лет SF-260 и SF-260TP (его турбовинтовой вариант) заказали ВВС не менее 27 стран, несколько летных школ, аэроклубы и частные клиенты.
-
Air Pictorial 1988-01 / P.Hatch - Air Forces of the World
Irish Army Air Corps SIAI-Marchetti SF.260WE Warrior 226 at Baldonnel on 6th August 1987
-
Air International 1982-03 / K.Hayes, E.Power - Eire's Expanding Air Force
The Siai Marchetti SF 260W Warriors continue to give the Air Corps satisfactory service.
-
Air Pictorial 1977-05
Seen at Baldonnel, Dublin, on 4th March 1977, these SIAI-Marchetti SF.260Ws are the first of a batch of ten now being delivered to the Irish Air Corps
-
Air International 1984-08 / P.Steinemann - Rotors over Brunei
AMDB-130 is the second of the Siai Marchetti SF.260Ws purchased for use by No 3 Squadron.
-
АвиаМастер 2006-07 / О.Моногону, М.Жирохов - Великая африканская война /Горячая точка/
Легкий многоцелевой самолет SF.260MC конголезских ВВС
-
Air Pictorial 1977-11
Displaying new nationality markings, SF.260W Warrior D6-ECE, seen at the Vergiate Air Display in Italy on 19/6/77, is one of three ordered by the Comores Islands to establish an Air Arm for the former French Colony
-
Air International 1979-07 / ??? - Seven-Thousand-Island Air Cover ... the Philippine Air Force
The Cessna T-41D is currently employed for the 70-hour primary training phase after which pupils progress to the SF 260MP (photo) for a further 130 hours. It is anticipated that the T-41D will be withdrawn from the syllabus in the near future.
-
Авиация и Космонавтика 2012-01 / М.Никольский - Война в Ливии (1)
SF.260 ВВС Ливии. Фото 2009 г.
-
Jane's All the World Aircraft 1976 / 01 - Aircraft
SIAI-Marchetti SF.260W light strike aircraft of the Dubai Police Air Wing
-
Air Pictorial 1977-07
The SF.260 G-AYDD on a pallet at Heathrow 16/4/77 ready for airfreighting to the U.S.A.;
-
Air International 1981-08 / Airdata File (Paris '81)
One of the three new prototypes displayed by Siai Marchetti at Paris was the SF.260-TP.
-
Jane's All the World Aircraft 2000 / 2-02 - AIRCRAFT - FIXED-WING - MILITARY/CIVIL
Aermacchi SF-260TPs of the Sri Lankan Air Force (1999)
-
Air International 2014-09 / R.Niccoli - Training the Itlaian Way /Military/
While the SF-260TD is outwardly similar to previous variants of the type, it features a glass cockpit with high-resolution LCD colour screens.
-
Jane's All the World Aircraft 2000 / 2-02 - AIRCRAFT - FIXED-WING - MILITARY/CIVIL
Structural details of the SF-260TP, with scrap view of the piston-engined SF-260E/F (1999)
-
Air International 1978-09 / R.Baybrook - Combat Aircraft Spectrum
Siai Marchetti SF 260
-
Jane's All the World Aircraft 2000 / 2-02 - AIRCRAFT - FIXED-WING - MILITARY/CIVIL
Weapon options for military SF-260E/F or two-pylon configuration for SF-260TP; latter may also carry second pairs of gun pods, parachute flares, bombs or parachuting containers on outboard pylons (1998)
-
Jane's All the World Aircraft 2000 / 2-02 - AIRCRAFT - FIXED-WING - MILITARY/CIVIL
Aermacchi SF-260E/F basic trainer (1998)
-
Jane's All the World Aircraft 1976 / 01 - Aircraft
SIAI-Marchetti SF.260MX military trainer (260 hp Lycoming O-540-E4A5 engine)
-
Air International 1981-02 / ??? - World Directory of Military Trainers 1981
SIAI-Marchetti SF.260
