Luton Minor
Страна: Великобритания
Год: 1937

Single-seat light monoplane
Luton L.A.1 Buzzard, L.A.2, L.A.4 Minor и L.A.5 Major
Flight, December 1936
Flight, March 1937

Luton L.A.1 Buzzard, L.A.2, L.A.4 Minor и L.A.5 Major

Фирма "Luton Aircraft Ltd" была основана в начале 1930-х годов. Все ее самолеты были разработаны С.Х. Латимер-Нидхемом. Его самый известный самолет Minor был создан в 1930-х годах (L.A.3 и L.A.4 впервые взлетели в 1936 году), в послевоенной Британии эта машина открыла новую эру самолетов самостоятельной сборки и ультралегких машин. Самолеты Luton Minor продолжают летать и сегодня, доставляя удовольствие пилотам, располагающимся в открытой кабине этого моноплана с крылом типа парасоль.
  Новый L.A.2 отличался компоновкой с тандемным крылом, как у самолета Mignet Pou-de-Ciel, более известного сегодня как "Летающая блоха". Машина оказалась неудачной, но ее фюзеляж использовали при постройке прототипа самолета L.A.3.
  Единственный экземпляр этой машины столь хорошо летал с 35-сильным (26 кВт) двигателем Anzani, что его конструкцию переработали для возможности самостоятельной домашней постройки, присвоив обозначение L.A.4 Minor.
  Хотя компания "Luton" прекратила свое существование, в послевоенные годы возник значительный интерес к ее самолетам Minor и Major. После того, как любители собрали четыре машины Minor, Латимер-Нидхем и В. Г. Ор-Юм организовали новую компанию "Phoenix Aircraft" для продажи чертежей Minor и Major. Самолеты Major не пользовались особой популярностью, но зато было разослано около 100 комплектов чертежей Minor, что позволяет нам сегодня видеть многие из этих самолетов в небе.

Flight, December 1936

New Approaches to the "Ultra-light" Problem: "Pou" Influence on One Model

  FROM time to time Indicator has bewailed in these pages the shortcomings of certain types of ultra-light aircraft. That some designers are making conscientious efforts toward their general improvement will be agreed after a study of the following notes on four new models shortly to be flown.
  Produced, according to Luton Aircraft, Ltd., of Gerrards Cross, Bucks, to provide an essentially safe aeroplane which may take the place of the Pou-du-Ciel, the Luton Minor will eventually be available for amateur construction. Safety in flight has been the primary consideration in the design, but cheapness and simplicity have been kept very closely in view. The makers claim that the Minor is capable of cross-country flights, as opposed, presumably, to leisurely circuits of the aerodrome on a quiet summer day.
  It is difficult to decide whether the Minor should be described as a biplane with unusually pronounced stagger or as a tandem-wing machine. The forward wing is supported above the fuselage by centre-section struts and is provided with one pair of lift struts, but the rear, or lower, wing is attached directly to the fuselage top, behind the pilot, being also supported by a single pair of outer struts.
  Only the rear wing has ailerons, and it is claimed that, owing to the slot effect produced by the relative positions of the main planes, they remain effective up to, and beyond, the normal stalling attitude. A second advantage claimed for this peculiar wing arrangement is the elimination of the vicious stall and involuntary spin.
  An extra-large box-spar features in each wing and the fuselage is plywood-covered from the nose to the rear wing support, aft of which it consists of a spruce, fabric-covered girder structure
  The tail unit comprises a fixed tail plane, interconnected elevators and a balanced rudder.
  Of four-foot track, the simple undercarriage is said to incorporate a novel method of shock absorption; the tail skid, likewise, has a shock absorbing device.
  On one side of the fuselage is a small hinged door giving access to the pilot's cockpit, to the rear of which is a locker for tools or luggage. An air speed indicator, cross level and small compass are fitted as standard equipment, a tachometer being ?3 15s. extra on the provisional price of ?125.
  The exceptionally low landing speed of 22 m.p.h. has been obtained partly by the aid of the slot effect and partly by the light wing loading. With its low surface loading the Minor should not, of course, be left unattended in high winds.
  The main data relative to the Minor are: Span (front wing) 22 ft., span (rear wing) 20 ft., wing area 180 sq. ft., top speed 75 m.p.h., cruising speed 70 m.p.h. and landing speed 22 m.p.h.
  A 34 h.p. British Anzani engine is specified.

Flight, March 1937

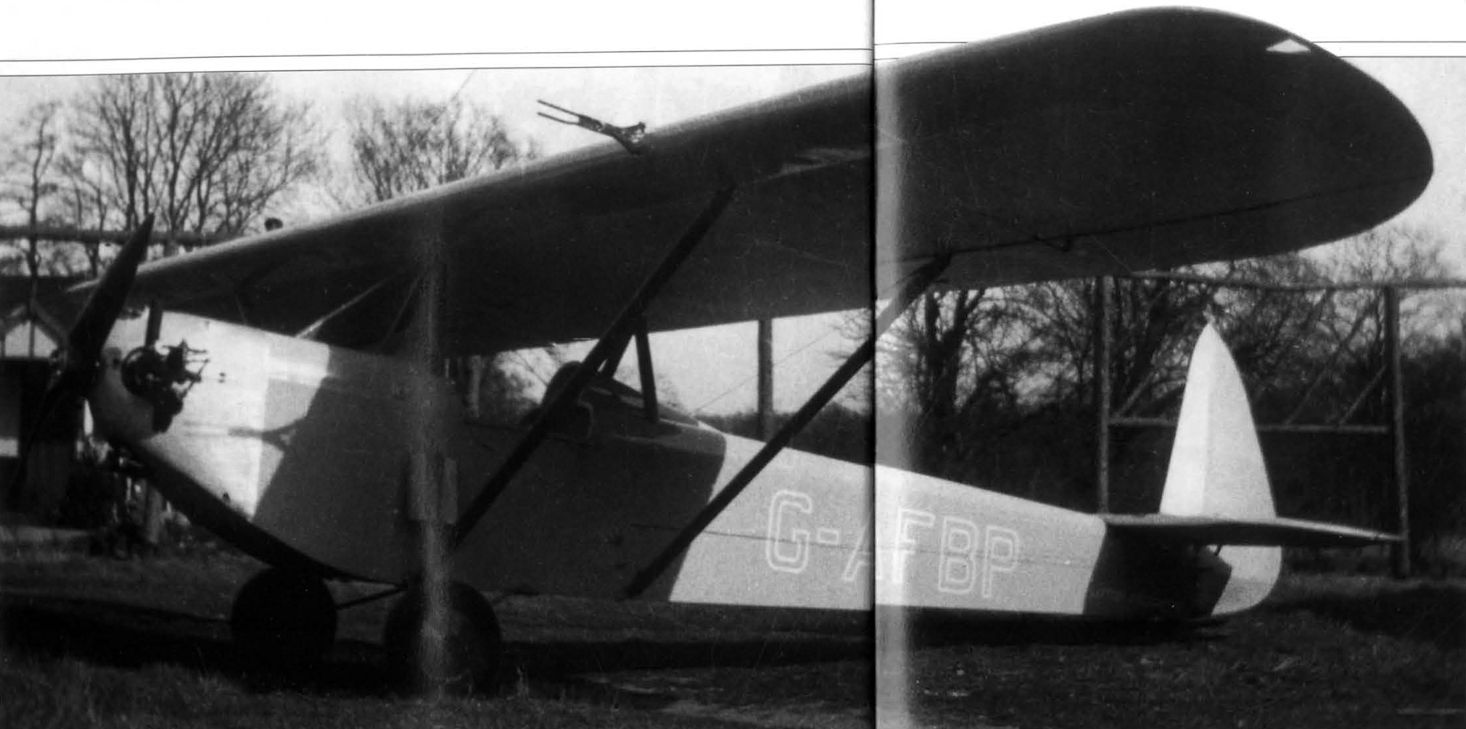

  THE accompanying illustrations show the Luton Minor, designed for construction by amateurs, in its latest form with a single parasol wing. It may be remembered that the original Minor had tandem wings and was described in this form in Flight of December 10, 1936. In production a Sprite flat twin will be fitted, but any engine of about 30 h.p. is an alternative.
  Seen at a demonstration last week with a 34 h.p. Anzani vee-twin, this prototype took off in about 12 seconds with a run of 100 yards. Top speed is in the region of 80 m.p.h., and the climb appears to be quite vigorous. In fairly choppy conditions the Minor seemed very steady, and as an aircraft should inspire considerable cross-country confidence. The makers are Luton Aircraft, Ltd., Gerrard’s Cross. Bucks.
Полет в одноместной открытой кабине самолета Minor многие считают восхитительным. И сегодня эта машина продолжает оставаться одной из самых дешевых для любительских полетов.
The superb finish of G-AFIR is evident in this photograph, sent in by A. W. J. G. Hume of Pinner, Middx.
Another lightweight single-seater - the Luton Minor.
Phoenix Luton Minor (37 hp Aeronca-JAP engine) built by Mr Raymond Tilley of Tasmania
Luton L A 4a Minor (37 hp Aeronca-J.A.P engine) built in Australia by R A Pearman and H. Nash
PFA Luton L.A.4a Minor.
Bill Goldfinch's Luton Minor, G-AYDY, made its first flight recently from Old Sarum. Goldfinch was the designer of the Colditz Cock glider.
Luton L.A.4a Minor single-seat light aircraft
Prototype Phoenix Duet side-by-side two-seat light aircraft evolved from the Luton Minor
Prototype Phoenix Duet side-by-side two-seat light aircraft
Knowles Duet side-by-side two-seat light aircraft, adapted from the Luton Minor
Luton L.A.4a Minor (65 hp Continental A65-8F engine) built by Mr Tom Regan
New examples of prewar ultra-lights are now taking shape and include a Luton Minor. It is under construction at Bourne End. Bucks, by Mr. Richard Potter.
A neat installation of the Anzani twin in the Luton Minor.
The Luton Minor (34 h.p. British Anzani)
The Luton "Minor"
