Фотографии
-
Aeroplane Monthly 1978-02 / H.Penrose - Dreadnought
The extremely handsome Westland Dreadnought postal monoplane, of which only one example, J6.986, was built. Seen here at Westland's Yeovil airfield prior to its first and only flight of 9 May 1923, the Dreadnought incorporated a blended wing/fuselage structure and was powered by a 450hp Napier Lion II with accommodation for two pilots and up to eight passengers, or the equivalent in mail. Certainly, in comparison with contemporaries, the Dreadnought appeared to look the part. However, the Dreadnought was to prove spectacularly unsuccessful: shortly after take-off the machine stalled and crashed, maiming its test pilot, Stuart Keep. A contributory factor was the use of a low-set, knife-sharp leading edge to the wing's airfoil section, something calculated to make any stall just that little bit more vicious. Despite the Dreadnought's fate, the blended wing/fuselage concept has re-surfaced on several occasion since, with the Miles Y series, McDonnell's XP-67 and most recently in the General Dynamics originated F-16.
-
Aeroplane Monthly 1978-02 / H.Penrose - Dreadnought

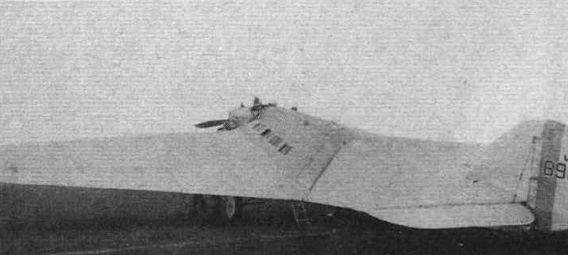

Dreadnought J6986 complete and ready for trials in May 1924. The manner in which the fuselage merged into the wings is well portrayed.
-
Aeroplane Monthly 1978-02 / H.Penrose - Dreadnought
The poor but unique amateur snapshot of the Dreadnought just after take-off on May 9, 1924, seconds before the disastrous crash.
-
-
-
Aeroplane Monthly 1978-02 / H.Penrose - Dreadnought
The root end of the port wing, showing one of the fuel tanks and the multi-spar construction.
-
Aeroplane Monthly 1978-02 / H.Penrose - Dreadnought
The complete airframe during application of the corrugated aluminium skin over the cabin area.
-
Aeroplane Monthly 1978-02 / H.Penrose - Dreadnought
One of the Dreadnought's wing panels, its conventional fabric covering concealing the advanced, six-spar construction inside.
-
Aeroplane Monthly 1978-02 / H.Penrose - Dreadnought
Static test of the wing and centre-section in April 1925.
-
-
Aeroplane Monthly 1978-02 / H.Penrose - Dreadnought
Looking like a stranded whale, the Dreadnought languishes after its first and final “flight”. The centre-section and undamaged wing were later used for structural testing.
-
Aeroplane Monthly 1978-02 / H.Penrose - Dreadnought
The crumpled nose and cockpit of the Dreadnought.
-
