Фотографии
-
Регистрационный номер: G-ADAD [19], SX-AAH [19] This close-up at the left side of the cabin shows the fabric covering over the wood panels, the flat metal support brackets over the wood glued joints, the left side door now fitted and the as yet uncovered structure of the nearside stub wing.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

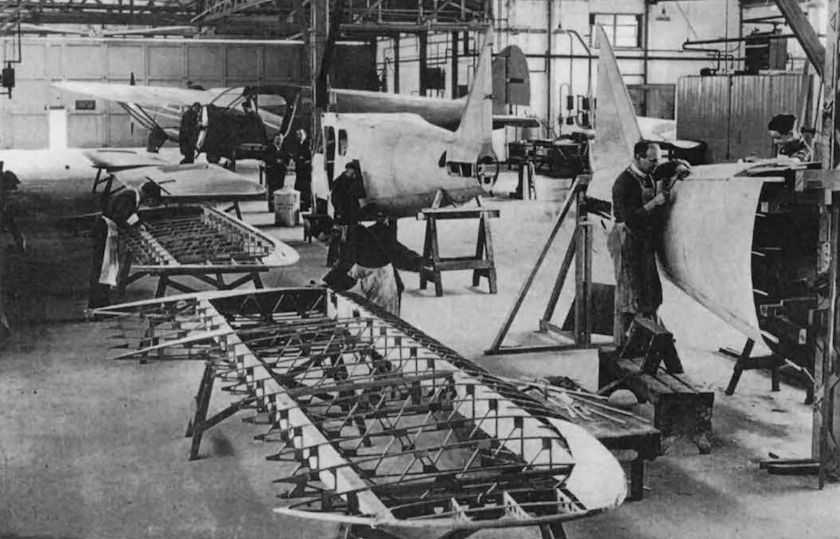

Регистрационный номер: G-ADAD [19], SX-AAH [19] The prototype has gone to the flight shed, No.2 is complete and painted, and three other fuselages and their wings are seen at various stages of completion.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

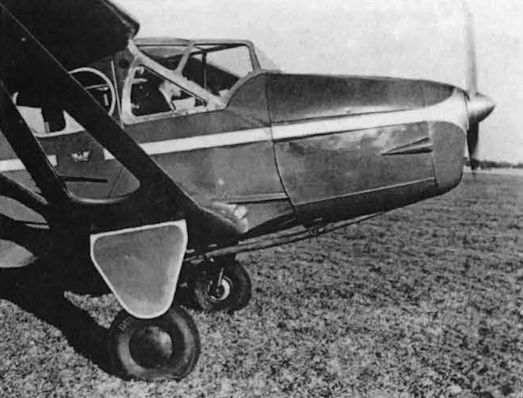

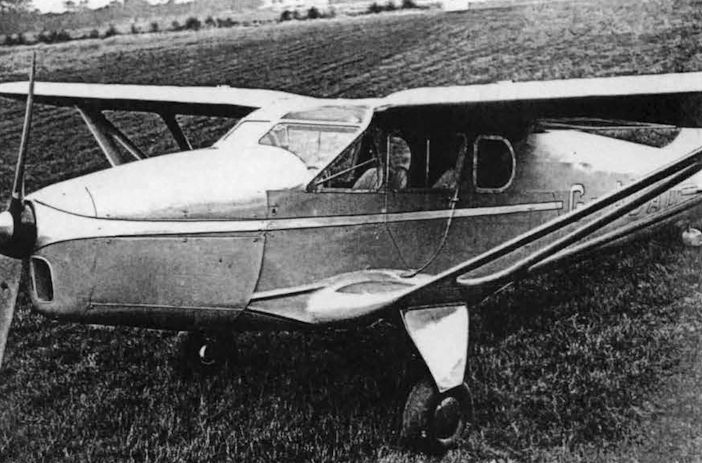

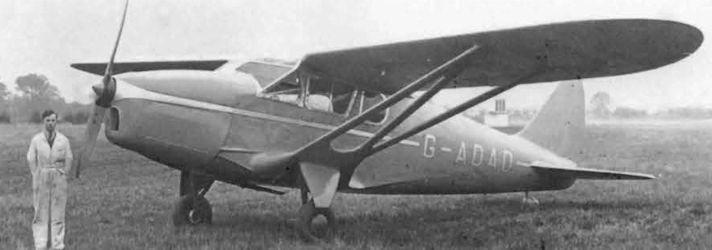

Регистрационный номер: G-ADAD [19], SX-AAH [19] Apparent here is the attention the designer gave to streamlining with the low sloping windscreen, ignoring its cramping effect on the pilot and the second pilot or front seat passenger and the limitations on their view which resulted.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

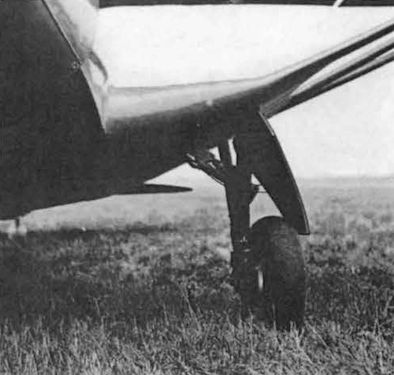

The Dowty 'nutcracker' retractable undercarriage for the Heston Phoenix, starboard leg viewed from the rear.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

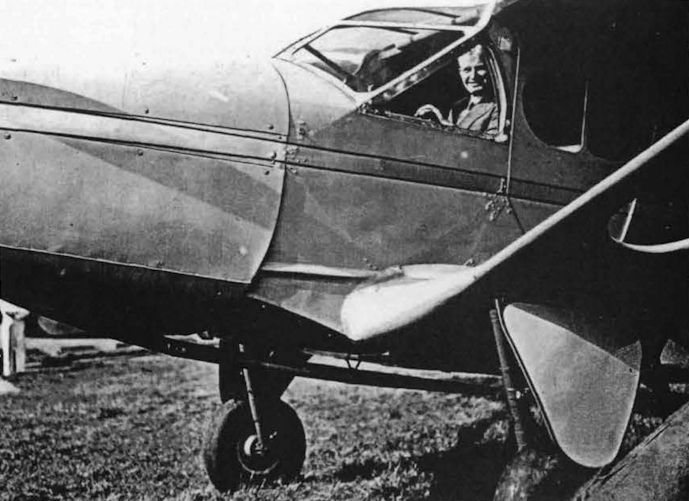

Регистрационный номер: VH-AJM [5] This photo of Jimmy Melrose giving a big smile from the cockpit also shows small changes, the slightly lowered exhaust pipe and the ends of the undercarriage leg covers rounded off.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AEHJ [6] Polished and pushed out with its new windscreen and cockpit cover, G-AEHJ now represents the Series I in its final form as adopted for the Series II except for the Gipsy Six II engine and variable pitch propeller.
Heston Phoenix I G-AEHJ with 200 hp Gipsy Six engine and retractable undercarriage. It was the third and last Mk I, c/n 1/3, and was followed by three Mk II. The ex company demonstrator, it was owned by British American Air Services at Heston from 6.39 and was noted at Elmdon on 28 and 29.9.39. It did not survive long enough to be impressed as it crashed in the River Mersey at Liverpool on 13.2.40.Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

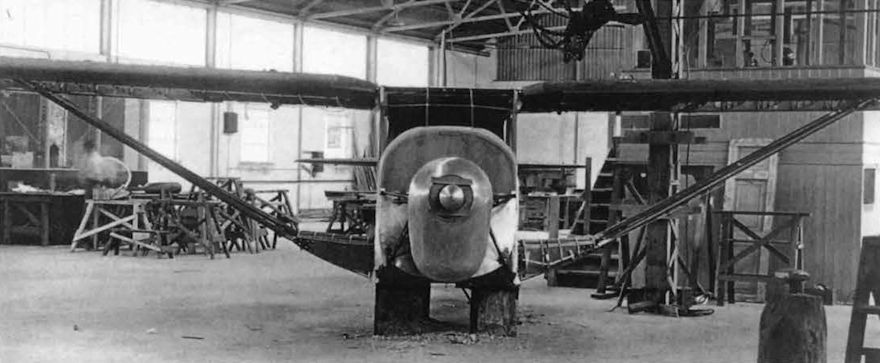

Регистрационный номер: G-ADAD [19], SX-AAH [19] The prototype Phoenix I during assembly, with the wings attached but propped up and with the Gipsy Six engine fitted. The cabin central framework is supported off the hangar floor on two purpose-built benches.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AESV [5] The Heston Phoenix used by Standard Radio has a D.H. controllable pitch airscrew. The small size of the streamlined loop enclosure is noteworthy.

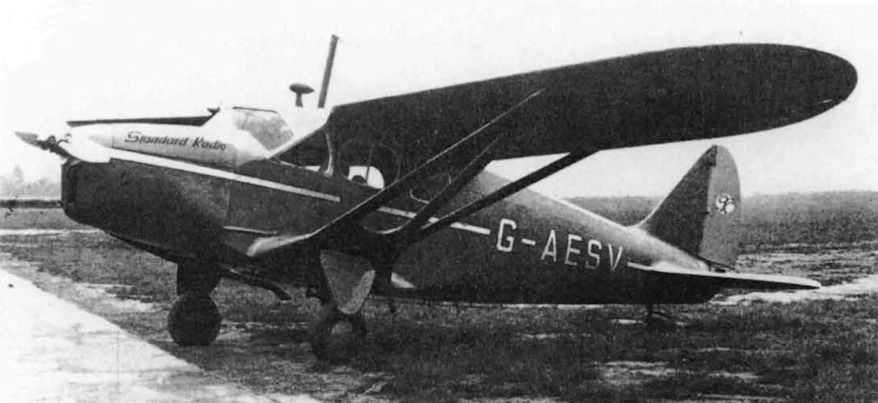

G-AESV seen in use by Standard Telephones in its test laboratory capacity. In addition to the mast it now has a D/F loop in the roof, a direction finder aerial under the fuselage and a venturi under the cabin floor.Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

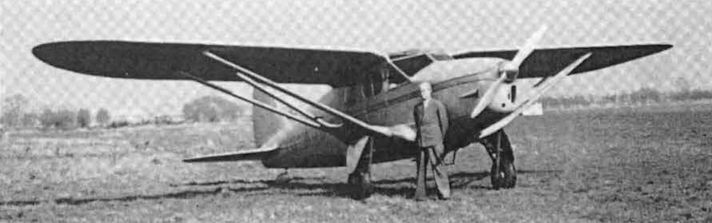

Регистрационный номер: VH-AJM [5] The second Phoenix and first sale, registered VH-AJM to Charles J Melrose who stands proudly in front of it at Heston.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AEHJ [6] After pre-war service with the RAF G-AEMT was impressed as X9393. With no wartime photographs of the Phoenix, The Aeroplane 'camouflaged' photos to represent them for The Spotter.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AESV [5] The only postwar survivor, G-AESV seen at Heston after hostilities ended. It has a spinner, probably a Proctor spare fitted by the RAF during its war service. It was reported to have force-landed in the Alps in 1952 and been abandoned there.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

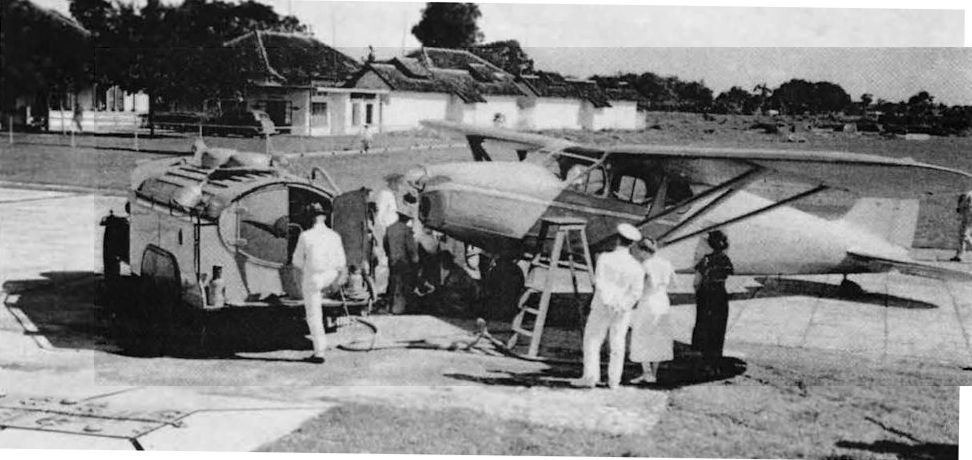

Регистрационный номер: VH-AJM [5] "Jimmy" Melrose's Phoenix VH-AJM being refuelled at a Shell service station after its arrival in Australia. It operated for only seven weeks in Australia before being written off in stormy weather on 5.7.36.The Heston Phoenix VH-AJM being refuelled at a Shell service station in Australia. On the nose was the inscription "C.J.Melrose, Glenelg, South Australia" and along the fuselage "The South Australian Centenary 1936".
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

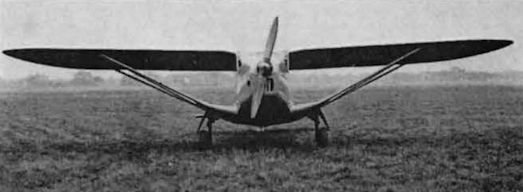

Регистрационный номер: G-ADAD [19], SX-AAH [19] Viewed head-on at the same stage, the unique stub-wings for undercarriage support can be seen, with the underwing support struts attached at their outer ends.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: VH-AJM [5] VH-AJM with, on the left cowling 'C J Melrose, Glenelg, South Australia' and on the cheat line 'The South Australian Centenary, 1936'. The name 'Billing' was worn on the right cowling. Note the fixed stirrup step on the left wing stub.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
View from the front of the port undercarriage leg with the jacks at the top. Dowty's first retractable undercarriage, its simple inwards retraction was apparently trouble-free.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-ADAD [19], SX-AAH [19] Here it would appear that the engineer was expecting the photographer to be down at ground level as he has two small children holding open the cabin doors. Instead we have an overhead view which demonstrated that the Phoenix looked good from any angle.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-ADAD [19], SX-AAH [19] Edmund Hordern flying the prototype, accompanied by one other, both in soft-brim hats as appropriate for a business aeroplane. Under the unpainted metal cowlings, the lengthy exhaust helps to provide a notably quiet cabin.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-ADAD [19], SX-AAH [19] The rear fuselage and tail unit, complete except for the tail cone, is attached and supported on trestles. A trim tab cable is on the left elevator, but tabs were later seen on the right elevator and also both sides on production aircraft.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

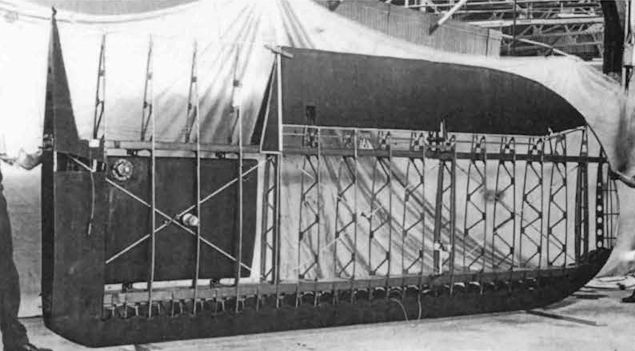

Регистрационный номер: G-ADAD [19], SX-AAH [19] The starboard wing looking on the underside, fuel tank with contents gauge and drain, supported by diagonal straps. Frise aileron and leading edge have metal skins, the remainder awaits fabric covering.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

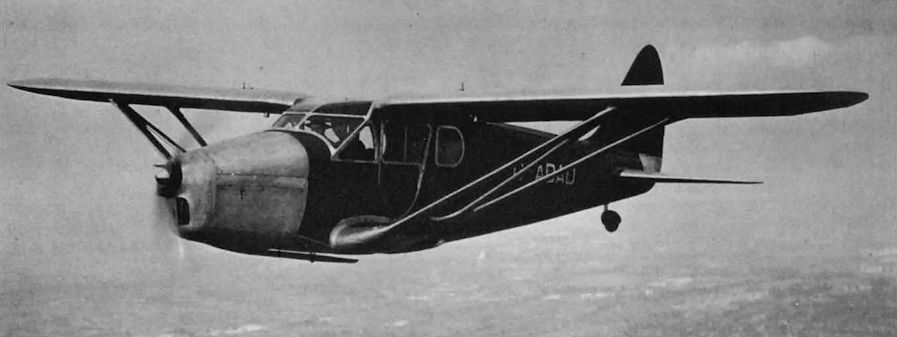

Регистрационный номер: G-ADAD [19], SX-AAH [19] The first photos known of the prototype were taken on the first flight when still in primer and undercoat with temporary markings. There were no problems, it was right first time and when tested no modifications were called for.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-ADAD [19], SX-AAH [19] Finish painted in green and silver, prototype G-ADAD is pushed out for The Aeroplane photographer to record and everyone else to admire, including the mechanic who looks proud of his new charge.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Head-on view on the ground shows the wide 8ft 11in. track of the extended undercarriage, a feature providing good stability and making taxying and ground handling easy.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

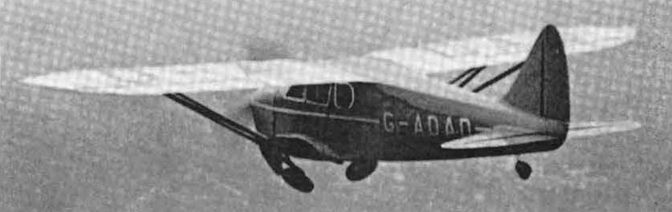

Регистрационный номер: G-ADAD [19], SX-AAH [19] G-ADAD airborne in its new paint scheme. The pilot levels off before retracting the undercarriage. The Dowty fully castering faired tailwheel lines up fore and aft.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AEHJ [6] Viewed from the right side, the pilot is running the engine and his improved headroom and view with the new cockpit cover is quite apparent. The use of brakes makes chocks unnecessary for starting.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AEHJ [6] G-AEHJ stayed with the manufacturers for three years, taking over from the prototype as demonstrator and hire aircraft, before being transferred to neighbour BAAS a few months before the war. In 1939 it had been allocated to National Air Communications but was never actually impressed as it crashed into the River Mersey in February 1940.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-ADAD [19], SX-AAH [19] The prototype Phoenix, first aircraft design of Heston Aircraft, successors to the Comper Aircraft Company, is put on display for the press.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AEHJ [6] The third Phoenix and last Series 1, G-AEHJ had the windscreen and cabin roof replaced by a new structure with more headroom. Here the engineer listens while the pilot, in the left-hand seat, warms up the Gipsy Six engine prior to a check run.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
A 205 hp de Havilland Gipsy Six II 6-cyl air cooled inverted inline engine with de Havilland variable pitch propeller fitted for the photograph. Normally the propeller is fitted only after the engine has been installed.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AESV [5] G-AESV was ordered by Standard Telephones for use as a radio flying laboratory and as is seen here a heavy duty radio mast was installed in the cabin roof during manufacture. A wind-driven generator was also fitted during production on the leading edge of the right wing.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AEHJ [6] Close-up of the left side of G-AEHJ showing the new windscreen with its much increased headroom and the resulting improvement in forward view for the pilot and other front seat occupant. It had originally been built with the shallow sloping windscreen.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-ADAD [19], SX-AAH [19] Visible from this angle is the cut-back wing leading edge root, necessary to avoid obstruction of the pilot's view to the side. Apart from the windscreen, prototype trials resulted in no major airframe changes.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-ADAD [19], SX-AAH [19] On the prototype with the top cowling removed, a mechanic demonstrates how, with the side cowling folded down, access is available to the carburetter and right side of the engine.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

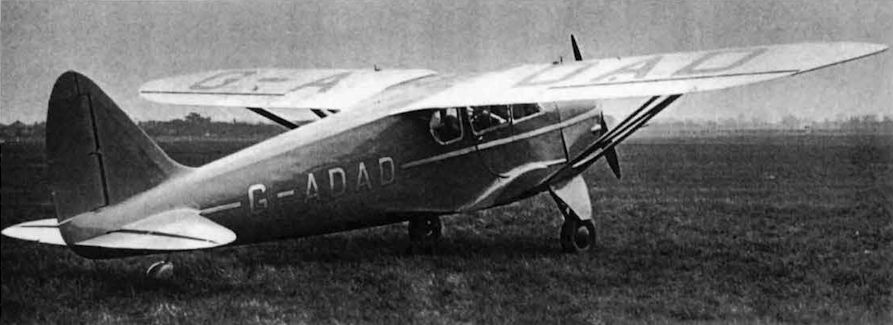

Регистрационный номер: G-ADAD [19], SX-AAH [19] This three-quarter rear view shows the flat-topped fuselage and the clean lines of the cantilever single fin tail surfaces. There is no visual evidence of aerodynamic or mass balancing on any of the control surfaces but no sign of flutter was found during testing or in service.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

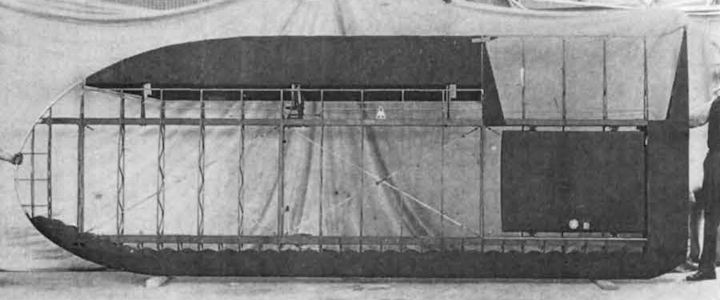

Регистрационный номер: G-ADAD [19], SX-AAH [19] The starboard wing, resting on its leading edge and showing the top surface. The starboard 7.5 gal fuel tank with filler cap front centre, is at the root end between the two I section spars.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

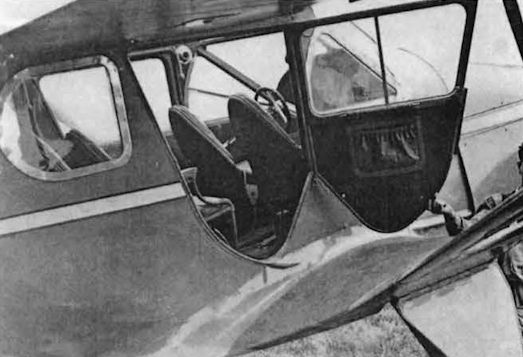

Регистрационный номер: G-ADAD [19], SX-AAH [19] With the door of G-ADAD held open it is seen that the seats are spaced apart to facilitate internal movement and a good view is provided by the large windows. However, climbing in looks as it it might be found difficult by some.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: G-AESV [5] The second Phoenix Series II, G-AESV, with Gipsy Six II and variable pitch de Havilland propeller without a spinner, is pushed out for photographs early in 1937. On top of the nose appears the name 'Standard Radio' and owner Standard Telephones' logo is on the rudder.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Регистрационный номер: VH-AJM [5] Close-up of the nose of VH-AJM with new owner Jimmy Melrose in the cockpit. A Fairey-Reed fixed pitch metal propeller has replaced the wood propeller used on the prototype.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

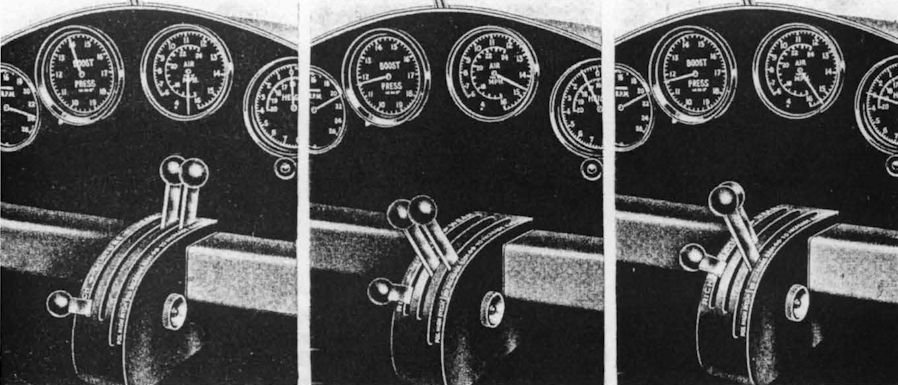

Pilot operation of the Variable Pitch Propeller.
Control Levers: Left: Mixture. Centre: Throttle. Right: Propeller Pitch. (Knurled wheel on right side is friction nut to prevent slippage)
Performance is shown on the Instruments, L to R: RPM, Boost (throttle), Airspeed, Height. Note that in diagram 1 airspeed and height increase during the climb.Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

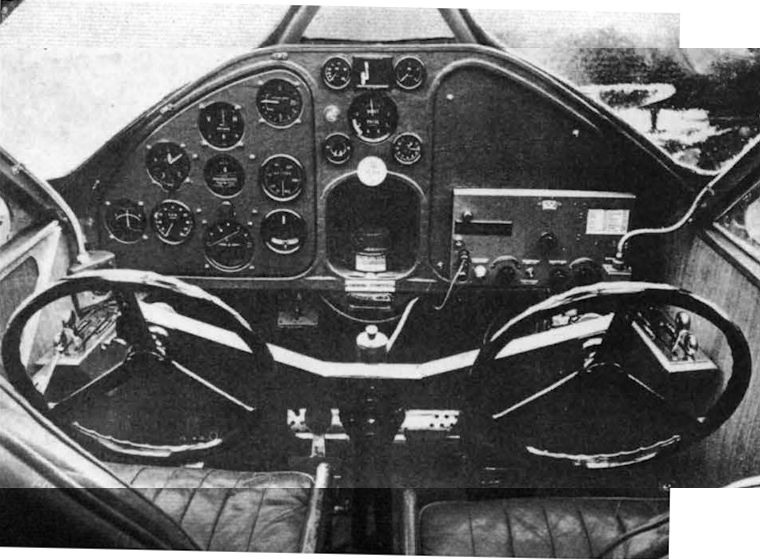

Регистрационный номер: G-AESV [5] The dashboard of the Phoenix carries, on the left, normal blind-flying instruments as well as homing and blind-approach indicators, while on the right is the built-in D/F receiver. Below the latter and out of sight behind the right-hand wheel is the control gate for the short-wave fighter set.
The cabin of G-AESV shows full dual control including a right side throttle box but only one set of flying instruments is fitted. A control panel for electrical equipment is fitted on the right panel with a cable from the wind generator. The notice below the compass reads 'Smoking Permitted'.Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-

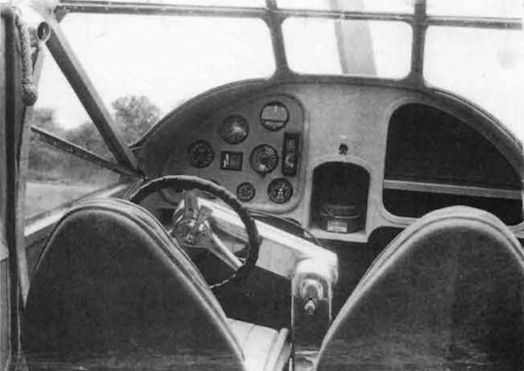

Регистрационный номер: G-ADAD [19], SX-AAH [19] The cockpit of prototype G-ADAD with its shallow-slope windscreen. The control wheel is the swing-over type for use by either front seat occupant, the throttle box is hidden by the pilot's seatback.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
The Heston Griffin, a project to fit the Phoenix with the more powerful 250 hp Wolseley Scorpio 9-cyl radial engine was too late to see production. A CofA Application was made for the aircraft with c/n 2/1 on 17.8.36 but it was not proceeded with.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
-
Wartime silhouette of the Phoenix II, all three examples of which served in the RAF in WW2.
Самолёты на фотографии: Heston Phoenix - Великобритания - 1935
