Фотографии
-

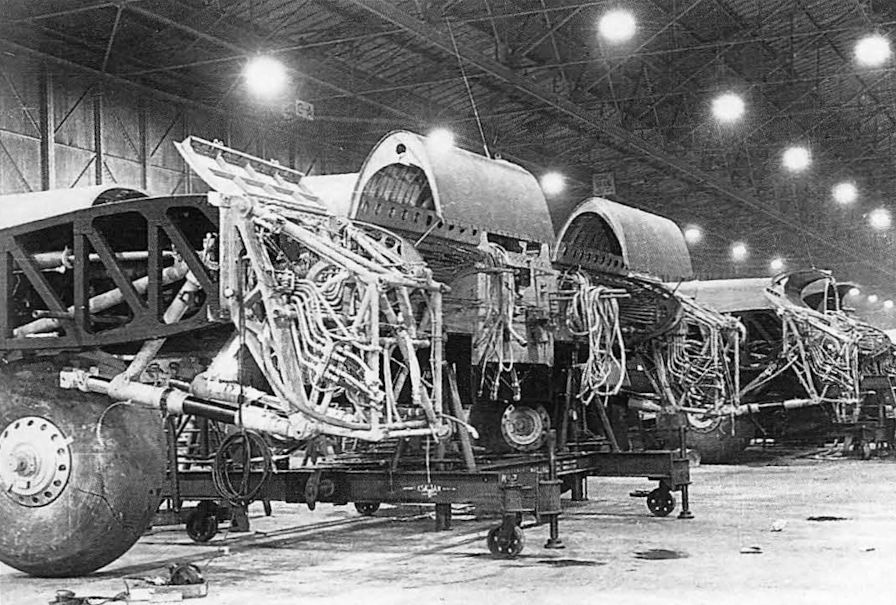

Lancaster wing/fuselage centre sections, complete with undercarriage and inner engine mounts, await mating with outer sections.
Самолёты на фотографии: Avro Lancaster / Type 683 - Великобритания - 1941
-

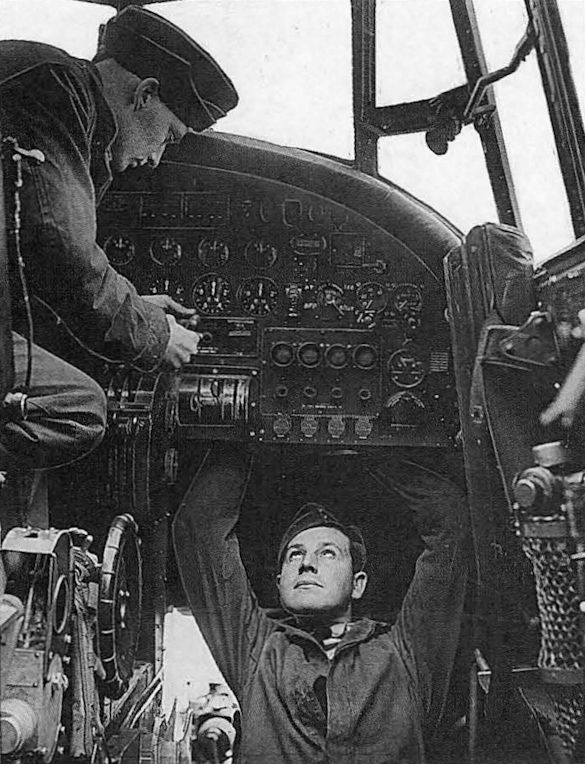

Instrumentation was installed in the Lancaster's cockpit before the forward fuselage section was mated to the rest of the airframe. Here, RAF servicing and repair mechanics work on a squadron aircraft.
Самолёты на фотографии: Avro Lancaster / Type 683 - Великобритания - 1941
-

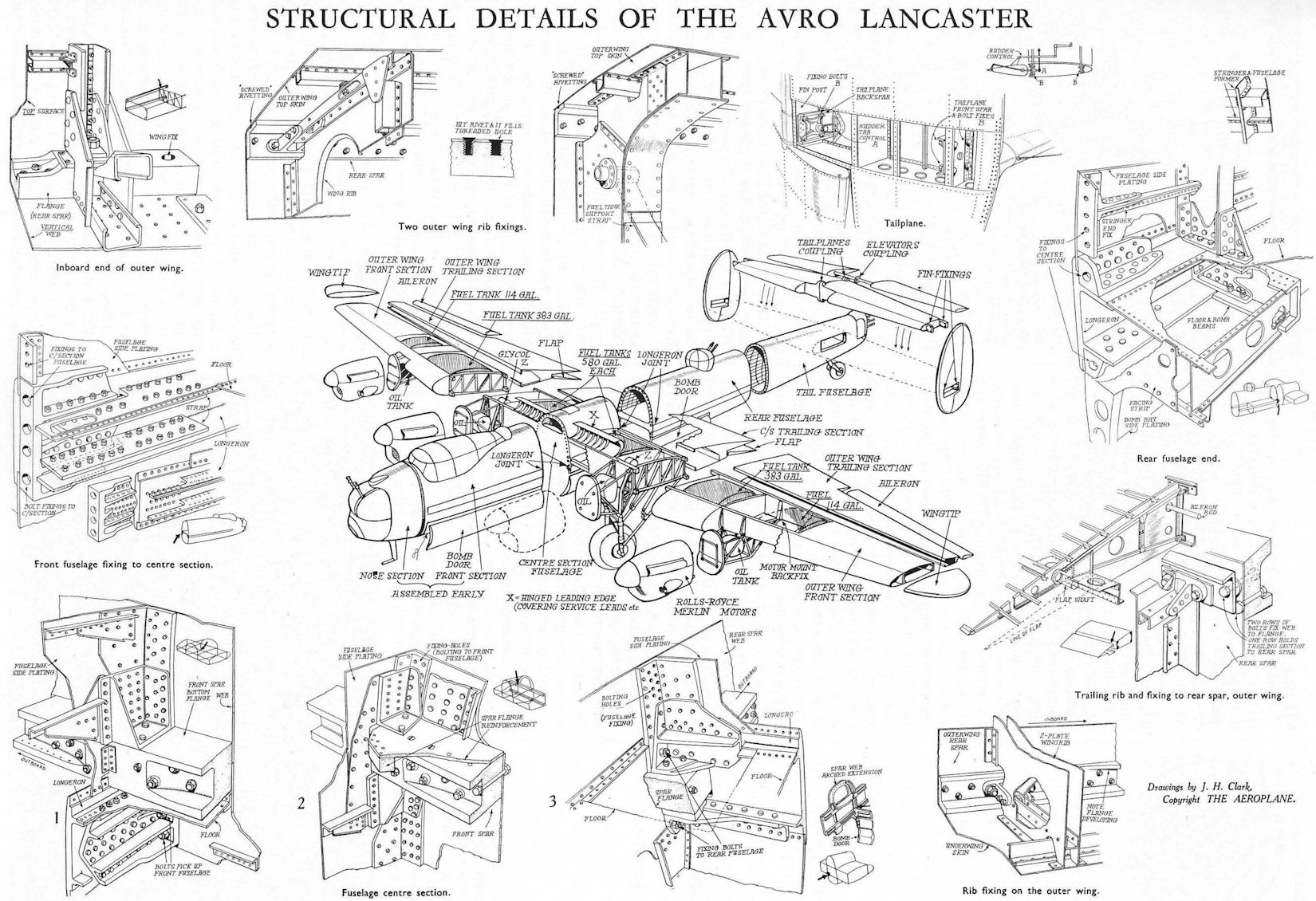

J.H. Clark's drawings of the Lancaster's structure and sub-assembly breakdown, from The Aeroplane of August 14, 1942.
Самолёты на фотографии: Avro Lancaster / Type 683 - Великобритания - 1941
-

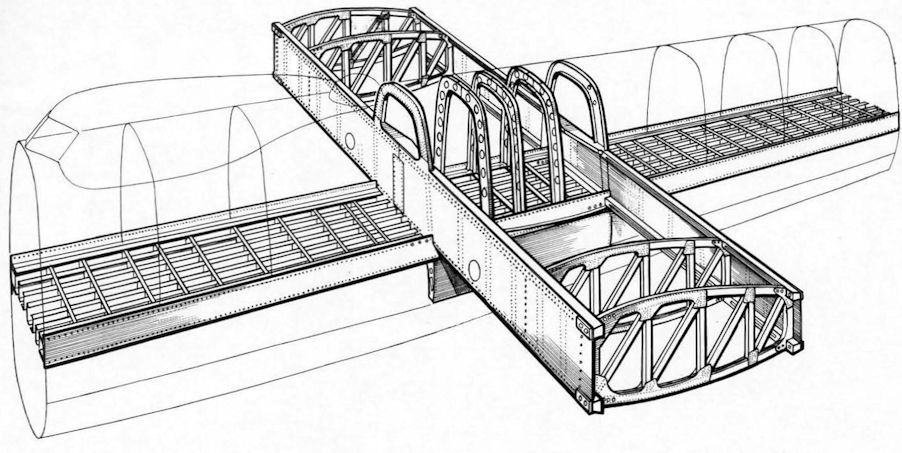

The heart of the Lancaster: the reinforced fuselage floor/bomb beam and the massive wing centre section. This illustration was first published not in The Aeroplane but in Flight of August 13, 1942.
The backbone of the Lancaster is formed by the centre-section spars and the roof of the bomb bay, which forms the floor of the fuselage.Самолёты на фотографии: Avro Lancaster / Type 683 - Великобритания - 1941
