Описание
Страна : Япония
Год : 1935
Планер
The Japanese Civil Register 1919-45
Air-Britain Archive
J-BDAA Asahi Type 1 soarer, single-seat glider. C/n Asahi 1. Asahi Shimbun KK. First flown 25.5.35 at Haneda airport. CofA 6.35. Registration cancelled 11.36 as destroyed. [Although said to have been built by members of the Asahi newspaper Aero Department, this glider was designed by S. Kawaguchi and A.Murayama of the Tokyo Gasuden company, built by Gasuden and assembled in the Asahi hangar at Haneda.]
- The Japanese Civil Register 1919-45
Фотографии
-
Air-Britain Archive 2002-01 / T.Fujita - The Japanese Civil Register 1919-45 /Japanese Civil Register/ (24)

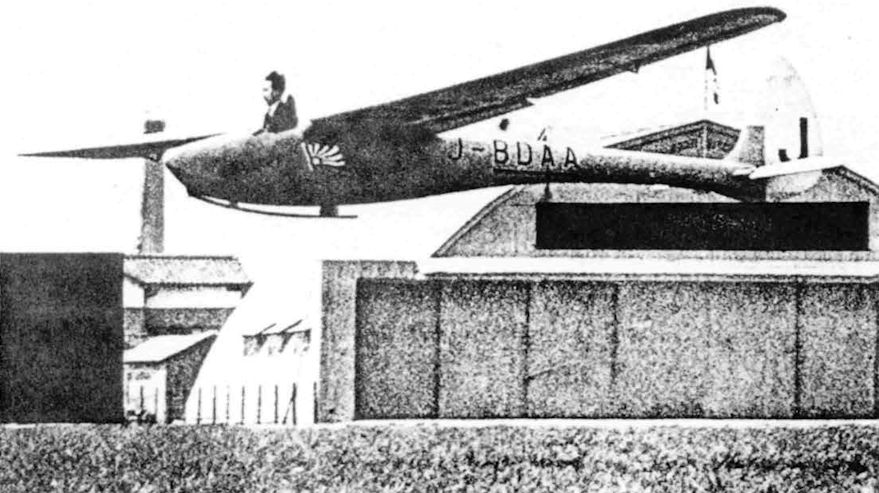

Регистрационный номер: J-BDAA [3] The only example built of the Asahi Type 1 soarer, J-BDAA shown on its first flight 25.5.35 piloted by K Kouch, the deputy chief of the Asahi Aero Department, who appears to be somewhat exposed to the slipstream. An inscription on the hangar and other airfield details seem to have been blacked out on this copy, probably by a censor.
-
Air-Britain Archive 2002-01 / T.Fujita - The Japanese Civil Register 1919-45 /Japanese Civil Register/ (24)

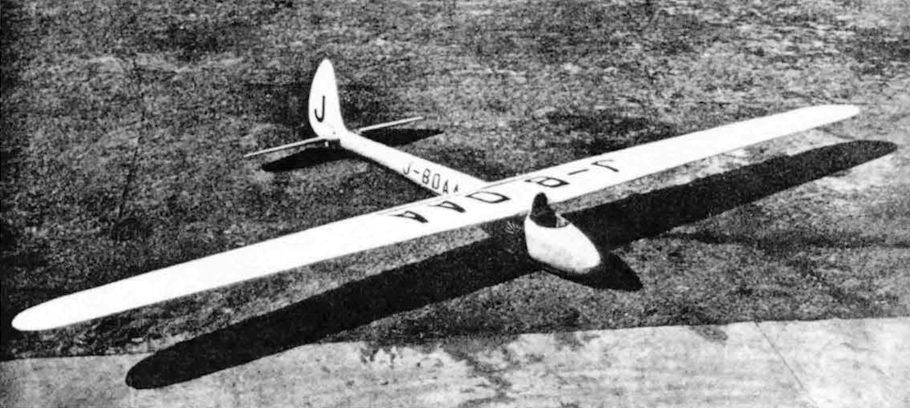

Регистрационный номер: J-BDAA [3] Another view of the Asahi Type 1 J-BDAA, for its time an advanced design with a good performance. Wing span was 15.00 m; length 6.63 m; aspect ratio 15; wing section Gottingen 535; empty weight 140 kg; glide ratio 1:18.5.
-
Air-Britain Archive 1998-04 / Feedback
Регистрационный номер: J-BDAA [3] J-BDAA, Asahi No. 1 glider, constructed by Mirajama, had a span of 15 m, length 6.36 m, weight 220 kg and a glide ratio of 1 : 18.5
