De Havilland Technical School T.K.4
Страна: Великобритания
Год: 1937

Единственный экземпляр
Flight, August 1937

Flight, August 1937

The Student-built T.K4 - A Slotted and Flapped Racing Machine

   TO many ways of thinking the most intriguing light racing machine seen in this country since the days of the original D.H. Tiger Moth monoplane is the diminutive T.K.4 designed and built by students of the De Havilland Technical School at Hatfield. The machine is of interest not only on account of its unique features of design and construction, but because it is the smallest aeroplane ever built in Great Britain. A few of the home-made terrors conceived each year just before the American National Air Races may possibly have been tinier, but none has shown such practical originality as the T.K.4.
   From the very beginning the machine, which should be flying as this issue goes to press, has been the students' "pigeon" entirely. Sqdn. Ldr. O. W. Clapp and Mr. E. W. Dodds have, of course, seen to it that the youthful technicians have not strayed from the straight and narrow path which leads to success in aircraft design, but everything from the 400 pages of stress calculations (which took six months to prepare, as the detail stressing is quite exceptionally thorough) to the final polishing of the surfaces has been the concern of the students.
   The T.K.4 has been entered for the King's Cup Race by Lord Wakefield, with "Bob" Waite as pilot. Sqdn. Ldr. Clapp is not prepared to disclose complete data, but has no objection to the statement that the machine's designed speed is 215 m.p.h.
   Other data are: Span, 19 ft. 8 in.; length, 15 ft. 6 in.; all-up weight, 1,180 lb.; full-throttle range, 450 miles; cruising range, 500 miles; absolute ceiling, 21,000ft.; landing speed, 62 1/2 m.p.h.
   Essentially the T.K.4 is a cantilever low-wing monoplane of wooden construction with Series II Gipsy Major engine, D.H. variable-pitch airscrew, Handley-Page slots, flaps and a retractable undercarriage.
   The fuselage is deep in relation to its length. A semi-monocoque structure, it has four longerons, spruce formers, and is ply-covered throughout. It is continuous beneath the elektron fairing behind the cockpit.
   The T.K.4 is the first machine (apart from an experimental Dragonfly) to mount the new Series II Gipsy Major engine, this being carried on a straightforward tubular mounting. This unit has been developed on similar lines to the Series II Gipsy Six and, in addition to being equipped for the operation of the "1,000" size D.H. variable-pitch airscrew, offers a higher continuous output than its predecessor, although the maximum power available is rather less than from the high-compression Major I installed in the T.K.2. In essentials the engine in the T.K.4 is a standard product, but incorporates a few modifications to suit it to the particular installation. For example, the nose cowl is of special design, the carburettor air intake and the inlet for the cooling air being combined in a scoop of circular section. Eventually the air intake may be moved farther forward to within half an inch of the airscrew so that additional boost may thus be obtained. As the air scoop is of modified design it is provided with small doors for the inspection of the sparking plugs. The cowling is quite flush, the usual hinges and draw wires having been abandoned in favour of American Dzus fasteners. A very handsome spinner fairs the airscrew hub.
   Twenty-three gallons of fuel are carried in a fuselage tank forward of the cockpit, and there is a cylindrical locker (which will probably be used for the stowage of a collapsible lifebelt) behind the pilot's parachute seat.
   The moulded Perspex windscreen is of fine aerodynamic form and must have presented quite a problem with its double curvature. A special quick-release device is incorporated in the coupe head which will have, in addition, a Sorbo pad to protect the pilot's cranium in bumpy conditions.
   Teleflex controls are used throughout. Fore-and-aft control under various loading conditions is facilitated by a spring-loading device which gives an initial tension. The usual instruments are fitted. There is an ingenious locking device to ensure that flaps and undercarriage are not pumped down simultaneously, and in addition a push-pull lever is provided to lock the wheels in the raised position.
   The wing has four spars and is covered on its upper surface with two laminations of spruce set at 45 degrees, the lower surface having ply covering. The section is symmetrical. Solid balsa wood is used for the tips, which extend inboard to the ailerons. The leading edge is of solid balsa. The tailplane is covered with ply which is supported on three balsa ribs, one inch wide.
   A particularly interesting form of construction is used for the control surfaces, these being virtually sandwiches of solid balsa between outer layers of three-ply which take all loads. A balsa-ply combination is used extensively in the Albatross. Special tests were necessary in this connection as normal stressing methods were not applicable.
   The H.P. slots are quite automatic and are possibly the smallest of their type ever made, measuring only about 3 ft. in length. They lie flush with the wing surface when closed.
   The undercarriage retracts inwardly towards the fuselage and is probably the smallest of its type ever built. Two students were sent to the Dowty factory to prepare the detail drawings for this unit, the gear not being of standard type, and all the parts were made by the students at Hatfield, being sent to Dowty for assembly. Retraction is effected hydraulically. The bearing tube runs through the first three spars, there being a bearing in each. No brakes are fitted, but a spring tail skid is incorporated.
VEST-POCKET VELOCITY: One of the first pictures of the new T.K.4 racing monoplane, designed and built by students of the De Havilland Technical School. It is only 19ft. 8in. in span and 15ft. 6in. in length. Fitted with the new Gipsy Major Series II engine and D.H. v.p. airscrew, it has been designed for a speed of 215 m.p.h. and, entered by Lord Wakefield, is to compete in the King's Cup Race. It is seen in an unpainted condition.
The T.K.4 immediately after completion, at Hatfield in 1937. It first flew on October 30 with the Class B markings E-4.
The T.K.4 was designed around the 140 h.p. de Havilland Gipsy Major II engine.
The T.K.4 built by D.H. Technical students.
The T.K.4 immediately after completion, at Hatfield in 1937. It first flew on October 30 with the Class B markings E-4.

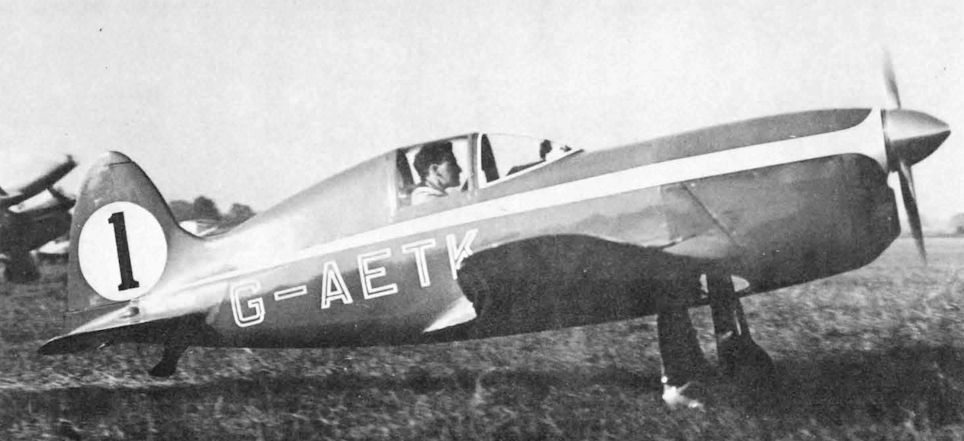

The T.K.4 in its final form, ready for the 1937 King's Cup Air Race. Note the small diagonal strut added to the Perspex hood, probably for quick release, and the hole just forward of the wings below the engine cowling.
A good impression of the T.K.4, piloted by Bob Waight, getting its tail skid off Hatfield Aerodrome at the start of the King's Cup Eliminating Race on Friday.
The T.K.4 takes off from Hatfield at the start of the 1937 King’s Cup Race on September 11. R. J. Waight averaged 230-5 m.p.h. for the course, but was placed ninth. The aircraft is seen in its attractive paint scheme of overall high gloss red with white letters and trim.
De Havilland’s largest and smallest at Hatfield in September 1937. The T.K.4 stands beneath the undercarriage of its step-brother, the Albatross. R. J. Waight made the maiden flights of both these aircraft.
Although the wing area of the T.K.4 is quite astoundingly small the landing speed should be kept within reasonable limits by the slots and flaps.
Seeing is believing: Waight looks into the fuel tank of the T.K.4 during replenishment at Renfrew.
STABLE TALK: Mr. Bob Waite (pipe in mouth), who will fly the T.K.4 in the King's Cup Race, discussing some of the finer points of his mount at the D.H. Technical School.
The T.K.4 G-AETK photographed on October 1, 1937 just after the crash in which de Havilland chief test pilot Bob Waight was killed. Built by de Havilland Technical Aeronautical School students, this remarkable aeroplane was virtually a faired-in 140 h.p. D.H. Gipsy Major II engine with 19ft 8in wingspan, retractable undercarriage, variable-pitch propeller and slots and flaps. After averaging 230-5 m.p.h. in the 1937 King's Cup air race, Waight was practising near Hatfield for an attempt on the 100km class record when the T.K.4 crashed.
A special nose cowling has been developed for the T.K.4, and may be seen to advantage in the photograph in the heading. The duct, visible within the main intake, is for the carburettor air. Note also the diminutive wheels and undercarriage. The accompanying drawings reveal the extensive application of balsa wood in the structure of the T.K.4 and a number of other features of this unusual little aeroplane.
The makers of the Dowty undercarriage have co-operated with the D.H. Technical School students in the design of the inward hingeing retractable legs of the T.K.4.
de Havilland Technical School T.K.4
