WACO F / A Series / PT-14

Поиск по сайту:

WACO - CRG (G Series) - 1930 - США WACO - Primary glider - 1930 - США

Страна Country: СШАUSA

Год Year: 1930

Two-place tandem open-cockpit biplane

Waco. Бипланы

<...>
   В 1930 году были введены трехбуквенные обозначения самолетов, в которых первая буква указывала на тип двигателя, вторая - на тип планера, а третья - на серию. В некоторых случаях добавлялись дополнительные буквы или цифры для более точного обозначения модели самолета.
<...>
   Трехместный Model UBF постройки 1932 года оснащался двигателем Continental мощностью 210 л. с.; в 1934 году ВМС США приобрели два таких самолета и под обозначением XJW-1 использовали в качестве учебно-тренировочных в рамках программы создания «паразитного» истребителя, в которой принимал участие дирижабль «Macon».
<...>
   Два типа самолетов заказала Бразилия. Первый Model CPF 1935 года разработки использовался в качестве учебно-тренировочного.
<...>
   Появление в 1937 году Model UPF-7, представлявшего собой учебно-тренировочный самолет с открытой кабиной, оказалось для «Waco» тоже весьма успешным. Причем вначале самолет предлагался как двух-/трехместный спортивный с двигателем Continental W-670K мощностью 220 л. с. Шесть проданных в Гватемалу самолетов имели обозначение Model VPF-7 и двигатели Continental мощностью 240 л. с., причем высокое качество их сборки подтверждается тем, что в 1959 году все они вернулись в США. Многие Model UPF-7 приобретались гражданскими летными школами, а ВВС Армии США провели оценочные испытания одного самолета XPT-14 и затем приобрели 13 YPT-14 (позднее PT-14). В 1942 году один реквизированный для военных нужд UPF-7 получил обозначение PT-14A.
   В 1939 году компания получила заказ на 600 Model UPF-7 в рамках обеспечения реализации программы правительства США, направленной на подготовку гражданских пилотов, которые с началом войны должны были пополнить ряды ВВС.
<...>

Показать полностью

ОписаниеDescription

Aviation Historian 41 / L.Andersson - Fall of the Phoenix

For his flight from Shanghai to Macau during January-February 1931, G. Warren Brophy used Waco RNF c/n 3359, named Feng Wang.
Air Enthusiast 2001-09 / C.Lucchesi - For Naval 'Wings'

Waco CPF floatplane.

Aeroplane Monthly 1999-10 / M.Oakey, T.Harmsworth - News
Регистрационный номерRegistry number: CF-AMD

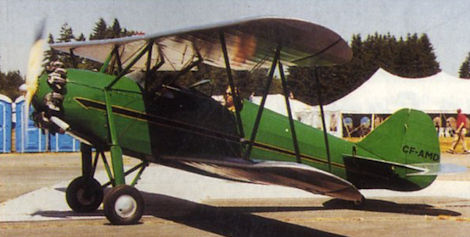

The Canadian Heritage Flight sent this Waco RNF, CF-AMD, to the Arlington show. The RNF was introduced in April 1930, powered by a 110 h.p. seven-cylinder Warner Scarab engine.
Aeroplane Monthly 1999-10 / M.Oakey, T.Harmsworth - News
Регистрационный номерRegistry number: NC605Y, CF-CJR

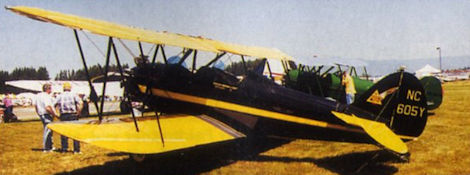

The Waco INF was essentially a 125 h.p. Kinner-engined version of the RNF. This example, N605Y, has now been re-registered CF-CJR, and is also owned by the Canadian Heritage Flight.
Aeroplane Monthly 1991-10 / H.Levy - WACO reunion '91
Регистрационный номерRegistry number: NC164
Joe Maguire’s 1940 UPF-7 NC164. More than 600 UPF-7s were built between 1940-42.
Aeroplane Monthly 1989-10 / H.Levy - Wacos galore!

James Buchwald’s VPF-7 two-seater once flew with the Guatemalan Army Air Corps.
Aeroplane Monthly 1991-06 / H.Levy - A brace of WACOs
Регистрационный номерRegistry number: NC74835 [3]
Alan Shimer’s Waco VPF-7, flown from the owner’s 1,200ft strip at Gettysburg.
Aeroplane Monthly 1991-06 / H.Levy - A brace of WACOs
Регистрационный номерRegistry number: NC74835 [3]
Aeroplane Monthly 1991-06 / H.Levy - A brace of WACOs
Регистрационный номерRegistry number: NC74835 [3]
Aeroplane Monthly 1989-10 / H.Levy - Wacos galore!

One of eight UPF-7s at Wynkoop.
Aeroplane Monthly 1991-10 / H.Levy - WACO reunion '91
Регистрационный номерRegistry number: NC32162
Dr O. Weaver's 1941 Waco UPF-7 NC32162.
Jane's All the World Aircraft 2000 / 2-01 - AIRCRAFT - FIXED-WING - CIVIL
Регистрационный номерRegistry number: N250YM
Waco Classic YMF Super reinvocation of the Waco YMF-5 three-seat biplane (1999)
Aeroplane Monthly 2001-02 / E.Gandet - The Time Keepers /Swiss preservation/
Регистрационный номерRegistry number: HB-UPZ
Built by Classic Aircraft Corporation, this Waco YMF-5 Super is one of only three in Europe. HB-UPZ is also known as the "Blue Wizard".
Aeroplane Monthly 1999-10 / T.Harmsworth - Over the Moon and under the 'Kosh /Oshkosh '99 report/

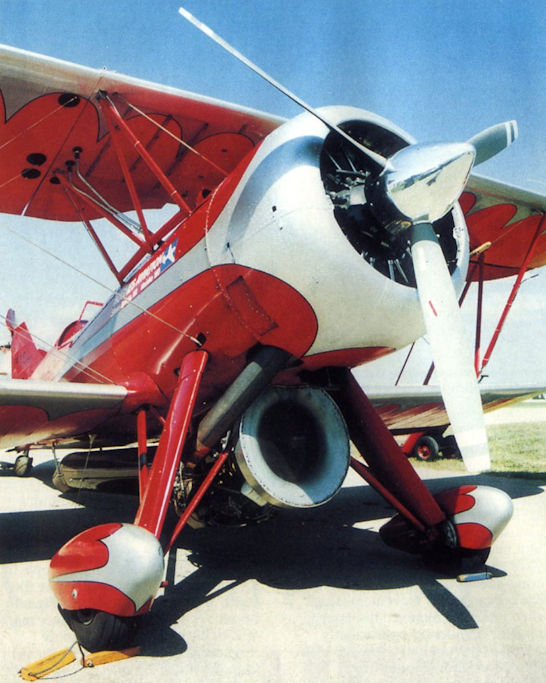

Jimmy Franklin’s highly modified Waco UPF-7, fitted with a General Electric CJ-610 jet engine mounted improbably between the undercarriage legs.
Aeroplane Monthly 1989-10 / H.Levy - Wacos galore!

Some of the Wacos at Wayne Hayes’s Waco Shop.

Aeroplane Monthly 1989-10 / H.Levy - Wacos galore!
Регистрационный номерRegistry number: N12453 [8]
Barry Branin's Maryland-based IBA N12453 is powered by a Kinner B-54 radial.
Aeroplane Monthly 2000-01 / M.Oakey, T.Harmsworth - News
Регистрационный номерRegistry number: NC13041
Donald Axxin with his newly acquired Waco UBA NC13041, one of only two airworthy examples.

Jane's All the World Aircraft 1938 / 03 - All the world's aeroplanes

The Waco Model F-T Two-seat Training Biplane.
Авиация и Космонавтика 2010-08 / М.Лисов - На родине пионера авиации. Музей Военно-Воздушных Сил Бразилии

WACO CPF
Air International 1985-07

The Waco CPF-5 operated by the Forca Aerea Brasileira
Air Pictorial 1956-07 / Air Pictorial's photo-review
Регистрационный номерRegistry number: N29909
WACO MODEL UPF-7 of 1939 has new large U.S. registration letters. Jazz tail markings indicate former use of this ex-U.S.A.A.C. PT-14 as air shows' stunt biplane. Power is 225,h .p. Continental R-670-3.
Aviation Historian 41 / L.Andersson - Fall of the Phoenix

Brophy beside the RNF with its Warner Scarab engine running. Note the name Feng Wang and Chinese characters on the cowling.
Aviation Historian 41 / L.Andersson - Fall of the Phoenix

Brophy in his flying suit beside the RNF, which bears the name of the L.E. Gale Company on the fuselage aft of the cockpit, along with a set of Chinese characters, beneath which is the name Feng Wang and the corresponding Chinese characters. On the rudder the name Phoenix has been applied in English, along with Shanghai, the location of the Gale Company’s HQ.
Aviation Historian 41 / L.Andersson - Fall of the Phoenix

Chinese engineers and military personnel pose for a photograph in front of the RNF, possibly while at Fuzhou, where Brophy landed on January 25, 1931. The following day poor weather forced him down 30 miles (50km) south-east of Fuzhou, the resulting rough landing damaging the propeller and causing further delays.
Aviation Historian 41 / L.Andersson - Fall of the Phoenix

Probably the first time many of the locals had seen an aircraft, Brophy’s Waco attracted a great deal of attention during its various stops on the way to Macau. Again taken on the pebbly terrain, this photo shows an elderly woman posing in front of the machine. Note the pristine Hamilton Standard metal propeller, presumably after its repair.
Aviation Historian 41 / L.Andersson - Fall of the Phoenix

Another photograph of the RNF during its journey from Shanghai to Guangzhou (Canton), perhaps at Fuzhou, or looking at the pebbly surface, more likely on the beach to the south-west where Brophy made a forced landing on January 26. If any readers can translate the characters on the fuselage side, we’d love to know what they say!
Flight 1939-08 / Flight

SPOT LANDING: Allen Daily, of Yale, flying a Kitty Hawk (Waco F), wins the forced landing event. The mark, a white cross, is just below the undercarriage.
Aeroplane Monthly 1976-10 / I.Best-Devereux - Antiques at Oshkosh
Регистрационный номерRegistry number: NC11427
Lee Parsons’ Waco QCF-2 three-seater first flew in 1931 and has a 220 h.p. Continental R670-11A.
Aeroplane Monthly 1989-12 / F.Mormillo - Reno razzle

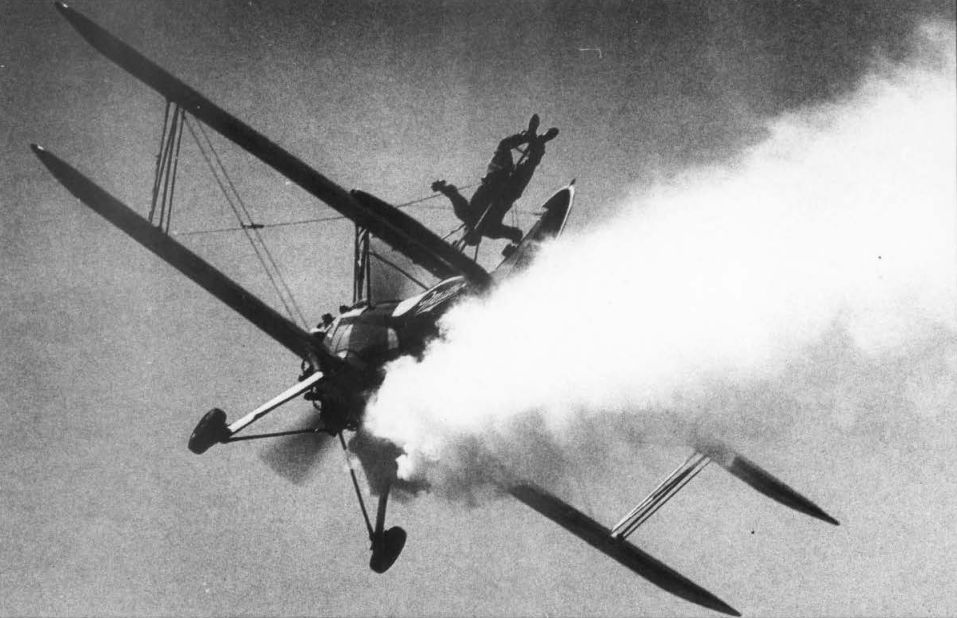

Johnny Kazian wingwalking on Jim Franklins Waco Mystery Biplane.
Aeroplane Monthly 1988-12 / C.Burkett - Oshkosh '88

Pilot Jim Franklin and stuntman John Casey enthralling the Oshkosh crowds with their antics in - and on - a Waco.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
Built in 1930, the Waco has been through several restorations; Hayes spent a year and a half bringing it to its present pristine condition, and flew it for the first time in May 1987.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
Waco KNF NC113Y in flight just after completion of its rebuild in May 1987. Powered by a 100 h.p. five-cylinder Kinner radial engine, NC113Y has a cruising speed of 83 m.p.h. and a climb rate of 1,000ft/min.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
NC113Y shows off its spotless blue-and-silver colour scheme, achieved with the help of 20 coats of butyrate dope.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
Hayes’s attention to detail is apparent in the meticulous gap-sealing of NC113Y’s aileron hingelines. The wing and aileron structure is all-wood, while the fuselage and tail are fabricated in welded steel tube.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
The view of the tail shows the slotted fairing which permits adjustment of the variable-incidence tailplane.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
The Waco’s divided-type undercarriage.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
The Kinner engine’s distinctive exhaust stubs are vulnerable to cracking if the throttle is chopped on landing, owing to too-rapid cooling.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
Fixed to the door of the forward-cockpit baggage compartment is NC113Y's original 1930 maker's plate. Allotted the Waco construction number 3297, the aircraft was sold new to the Tex Rankin School of Aeronautics at Seattle for about $3,650.
Мировая Авиация 251

Бразилия заказала самолеты Waco CPF в качестве учебно-тренировочных. Машины оснащались двигателями Wright R-760-E мощностью 250 л. с. и имели двухместные открытые кабины. Данный самолет оснащен поплавками типа Edo и был одним из десяти, поступивших в ВМС Бразилии. Остальные 30 машин попали в Армию.

Air Enthusiast 1971-07 / Veteran & vintage

This Waco RBA dates from 1932 and was restored by Jim Loomis.
Мировая Авиация 251
Регистрационный номерRegistry number: N12453 [8]
«Waco» разработала самолеты семейства KBA в качестве учебно-тренировочных с размещением двух летчиков плечом к плечу. Были построены три самолета варианта IBA, которые оснащались двигателем Kinner B-5 и опционально - фонарем кабины.
Aeroplane Monthly 1991-05 / H.Levy - East coast WACO
Регистрационный номерRegistry number: N12453 [8]
Aeroplane Monthly 1991-05 / H.Levy - East coast WACO
Регистрационный номерRegistry number: N12453 [8]
The IBA spans 29ft 6in, with a chord of 4ft 10in. Overall length is 21ft 11in, and height 8ft 8in. The aircraft is powered by a 125 hp. Kinner B-54 five-cylinder radial with an 88in diameter Sensenich propeller.
Aeroplane Monthly 1991-05 / H.Levy - East coast WACO
Регистрационный номерRegistry number: N12453 [8]
Aeroplane Monthly 1991-05 / H.Levy - East coast WACO
Регистрационный номерRegistry number: N12453 [8]
The IBA's slickly-painted tail feathers.
Aeroplane Monthly 1991-05 / H.Levy - East coast WACO
Регистрационный номерRegistry number: N12453 [8]
Owner Barry Branin and passenger in the cockpit of the Waco. Reeking with Thirties style, the aircraft originally sold for US$4,095 in 1932.

Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
Restorer Wayne Hayes in the cockpit of Waco KNF NC113Y.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
The Waco's front (rear ???) cockpit, complete with original instruments. Note the adjustable-tailplane control on the starboard side - two hemp cords knotted at regular intervals.
Aeroplane Monthly 1989-06 / H.Levy - WACO wizardry
Регистрационный номерRegistry number: NC113Y [14]
The forward cockpit.
Aeroplane Monthly 1991-06 / H.Levy - A brace of WACOs

The front cockpit of James Buchwald’s VPF-7. The instrumentation of the front cockpit is sparse by comparison with that of the IFR-equipped rear. The three instruments in the picture are the airspeed indicator, turn-and-bank indicator and the altimeter.
Aeroplane Monthly 1991-06 / H.Levy - A brace of WACOs

The rear cockpit of James Buchwald’s VPF-7. The instrumentation of the front cockpit is sparse by comparison with that of the IFR-equipped rear.
Aeroplane Monthly 1991-05 / H.Levy - East coast WACO
Регистрационный номерRegistry number: N12453 [8]
N12453’s roomy side-by-side cockpit is 38in wide - note the bench-type seat.
Air-Britain Archive 1990-02
Регистрационный номерRegistry number: LN-BAN, NC11228
No, not another desert photograph, this one was on snow and ice! The registration LN-BAN being clearly visible we feel that is probably clue enough but if further help is needed the date was 7.4.36.
Photo p.90/54 shows Waco RNF LN-BAN c/n 3434 (ex NC11228) of Wideroes. The accident occured at Nystuen on 7.4.36 only a month after registration and the marks were cancelled 8.5.36 as a result. The cause was loss of power on take-off.
