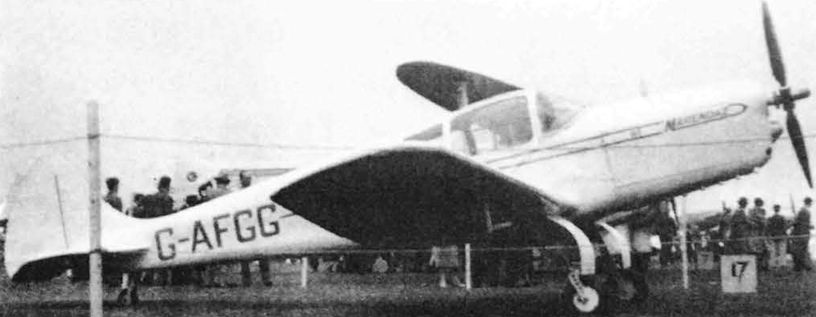

Регистрационный номер: G-AFGG MARENDAZ MARK 3. Built by International Aircraft and Engineering Ltd., at Barton, Beds, the Marendaz was designed in two versions, the Mks. 3 and 4. The Mark 3 shown here was a 3 four-seat with a Gipsy Six and the Mk. 4 a two-seat with a Gipsy Major. Special type slots and flaps were fitted, as well as a retractable undercarriage. The Marendaz Mk. 3 had a span of 31 ft. and length 26 ft. The Marendaz Mk. 4 would have had the same dimensions but the undercarriage was fixed. Neither the Mk. 3 or 4 ever flew, it is believed. This photograph was taken at the R.Ae.S. Garden Party at Heathrow on 8th May, 1938.
Another view of the uncompleted III at Heathrow shows the short exhaust stubs of the 6-cyl Gipsy engine and the unusual curved (bendable?) covers for the legs of the retractable undercarriage.Самолёты на фотографии: Marendaz Mk III - Великобритания - 1937
-

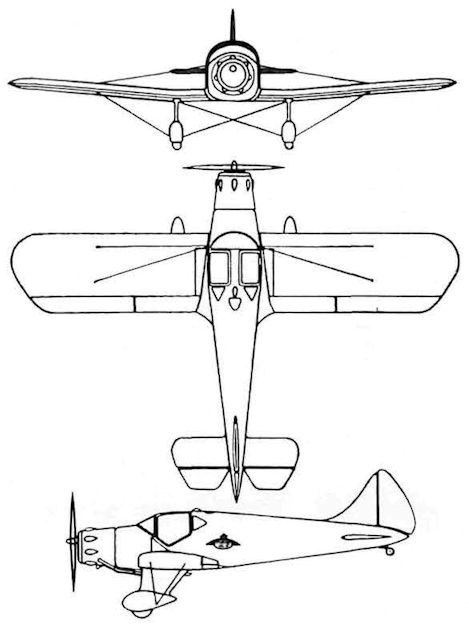

The manufacturer's 3-view drawing of the Marendaz Special, a sporty looking 2 seater shown with a Pobjoy engine.
Самолёты на фотографии: Marendaz Mk III - Великобритания - 1937
-

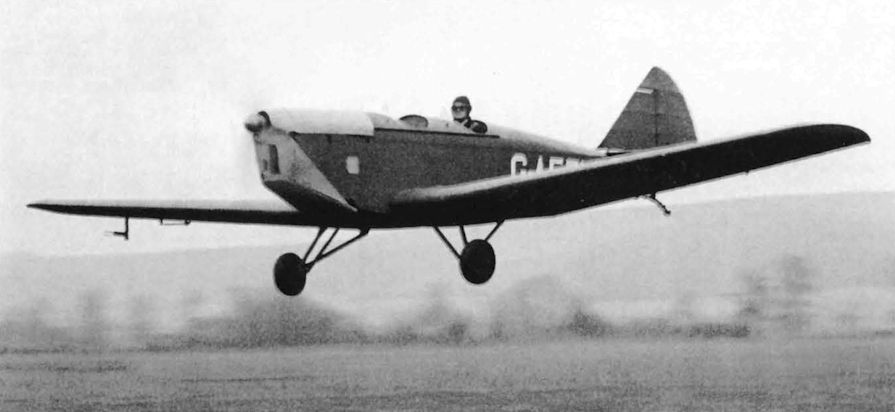

Регистрационный номер: G-AFZX [11] Beginning to pull up, detail features apparent are the pitot under the right wing, almost invisible transparent windscreens and leaf spring tailskid with 'Silentbloc' shock absorber.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-

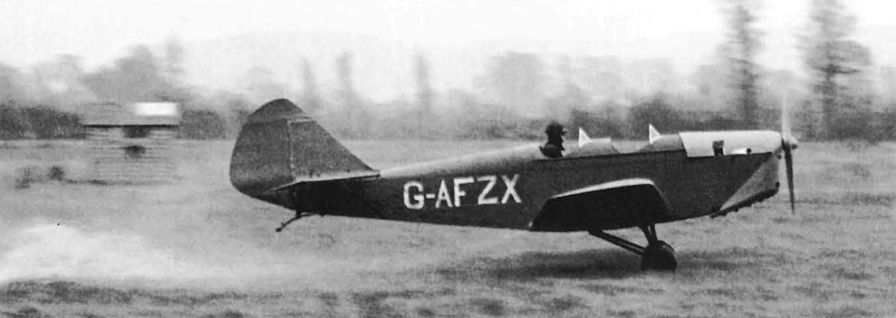

Регистрационный номер: G-AFZX [11] R A Wyndham making a sprightly take-off in G-AFZX on his press demonstration flight. Behind the carburetter air inlet the 'tickler' access door has popped open and it stayed open throughout the flight.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-

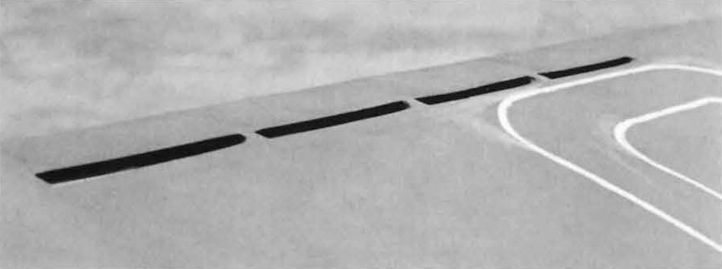

Регистрационный номер: G-AFZX [11] The left wingtip from above shows the outlet of the 'letter box' slots which were effective in the stall at preventing 'wing drop' and subsequent spin.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-

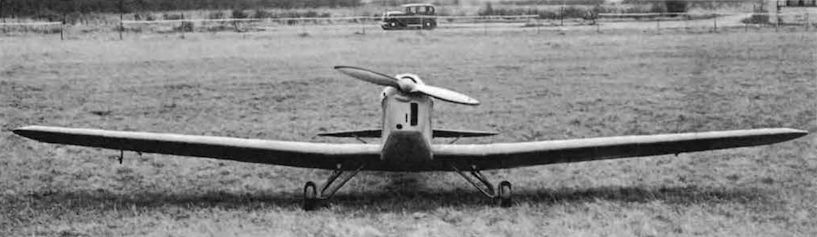

Регистрационный номер: G-AFZX [11] The head-on-view shows the Marendaz Trainer with 90 hp Cirrus Minor I engine with its frontal cooling air intake for the 4 inverted cylinders, the large span wing with straight centre section, the wide-track undercarriage and the strut-braced tailplane.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-

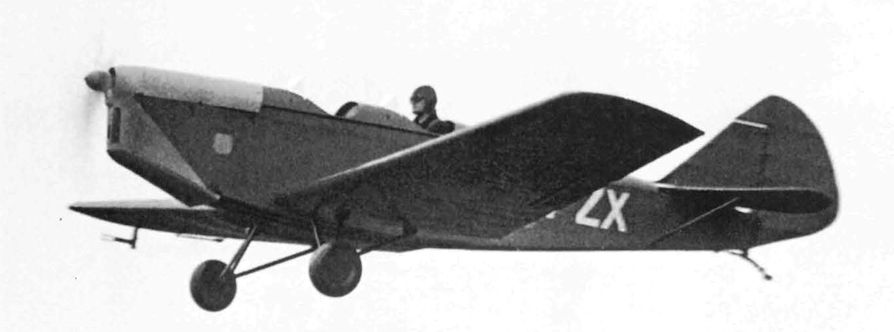

Регистрационный номер: G-AFZX [11] On a flyover into wind the flap behind the carburetter intake is still open but it is not a problem and Wyndham keeps flying.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-
Регистрационный номер: G-AFZX [11] From this angle the right wingtip slots show up clearly. No wing root fillets are fitted, wing area 157 ft2, wing loading 9.56 lb/ft2.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-

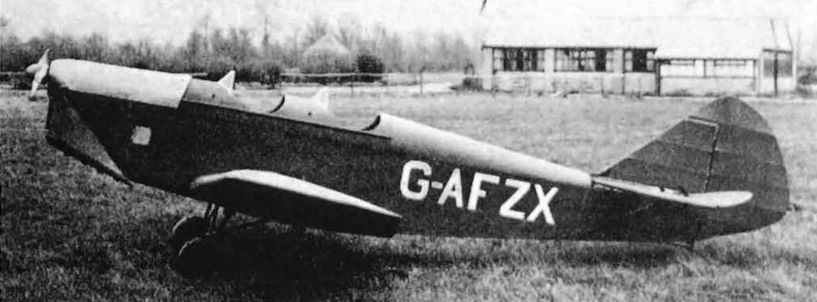

Регистрационный номер: G-AFZX [11] Left side view of the Trainer shows the 'slide in from the top' tandem seating with no doors and unusually-shaped metal cowling extending above and below the engine.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-

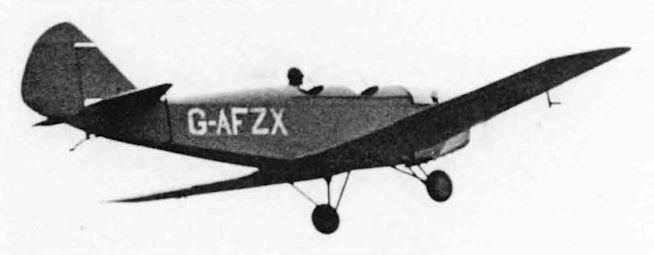

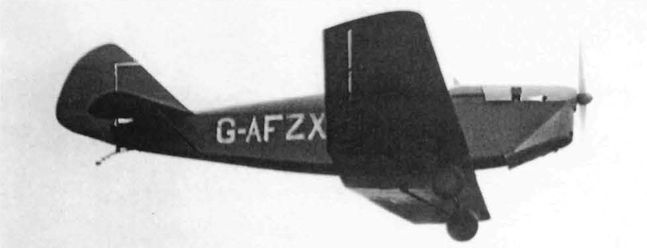

Регистрационный номер: G-AFZX [11] Airborne, G-AFZX climbs away. Like the Tiger Moth, distribution of loading makes it necessary for solo flying to be from the rear cockpit, so the pupil would be in the rear.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-
Регистрационный номер: G-AFZX [11] R A Wyndham shows the clean lines of the Trainer by returning downwind in a fast flypast at low level.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-

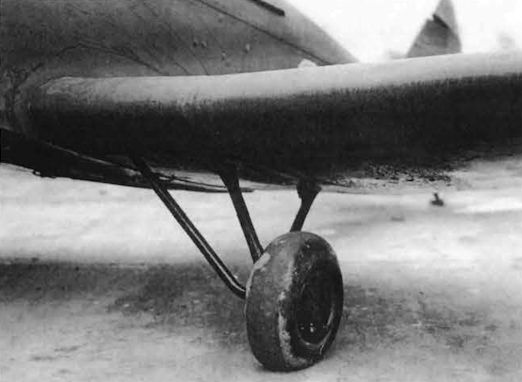

Регистрационный номер: G-AFZX [11] Close-up of the left undercarriage unit with its outwards swivelling shock absorption system and low pressure tyres. Unfortunately this unusual undercarriage design was never able to prove itself in regular service.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
-

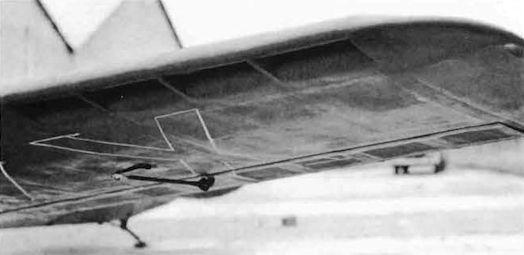

Регистрационный номер: G-AFZX [11] Underside view of the left wingtip showing the long aileron and its operating link and, in shadow, the four fixed wingtip slots.
Самолёты на фотографии: Marendaz Trainer - Великобритания - 1939
