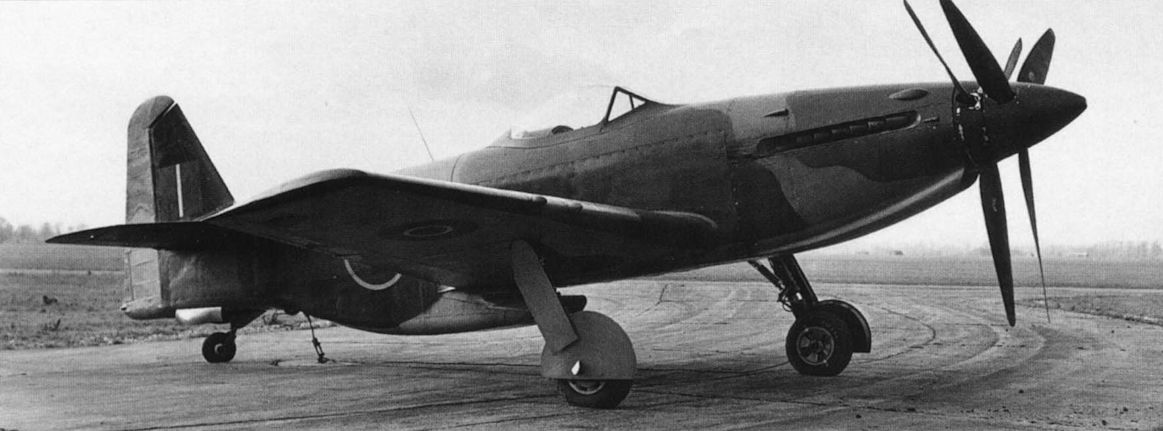

Регистрационный номер: R2496 Compare this view of the original M.в.5, R2496, with the reproduction. The biggest visual difference is the fuselage of the repro, shortened for better longitudinal control.
Самолёты на фотографии: Martin-Baker MB.5 - Великобритания - 1944
-

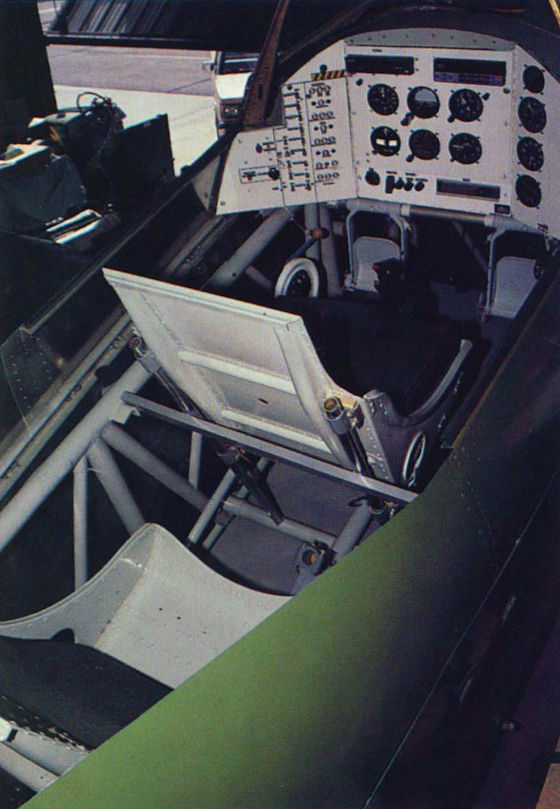

A close-up of the cockpit and instrument panel of Marlin's M.B.5. The aircraft is equipped with an American-style “stick" control column grip in place of the standard British Second World War fighter spadegrip, and a jump seat has been fitted behind the pilot, with duplicated controls.
Самолёты на фотографии: Martin-Baker MB.5 - Великобритания - 1944
-

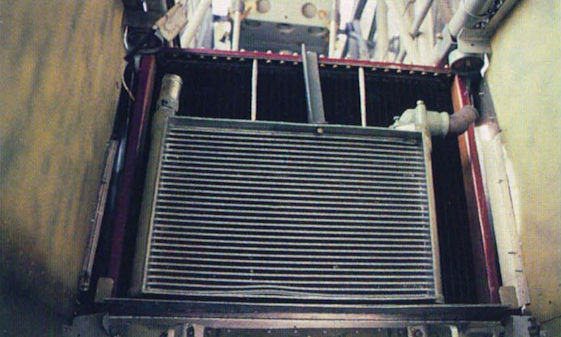

An interior view, looking forward inside the reproduction's lower fuselage, shows the radiator for the Griffon engine.
Самолёты на фотографии: Martin-Baker MB.5 - Великобритания - 1944
-

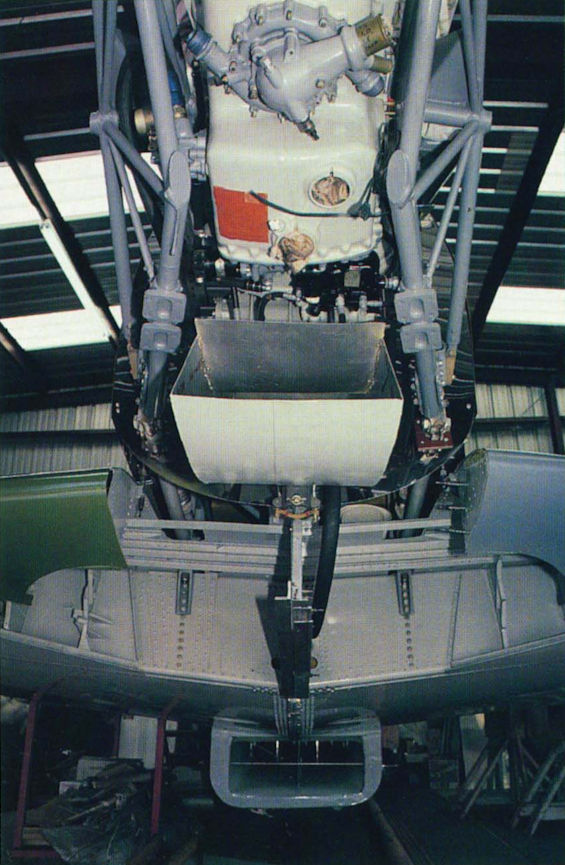

Looking aft from under the engine, showing the carburettor intake, the wheel-wells and the radiator intake.
Самолёты на фотографии: Martin-Baker MB.5 - Великобритания - 1944
-
John Marlin in front of the Martin-Baker M.B.5 reproduction that has been his passion since 1988.
Самолёты на фотографии: Martin-Baker MB.5 - Великобритания - 1944
-
The carburettor air intake and lower engine mounting.
Самолёты на фотографии: Martin-Baker MB.5 - Великобритания - 1944
-
With side panel removed, the scratchbuilt all-metal fuselage structure is revealed. The reproduction utilises P-51 Mustang wings and tail surfaces. Note the large underfuselage fairing which houses the radiator.
Самолёты на фотографии: Martin-Baker MB.5 - Великобритания - 1944
-

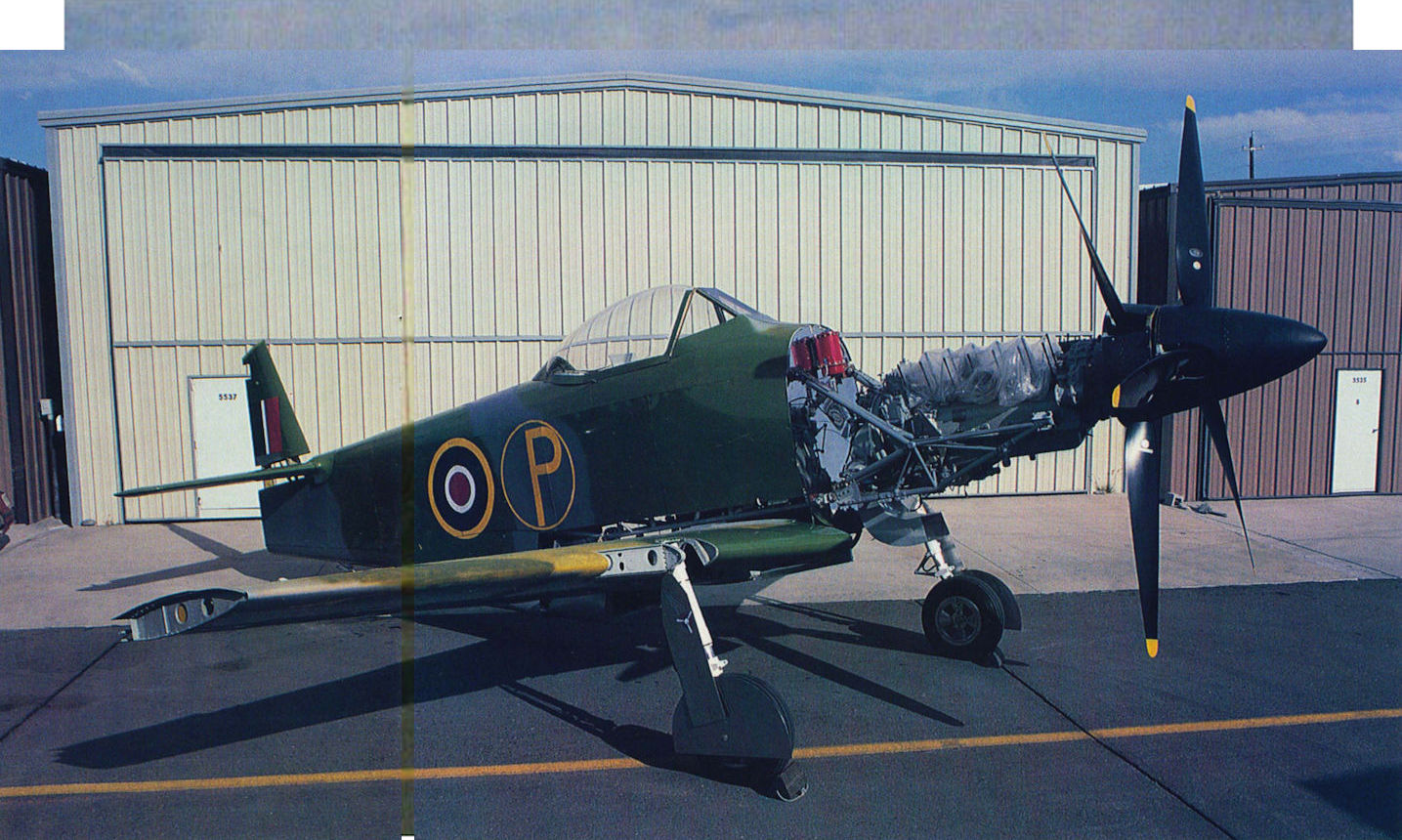

Marlin's Martin-Baker M.B.5 reproduction on the ramp at Stead Field near Reno, Nevada. The Rolls-Royce Griffon 58 engine came from an Avro Shackleton.
Самолёты на фотографии: Martin-Baker MB.5 - Великобритания - 1944
-

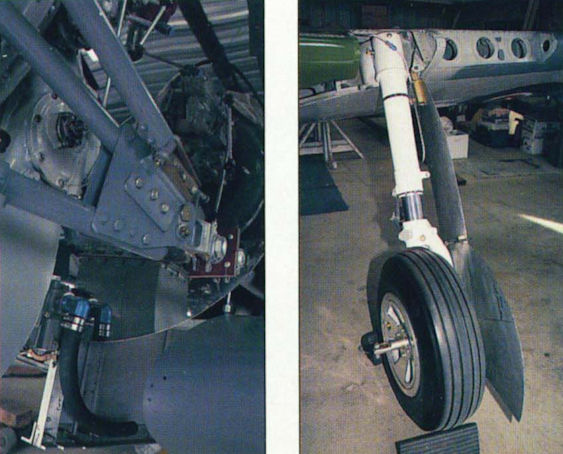

LEFT The lower engine mounting and firewall.
RIGHT The port main undercarriage. The Mustang origins of the wing are particularly obvious in the mounting bay for the P-51D's 0-50in machine-guns.Самолёты на фотографии: Martin-Baker MB.5 - Великобритания - 1944
