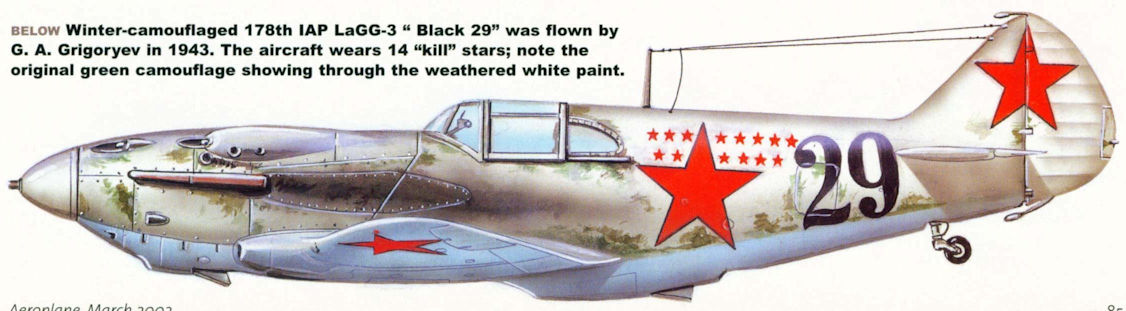

Winter-camouflaged 178th IAP LaGG-3 “ Black 29” was flown by G. A. Grigoryev in 1943. The aircraft wears 14 “kill" stars; note the original green camouflage showing through the weathered white paint.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

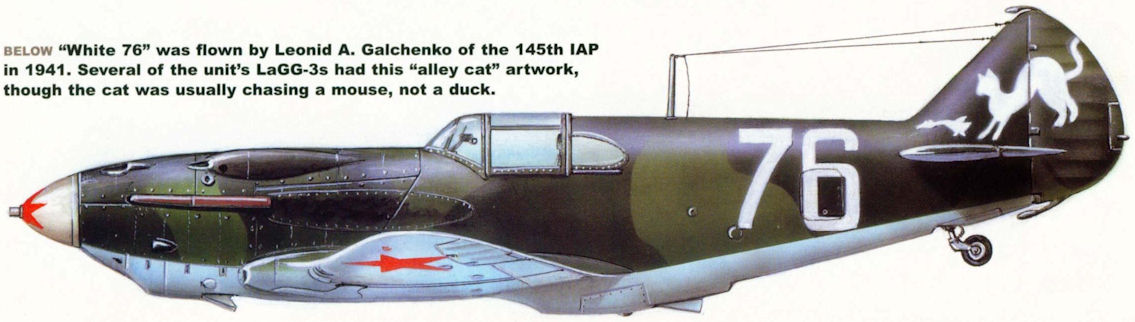

"White 76" was flown by Leonid A. Galchenko of the 145th IAP in 1941. Several of the unit's LaGG-3s had this “alley cat" artwork, though the cat was usually chasing a mouse, not a duck.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

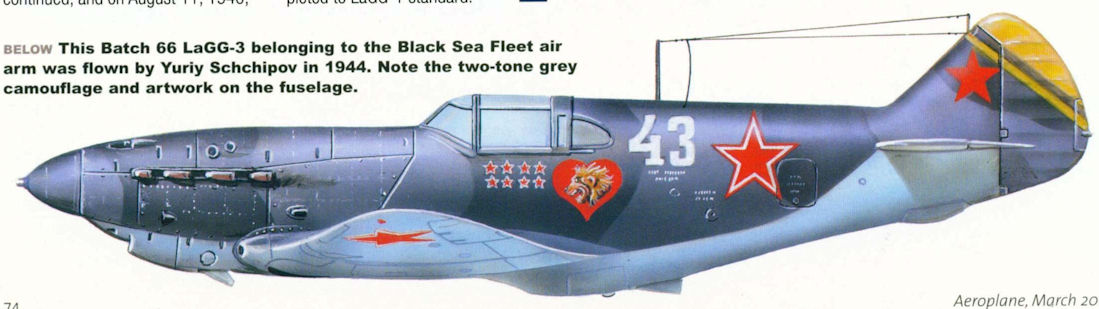

This Batch 66 LaGG-3 belonging to the Black Sea Fleet air arm was flown by Yuriy Schchipov in 1944. Note the two-tone grey camouflage and artwork on the fuselage.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-
A weight has replaced the engine of this LaGG-3 undergoing stress testing at Taganrog; note the last three digits of the c/n (627) near the port main undercarriage leg.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

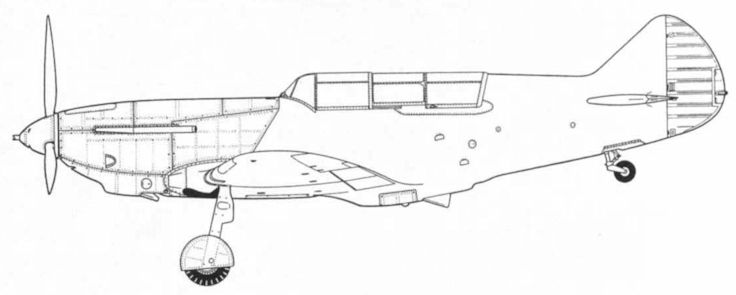

Истребитель ЛаГГ-3 66-й серии

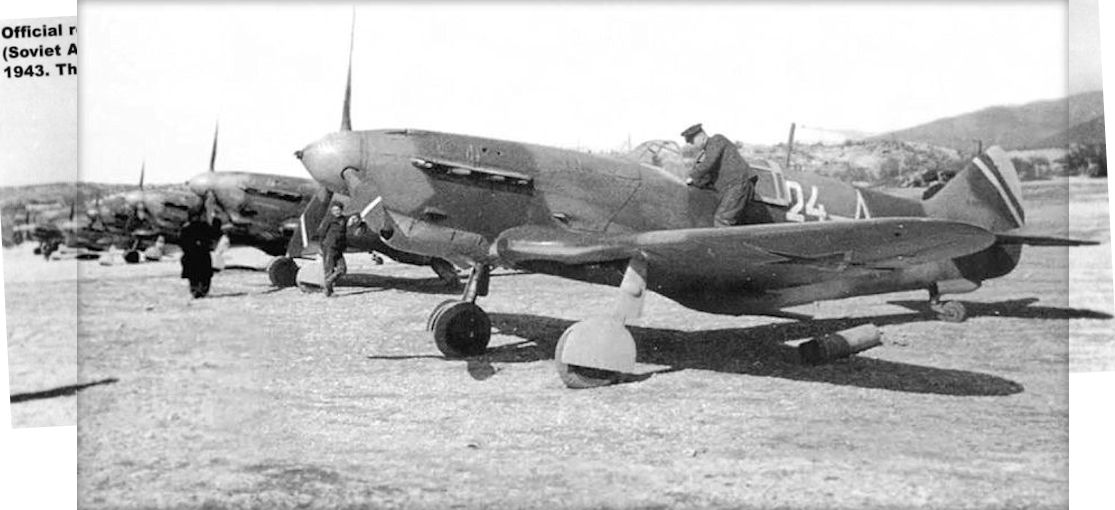

Official records claim that 6,528 LaGG-3s were delivered to the V-VS (Soviet Air Force) and V-VS ChF (Fleet air arm) and between 1941 and 1943. These examples operated with the Black Sea Fleet air arm.Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

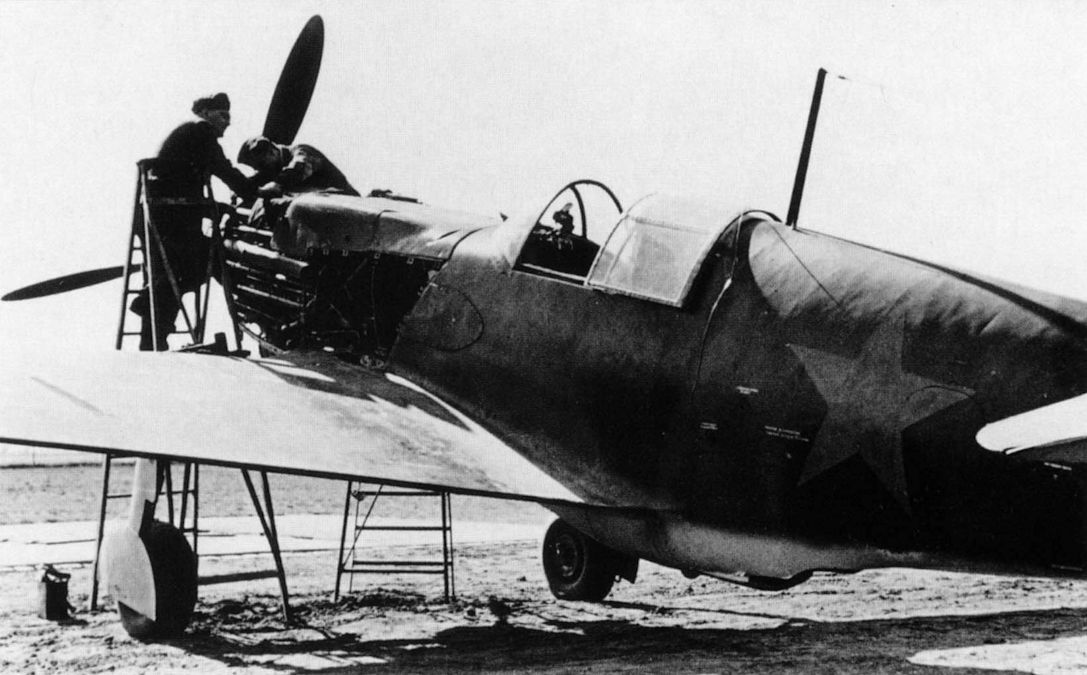

Luftwaffe mechanics prepare a LaGG-3 for evaluation trials, following its capture by the advancing Wehrmacht in the late summer of 1941.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-
Трофейный ЛаГГ-3

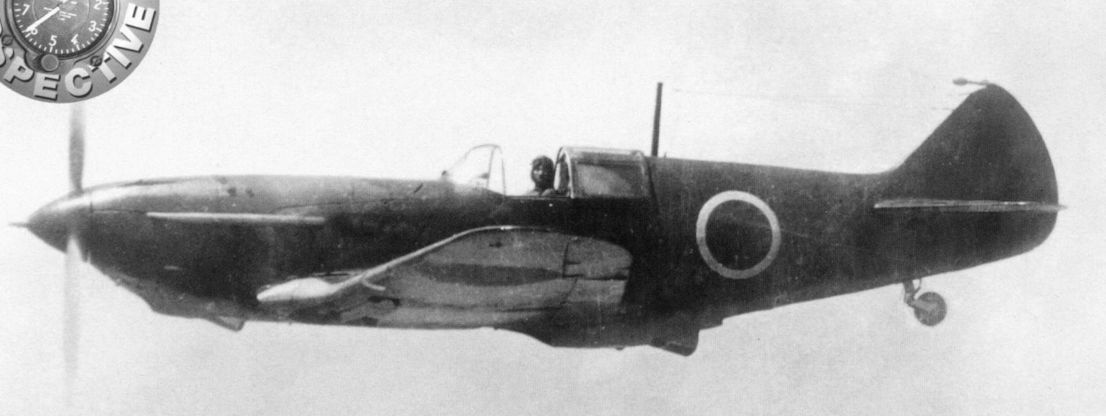

A single LaGG-3 was tested by the Japanese Army at Mudanjiang in Manchukuo, after a V-VS defector landed there in the spring of 1942.Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-
This picture of a production LaGG-3-37 at the NII V-VS while undergoing checkout trials in September 1942 clearly illustrates the deployed leading-edge slats.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-
This late-production LaGG-3 had increased fuel tankage in the wings, allowing the drop tanks to be dispensed with.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

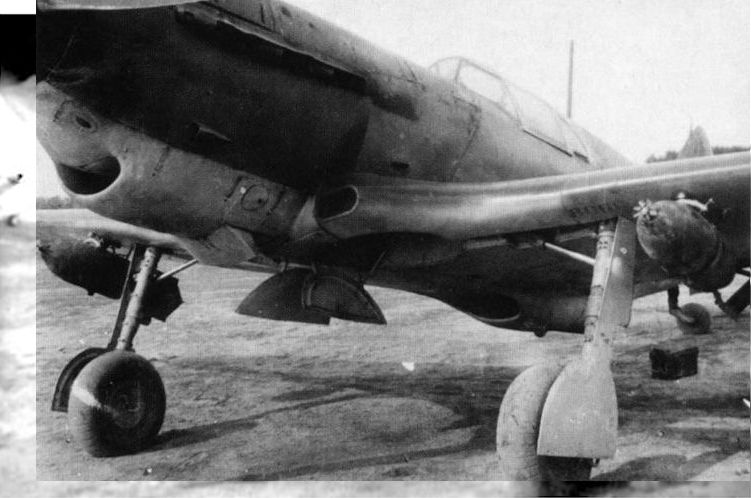

ЛаГГ-3 66-й серии: основные опоры шасси и подвешенные бомбы ФАБ-50
The hydraulically-operated undercarriage retracted upwards and inwards, the light alloy wheels carrying 650 x 200mm tyres. Note the FAB100 bombs on the wing.Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

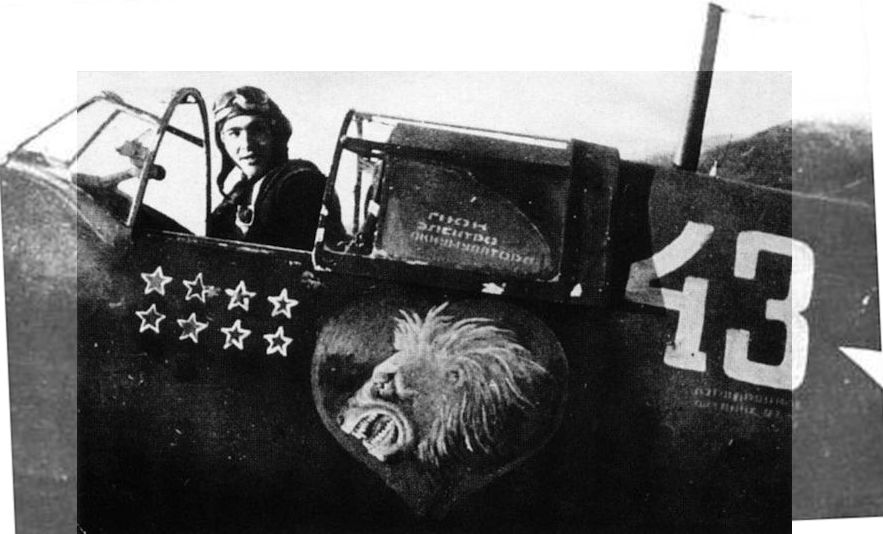

Летчик 9-го ИАП ВВС ЧФ Юрий Шнуров в кабине ЛаГГ-3
Yuriy Schchipov of the 9th IAP of the Baltic Fleet air arm sits in his LaGG-3. The aircraft carries eight "kill" stars and personal artwork: a lion's head superimposed on a heart.Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

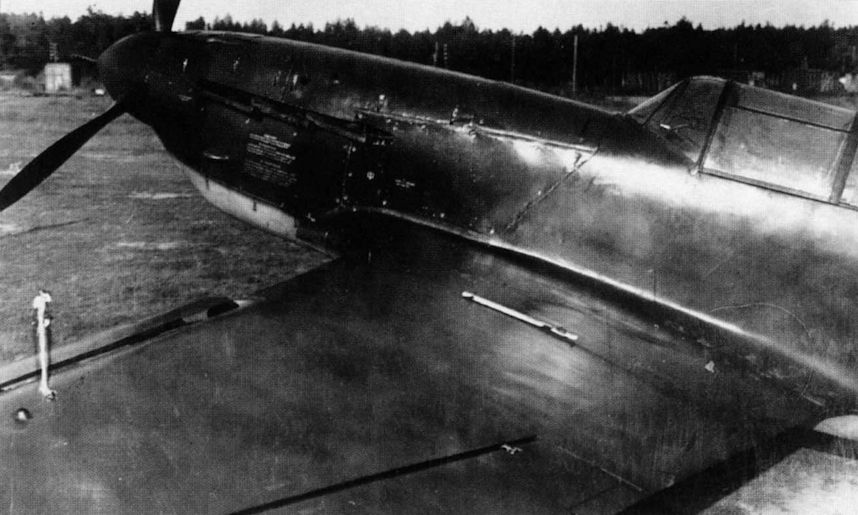

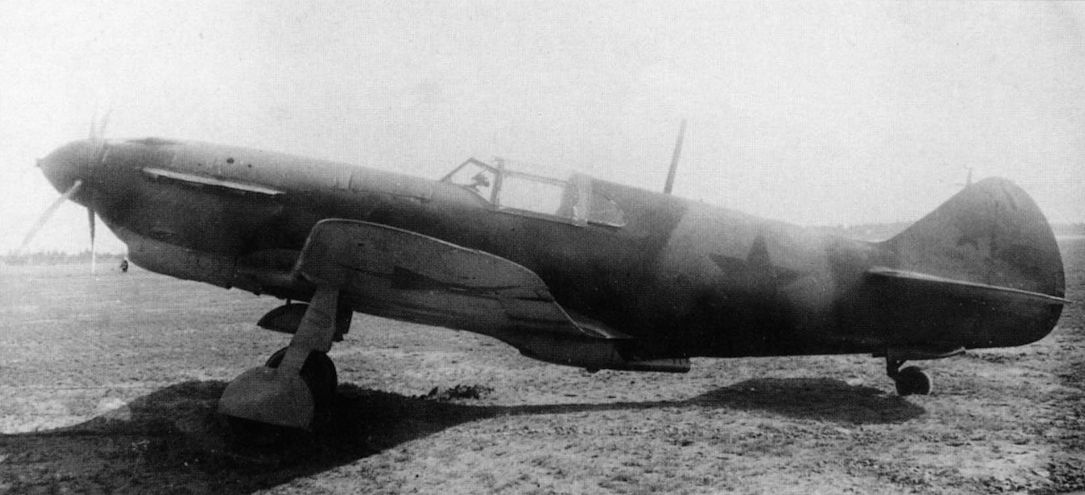

LaGG-3 c/n 6066, built in Tbilisi in March 1943, took part in trials at the NII V-VS in May of that year. Note the new angular windshield, giving fewer optical distortions.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

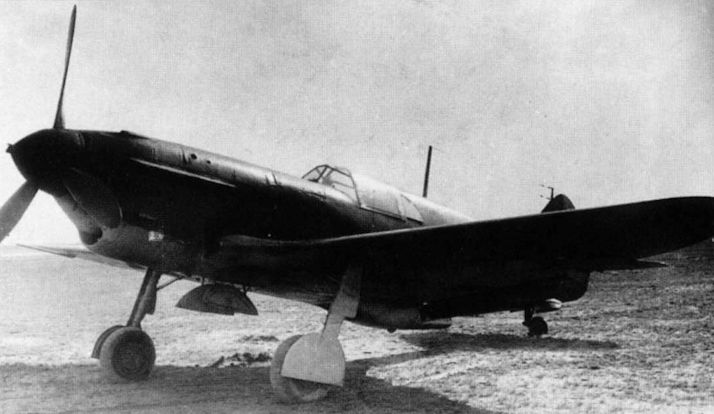

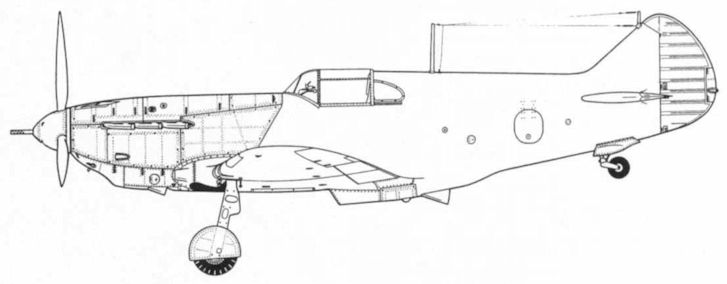

Первый опытный истребитель "301"

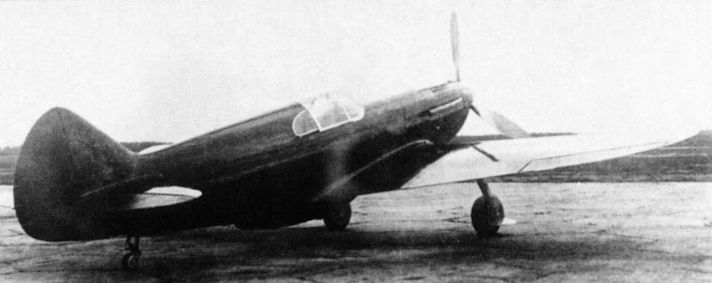

The I-301 was painted cherry red overall and highly polished for its first flight in March 1940. The fighter's clean lines are very evident.Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

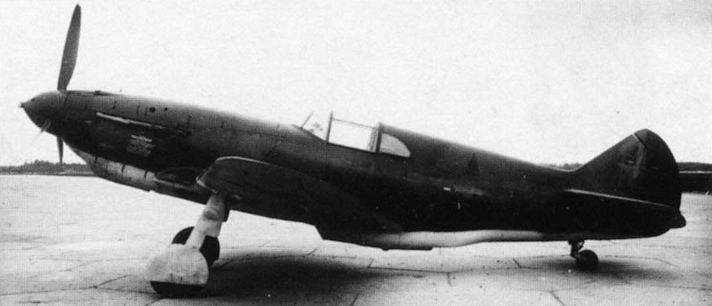

The quality of LaGG-3 production had improved significantly by March 1943, when this picture of a Tbilisi-built example, c/n 6066, was taken during trials undertaken at the NII V-VS.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

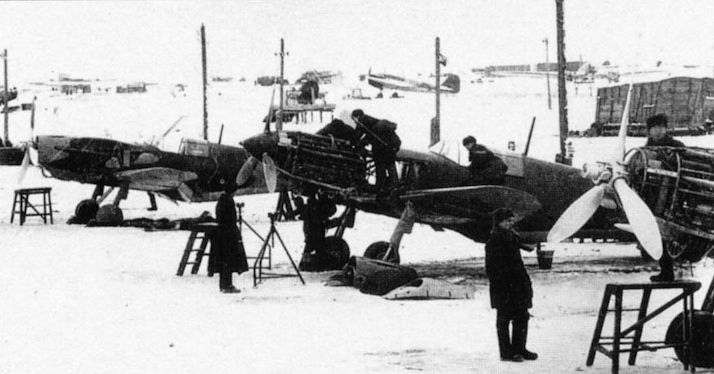

LaGG-3s undergo repairs in besieged Leningrad. A Tupolev SB 2M-100 bomber and a Lisunov Li-2, the Russian version of the DC-3, are also visible in the background.
Самолёты на фотографии: Архангельский, Туполев СБ / АНТ-40 / ПС-40 - Россия - 1934Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940Лисунов Ли-2 / ПС-84 - Россия - 1939
-

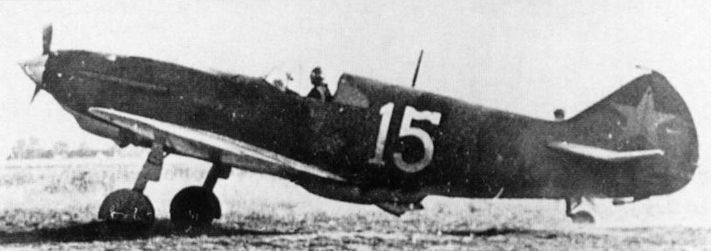

Production LaGG-3s were operating in the central sector by late 1941. Note the crude mass balance weights attached to the top and bottom of the rudder.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-
Финны разбирают ЛаГГ-3, ставший их трофеем. Февраль 1942 г.

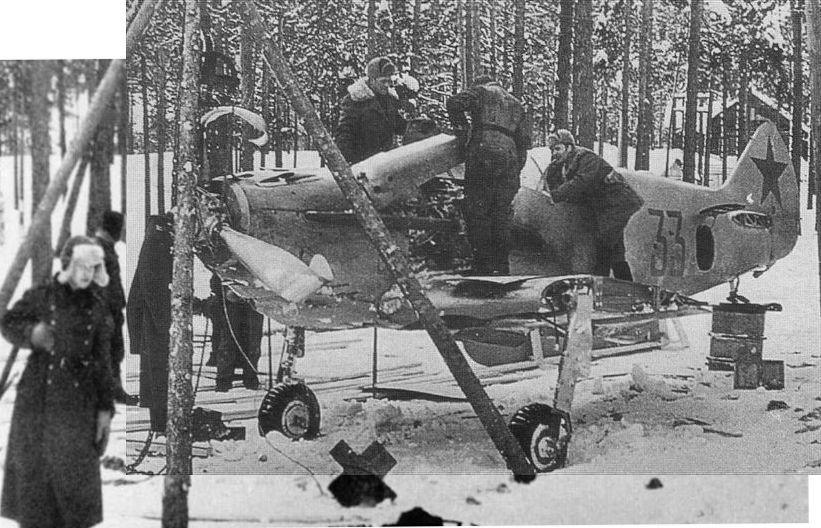

Groundcrew change the engine of a winter-camouflaged LaGG-3 following its recovery after a belly landing. The outer wings have been removed to facilitate transport by road.Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

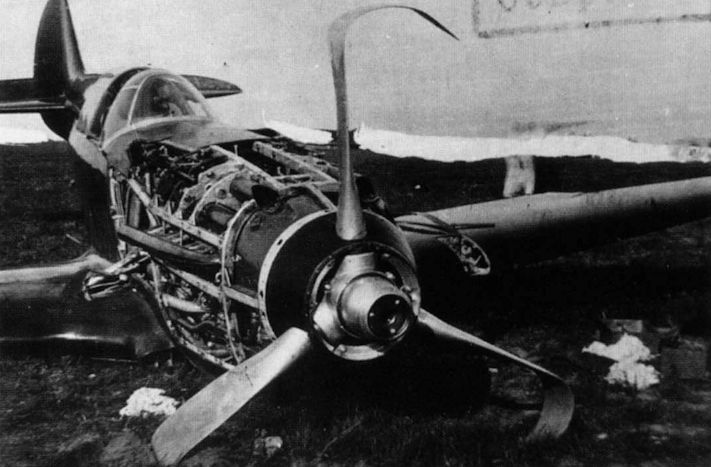

A Taganrog-built LaGG-3 flown by V. Antipov after a belly landing in September 1941. The purpose of the ropes wound around the propeller spinner is unknown.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

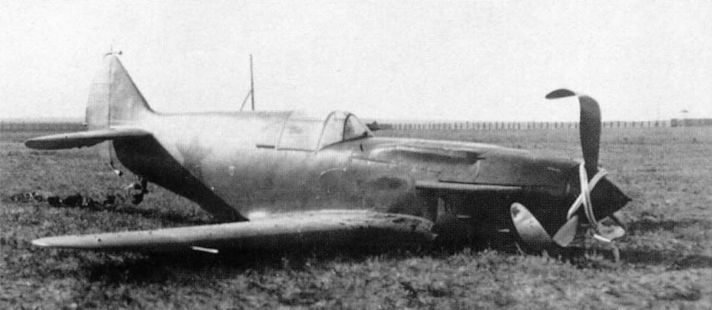

In August 1940 project test pilot Nikashin forced-landed the I-301 after being blinded by the sun on approach.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

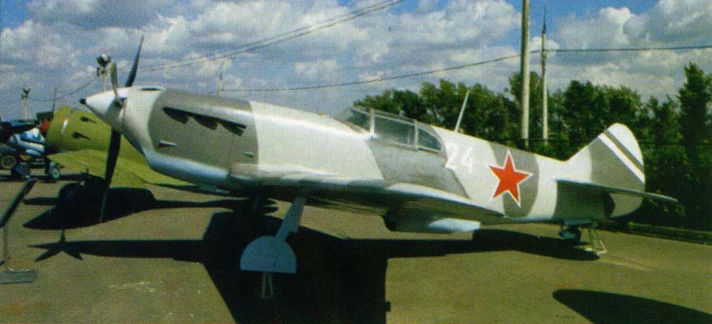

No original LaGG-3s are known to have survived, but a full-size Soviet Fleet Air Arm replica has recently been placed on display at the Zhukovsky Memorial Museum in Moscow.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

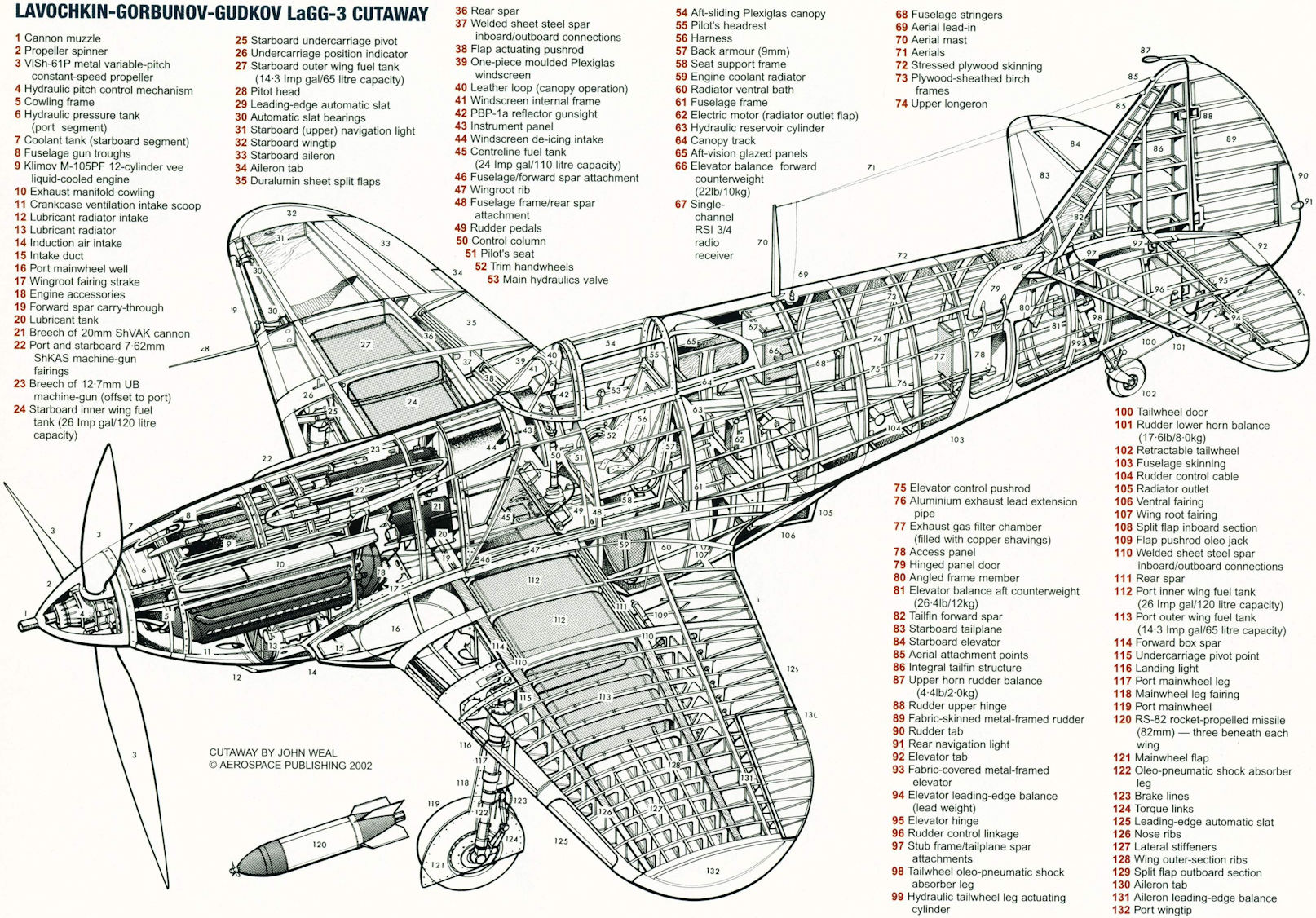

LAVOCHKIN-GORBUNOV-GUDKOV LaGG-3
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

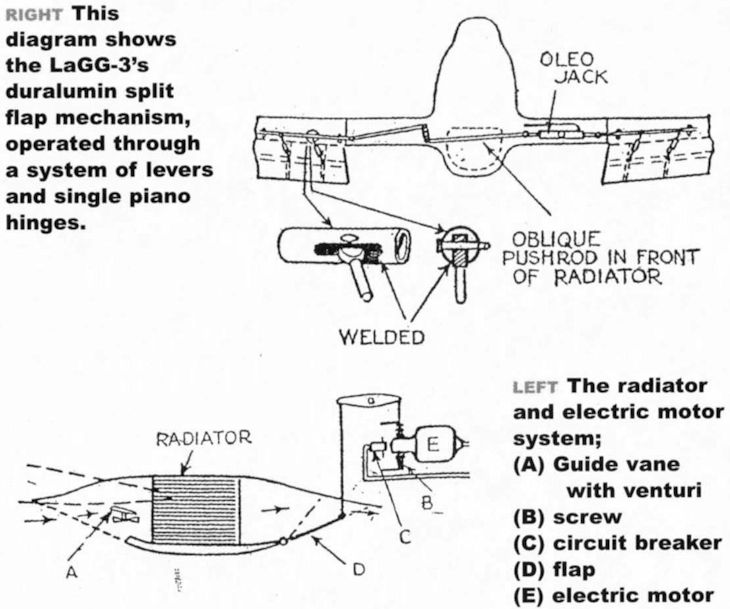

TOP This diagram shows the LaGG-3's duralumin split flap mechanism, operated through a system of levers and single piano hinges.
BOTTOM The radiator and electric motor system; (A) Guide vane with venturi (B) screw (C) circuit breaker (D) flap (E) electric motorСамолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

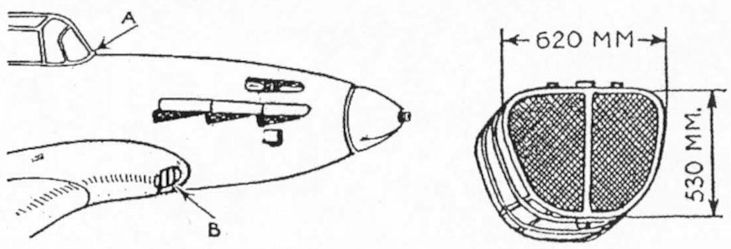

This diagram of the nose section of the LaGG-3 first appeared in the August 12, 1943 issue of Flight. It shows the air intake for windscreen de-icing (A) and the induction air intake (B).
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

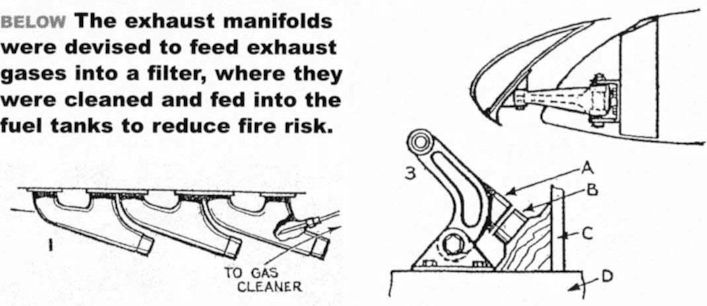

LEFT The exhaust manifolds were devised to feed exhaust gases into a filter, where they were cleaned and fed into the fuel tanks to reduce fire risk.
RIGHT The slats were operated by means of an automatic-slot mechanism (2). The top view of the mechanism (3) shows (A) stop, (B) rubber buffer, (C) strut and (D) spar.Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

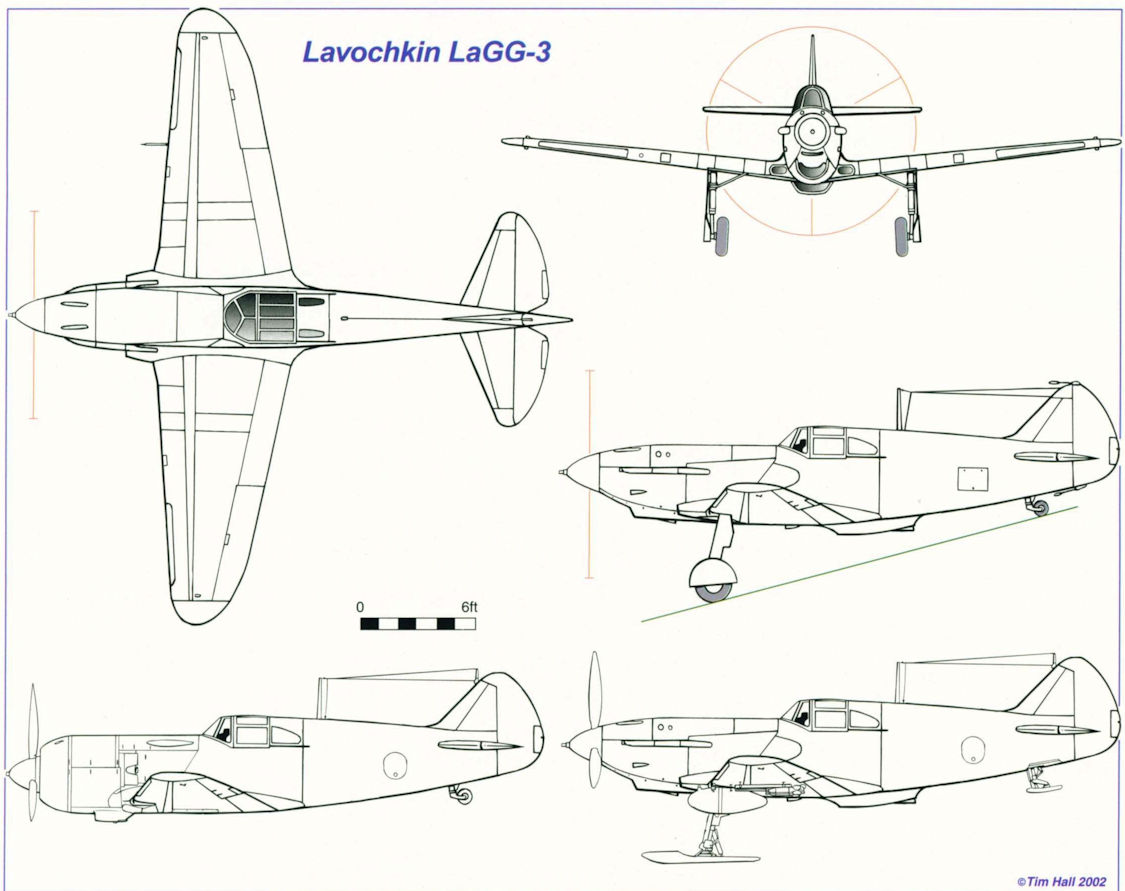

Lavochkin LaGG-3
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

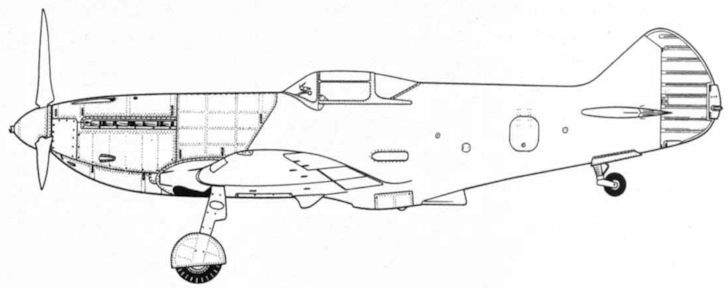

The first production LaGG-3 was powered by a Klimov M-105 engine, which had been developed via a rather tortuous process from the Hispano-Suiza 12Y liquid-cooled engine.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

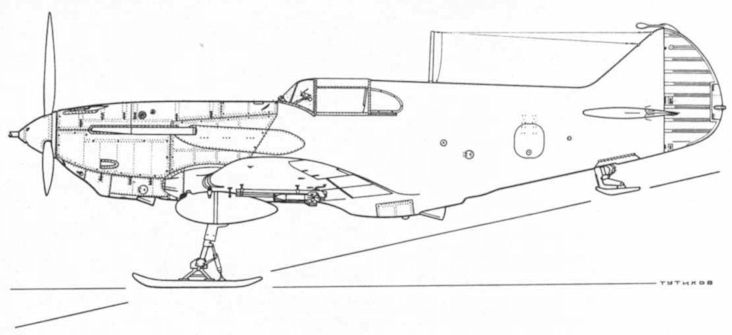

To make operations from snow-covered strips easier, some LaGG-3s were fitted with skis from a Polikarpov I-16. This illustration shows a Gorky-built Batch 11 LaGG-3.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-
At least one experimental two-seat liaison version of the LaGG-3 was built but not developed further after test pilot Yu. Stankevich was killed during trials of the type.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

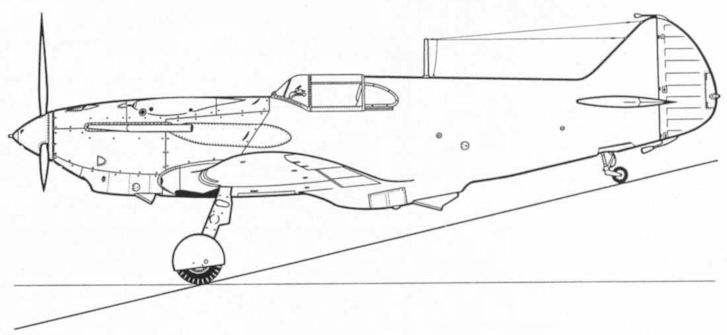

This Gorky-built Batch 34 LaGG-3 has been fitted with the 37mm Shpitalny Sh-37 engine-mounted cannon for use in the anti-tank role. It was replaced by the more efficient recoil-operated Nudelmann-Suranov 37mm cannon after a short time.
Самолёты на фотографии: Лавочкин, Горбунов, Гудков ЛаГГ-3 / И-301 - Россия - 1940
-

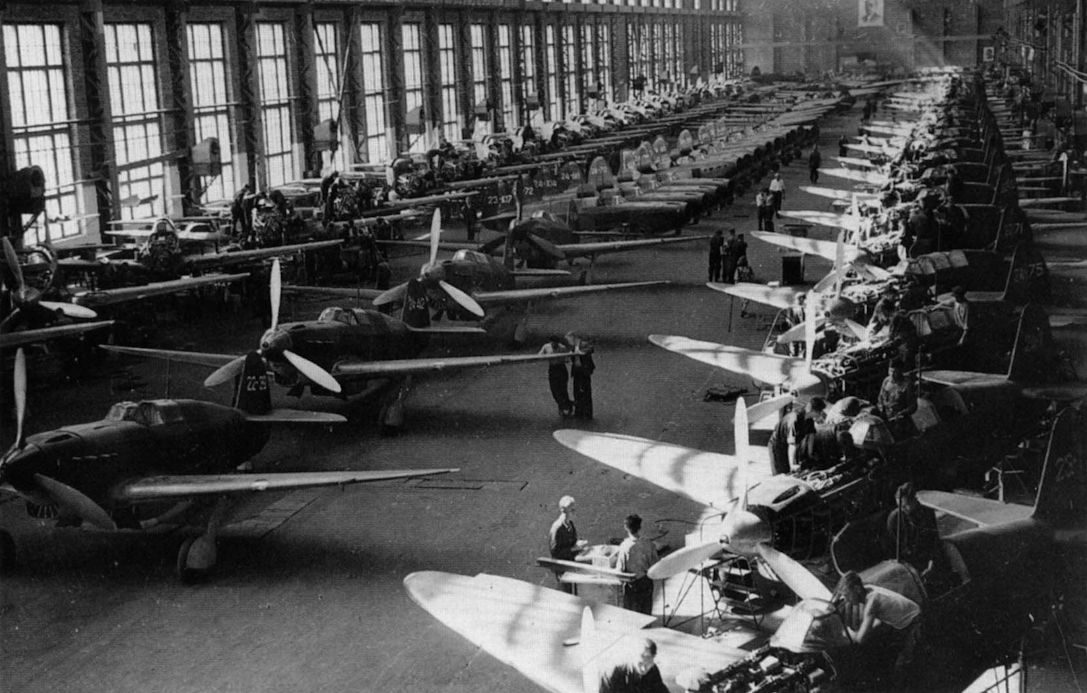

A typical wartime Russian aircraft factory - this one is building Yak-1s, the LaGG-3’s chief rival.
Самолёты на фотографии: Яковлев Як-7 - Россия - 1941
-

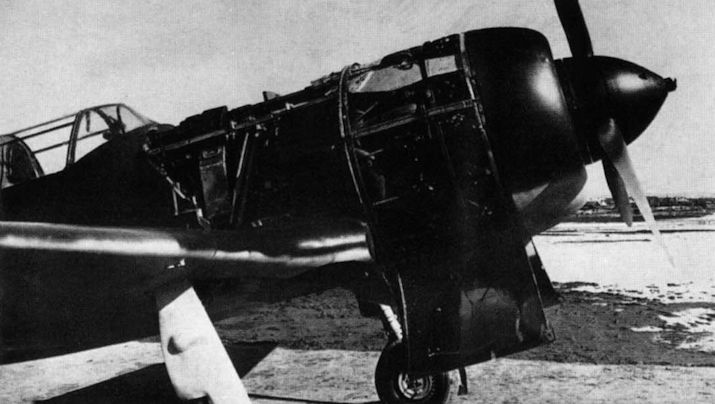

The LaGG-3 M-82 “unbuttoned", still in its original form. The cowling panels hinged downwards; this was changed on production aircraft, providing easier access for groundcrew.
Самолёты на фотографии: Лавочкин, Гудков ЛаГ-5 / Гу-82 - Россия - 1942
-

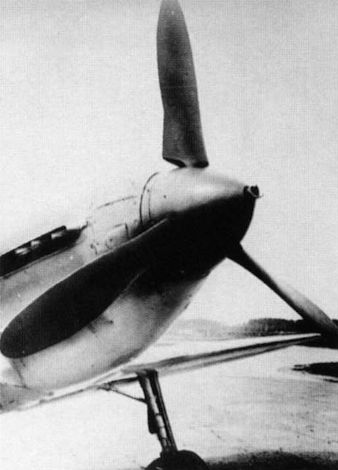

The forward fuselage of the “105” was cleaned up aerodynamically, with no chin-mounted oil cooler. Note the blade root cuffs to maximise propeller efficiency.
Самолёты на фотографии: Горбунов 105 - Россия - 1943
-
The Gorbunov "105-2" fighter prototype; note the lowered fuselage decking and new canopy, offering a 360° field of view.
Самолёты на фотографии: Горбунов 105 - Россия - 1943
