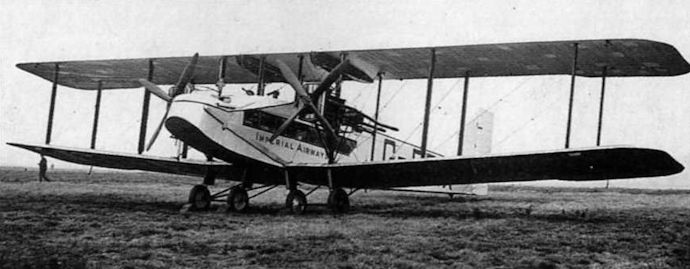

The H.P.42’s predecessor - the W.10.
Самолёты на фотографии: Handley Page H.P.18 (W.8) / H.P.30 (W.10) - Великобритания - 1919
-

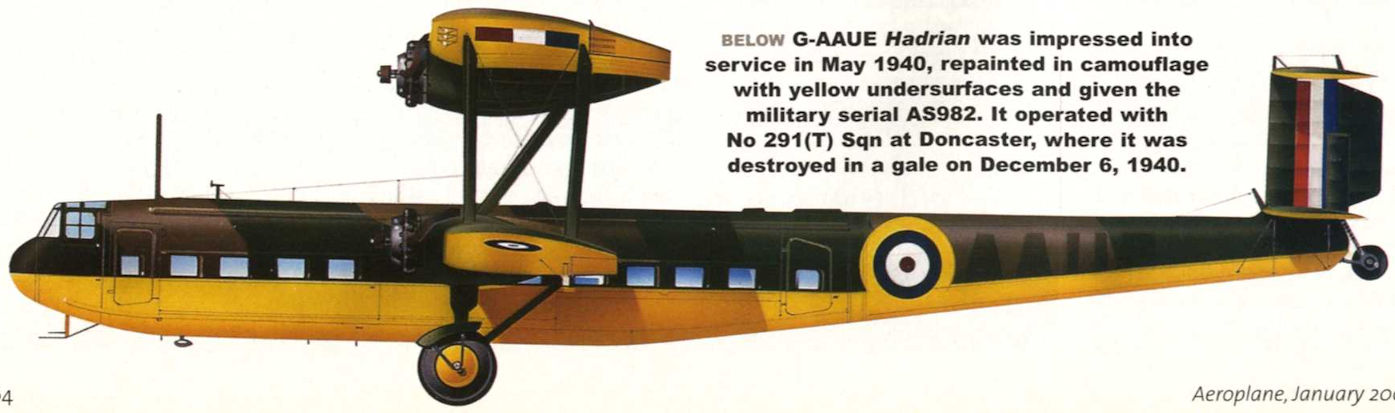

Регистрационный номер: G-AAUE [4], AS982 [4] G-AAUE Hadrian was impressed into service in May 1940, repainted in camouflage with yellow undersurfaces and given the military serial AS982. It operated with No 291 (T) Sqn at Doncaster, where it was destroyed in a gale on December 6, 1940.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

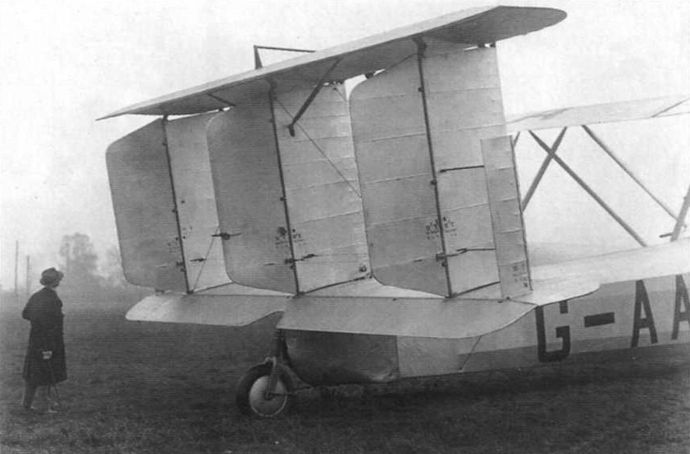

The biplane tail of the H.P.42 employed an unusual system off rudder balances, in the form off separate surfaces linked to the outer rudders and fitted with fixed slots.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAXC [8] On March 17, 1936, the first person to be prosecuted in Britain for smoking on an airliner - G-AAXC Heracles - was convicted. Unfortunately the penalty is not recorded.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

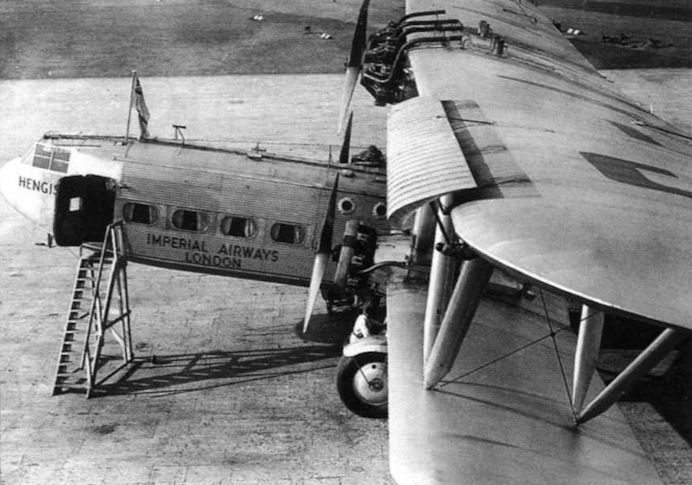

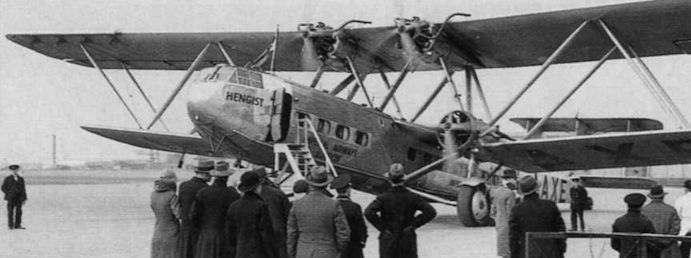

Регистрационный номер: G-AAXE [3] This picture of Hengist at Croydon in 1933 demonstrates the Handley Page automatic slats on the leading edge of the upper wing. Note also the Townend ring on the lower port nacelle. For a time Hengist was fitted with an Armstrong Siddeley Serval III, but it is unclear if this is that engine.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

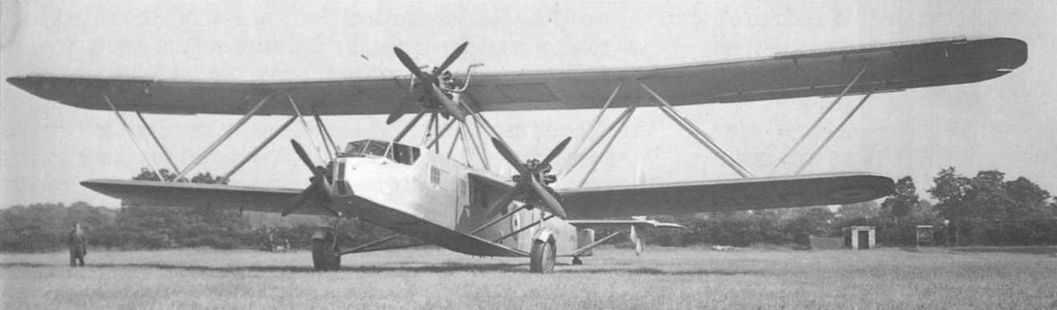

Регистрационный номер: G-AAGX [8] The first of the eight H.P.42s built, G-AAGX, sits on the grass at Radlett in 1930. Note the lack of mudguards and the paired two-bladed propeller arrangement.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

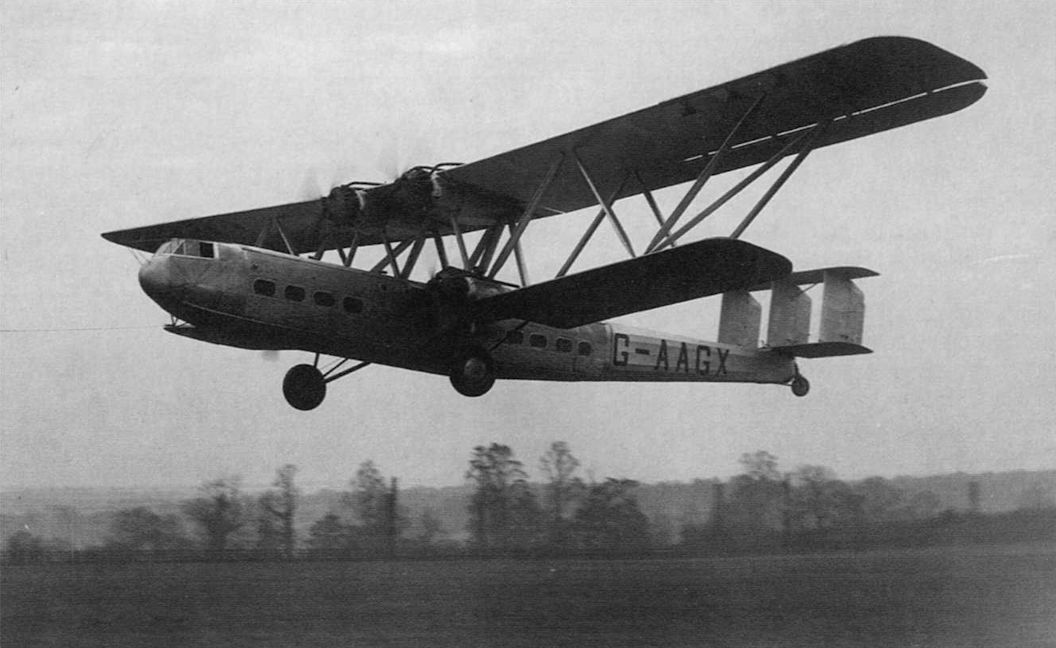

Регистрационный номер: G-AAGX [8] Following short hops made a few days before, G-AAGX made its maiden flight on November 14, 1930, with an artificial horizon bar fitted to the nose.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

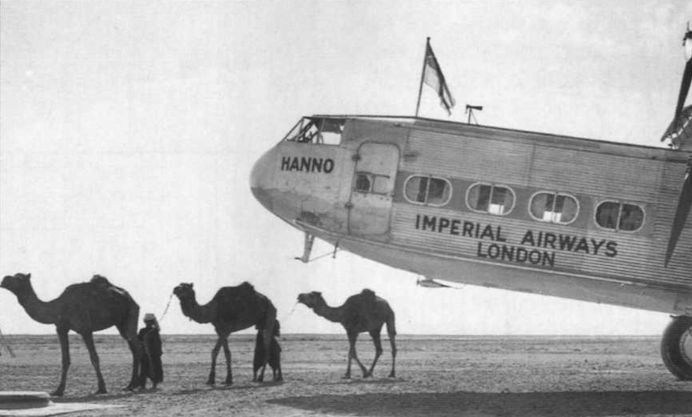

Регистрационный номер: G-AAUD [2] Transport ancient and modern - a camel caravan passes G-AAUD Hanno at Gwadar in Baluchistan, now part of southern Pakistan.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

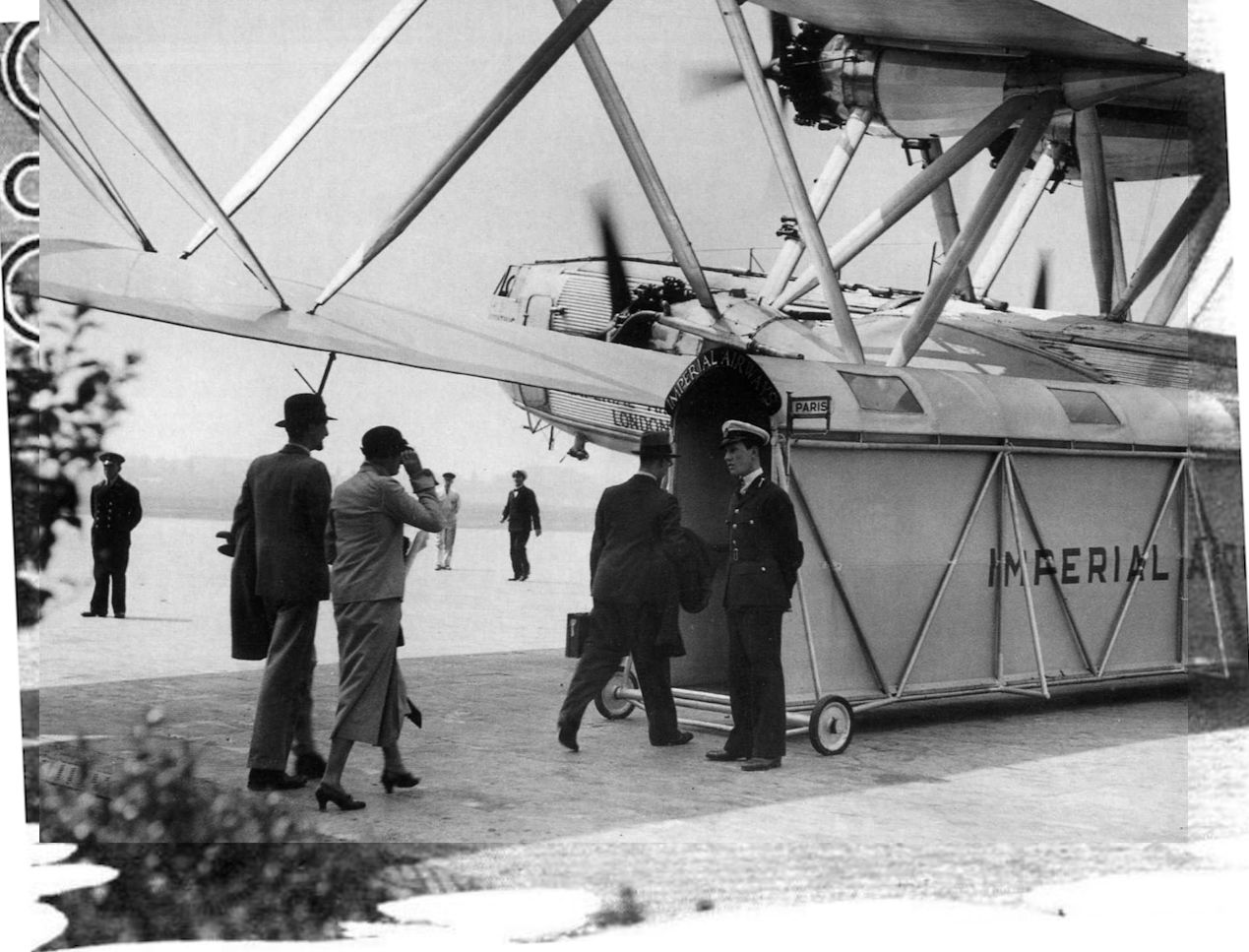

Регистрационный номер: G-AAXD [2] Passengers board Horatius via the “crocodile”.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAXE [3] G-AAXE Hengist (originally Hesperides) (c/n 42/7) W type. First flight 8.12.31. C of A No 3284 & delivery 10.12.31. Paris service 12.31. Flew Croydon - Karachi 8.12.34. Transferred to Eastern fleet at Heliopolis after conversion to E type. Destroyed in hangar fire, Karachi, 31.5.37.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

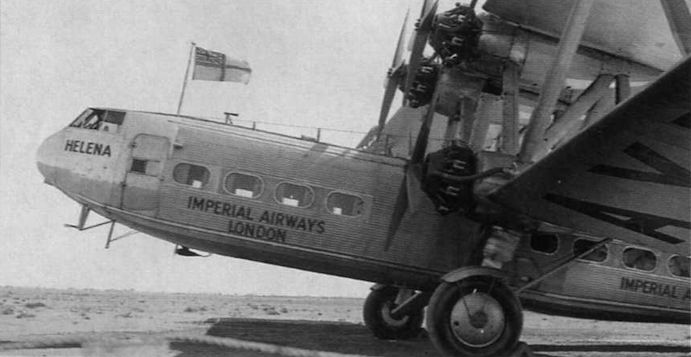

Регистрационный номер: G-AAXF [2], AS983 [2] G-AAXF Helena (c/n 42/8) W type. First flight 30.12.31. C of A No 3305 & delivery 31.12.31. Paris service from 1.32. Shown at SBAC show, Hendon, 27.6.32. Lower stbd wing set alight by Holt flare, Le Bourget 19.8.32. Transferred to Heliopolis 10.32 for Eastern service. Returned UK 4.40. Into 271 Sqn, RAF, as AS983, 5.40. Damaged on landing Donibristle, 1.8.40 Repaired but condemned owing to extensive corrosion, dismantled 8.41.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAXF [2], AS983 [2] An evocative flying shot of G-AAXF Helena somewhere over the Continent. Helena was operated on the London - Paris route during 1932, before being transferred to the Empire service at Heliopolis.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
A pair of 1930s international air-travellers - forerunners of “the jet set”.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

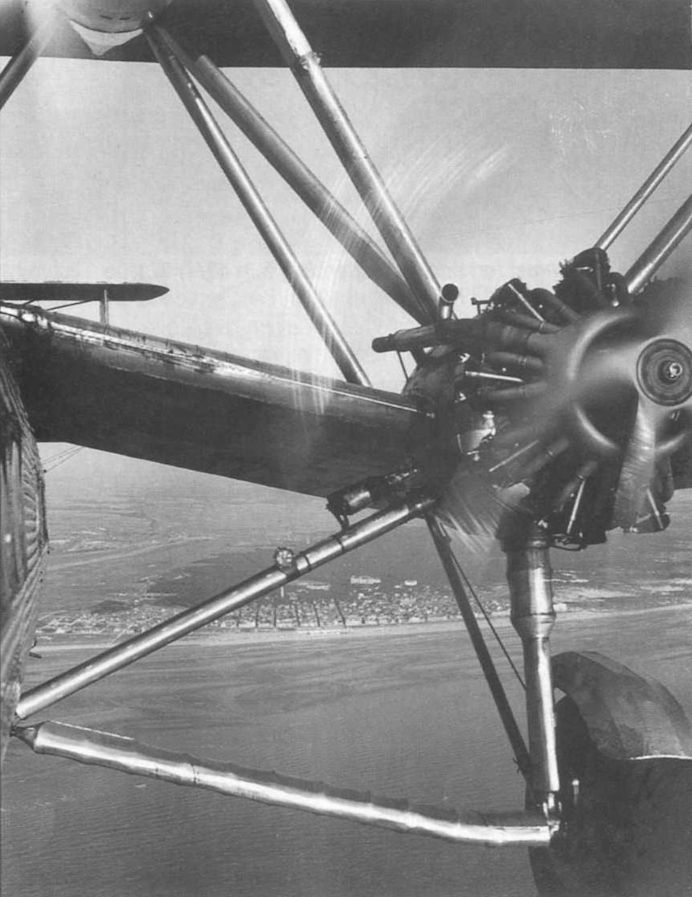

An unusual picture of an H.P.42 in flight, taken from the cockpit by Charles Brown in 1931. Note the (fuel?) gauge fitted to the upper diagonal undercarriage strut.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

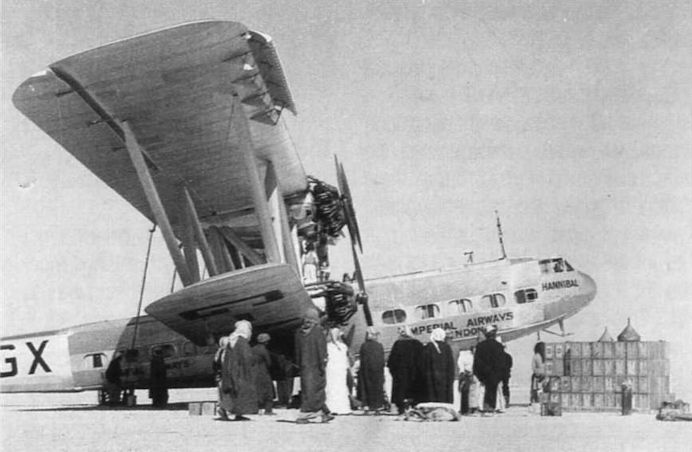

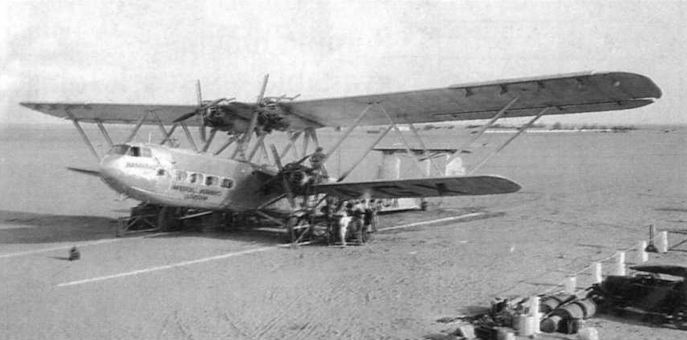

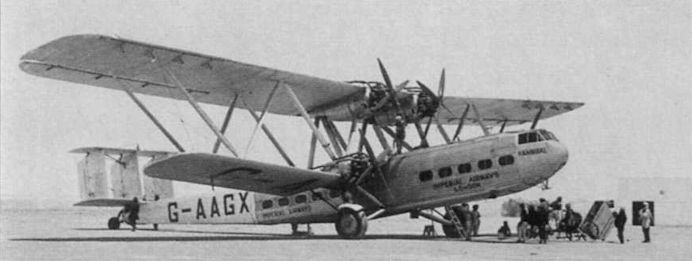

Регистрационный номер: G-AAGX [8] Hannibal refuels at Khartoum after completing one of the early legs of the 11-day journey from Cairo to Cape Town.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Frederick Handley Page and George Volkert stand in the forward door of an H.P.42. Volkert was in overall charge of the H.P.42 project.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

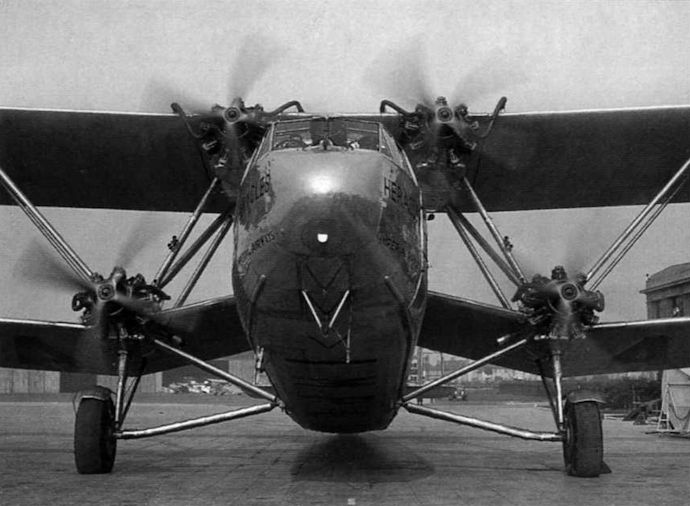

Регистрационный номер: G-AAXC [8] “As steady as the Rock of Gibraltar - and almost as fast”; a head-on view of Heracles, taken by Charles Brown at Croydon Airport in the 1930s.
This view of Heracles shows the engine layout, anhedral on the lower wing, and wide-track undercarriage.Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
In July 1929, a fully-furnished wooden mock-up of the H.P.42 cabin, complete with cocktail bar, was towed by lorry from Cricklewood to the Aero Exhibition at Olympia, along with the Hinaidi which sat alongside it for the duration of the exhibition.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930Handley Page Hyderabad/H.P.24 / Hinaidi/H.P.33 / Clive/H.P.35 - Великобритания - 1923
-
IN 1917 THE SMALL FIRM of Brazil Straker of Bristol had developed an excellent air-cooled 14-cylinder radial engine called the Mercury. Having a capacity of 20 litres, it produced a reliable 300 h.p. The following year saw a new engine, the Jupiter, a nine-cylinder radial, with a capacity of 28-7 lit, which produced 400 h.p. in prototype form, for a weight of 662lb. The key feature of this engine, produced by two highly talented engineers, Roy Fedden and L.F.G. Butler, was the use of four valves per cylinder for better “breathing", an innovation at the time.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAGX [8] G-AAGX was named Hannibal, and flew the Cairo - Karachi route from January 1932. It is seen here at Kuwait.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAUE [4], AS982 [4] On July 22, 1931, the second H.P.42, G-AAUE Hadrian, took part in the Household Brigade Flying Club meeting at Heston Air Park, described in Flight as “an aerial Ascot”.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Captain Leslie Walters was a veteran Imperial Airways pilot, and a keen advocate of the H.P.42. Walters later flew Hengist on the Croydon - Karachi leg of the inaugural mail flight to Australia in December 1934.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Croydon Airport in its heyday, circa 1932, with a pair of H.P.42s parked outside the Imperial Airways hangars.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

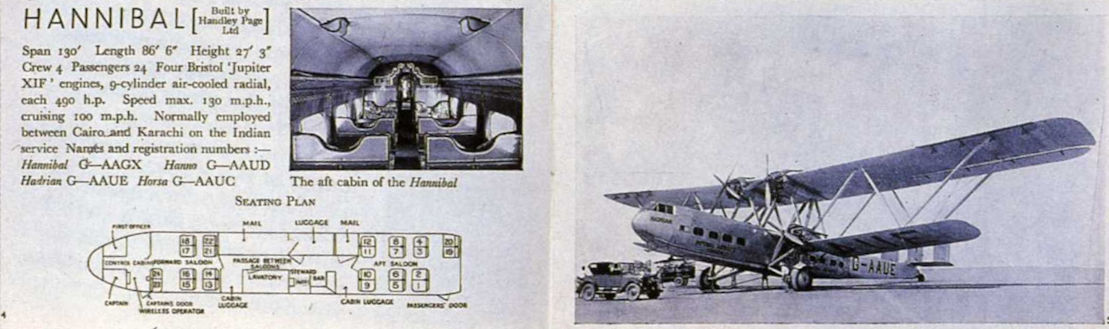

Регистрационный номер: G-AAUE [4], AS982 [4] A spread from a 5in x 3in booklet provided to customers by Imperial Airways in 1932, detailing the airline’s fleet and the countries served.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

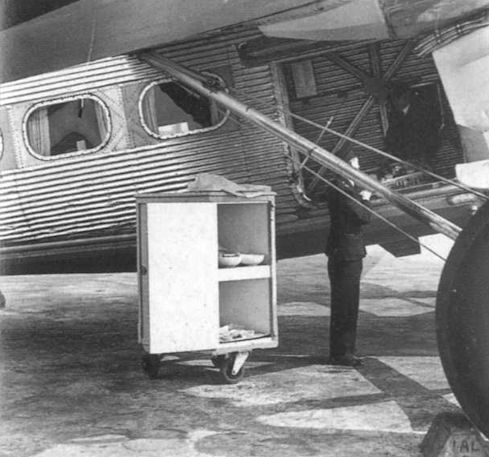

Stewards load provisions for the three-course lunch, often bought from Croydon’s famous open-air Surrey Street market.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

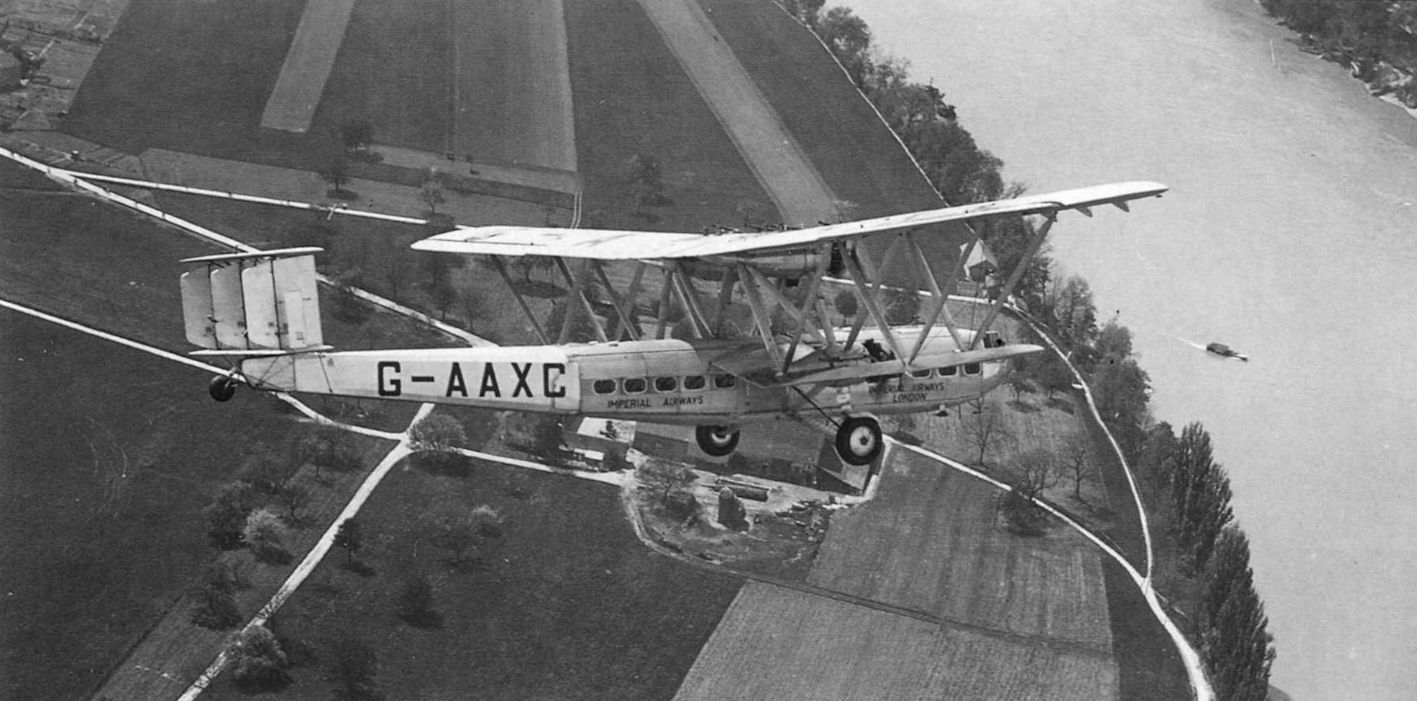

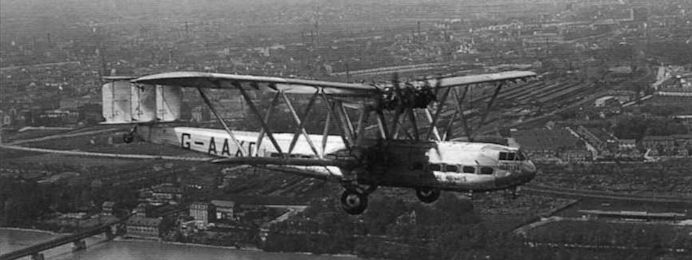

Регистрационный номер: G-AAXC [8] A rare air-to-air picture of Heracles flying over the Swiss countryside. Heracles and Horatius (G-AAXD) were the only two H.P.42Ws to retain their original furnishings throughout their career.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAGX [8] The first public glimpse of the H.P.42 came at the opening of Handley Page’s new factory at Radlett on July 7, 1930, by HRH Prince George. The remains of HP’s “Yellow Peril” of 1912 stand in front of the H.P.42.

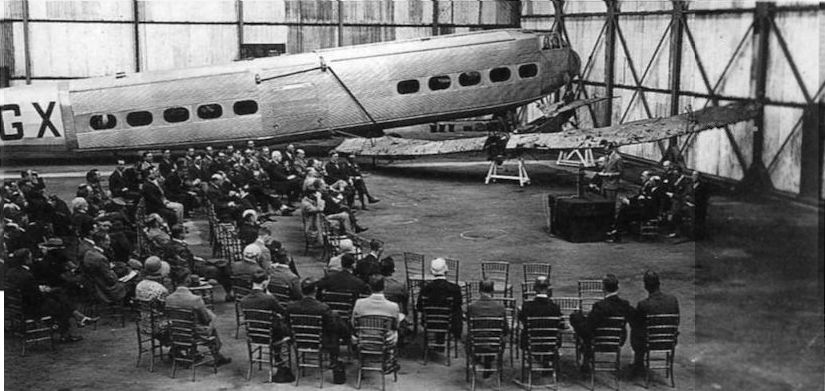

The scene in the main hangar during the official opening on July 7, 1930 with the fuselage of H.P.42 G-AAGX still under construction and the remains of the 1910 Yellow Peril nestling under it.
Prince George making his speech. The remains of the 1910 "Yellow Peril" stand beside the fuselage of a 40-seater passenger machine.Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930Handley Page Type A/C/D (H.P.1/3/4) - Великобритания - 1910
-
Регистрационный номер: G-AAGX [8] G-AAGX Hannibal (c/n 42/1) E type. Reg. 30.4.29. First flight 14.11.30, Radlett. C of A No 3066 & delivery 5.6.31. Commissioned 11.6.31. Flight to Paris on 3 engines, 28.6.31. Forced landing near Tunbridge Wells, 8.8.31. Based at Heliopolis 1.32 for Eastern services. Severe damage at Galilee in storm 17.11.32, repaired 2.5.33. Lost over Gulf of Oman, 1.3.40.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

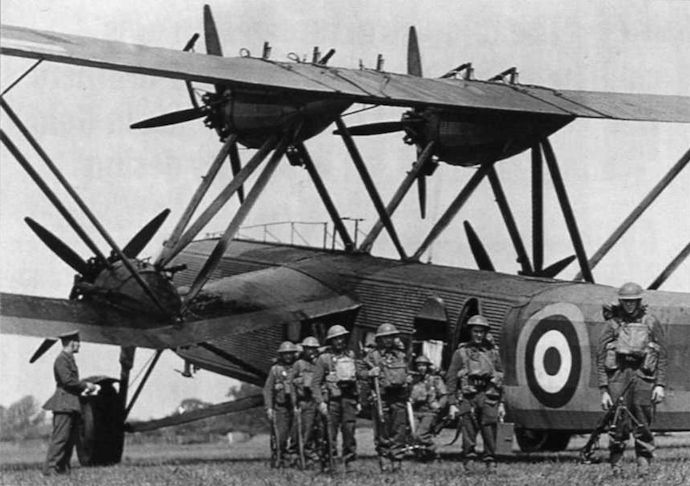

In military service the H.P.42 fleet was used mainly for troop-carrying duties, but the type was obsolete by the outbreak of war and none survived beyond the end of 1940.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
H.P.42s were built in several parts at Cricklewood and then transported by road to Handley Page’s erecting sheds at Radlett. This picture off the Pullman-style cabins under construction at Cricklewood in the early 1930s shows the type’s basic framework layout.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAUE [4], AS982 [4] G-AAUE Hadrian (c/n 42/2) E type. First flight 24.6.31. C of A No 3103 & delivery 10.7.31. Paris service from 8.31. Based at Heliopolis from 11/31. Returned to UK 4.40. Into 271 Sqn, RAF, as AS982, 5.40. Forced landing Acklington, 12.7.40. Destroyed in gale at Doncaster, 6.12.40.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

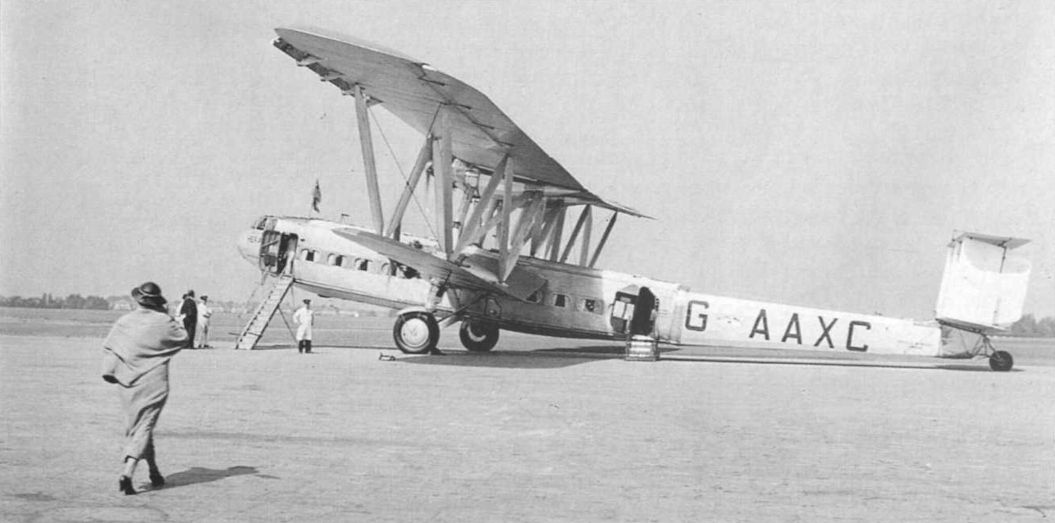

Регистрационный номер: G-AAXC [8] A stylish lady traveller prepares to board G-AAXC Heracles at Croydon, discernible by the unusual apron paving.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Jack Hylton’s much-travelled band board an H.P.42 at Croydon, while a plus-foured cameraman films the proceedings.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
The elegant Imperial Airways crest. On both the Eastern and Western services, H.P.42s carried a minimum crew of four; the Captain (Herbert H. “Bow” Perry - shown), the First Officer, and two stewards, most of whom had learnt their trade on ocean liners, and quickly acquired new skills in adapting to the new airborne conditions.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAUD [2] G-AAUD Hanno (c/n 42/3) E type. First flight 19.7.31. C of A No 3120 & delivery 30.7.31. Paris service from 8.31. Based at Heliopolis from 12.31. Landing accident Entebbe, 6.10.35. Dismantled and repaired at Croydon, flown to Heliopolis 4.5.36. Damaged by gale when picketed, 1937. Repaired as W type, returned UK 7.37. Requisitioned 3.3.40. Destroyed by gale at Whitchurch, 19.3.40.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

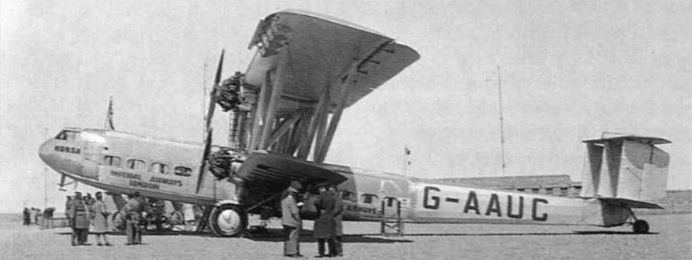

Регистрационный номер: G-AAUC, AS981 G-AAUC Horsa (originally Hecate) (c/n 42/4) E type. First flight 11.9.31. C of A No 3201 & delivery 19.9.31. Paris service from 10.31. Based at Heliopolis from 9.11.31. Overflew Bahrain and landed in desert beyond, 29.8.36. Personnel rescued by 83 Sqn RAF. Returned to UK 4.40. Into 271 Sqn, RAF, as AS981. In-flight fire & forced landing near Whitehaven, Cumberland, 7.8.40. Aircraft destroyed by fire and cargo of ammunition.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
The elegant Imperial Airways crest. On both the Eastern and Western services, H.P.42s carried a minimum crew of four; the Captain, the First Officer (shown), and two stewards, most of whom had learnt their trade on ocean liners, and quickly acquired new skills in adapting to the new airborne conditions.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
The elegant Imperial Airways crest. On both the Eastern and Western services, H.P.42s carried a minimum crew of four; the Captain, the First Officer, and two stewards (shown), most of whom had learnt their trade on ocean liners, and quickly acquired new skills in adapting to the new airborne conditions.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAXC [8] G-AAXC Heracles (c/n 42/5) W type. First flight 13.8.31. C of A No 3182 31.8.31. Delivery 9.9.31. Commissioned 11.9.31. Damaged at RAeS Garden Party, Hanworth, 19.6.32. Used in European service. First commercial aircraft to reach 1 million miles flown, 23.7.37. Requisitioned 3.3.40. Destroyed by gale at Whitchurch.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAXC [8], G-AAXD [2] "Горациус" и "Геркулес" встретились на летном поле Кройдона.
G-AAXD Horatius (c/n 42/6) W type. First flight 6.11.31. C of A No 3264 & delivery 13.11.31. European service from 11.31. Crashed on landing at Lympne 25.10.38, repaired. Written-off after forced landing, Tiverton Golf Course, 7.11.39.Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
A pilot demonstrates the Marconi wireless equipment.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAXC [8] The luxuriously-appointed mahogany-panelled cabin off the H.P.42.

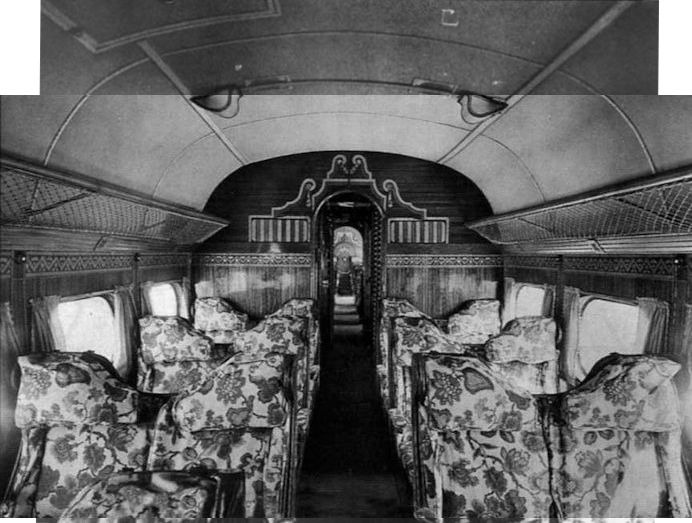

Looking aft in the forward cabin of a Heracles. The elegant Pullman-carriage styling is evident.Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
The cockpit of the H.P.42, flown conventionally from the left-hand seat, with the right-hand instrument panel fitted with engine gauges. The H.P.42 was designed to be flown from either seat.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAXC [8] At the Royal Aeronautical Society Garden Party at Hanworth in June 1932 G-AAXC Heracles had been joyriding all day when it ran into an unseen culvert, subsiding on to its port wing, causing damage to the undercarriage and propellers.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

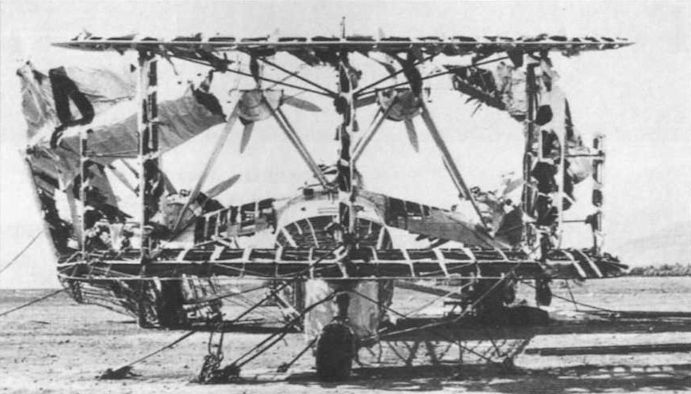

Регистрационный номер: G-AAGX [8] The tattered result of adverse weather conditions, G-AAGX Hannibal sits on the sand after a “storm of Biblical proportions” at Galilee (now Tiberias in Israel) on November 17, 1932. Hannibal was back in operation by the spring of 1933.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAXE [3] This previously unpublished photograph shows the burnt-out wreckage of G-AAXE Hengist at Karachi on May 31, 1937, after a cleaner inadvertently set off the Holt flares.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
A typical 1930s Imperial Airways poster by artist V.L. Danvers.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Регистрационный номер: G-AAGX [8] Artist W.H.A. Constable designed this stylish poster to promote Imperial Airways’ Empire Service.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
A detail from G.H. Davis’s drawing of the H.P.42, which appeared in the Illustrated London News in late 1930.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-

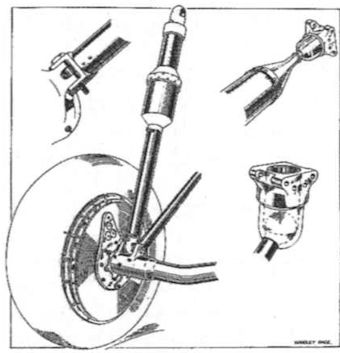

The oleo-pneumatic undercarriage of the H.P.42 was fitted with Dunlop tyres and Palmer brakes.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
The Eastern and Western H.P.42 cabin layouts.
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
Handley Page H.P.42
Самолёты на фотографии: Handley Page H.P.42 / H.P.45 - Великобритания - 1930
-
A three-engined bomber-transport development of the H.P.42 was built to Air Ministry Specification C.16/28, manufactured at Cricklewood during 1930 and 1931, and designated the H.P.43. It was not a success.
