The Arpin Two-seat Light Cabin Monoplane (68 h.p. Salmson engine).

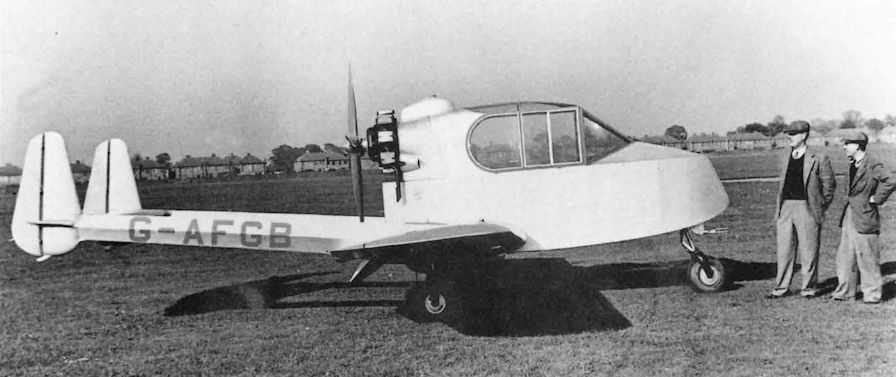

The Arpin A-1 G-AFGB with Salmson engine first pushed out at Hanworth for the Aeroplane photographer. Dual control was fitted to tandem seating for pilot/passenger or pupil/instructor. Small protective skids are seen on the bottoms of the fins.

Самолёты на фотографии: Aircrafts on the photo: Arpin A-1 - ВеликобританияUnited Kingdom - 1938

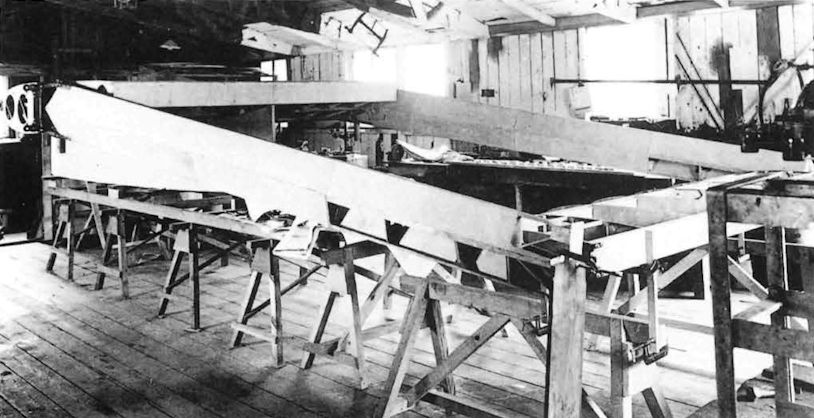

The twin boom assembly during building upside down, viewed from the tail end. Push-pull control rods ran on bakelite bushes internally throughout.

Самолёты на фотографии: Aircrafts on the photo: Arpin A-1 - ВеликобританияUnited Kingdom - 1938

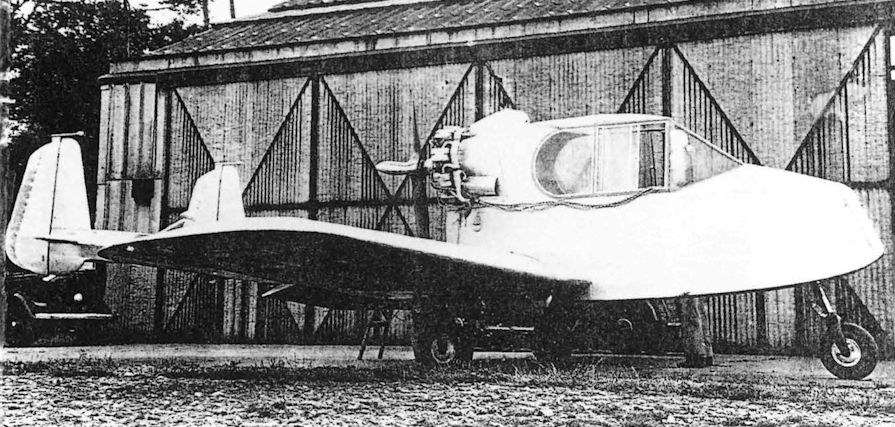

The Salmson-engined Arpin A-1 modified with extensions to the rudder trailing edges and mass balances added at the tops and on the ailerons. At this interim stage the pitot assembly, previously ahead of the steerable castering nosewheel, has been removed.

Самолёты на фотографии: Aircrafts on the photo: Arpin A-1 - ВеликобританияUnited Kingdom - 1938

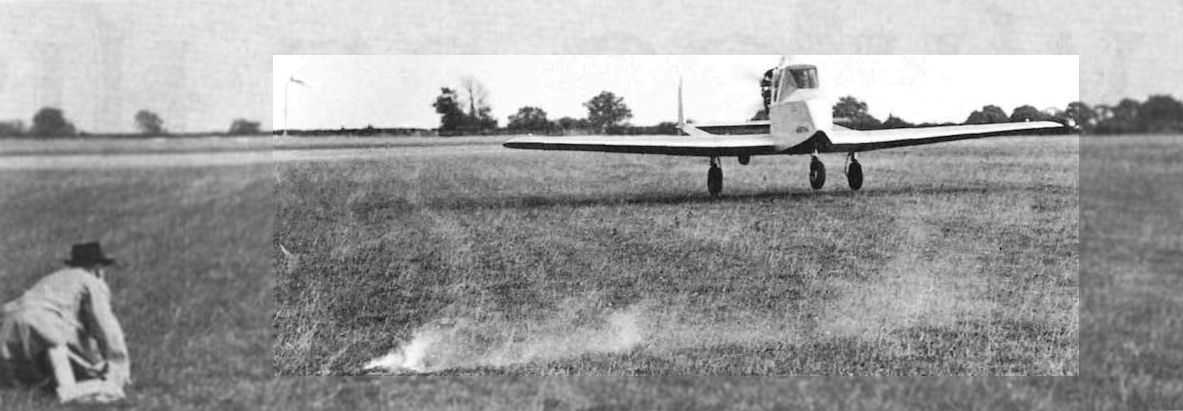

The Arpin A-1 seen landing in a strong 90 degree crosswind, confirmed by the windsock on the boundary at left and the smoke candle in the foreground. It was used to test the Maclaren swivelling undercarriage design.

Самолёты на фотографии: Aircrafts on the photo: Arpin A-1 - ВеликобританияUnited Kingdom - 1938

A close-up of the Cirrus Minor installation with 4 blade wood propeller over the wing. On the original photo it is possible to see the cover over the fuel filler cap and the fuel tank air vent pipe forward on the right centre section. The pitot assembly is now on top behind the cabin.

Самолёты на фотографии: Aircrafts on the photo: Arpin A-1 - ВеликобританияUnited Kingdom - 1938

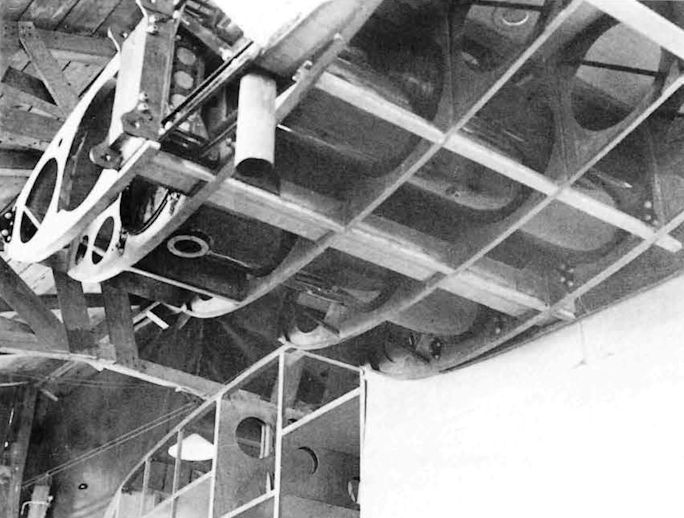

Another view of the inverted main assembly seen from under the starboard centre section top surface. The two cylindrical 8.5 gal fuel tanks can be seen adjacent to the single I section main spar

Самолёты на фотографии: Aircrafts on the photo: Arpin A-1 - ВеликобританияUnited Kingdom - 1938

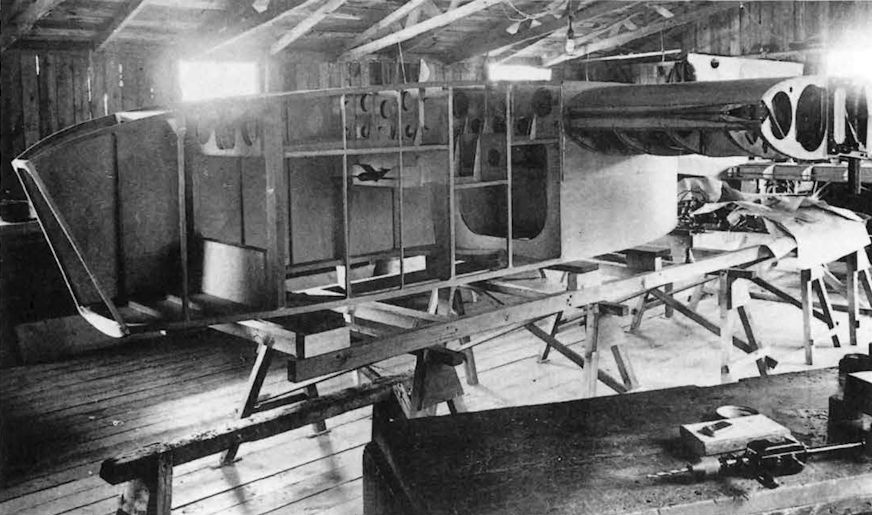

The fuselage pod and wing centre section assembly of the Arpin A-1 was the basic structure to which all other parts were attached. It is seen here in the workshop during construction upside down, and interpretation of the features may be improved by viewing the page inverted. The works and office of M B Arpin & Co was at Longford, West Drayton, where the sole example of the A-1 was built.

Самолёты на фотографии: Aircrafts on the photo: Arpin A-1 - ВеликобританияUnited Kingdom - 1938

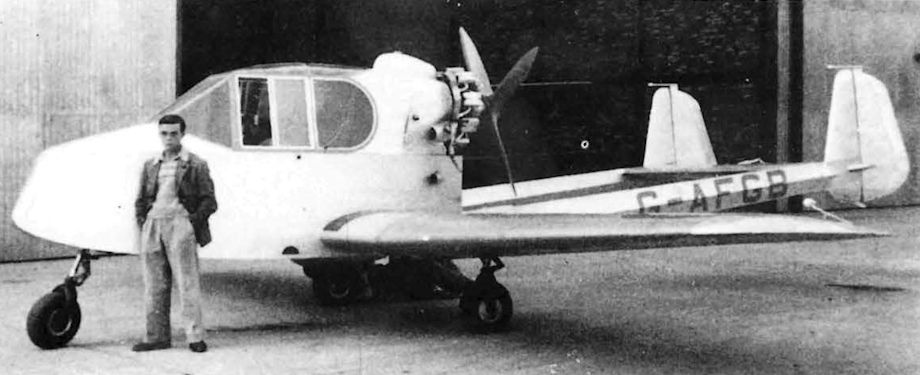

Entry to both cockpits was via a door on the port side with a single recessed step, and sliding windows were fitted on both sides. The 9 cylinders of the Salmson were exposed for cooling by the slipstream.

Самолёты на фотографии: Aircrafts on the photo: Arpin A-1 - ВеликобританияUnited Kingdom - 1938

Three-view of the Arpin A-1 Mk 2 (Cirrus Minor). Published drawings showed spats but it is unlikely that these were ever made.
