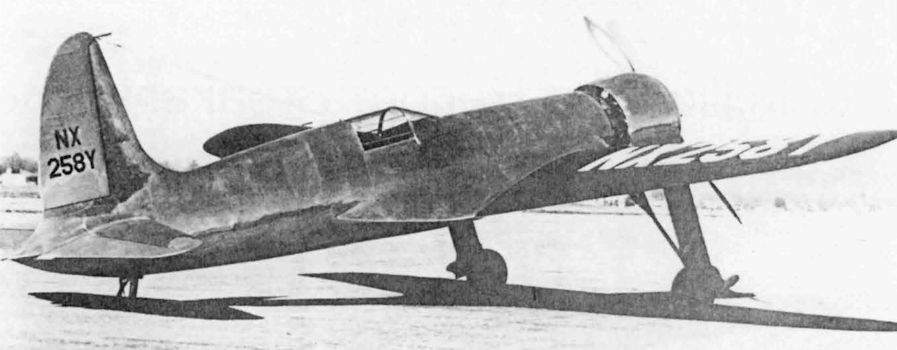

In 1940 Hughes had the Experimental 'X' replaced in the registration of the 1B, knowing that in the event of war experimental aircraft would not be impressed. After a period with Otto Timm, Hughes had it back and put it in storage until he had it restored for presentation to the Smithsonian/NASM in 1975.

Самолёты на фотографии: Aircrafts on the photo: Hughes H-1 - СШАUSA - 1935

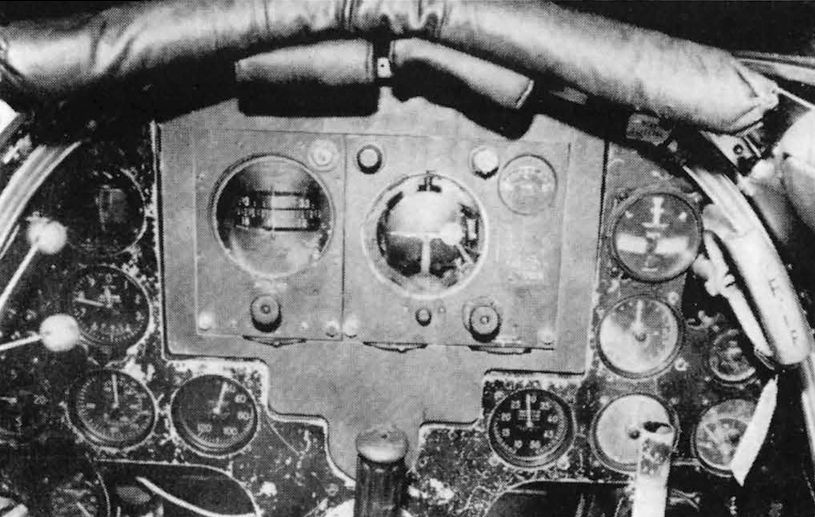

The panel of the Hughes 1B in the Museum. Central is the Sperry Autopilot with 'follow-up' and directional gyro dials on the left and artificial horizon on the right. Extreme left under the wide open throttle and mixture control is the climb and descent indicator, and next to this two airspeed indicators for high speeds and low speeds respectively, the latter from 40 mph to 120 mph for landing. The sensitive altimeter is above the high-speed ASI, and the turn and slip is top right.

Самолёты на фотографии: Aircrafts on the photo: Hughes H-1 - СШАUSA - 1935

Howard Hughes at the controls of a Constellation. His youthful good looks were greatly changed by the XF-11 accident and he wears a moustache to hide scars.

Самолёты на фотографии: Aircrafts on the photo: Lockheed Constellation C-69 / C-121 - СШАUSA - 1943

The Consolidated Vultee PB2Y-3R Naval Transport (four Pratt & Whitney R-1830-92 engines).

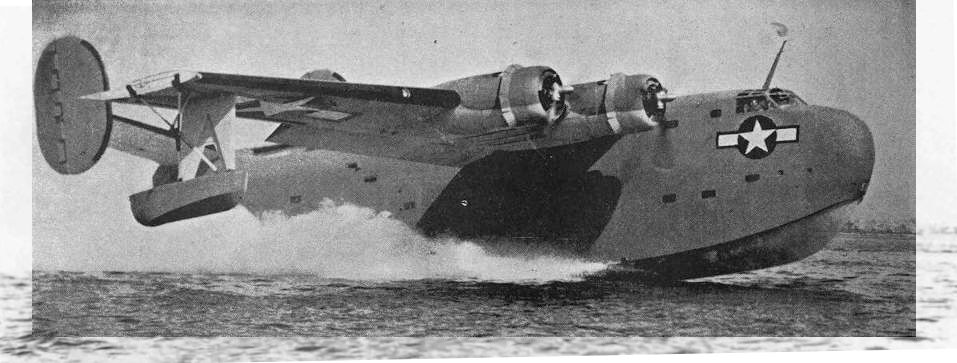

Illustrative of the type, a Coronado PB2Y-3R transport is seen on the step during take-off. Hughes' PB2Y-5Z N69003 had 3-blade Hamilton props on the outers and 4-blade hollow steel reversible props (presumably Curtiss) on the inners of the four 1200 hp P&W Twin Wasp R-1830-92 18-cyl air cooled radials.

Самолёты на фотографии: Aircrafts on the photo: Consolidated PB2Y Coronado - СШАUSA - 1937

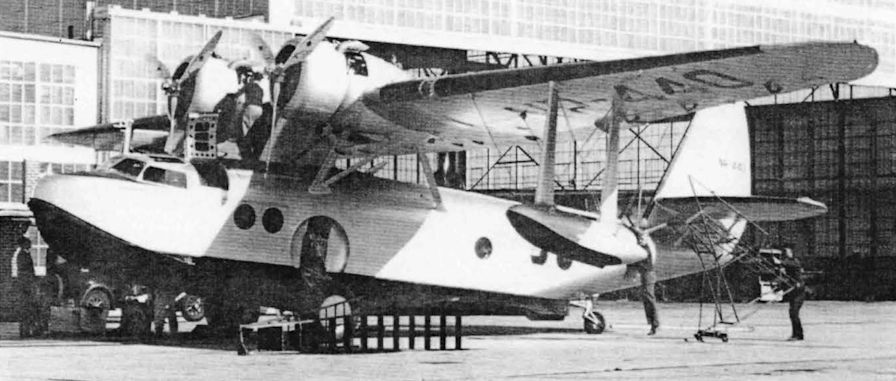

Hughes (standing on the cabin roof) examines Sikorsky S-43H NR440 at the factory before delivery. It has the central windows covered over where the extra fuel tanks were fitted in the cabin for the proposed round-the-world flight.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-43 Baby Clipper/JRS/Y1OA-8 - СШАUSA - 1936

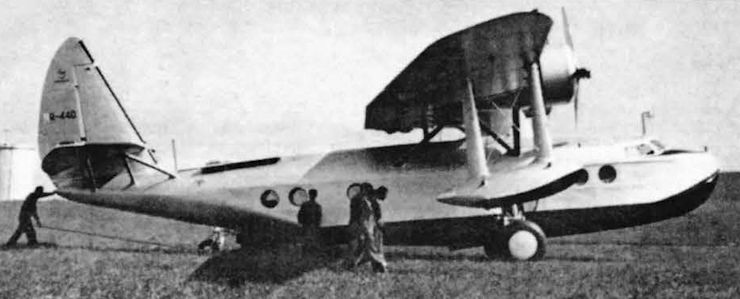

The S-43H at a later date showing the windows deleted on the right side also. The registration is still written with a hyphen but the N is in a lighter colour, possibly having been deleted at some time (the aircraft could fly without it in the Restricted category), or was this Hughes' way of making some kind of statement?

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-43 Baby Clipper/JRS/Y1OA-8 - СШАUSA - 1936

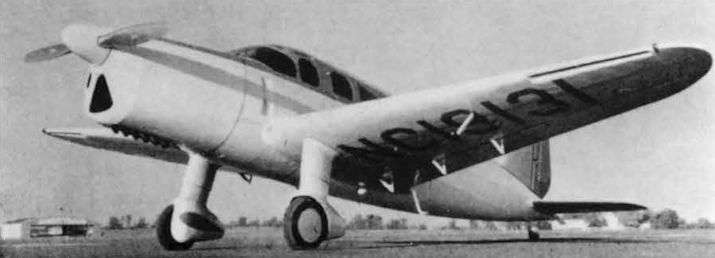

The Duromold moulded-wood process used on Hughes' D-2 was first tried by Fairchild on the fuselage of the one-off Clark F-46 five-seat cabin monoplane NC19131 c/n 5000 with 420 hp Ranger SGV77-B5 12-cyl inverted vee air-cooled engine.

Самолёты на фотографии: Aircrafts on the photo: Fairchild 46-A - СШАUSA - 1937

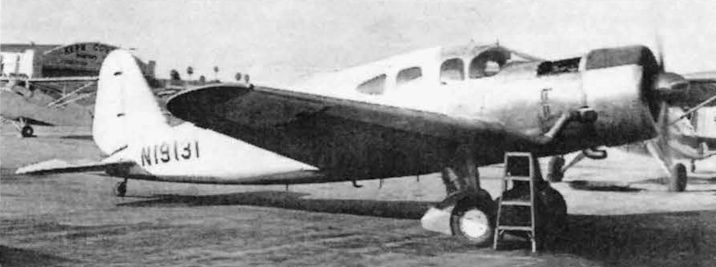

With the engine changed to a 420 hp P&W R-985 Wasp Junior 9-cyl radial, Fairchild N19131 was still flying in 1974, proof enough of the durability of the Duromold process.

Самолёты на фотографии: Aircrafts on the photo: Fairchild 46-A - СШАUSA - 1937
