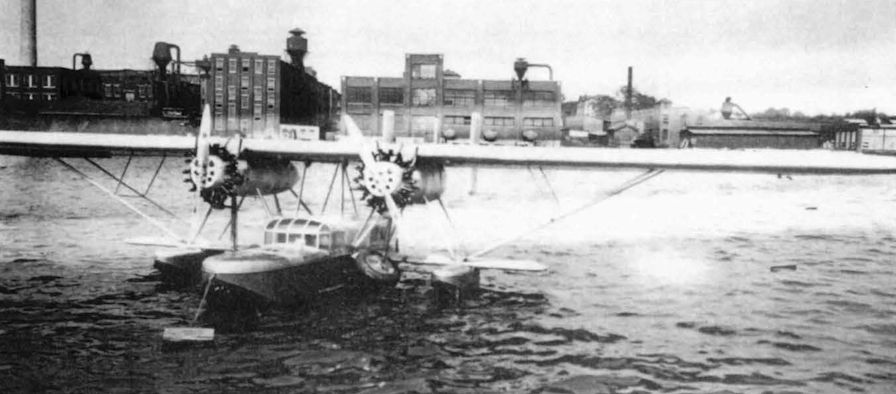

The S-36 prototype 8-seat sesquiplane amphibian, with two 220 hp Wright J-5 9-cyl radial engines mounted below the wing, led the way for Sikorsky amphibians in commercial service.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-36 - СШАUSA - 1927

S-36 представлял собой восьмиместный полутораплан - амфибию, оснащенную звездообразными двигателями Wright Whirlwind мощностью по 200л. с.
Mrs Frances Grayson's S-36 had longer engine nacelles with pointed ends. She called it "The Dawn" and had the name painted on the nose. On an attempted Atlantic crossing with Mrs Grayson and two pilots on 23.12.37 it disappeared without trace.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-36 - СШАUSA - 1927

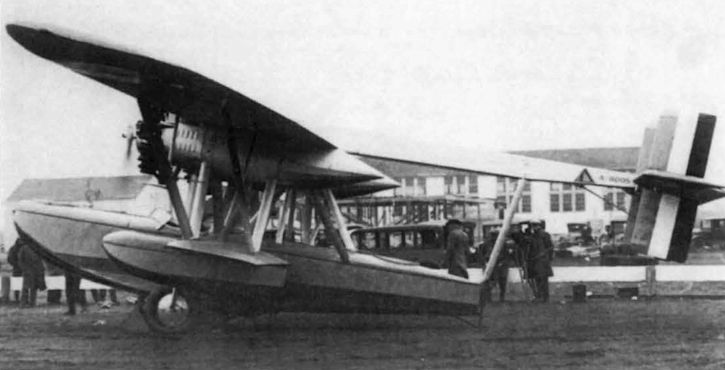

The U S Navy ordered an S-36 with the service designation XPS-1 and the serial A-8005. It was ordered with an open cockpit as seen here, a feature of most military aircraft at the time, but this was soon changed to an enclosed hood.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-36 - СШАUSA - 1927

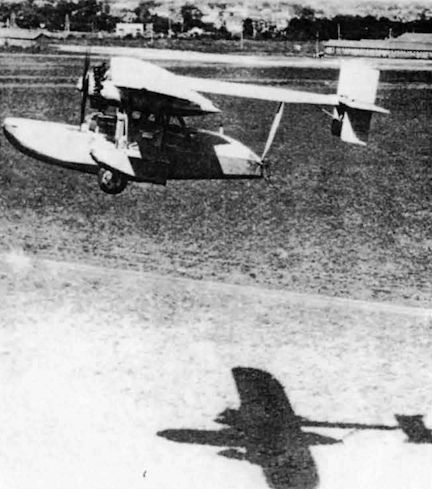

This unidentified S-36 has the same propeller spinners and long pointed nacelles as "The Dawn". Its shadow shows the single tail boom of the S-36 which carried the twin rudder tail unit.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-36 - СШАUSA - 1927

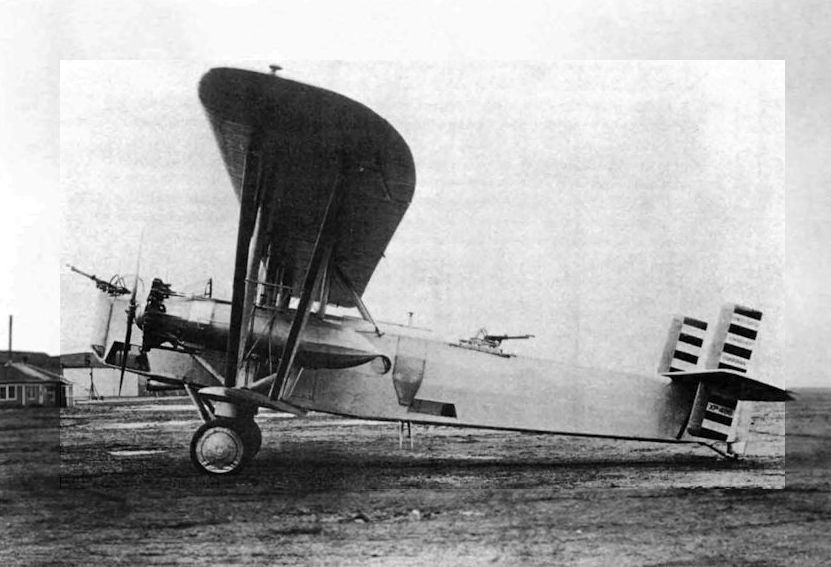

The Guardian, a bomber version of the S-37, was built by Sikorsky. The armament was fitted by Consolidated who added the number 'XP-496' on the rudder and were to have built production aircraft, but none were ordered. It was converted for civil use as the S-37-B.
The aircraft is a twin-engined light bomber roughly equal to the Boulton Paul Sidestrand. It was with the USAAC at Wright Field in 1927 for testing but never received a USAAC designation. The fin, oddly, does not seem to have a rudder. It has the title 'Consolidated Sikorsky Guardian' in the white stripes above the tailplane and 'XP-496' below it.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-37 - СШАUSA - 1927

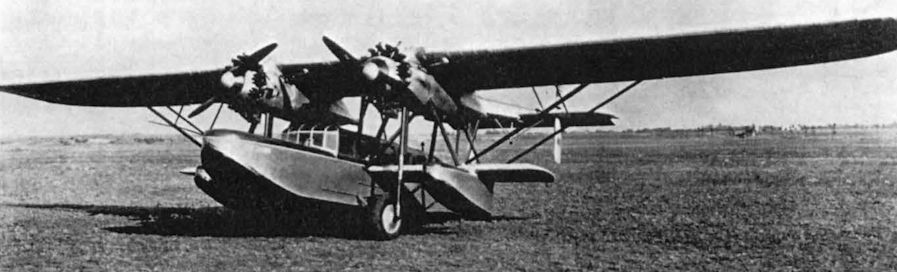

The S-37 was a 100ft span sesquiplane with two 500 hp P&W 9-cyl Hornet radial engines intended for a second attempt at the Atlantic crossing, dropped after Lindbergh's success. The triple-rudder tail unit shows clearly, also the 1fi bay wing compared with the 2fi bays on the S-35.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-37 - СШАUSA - 1927

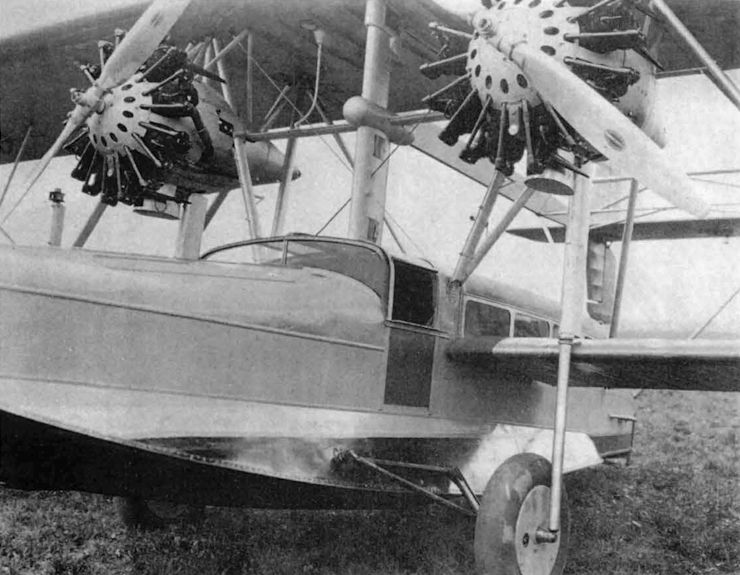

This close-up of prototype S-38A NC5933 shows the two 415 hp P&W Wasp 9-cyl radial engines with short nacelles and 'whistle-pipe' exhausts. On retraction, the upright undercarriage leg telescoped and the lower part folded upwards to a horizontal position under the wing root.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

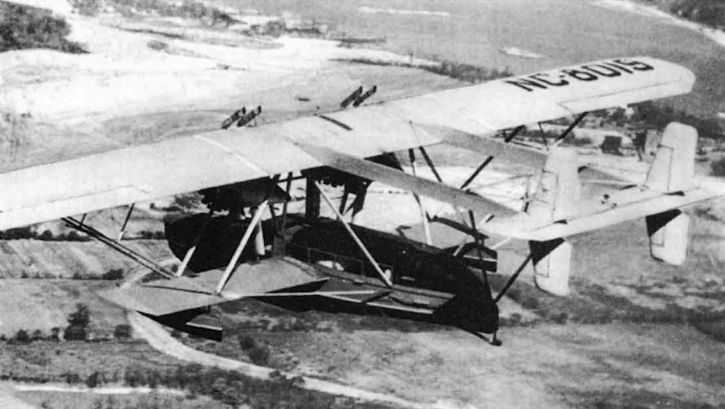

S-38A NC8019 c/n 14-3 had exhaust collector pipes and twin exhausts over the wing, a complicated system which was not adopted for later aircraft. This view shows well the twin boom tail with fixed fins and balanced rudders above and below the tailplane.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

NC8019 in operation at a later date with the overwing exhaust system removed. Stub exhausts would have been very noisy internally and externally and the standard system was later fitted.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

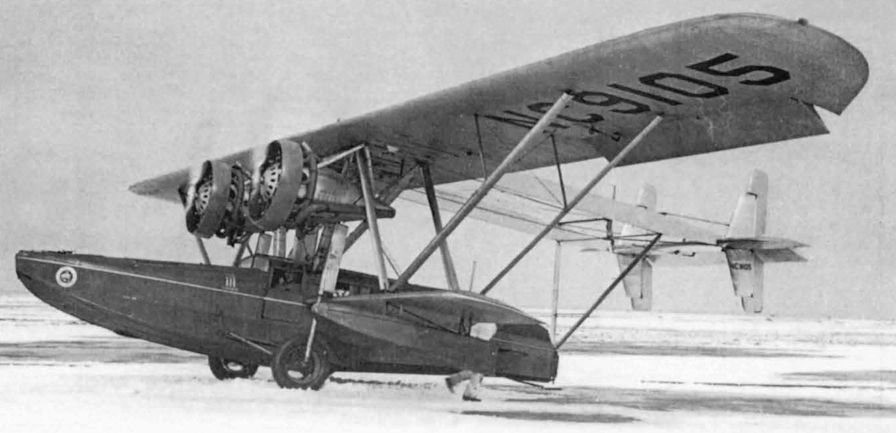

S-38B NC9105 c/n 114-4 has the rear exhaust-collector ring with pipe along the nacelle that was adopted as standard. It also has Townend rings on the engines, a feature that was optional.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

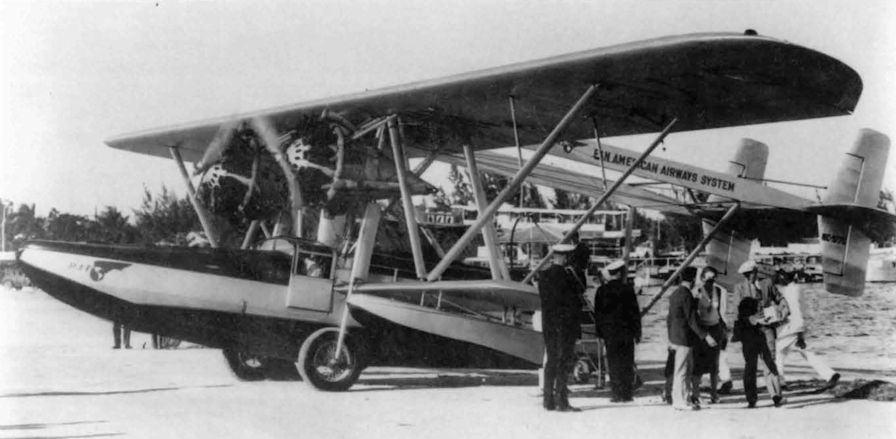

Pan American Airways NC9776 c/n 114-3 on a slipway with engines still running, the steps to the rear hatch are in place and passengers are disembarking.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

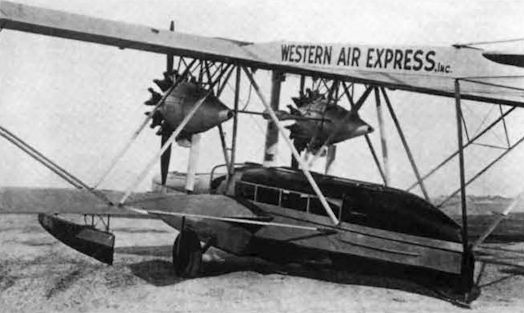

The first S-38A purchased by Western Air Express was NC8021 c/n 14-5. Two 100 US gal (83 Imp gal) fuel tanks were fitted in the wing centre section with a cross feed to supply either engine. Cruising at 110 mph this gave a 500 mile range.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

NC8019, ready to go with a load of passengers, shows the complicated overwing exhaust system. The upright windscreen was a feature of the first twenty or so S-38 airframes which did not clear readily in rain or spray.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

THE CHICAGO AERO EXPOSITION: One of representative types of aircraft out of the seventy odd on view - (4) Sikorsky Amphibian 8-passenger transport (two 425 h.p. Pratt and Whitney" Wasps ")

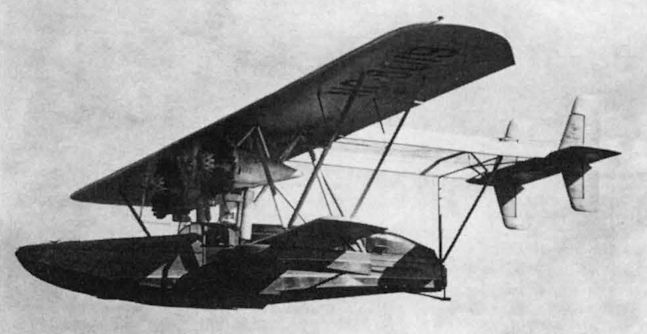

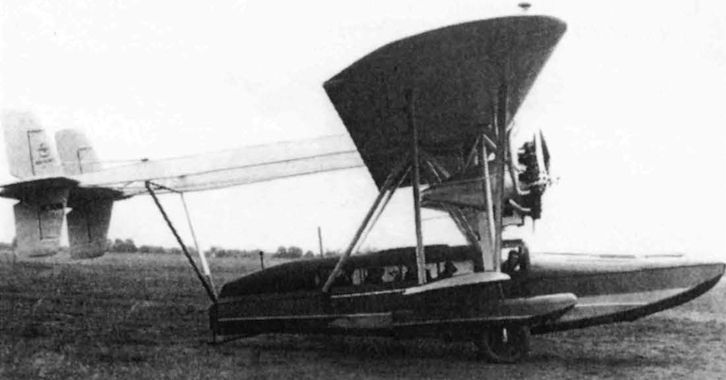

The prototype S-38A, NC5933. Its 71 ft 8 in. span sesquiplane wing structure was similar to the S-36 but the hull was 6 ft longer at 40 ft and the two rudders of the twin-boom mounted tail unit were now hinged on fixed fins.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

This view of Western's S-38A shows the long cabin section for 9 passengers with luggage compartment forward. A toilet was usually fitted in the tail end of the hull.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

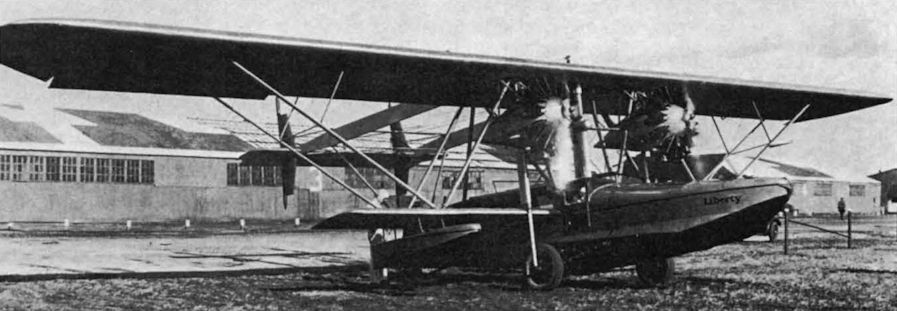

NC8022 c/n 14-6 of the Liberty magazine company carries the name "Liberty" on the nose. An executive 6-seat S-38AH, it was powered by 525 hp P&W Hornet 9-cyl radial engines to boost performance.

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928

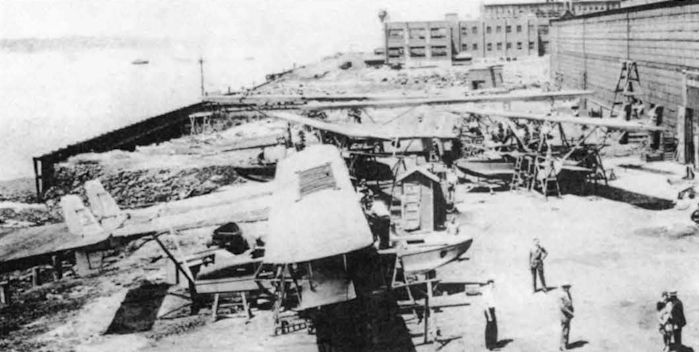

The first S-38B NC9753 c/n 114-1 in the foreground at the Sikorsky factory at Long Island, New York. Owner R R McCormick, publisher of the Chicago Tribune, called it "'Untin' Bowler".

Самолёты на фотографии: Aircrafts on the photo: Sikorsky S-38 - СШАUSA - 1928
