Piper PA-30 Twin Comanche
После прекращения серийного выпуска PA-23 Apache компания "Piper" приступила к производству нового двухмоторного четырехместного кабинного моноплана PA-30 Twin Comanche. Самолет PA-30 был низкопланом с крылом консольного типа, убираемым шасси с носовой опорой и двумя 4-цилиндровыми моторами IO-320-B мощностью по 160 л. с. (119 кВт). Первый полет прототип выполнил 3 мая 1963 года. Вслед за PA-30 в 1965 году в серию пошли варианты PA-30B-160 Twin Comanche и PA-30B Turbo Twin Comanche, который оснащался моторами IO-320-C1A с турбонагнетателями Rayjay. В 1970 году на смену этим двум моделям пришли новые варианты - PA-39 Twin Comanche C/R и PA-39 Turbo Twin Comanche C/R с моторами, оснащенными винтами с постоянной частотой оборотов. Выпуск самолета завершился в 1972 году. Всего построено 2142 машины всех вариантов.
ТАКТИКО-ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
PA-39 Twin Comanche C/R
Тип: четырех-/шестиместный моноплан
Силовая установка: два 4-цилиндровых мотора с горизонтальным расположением цилиндров IO-320-B1A мощностью по 160 л. с. (119 кВт)
Летные характеристики: максимальная скорость на уровне моря 330 км/ч; практический потолок 6095 м; макс. дальность 1931 км
Масса: пустого 1030 кг; максимальная взлетная 1690 кг
Размеры: размах крыла с топливными баками 11,21 м; длина 7,67 м; высота 2,51 м; площадь крыла 16,54 м2
- Описание
Фотографии
-
Air International 2020-12 / Focus: UAV, Rotary, Business, Technology, GA
Регистрационный номер: G-AZAB Piper PA-30 Twin Comanche
-
Air International 2020-09 / C.Frame - Brisbane. Steps into the future
Регистрационный номер: VH-SER This Piper PA-30 Twin Comanche, VH-SER (c/n 30-1578), was the first aircraft to use the new facility, doing so on May 4, 2020, to test runway lighting, including precision approach path indicators.
-
Изд-во Schiffer / S.Markman & B.Holder - One-of-a-kind research aircraft
Регистрационный номер: N808NA [2] The PA-30 Twin Commanche served since the 1960s as a general support testbed.
-
Мировая Авиация 215
Регистрационный номер: C-FBDK Один из первых четырехместных PA-30 Twin Comanche; машины первых выпусков имели только по два окна с каждого борта. На этом самолете постройки 1964 года на законцовках крыла установлены топливные баки.
-
Air Pictorial 1992-01 / G.Jones - Comanche: a blast from the past
Регистрационный номер: AN-BMG Not all Comanche's are well looked after as this dilapidated PA-30 Twin 160 AN-BMG (c/n 30-229) registered in Nicaragua shows.
-
Air Pictorial 1992-01 / G.Jones - Comanche: a blast from the past
Commanche Formation: getting it together against a backdrop of Guernsey's rocky southcoast
Другие самолёты на фотографии: Piper Comanche PA-24 - США - 1956
-
Aeroplane Monthly 2000-02 / M.Oakey, T.Harmsworth - News

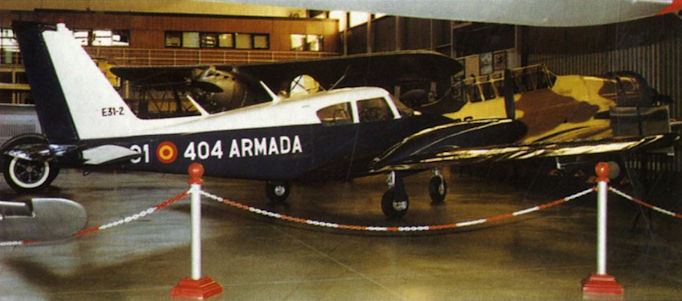

The latest exhibit at the Spanish Air Force Museum at Cuatro Vientos is Piper PA-30 Twin Comanche E31-2, which had been used since 1977 as a target-tug for Spanish Navy AV-8A Matadors (Harriers). The second of two Twin Comanches delivered to the Navy in 1964, E31-2 initially served on general liaison duties. Retired in mid-1999 from service with the 4th Escuadrilla at Rota, Cadiz, it went on display at the museum in September 1999.
-
Jane's All the World Aircraft 1966 / 02 - Aircraft
Piper PA-30 Twin Comanche (two 160 hp Lycoming IO-320 engines)
-
Мировая Авиация 215
Регистрационный номер: N7750Y На этом самолете Twin Comanche пилот Макс Конрад установил мировой рекорд дальности полета. 24-26 декабря 1964 года он преодолел 12 678,83 км от Кейптауна, ЮАР, до Сент-Питерсберга, Флорида.
-
Jane's All the World Aircraft 1972 / 01 - Aircraft
Регистрационный номер: N8823Y [2] The Piper PA-39 Twin Comanche C/R
-
Jane's All the World Aircraft 1974 / 01 - Aircraft
Регистрационный номер: N8823Y [2] Piper PA-39 Twin Comanche C/R (two 160 hp Lycoming IO-320-B1A engines)
-
Jane's All the World Aircraft 1964 / 01 - Aircraft
Регистрационный номер: N7001Y, N7002Y Piper PA-30 Twin Comanche (two 160 hp Lycoming IO-320 engines)
-
Jane's All the World Aircraft 1980 / Encyclopedia of Aviation - Aircraft A-Z - v5
Регистрационный номер: N7000Y Piper PA-30 original version of the Twin Comanche.
-
Air Pictorial 1992-02
Регистрационный номер: N808NA [2] Twin Commanche N808NA c/n 30-1498. The picture was taken at Fox Field, California by Brian Roffee. The aircraft is fitted with radio control equipment and used regularly around Edwards AFB.
-
Air Pictorial 1977-06
Airlynx. A NEW airline now operating from Stansted is Airlynx, previously based at Southend and in recent years concerned mainly with buying and leasing aircraft to business concerns. For 1977 Airlynx will be operating five aircraft on North Sea oil work, overseas building construction, communications services in the Middle East, live lobsters to the South of France and general charter work. Fleet includes a Dove and several Piper Twin Comanches (see photo).
Другие самолёты на фотографии: De Havilland Dove / D.H.104 - Великобритания - 1945
-
Мировая Авиация 10
26 декабря 1964г.: 61-летний Макс Конрад посадил свой легкий самолет Piper Twin Comanche в Санкт-Петербурге, штат Флорида, после беспосадочного полета из Кейптауна, Южная Африка, и установил рекорд для этой категории самолетов, преодолев 1278,48 км.
