Регистрационный номер: THK-59 THK.59 standing chocked-up ready for the next sortie with the Flying School at Etimesgut. On the far side of the airfield are C-47s of the TuAF Transport Regiment which was also based there.
One of the 100 Miles M.14A Magisters constructed under licence by the Turkish Air League (THK), where, as Vaclav Nemecek points out, aircraft design was under the direction of Polish refugees.Самолёты на фотографии: Douglas DC-3 / C-47 Skytrain/С-53 Skytrooper / Dakota - США - 1935Miles Magister / M.14 - Великобритания - 1937
-
Magister 3574, identified as one of the 76 delivered 1941-43 from RAF stocks - note the small flag on the tail fin. Photo dates from 1954-56 as the F-86s visible behind were withdrawn in 1957.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937North American F-86 Sabre - США - 1947
-

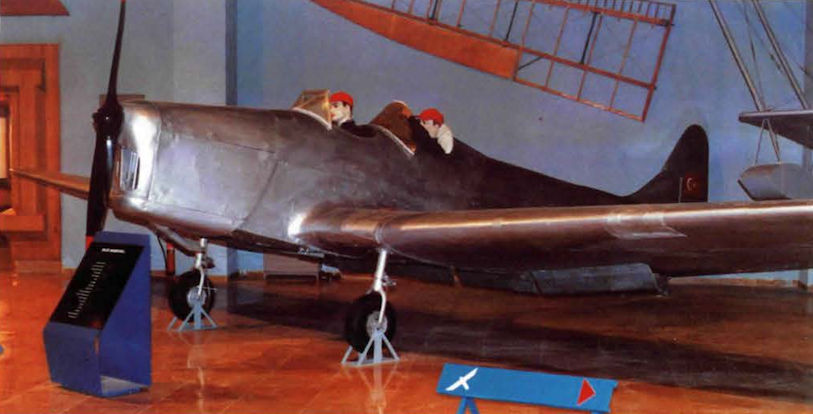

Регистрационный номер: THK-77 The silver THK.77 preserved at the Air Force Museum at Yesilkoy near Istanbul. Note the small red flag on the rudder and THK serial above. This is a controversial example as it is said to be an ex-RAF aircraft.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

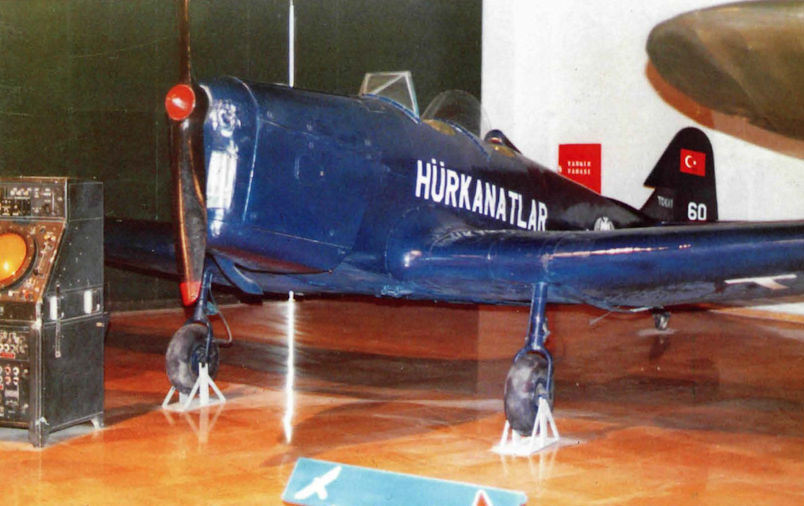

Регистрационный номер: TC-KAY On display at the TuAF Museum at Yesilkoy is Magister 5060/TC-KAY in the deep blue colour scheme of Hurkanatlar.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

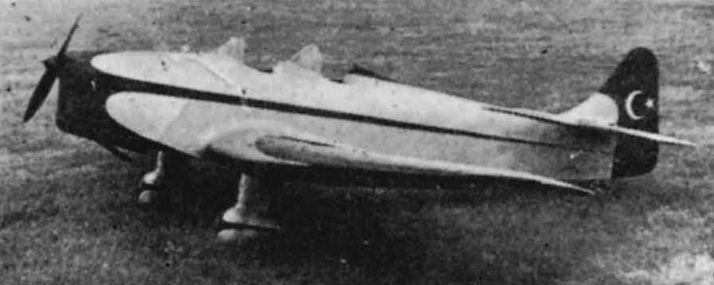

The sample aircraft supplied to Turkey, complete with spats, red and yellow colour scheme, red rudder with crescent and star.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-
An unidentified KTF Magister (red rudder) of the T.A.F. It is absolutely identical to the Miles Magister of the RAF down to the smallest detail, including the instrument flying hood in the stowed position behind the rear cockpit.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

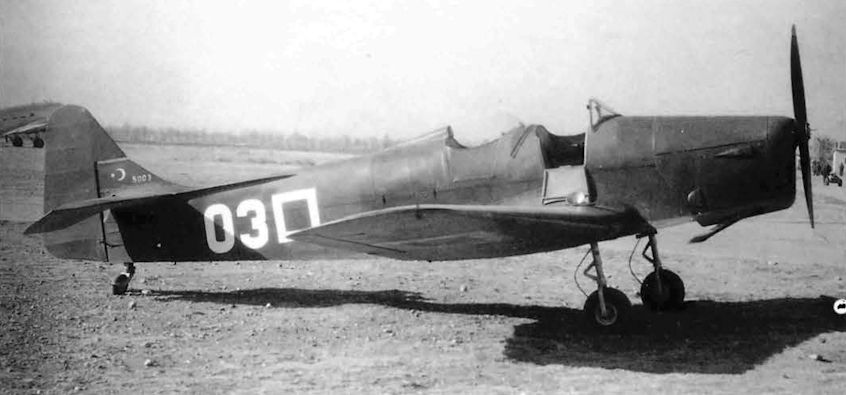

A THK Magister delivered to the TUAF in 1944, with serial 5003 on the fin just ahead of the small Turkish flag and the 'last two' of the serial 03 on the fuselage behind the Air Force insignia of a red square outlined in white. The cantilever undercarriage legs with Lockheed 'airdraulic' oleos stood up well to hard work, although here the starboard leg is a little low on pressure.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

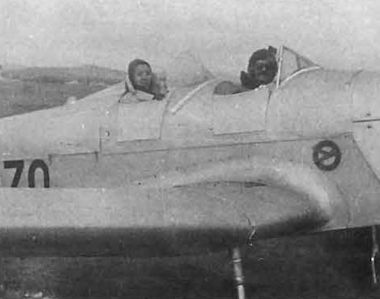

A large number of THK pilot trainees are women, which often surprises European observers, but the first Turkish female military pilot was trained in 1933 and the first female military jet pilots in 1953
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

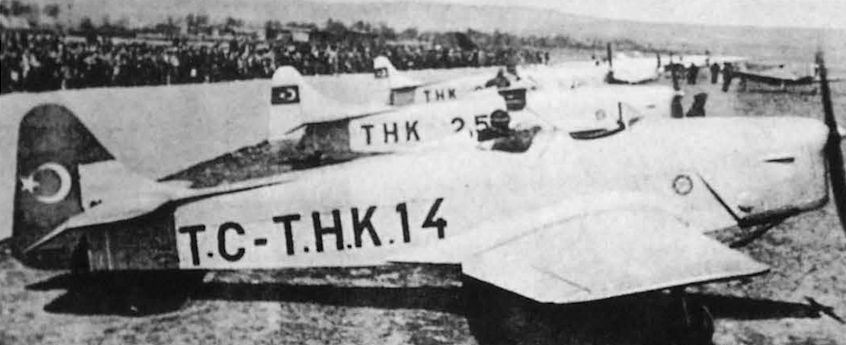

Регистрационный номер: THK-14, THK-25 A line of THK Magisters at the annual airshow at Etimesgut, probably in 1945. In the foreground is KTF-built ex-Army THK.14 still with its red rudder and behind it is THK-built THK.25 with the small national flag on the rudder and no TC- prefix.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

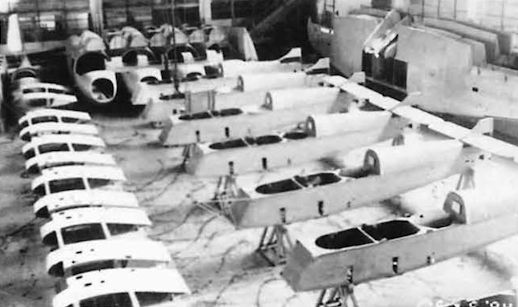

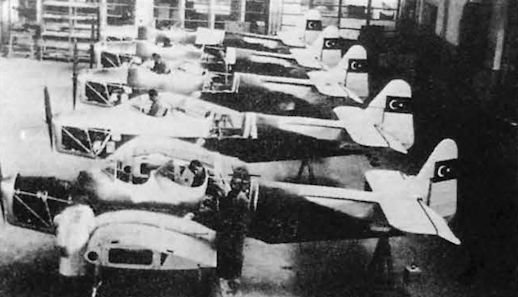

The same Magisters as on the previous page at KTF seen later from the other end of the line. They are in the last stage before final assembly when they will be pushed out on their own wheels and the completed mainplanes fitted.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-
Construction by THK at Etimesgut. Left are the spar-joined wing centre sections containing the left and right side 10.5 gal fuel tanks. At the back are fuselages of the THK.5 twin with their wings on the right.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

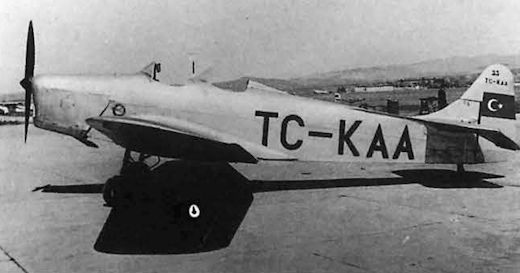

Регистрационный номер: TC-KAA TC-KAA, formerly THK.55, was one of the surviving THK Magisters on the new Turkish civil register which it entered in October 1958.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

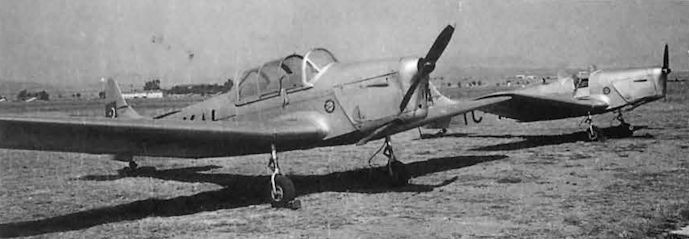

Регистрационный номер: TC-KAJ, TC-KAI THK Magister 5035 was modified with an enclosed cockpit in the course of development of the Ugur. It retained this feature when it reverted to THK use, becoming TC-KAI and is seen here as such next to a standard Magister registered TC-KAJ (5070).
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

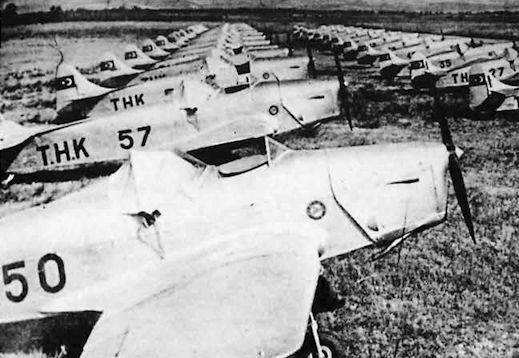

Регистрационный номер: THK-50, THK-57 A line-up of about half of the Magisters in service with THK at Etimesgut, at least 27 aircraft can be counted, all with blind-flying hoods closed - perhaps as a means of keeping the rear cockpit cool on the ground in summer.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

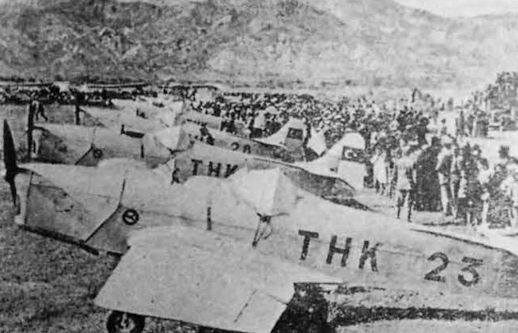

Регистрационный номер: THK-23 The Magister played a major role in the late fourties in promoting civil aviation in Turkey. The THK flew formations all over the country, as seen here, to raise public awareness and interest.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-
Three ex-RAF Magisters of the TuAF, serials 3574, 3548 and 3558 flying echelon formation stepped down.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

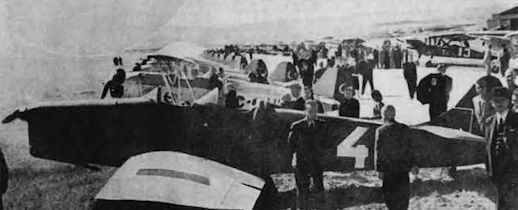

Presentation of the first Magisters in 1942 at an airshow held by THK at Etimesgut airfield included 3604 in the foreground with FW 44Js and Hanriot H.182 trainers behind.
Самолёты на фотографии: Focke-Wulf FW.44 Steiglitz - Германия - 1932Hanriot H.170 / H.180 / H.190 - Франция - 1934Miles Magister / M.14 - Великобритания - 1937
-

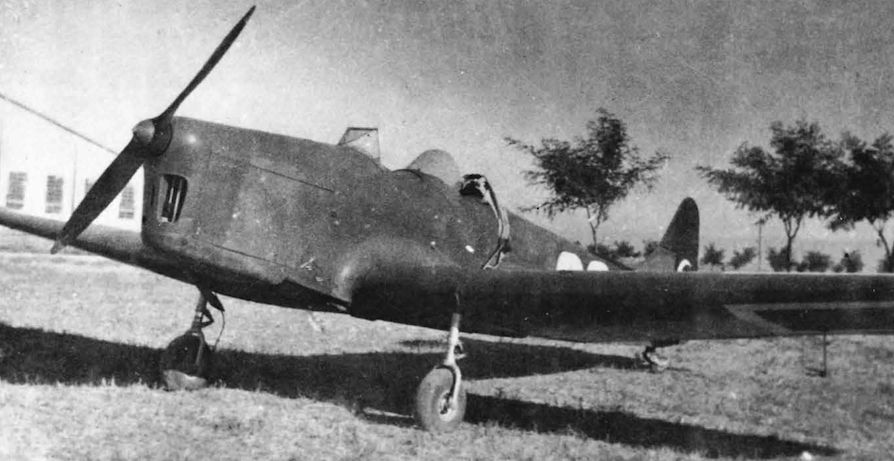

Finished KTF Magister No.3618 in front of the factory hangars. It has a full red rudder like all the KTF production.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

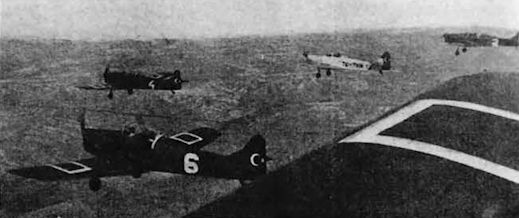

Formation flight from a KTF Magister in 1942 with three military examples 3602, 3604, 3606 in camouflage and one of the four civilianised examples TC-THK-13 in silver.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-
The pattern aircraft after conversion to a single-seat sprayer. It retains its original colour scheme but now wears a THK logo on the nose. In both the single-seat Magisters the front cockpit with spray tank fitted was covered over and the front windscreen was transferred to the rear cockpit.
An early Turkish Magister converted as a single-seat anti-malaria DDT sprayer with long underside exhaust pipe extension. The unusual paint scheme suggests it may be a conversion of the aircraft shown above.Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

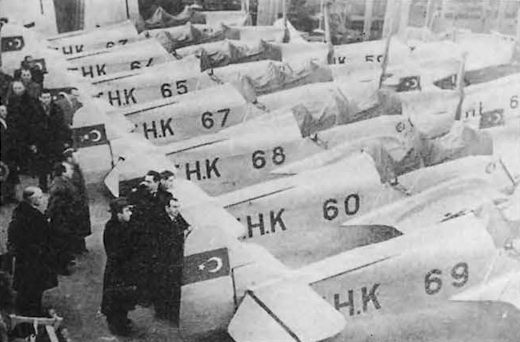

Регистрационный номер: THK-60, THK-65, THK-67, THK-68, THK-69 Some of the last batch of THK Magisters being shown to a DH delegation on a visit near the time that the engine factory at Ankara was under negotiation.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-
Magisters at THK in the last stage before final assembly. Numbered 35 to 39 (in foreground), all are being worked on at the same time and so are roughly at the same stage of completion.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

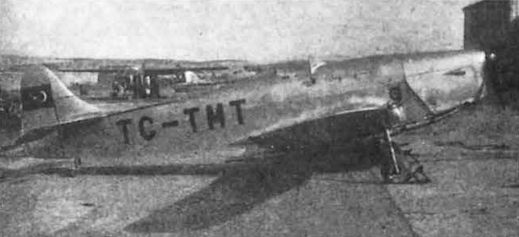

Регистрационный номер: TC-TMT The first THK Magister, serial 5001 after conversion to a sprayer as TC-TMT. In comparison with the other conversion it had a shorter exhaust/spray pipe which ended just behind the wing.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

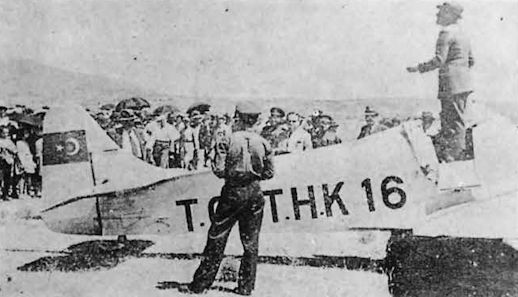

Регистрационный номер: THK-16 KTF-built THK-16 after repainting in the post-1944 THK scheme with a small flag on the rudder. In the rear cockpit an official is standing to make a promotional speech about the THK
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-

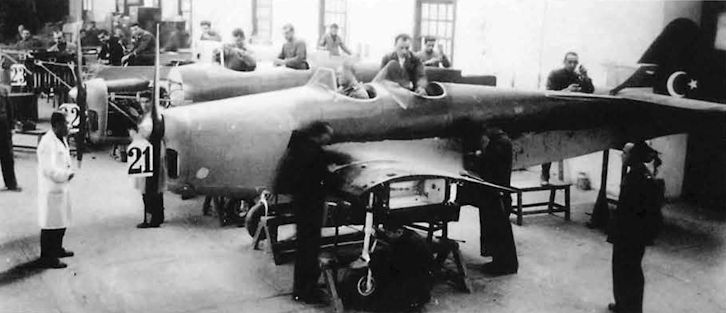

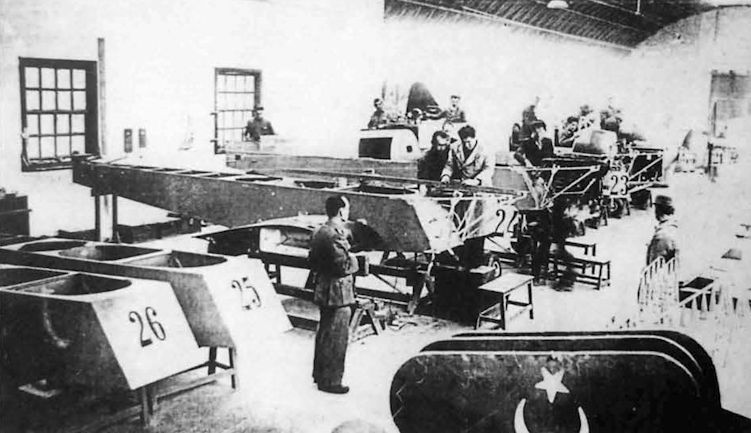

Building Magisters at KTF with a pattern airframe near this end between Nos. 24 and 25, probably in 1942. Fuselage frames 21 to 26 can be seen with three rudders foreground and wing structures behind.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
-
A rare shot of a KTF-built Magister with the KTF logo on the tailfin above the white serial number. The blind flying hood is closed.
Самолёты на фотографии: Miles Magister / M.14 - Великобритания - 1937
