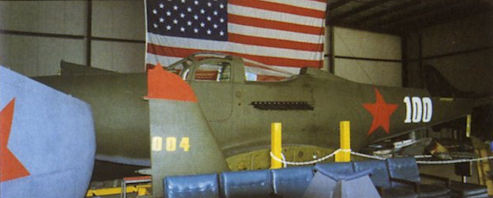

Bell Model 33 (P-63 Kingcobra)

С самого начала разработки своего P-39 Airacobra компания "BELL" пыталась улучшить его летные качества путем усовершенствования аэродинамики. Были построены три самолета XP-39E на базе P-39D с крылом ламинарного профиля и прямыми законцовками, а также с измененным хвостовым оперением. У всех этих машин форма оперения отличалась друг от друга. Первоначально планировалось оснастить прототипы 12-цилиндровым перевернутым V-образным двигателем Continental IV-1430 мощностью 2000 л. с. (1491 кВт). Однако реально был установлен двигатель Allison V-1710C гораздо меньшей мощностью, вероятно, из-за более высокой надежности. Испытания XP-39E начались в феврале 1942 года. Самолет продемонстрировал удовлетворительные качества и был запущен в производство под обозначением P-76. На заводе "BELL" в Мариетта, штат Огайо, было заказано 4000 машин, но спустя уже три месяца заказ отменили.
   Было решено создать более крупную и мощную модификацию истребителя-бомбардировщика для непосредственной поддержки наземных войск. Все исследования и конструкторские разработки для XP-39E использовались при создании окончательной конструкции Bell Model 33, заказанного под обозначением P-63 Kingcobra. По компоновке P-63 похож на P-39, но он имел более крупные размеры и более мощную модификацию двигателя V-1710, а также был лучше приспособлен для выполнения задач авиационной поддержки.
   Первый прототип XP-63 впервые поднялся в воздух 7 декабря 1942 года, а второй - 5 февраля 1943-го. Оба имели двигатели V-1710-47 мощностью 1325 л. с. (998 кВт), и оба самолета разбились на испытаниях, что привело к необходимости создания третьего прототипа, XP-63A, совершившего свой первый полет 26 апреля. На нем стоял двигатель V-1710-93 мощностью 1500 л. с. (1119 кВт).
   Первые поставки P-63A начались в октябре 1943 года, и к моменту окончания производства в 1945 году было построено 3213 экземпляра Kingcobra различных модификаций. Большинство этих машин - около 2400 - было по ленд-лизу отправлено в СССР, около 300 передали ВВС "Свободной Франции". Несколько экземпляров было отправлено в ВВС Армии США, но, насколько известно, ни один американский P-63 не использовался в боевых действиях.
   Детали оснащения и оборудования самолетов значительно различались, что приводило к появлению множества модификаций. Первый серийный P-39A-1 имел двигатель V-1710-93, одну 37-мм пушку М4 в носовой части и два 12,7-мм пулемета в подкрыльевых обтекателях; другие модификации имели по два дополнительных 12,7-мм пулемета в носовой части фюзеляжа. Самолеты P-63A-1 и P-63A-5 могли нести сбрасываемые топливные баки емкостью 284 л или 663 л или бомбу калибра 237 кг под фюзеляжем, в то время как P-63A-6 имел подкрыльевые узлы подвески для двух аналогичных бомб или дополнительные сбрасываемые баки. Вариант P-63A-10 мог нести по три неуправляемые ракеты класса "воздух-поверхность" под каждой плоскостью. Масса брони, предназначенной главным образом для защиты от огня с земли, постепенно увеличивалась с 39.8 кг на P-63A-1 до 107.2 кг на P-63A-10. За самолетом P-63A, выпущенным в количестве 1725 машин, последовал P-63C с двигателем V-1710-117 мощностью 1800 л. с. (1342 кВт) с водяным впрыском. Отличительной деталью P-63C построенного в количестве 1227 машин, был небольшой подфюзеляжный гребень. Единственный P-63D имел двигатель V-1710-109, каплевидный фонарь кабины и крыло увеличенного размаха. 13 из 2943 заказанных самолетов P-63E (Model 41) имели стандартный фонарь кабины, а два P-63F отличались от P-63E только двигателем V-1710-135 и модифицированным хвостовым оперением.
   Необычный вариант P-63 был построен в количестве более 300 экземпляров для использования в качестве пилотируемой летающей мишени. Этот вариант RP-63, разработанный на базе P-63A, не имел вооружения, а вся поверхность крыла, фюзеляжа и оперения была защищена дополнительной дюралевой броней массой 680 кг. Защита также включала пуленепробиваемые стекла кабины, стальные жалюзи воздухозаборника двигателя, стальную защиту выхлопных труб и винт с полыми толстостенными лопастями. Все эти меры позволяли самолету выдерживать без повреждений удары разрушающихся учебных пуль. Сигнальная красная лампочка подтверждала точность попадания. Первые из этих самолетов-мишеней получили обозначение RP-63A-11. Последовавшие за ними машины RP-63A-12 имели увеличенную емкость топливных баков. Следующей серийной модификацией с двигателем V-1710-117 был самолет RP-63C, а заключительной стал RP-63G с двигателем V-1710-135. Эти три модификации получили обозначения QF-63A, QF-63C и QF-63G, хотя они никогда не применялись в качестве беспилотных мишеней, которым в США обычно присваивался индекс Q.


ТАКТИКО-ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

   Bell P-63A Kingcobra

   Тип: одноместный истребитель-бомбардировщик
   Силовая установка: V-образный двигатель Allison V-1710-93 мощностью 1325 л. с. (988 кВт)
   Летные характеристики: максимальная скорость 660 км/ч на высоте 7620 м; крейсерская скорость 608 км/ч на оптимальной высоте; подъем на 7620 м и 7 мин 18с; практический потолок 13110 м; дальность полета 724 км с максимальной боевой нагрузкой; перегоночная дальность 3541 км
   Масса: пустого 2892 кг; максимальная взлетная 4763 кг
   Размеры: размах крыла 11,68 м; длина 9,96 м; высота 3,84 м; площадь крыла 23,04 м'
   Вооружение: 37-мм пушка М4 и четыре 12,7-мм пулемета Browning плюс до трех бомб калибра 237 кг на внешней подвеске

Russian Aviation Museum

The P-63 Kingcobra was derived from the P-39 Airacobra. Superficially the P-63 and the P-39 were very similar, nevertheless the P-63 was an entirely new design and no two parts of the two models were interchangeable. Work on the P-63 commenced in
February 1941 and this type became the only USAAF single-seat fighter design tested after Pearl Harbor which entered series production during World War II. But despite the fact that 3,303 Kingcobras were built, the type never saw combat with the USAAF.
Bell and the USAAF were well aware that the disappointing combat performance at altitude of the Airacobra was not caused by any faults of the basic design but had its origins in the lack of a turbo-supercharger and in an outdated tactical concept to
which it had been framed. To overcome these shortcomings the company mated the basic P-39 fuselage with an uprated engine and new laminar-flow wings. Three prototypes of this design were built under the designation XP-39E (s/n 41-19501/41-19502/42-7164).
Even before the first flight of the XP-39E an enlarged prototype was ordered by the USAAF on June 27, 1941 under the designation XP-63. At first there were doubts expressed by NACA about the possibility to produce the laminar-flow wing under series
production conditions with the necessary high quality standard (otherwise the advantage, i.e. low drag, of a laminar-flow wing could be cancelled out by turbulence caused by minute ripples in the wing surface), but Bell managed to solve this problem by
new production techniques. Like its predecessor Airacobra, the Kingcobra was a very sturdy machine and could absorb much damage.

The first XP-63 (Bell Model 24, s/n 41-19511) first flew on December 7, 1942. It was fitted with a 1,325hp Allison V-1710-47 engine with a two-stage supercharger (increasing the ceiling by 3,048m) and a four-blade propeller. On February 5, 1943 the
second XP-63 (s/n 41-19512) flew for the first time. Both prototypes were lost in crashes (caused by technical failures) early in 1943, but even before the maiden flight of the first XP-63 series production had been ordered under the designation P-63A
(Bell Model 33) in September 1942.

Production deliveries commenced in October 1943. But despite a performance comparable to that of contemporary fighters and favorable comments from the test pilots at Eglin Field, Florida, the USAAF concluded that the P-63 was unsuitable for service use.
A small number served with three home-based USAAF squadrons for a few months, but most of the production P-63As and later P-63Cs were immediately exported to the USSR under Lend-Lease. Another 114 P-63C-5s were delivered to France (too late to be used in
WW II, but they flew in Indochina until 1951). Two P-63s were tested in Great Britain. About 330 specially modified P-63As and Cs were used as manned armored target aircraft by the USAAF. They were called "Flying Pinballs" and were fitted with about one
ton of special external armor plate. Against this armor were fired specially developed "frangible" bullets (made of lead and graphite) which shattered on impact. A scored hit was signalled by a light in the propeller hub. So bomber gunners could be
trained in an extremely realistic way. After the war a number of P-63s were used for air races.

The following P-63 variants were built or projected:

XP-63 (Bell Model 24): First prototypes (2 built, s/ns: 41-19511 and 41-19512).

XP-63A (Bell Model 24): Prototype, originally intended as testbed for P-63B. One built (s/n 42-78015), first flown April 26, 1943. Had 1,325hp Allison V-1710-93 engine and was one of the fastest P-63s (678km/h at 7,346m).
P-63A (Bell Model 33): First production model (1,825 built), deliveries from October 1943.

Sub-variants were:

  P-63A-1-BE: 50 built (s/ns 42-68861 - 42-68910). Virtually identical with XP-63A. Had 37mm M-4 cannon with 30 rounds, four 12.7mm guns and provision for a drop tank or a 227kg bomb under the fuselage.

P-63A-5-BE: 20 built (s/ns 42-68911 - 42-68930). Introduced dorsal radio mast. Increased armor.

  P-63A-6-BE: 130 built (s/ns 42-68931 - 42-69060). Fitted with additional underwing racks for drop tanks or bombs. One experimentally fitted with ski undercarriage.

  P-63A-7-BE: 150 built (s/ns 42-69061 - 42-69210). Different propeller, increase in wing loading, modified nose gun mounts and horizontal tail surfaces.

  P-63A-8-BE: 200 built (s/ns 42-69211 - 42-69410). Increased armor, improved propeller, water injection added for engine, ammunition for wing guns reduced from 250 to 200rpg.

  P-63A-9-BE: 450 built (s/ns 42-69411 - 42-69860). Increased armor, 37mm M-10 cannon (with 58 rounds) instead of earlier M-4. One experimentally fitted with a vee tail.

  P-63A-10-BE: 730 built (s/ns 42-69861 - 42-69879; 42-69975 - 42-70685). Armor further increased, underwing rocket rails added.

  RP-63A-11-BE: 5 conversions of A-9s as "Pinball" armored target aircraft (s/ns 42-69647/654/769/771/801). Different types of dorsal air intakes tried out.

  RP-63A-12-BE: Basically an A-10, but built from the outset as armored target aircraft. 95 examples (s/ns 42-69880 - 42-69974). In 1948 all RP-63A/C/Gs were redesignated QF-63A/C/Gs, but never used as pilotless drones.

P-63B (Bell Model 34): Proposed version with Packard-built Rolls-Royce Merlin V-1650-5 engine. Abandoned, aircraft scheduled as P-63B prototype later completed as XP-63A.

P-63C: Second production model (1,427 built), deliveries from December 1944.

Sub-variants:

  P-63C-1-BE (Bell Model 33C-1): 215 built (s/ns 42-70686 - 42-70860; 43-10893 - 43-10932). Uprated Allison V-1710-117 engine, otherwise similar to A-10.

  RP-63C-2-BE (Bell Model 33C-2): 200 armored target aircraft (s/ns 43-10933 - 43-11132). Differed from RP-63A in having standard dorsal air intake.

  P-63C-5-BE: 1,012 built (s/ns 43-11133 - 43-11717; 44-4001 - 44-4427). Ventral fin added for better directional stability (also retrospectively fitted on some C-1s), increased armor.

P-63D-1-BE: One built (s/n 43-11718). Flew early in 1945 and featured a number of modifications (no ventral fin, bubble-type cockpit canopy, increased wingspan (11.94m), 1,425hp V-1710-109 engine, modified dorsal air scoop, M9E1 cannon with 48 rounds).
Fastest P-63 (703km/h at 9,144m).

P-63E (Bell Model 41): Similar to P-63D, but with old cockpit canopy and ventral fin. 2,943 ordered under Lend-Lease of P-63E-1-BE variant, but only 13 built (s/ns 43-11720/43-11721 and 43-11725 - 43-11735), remainder cancelled after V-E Day. P-63E-5-BE
was improved E-1 (new vertical tail, bubble canopy, improved instrument panel) for Russia, but not built.

  P-63F-1-BE (Bell Model 43): Last wartime version of the Kingcobra. First flown in April 1945. Only two built (s/ns 43-11719/43-11722). Had a V-1710-135 engine and the enlarged vertical tail of the E-5.

RP-63G: "Pinball" target aircraft. Two prototypes (modified P-63Cs, s/ns 43-11723/11724) and thirty production aircraft (s/ns 45-57283 - 45-57312). 1,200hp Allison V-1710-135 engine. Another 420 cancelled. One experimentally fitted with V-shaped tail
assembly.

XP-63H (Bell Model 45): Proposed testbed for Allison V-1710-127 turbo-compound engine. Not realised.

XP-63N: Probably used for RP-63G with vee tail.

TP-63: Two-seat conversions. Exact number uncertain. TP-63A-10-BE (Bell Model 38) was proposed modification of A-10 by second cockpit (by factory-delivered conversion kit) inserted in front of original one. At least three completed in the USSR (s/ns
42-69304; 42-70503; 43-112334). Another source speaks of 9 conversions plus one TP-63C. Two P-63E-1s modified by Bell as two-seaters for factory trials (civil registrations NX41963 and NX41964).

L-39: Two P-63C-5s modified in 1946 as testbed for swept wings (L-39-1 and L-39-2).

As mentioned above, most P-63s were delivered to the Soviet Union via Alaska/Siberia as soon as they had left the factory. One of the routes used led from Niagara Falls to Selfridge Field (Michigan) and on to Truax Field near Madison (Wisconsin). There
the Bell fighters were picked up by (mostly) female Russian pilots who flew them via Anchorage (Alaska) to the Soviet Union. Another route went from Great Falls (Montana) to Fairbanks (Alaska) and on to Siberia. One source states that there were 2,397
P-63As and Cs sent to the USSR, of which only 21 were lost en route. Another source records 2,456, of which 2,421 reached their destination. Deliveries commenced in September 1944 and until May 1945 only 51 P-63As had been received by the Soviet Union.
They were assigned to PVO units. This makes any significant use against German tanks or aircraft very unlikely. So the often read statements about the successful Soviet use of the P-63 against German armor seem to have been "extrapolated" from the P-39
Airacobra.

Re-equipment of Soviet Air Force units with the Kingcobra continued after the end of the war in Europe. The type was used in combat against Japan at the Far East and Trans-Baikal Fronts. The 12th Air Army of the latter Front had its 245th (940th and
781th IAPs) and 190th (17th and 21 IAPs) IADs equipped with Kingcobras. On August 15, 1945 Captain Vyacheslav Sirotin of the 17th IAP, a 21-victory ace and Hero of the Soviet Union, scored the only aerial victory of the P-63 Kingcobra when he shot down a
Japanese Ki-27 or Ki-43. Other Soviet P-63-equipped units in the Far East in the summer of 1945 were the Kamtschatka-based 128th SAD (888th and 410th IAPs - the latter having been equipped with Il-2s before as the 410th ShAP) and parts of the 7th IAD of
the Pacific Ocean Fleet. In July 1945 the 128th SAD supported the Soviet landings on Shimushu (Kuriles). Soviet Kingcobras normally had their underwing gun gondolas removed.
After the war re-equipment of new units with the P-63 continued at an accelerated pace. These included the 5th GvIAD in the Baltic District, the 269th IAD in Armenia, the 6th GvIAD in the Ukraine and the 1st GvIAD at Neuhausen in Germany. There were also
P-63-equipped units based in Austria and China. About 25 aircraft seem to have been converted into P-63U two-seat trainers in the USSR at that time. The 307th and 308th IAPs in the Kuriles flew the P-63 until as late as 1951. Due to its post-war use in
Russia the P-63 even received a NATO code name: "Fred". One of the last incidents involving Soviet P-63s happened in 1952 when USAF jets mistakenly strafed the Soviet airfield of Sukhaya Rechka outside Vladivostok and destroyed 8 (albeit already
de-commissioned) P-63s.



Type P-63A-10 / P-63C-5
Function Fighter, fighter-bomber
Year 1943 / 1944
Crew 1
Type Allison V-1730-93 / Allison V-1710-117
Class 12-cylinder Vee, liquid-cooled
Power at sea level 1,325hp
Power at sea level (emergency) 1,500hp
Power at sea level (with water injection) ? / 1,800hp
Power at 6,827m 1,150hp
Length 9.96
Height 3.84
Wingspan 11.68
Wing area (m2) 23.04
Empty 2,892 / 3,084
Loaded 3,992
Maximum 4,763 / 4,853
Wing load (kg/m2) 173 to 211
Power load (kg/hp) 3.0 to 3.7
Speed
at 1,524m 581
at 4,572m 631
at 7,620m 660
Max. cruising 608
Range (km)
at 608km/h with 378l internal fuel 724
with one 227kg bomb 628km / 515
with 795l ferry tank 4,144km / 3,380
Service ceiling 13,106 / 11,765
Climb (min)
7,620m 7.3 / 8.6
Fuel 378l internally plus up to 1,320l in 3 drop tanks
Gun type 1*37mm M-10 (a) / 4*12.7mm Colt-Browning M-2 (b)
Position Propeller shaft (a) / 2 upper nose, 2 underwing gondolas (b)
Ammo 58rounds (a) / 270/200rpg (b)
Salvo (kg/sec) 3.86
Bombs 3*227kg
Rockets optional
