Варианты
- Piper - Vagabond PA-17 / PA-15 / PA-20 Pacer - 1947 - США
- Piper - Tri-Pacer PA-22 / Colt - 1951 - США
- Nagler - VG-1 Vertigyro - 1964 - США
Piper PA-22 Tri-Pacer и Colt 108
В 1951 году компания "Piper" начала выпуск PA-22 Tri-Pacer, спроектированного на основе PA-20, но оснащенного шасси с носовой управляемой опорой. От PA-20 новая модель отличалась также 4-цилиндровым мотором O-320 мощностью 150 л. с. (112 кВт) и взаимной связью между органами управления элеронами и рулем направления. Благодаря наличию такой перекрестной связи самолетом можно было управлять только с помощью ручки, без одновременного использования педалей. Перекрестная связь при необходимости легко отключалась. Tri-Pacer быстро стал популярным самолетом. На машины поздней постройки ставили моторы O-320-B большей мощности. До прекращения серийного производства в начале 1960-х годов построено 7668 самолетов, включая самолеты Caribbean со 150-сильным мотором, оптимизированные для использования в аэроклубах.
1 ноября 1960 года компания "Piper" анонсировала производство более дешевого двухместного PA-22 Colt 108, спроектированного на основе PA-22, но с двухместной предельно простой кабиной в стандартном варианте. Интерьер кабины и приборное оборудование вариантов Custom и Super Custom выполнялись по более высоким стандартам. Мотор O-235-C1B мощностью 108 л. с. позволял самолету развивать на уровне моря максимальную скорость в 193 км/ч, дальность полета на высоте 2135 м составляла 1110 км. За три года серийного производства построено 1827 самолетов Colt.
ТАКТИКО-ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Piper PA-22 Tri-Pacer
Тип: четырехместный моноплан
Силовая установка: один 4-цилиндровый мотор Avco Lycoming O-320-B с горизонтальным расположением цилиндров мощностью 160 л. с. (119 кВт)
Летные характеристики: максимальная скорость 227 км/ч; практический потолок 5030 м; дальность с максимальной заправкой 1054 км
Масса: пустого 503 кг; максимальная взлетная 907 кг
Размеры: размах крыла 8,92 м; длина 6,28 м; высота 2,54 м; площадь крыла 13,70 м2
- Описание
Фотографии
-
АвиаМастер 2004-04 / В.Морозов - Пылающий остров /Из истории воздушных войн/ (1)
Регистрационный номер: N7353D "Пайпер" PA-22.
-
Мировая Авиация 215
Классический легкий самолет Tri-Pacer стал первым самолетом компании "Piper" с шасси с носовой опорой.
Piper PA-22 Tri-Pacer 150 four-seater has three price categories: "Standard" ($7,830); "Custom" ($8,430) and "Super Custom" ($9,430). Also available are Edo Model 2000 floats or Federal skis. Power is a 150-h .p.
Lycoming O-320 flat-four. Maximum speed 139 m.p.h. -
Jane's All the World Aircraft 1980 / Encyclopedia of Aviation - Aircraft A-Z - v5
Piper PA-20 Pacer and PA-22 Tri-Pacer.
Другие самолёты на фотографии: Piper Vagabond PA-17 / PA-15 / PA-20 Pacer - США - 1947
-
Air Pictorial 1959-09 / The Managing Editor - The Piper Tri-Pacer /Air Test/
Регистрационный номер: N2868Z -
Air-Britain Archive 1986-02
Регистрационный номер: OO-JAK Tri-Pacer OO-JAK (2973) with transparent rear door panel at Grimbergen 10.8.84.
-
Aeroplane Monthly 1996-11 / D.Peters - Mau Mau (1)
Регистрационный номер: VP-KPF [3] Piper Tri-Pacer VP-KPF of the Kenya Police Air Wing flying low over typical forest concealing Mau Mau.
-
Air Enthusiast 1996-07 / J.Smith - Mau Mau! A Case Study in Colonial Air Power
PAW Piper Tri-Pacer dropping supplies to troops within the prohibited area.
-
Aeroplane Monthly 1996-12 / D.Peters - Mau Mau (2)
Регистрационный номер: VP-KPF [3] An aerial view of the KP Air Wing’s strip at Mweiga, which was guarded by a contingent of the King’s African Rifles, housed under canvas. Tri-Pacer VP-KPF is seen flying over the thatched mess-huts. The red earth strip was 1,200yd long.
-
Air Enthusiast 1996-07 / J.Smith - Mau Mau! A Case Study in Colonial Air Power
Регистрационный номер: VP-KMH A PAW Tri-Pacer at rest among the hangar area at Eastleigh.
-
Aeroplane Monthly 1996-12 / D.Peters - Mau Mau (2)
Регистрационный номер: VP-KKY, VP-KPF [3] A line-up of Piper Tri-Pacer 135s of the Kenya Police Air Wing at Mweiga. Note the carriers behind the mainwheels, designed to carry four 19lb fragmentation bombs.
-
Aviation Historian 37 / G.Ellis - Rhodesia's Bush Eagles (1)
A line-up of PRAW pilots and their aircraft during a parade at the June 1962 PRAW training weekend at Sinoia airfield. The aircraft include a Beech Bonanza, a Piper Tri-Pacer, an Auster and various other light aircraft. The PRAW was established in July 1957 and, after reverting to a civilian role in 1980, ceased operations in 2002.
Другие самолёты на фотографии: Beechcraft Model 33/35 Bonanza - США - 1945Taylorcraft Auster - Великобритания - 1939
-
-
Air-Britain Archive 1982-04
Регистрационный номер: OO-JEF This 1953 vintage Tri-Pacer OO-JEF (1624) is still active
-
Air-Britain Archive 1982-01
Регистрационный номер: OO-JOE Tri-Pacer OO-JOE (1342) in Ecole Devleminck titles at Grimbergen on 5.3.69.
-
Air-Britain Archive 1982-03

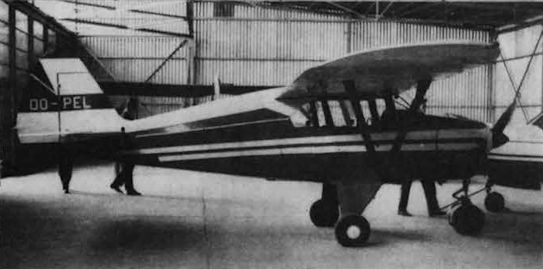

Регистрационный номер: OO-PEL Tri-Pacer OO-PEL (1497) probably at Liege about 1965.
-
Air-Britain Archive 1987-01
Регистрационный номер: ET-AAL The Tri-Pacer ET-AAL is apparently unmarked, but the registration can be found under the wing.
-
Air-Britain Archive 1987-04
Регистрационный номер: ET-ADN Tri-Pacer ET-ADN which survived for only four years in Ethiopia.
-
Air Pictorial 1959-09 / The Managing Editor - The Piper Tri-Pacer /Air Test/
For water-lovers the Tri-Pacer can be filled with Edo floats.
-
Jane's All the World Aircraft 1980 / Encyclopedia of Aviation - Aircraft A-Z - v5
Регистрационный номер: N4501Z Piper PA-22 Colt.
-
Мировая Авиация 163
Регистрационный номер: N5088Z Компания "Piper" построила 7629 самолетов Tri Pacer, схожих с данной машиной, а также 1861 двухместный учебно-тренировочный Colt.
Two new Pipers for 1962 are the Comanche 180 and the Colt (photo). Both are basically similar to last year's models with many internal improvements. -
Air-Britain Archive 1988-03
Регистрационный номер: N5804Z N5804Z c/n 22-9657 parked at Watsonville, California on 22.5.87. On the original a Percival Pembroke/Prince can be seen in the background!
-
Air-Britain Archive 1987-03
Регистрационный номер: 3D-ABP C/n 22-8912 stayed on the Swaziland register for about 5 years before reverting to its original South African marks.
-
Air-Britain Archive 1988-02
The Cypriot National Guard Colt CR8 at Nicosia in March 1971.
-
Air-Britain Archive 1988-04
Регистрационный номер: 5B-CAJ The debate about the origins of Cypriot National Guard Colt CR8 continues. It seems unlikely to be related to 5B-CAJ, shown in the photo taken 12.2.73 at Nicosia still wearing its factory colour scheme. The comparison with the photo of CR8 on p.88/55 also reveals several other detail differences - so it would be better to delete reference to CR8 from c/n 22-8014. Thanks to M.W.Glasscoe for report and photo.
-
Air-Britain Archive 1988-03
Регистрационный номер: A2-TED Botswana-registered Colt A2-TED c/n 22-9784 at Johannesburg-Rand in January 1974.
-
Air-Britain Archive 1987-04
Регистрационный номер: CF-NVJ C/n 22-9150 CF-NVJ at St Catharines airport, Ontario 19.5.74.
-
Air-Britain Archive 1988-02
Регистрационный номер: CF-OTE CF-OTE (22-9454) wearing Toronto Airways titles at Buttonville, Ontario on 1.8.64.
-
Air-Britain Archive 1988-02
Регистрационный номер: CF-TDC The photo features CF-TDC (22-9406) at St.Catharines, Ontario on 19.5.74
-
-
Air-Britain Archive 1987-04
Регистрационный номер: CR-LEK [2], CR-LGB [2] C/n 22-9248 CR-LEK of Aeroclube de Angola seen at Luanda 10.75 next to a wrecked CR-LGB 22-9618.
-
Air-Britain Archive 1987-03
Регистрационный номер: CR-LGC C/n 22-8960 as CR-LGC of Aeroclube de Angola at Luanda during October 1975.
-
Air-Britain Archive 1988-02
Регистрационный номер: CX-BBB One of three Colts registered in Uruguay in this episode, CX-BBB (22-9403) was at Melilla in May 1980.
-
Air-Britain Archive 1987-03
Регистрационный номер: D-ECTV Owned by B.Schonhart, c/n 22-8861 D-ECTV was a Brive visitor in August 1978.
-
Air-Britain Archive 1987-03
Регистрационный номер: D-EDDW Blue and white D-EDDW c/n 22-8879 at Diest in 8.86.
-
-
Air-Britain Archive 1988-03
Регистрационный номер: D-ENZU D-ENZU c/n 22-9524 of LSC Hamm at Hamm/Lippewiesen airfield on 26.4.74.
-
Air-Britain Archive 1987-01
Регистрационный номер: EI-AYS EI-AYS (22-8448) on a visit to Elstree on 6.7.78.
-
Air Pictorial 1977-10
Регистрационный номер: EI-BDA, G-ARNC Colt EI-BDA, ex G-ARNC, at Weston 1/5/77;
-
Air-Britain Archive 1988-03
Регистрационный номер: F-OCCM F-OCCM c/n 22-9648 of Euraf-Air was Dakar based during the sixties.
-
Air-Britain Archive 1986-03
Регистрационный номер: G-ARJH One of the oldest Colts on the British Register, G-ARJH was a visitor to the Avon Air Day at Badminton on 15.7.84.
-
Air-Britain Archive 1986-04
Регистрационный номер: G-ARKM C/n 8313 G-ARKM was exhibited by Vigors Aviation the UK Piper agents at Baginton on 29.4.61. All the salient selling points are labelled, including the fact that the addition of spats would increase cruising speed by 4mph! Note too the 'old' threepenny piece below the aircraft, we cannot recall the exact significance of this - maybe a flying cost of 3d per mile?
-
Aviation Historian 7 / G.Skillen - In the shadow of the Tower
Регистрационный номер: G-ARNH Piper PA-22 Colt G-ARNH, as flown by the author, with Stu Waring at the controls. Although the author managed to keep it in one piece when flying it, it was eventually damaged beyond repair at Blackbushe in September 1972.
-
Air-Britain Archive 1987-01
Регистрационный номер: G-ARNL G-ARNL 22-8625 at the Cranfield Business and Light Aircraft show in September 1977.
-
Air-Britain Archive 1987-02
Регистрационный номер: G-ARON G-ARON (22-8822) visiting Lelystad in May 1982, its only markings being the stencilled registration.
-
-
Air-Britain Archive 1988-02
Регистрационный номер: HB-ODL C/n 22-9336 HB-ODL of Thurflug AG hangared at Lommis on 5.9.73.
-
Air-Britain Archive 1988-03
Регистрационный номер: HB-OWB HB-OWB c/n 22-9565 was a Stauning visitor 6.80.
-
Air-Britain Archive 1986-04
Регистрационный номер: I-PEPE I-PEPE c/n 22-8242 which was originally earmarked for Chile but not delivered.
-
Air-Britain Archive 1987-03
Регистрационный номер: LN-BDK LN-BDK c/n 22-9069 which had been fitted with extra cabin windows in Tri-Pacer style visited Stauning in June 1980.
-
Air-Britain Archive 1987-03
Регистрационный номер: OB-ADP C/n 22-8955 awaiting delivery to Peru as OB-ADP at Lock Haven, PA in December 1961.
-
Air-Britain Archive 1987-01
Регистрационный номер: OE-AIZ Austrian Colt OE-AIZ (22-8475) visiting Aschaffenburg, W.Germany in August 1980.
-
-
Air-Britain Archive 1987-03
Регистрационный номер: OY-DCV Another Stauning visitor, in 1978, was OY-DCV c/n 22-9133.
-
Air-Britain Archive 1987-02
Регистрационный номер: PH-SAC PH-SAC (22-8690) in Nationale Luchtvaartschool titles at Rotterdam 11.10.70.
-
-
Air-Britain Archive 1988-03
Регистрационный номер: TG-GOS One of the last Colts to be produced, TG-GOS 22-9844 awaits delivery to Guatemala from Lock Haven early in 1964.
-
Air-Britain Archive 1987-03
Регистрационный номер: VH-CFC VH-CFC c/n 22-8929 under the trees at Moorabbin 14.1.62. Note the Civil Flying School insignia applied in military fashion to fuselage and wings.
-
Air-Britain Archive 1987-03
Регистрационный номер: VH-GWA Another Colt at Moorabbin on 14.1.62 was VH-GWA c/n 22-9039 of the aptly-named Pipeair Flying School.
-
Air-Britain Archive 1987-03
Регистрационный номер: VP-JCF Seen at Kingston, Jamaica on 18.3.63 was c/n 22-9057, VP-JCF.
-
-
Air-Britain Archive 1987-04
Регистрационный номер: VP-WCF C/n 22-9155 VP-WCF at Induna airport, Bulawayo on 8.3.75
-
Air-Britain Archive 1987-04
Регистрационный номер: VP-YUD C/n 22-9210 VP-YUD was based at Induna with the Bulawayo Flying School.
-
Air-Britain Archive 1986-04
Регистрационный номер: YS-181P Gary Kuhn photo of 22-8194, YS-181P in El Salvador.
-
-
Air-Britain Archive 1988-03
Регистрационный номер: ZS-DTG ZS-DTG c/n 22-9723 was used by the Pretoria Flying Club.
-
Jane's All the World Aircraft 1964 / 01 - Aircraft
Piper Colt seaplane (108 hp Lycoming O-235-C1B engine)
-
Air-Britain Archive 1987-04
Регистрационный номер: SE-CZP C/n 22-9135 SE-CZP as a floatplane at Hagernas, Sweden 27.5.73.
-
Air-Britain Archive 1987-03
Регистрационный номер: N5150Z Our rather unusual cover picture this time may defy easy identification but it is connected with both the Piper theme of our 1987 Fly In and with our continuing article on the Colt. It is in fact a much-modified tail-dragger conversion of Colt N5150Z c/n 22-8800 captured by John Wegg at Watsonville, California on 22nd May 1987.
-
Aeroplane Monthly 1999-11 / P.Jarrett - Mr Wagner's Terrible Twins /Unortodox aircraft/

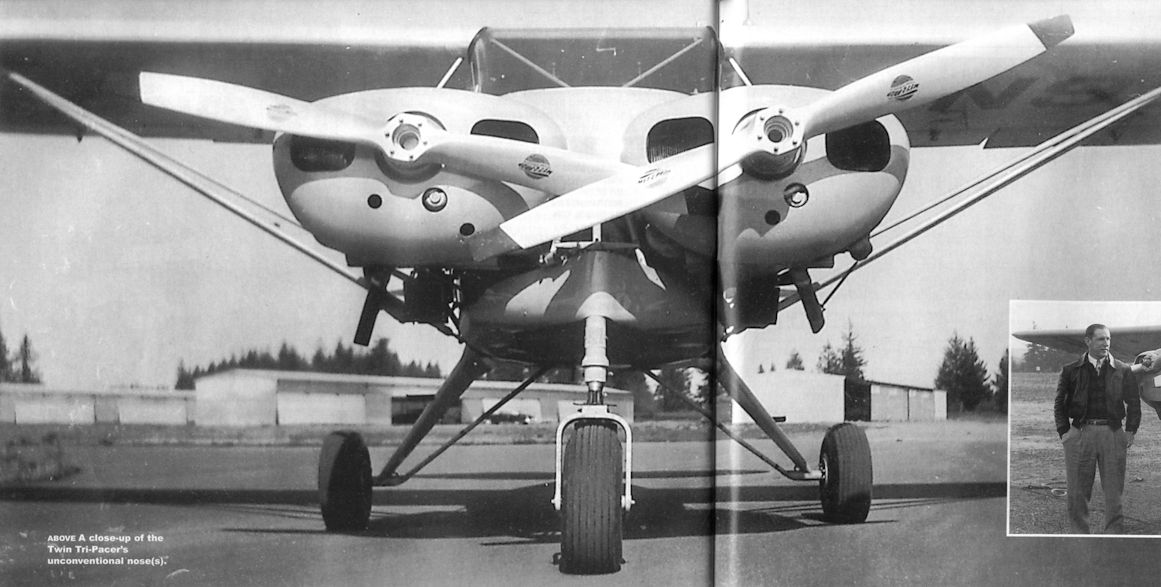

A close-up of the Twin Tri-Pacer's unconventional nose(s).
-
Aeroplane Monthly 1999-11 / P.Jarrett - Mr Wagner's Terrible Twins /Unortodox aircraft/

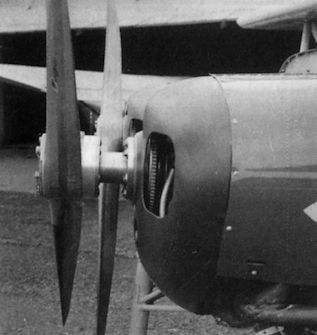

The distance piece between the Twin Tri-Pacer’s port engine and propeller is evident here.
-
Aeroplane Monthly 1999-11 / P.Jarrett - Mr Wagner's Terrible Twins /Unortodox aircraft/
A rare shot of the Twin Cub and Twin Tri-Pacer together at Troh’s Skyport in August 1952.
Другие самолёты на фотографии: Piper Cub J-3/J-4 / L-4 Grasshopper / PA-11 - США - 1937
-
Jane's All the World Aircraft 1980 / Encyclopedia of Aviation - Aircraft A-Z - v5
Instrument panel of a Piper Tri-Pacer.
-
Air Pictorial 1959-09 / The Managing Editor - The Piper Tri-Pacer /Air Test/
The Tri-Pacer instrument panel. The check list is immediately in front of the left-hand seat.
-
Air-Britain Archive 1988-03
Регистрационный номер: CR-LEK [2], CR-LGB [2] he wrecked CR-LGB c/n 22-9618 at Luanda in October 1975 appears to have overturned or been blown over.
-
Air-Britain Archive 1988-03
Регистрационный номер: NZ5799Z Also found at Hamm on 26.4.74 was the fuselage of N5799Z c/n 22-9637 which had been operating in Germany with the Sembach base Aero Club.
-
Air Pictorial 1959-09 / The Managing Editor - The Piper Tri-Pacer /Air Test/
Piper PA-22 Tri-Pacer
