McDonnell Douglas F-15E Strike Eagle
Варианты:
McDonnell Douglas - F-15E Strike Eagle - 1986 - США
Страна: США
Год: 1986


Двухместный многоцелевой ударный истребитель
Описание
Фотографии:

Цветные фото (203)
Boeing F-15 Strike Eagle

   В 1982 году компания "McDonnell Douglas" закончила модификацию на собственные средства второго двухместного TF-15A для действий по наземным целям по проекту "Strike Eagle", и начались испытания самолета по нанесению ударов "воздух-поверхность". Strike Eagle задумывался в качестве усовершенствованного тактического истребителя и считался заменой ударному самолету General Dynamics F-111, выиграв конкурс у основного соперника - самолета General Dynamics F-16XL.
   Первый серийный образец F-15E Strike Eagle впервые взлетел 11 декабря 1986 года. С новой авионикой и оборудованием для штурмовки F-15E во многом является Eagle второго поколения. У самолета модернизированное управление, широкоугольный индикатор на фоне лобового стекла и три многофункциональных дисплея для навигации, применения вооружения и работы бортовых систем. Оператор систем вооружения в задней кабине работает с четырьмя многофункциональными терминалами для РЛС, вооружения и контроля за следящими системами противника. Он также управляет РЛС с синтезированной апертурой Raytheon APG-70, а также подсистемами AAQ-13 (навигация) и AAQ-14 (прицеливание) прицельно-навигационной системы Lockheed Martin LANTIRN. Позднее контейнеры целеуказания LANTIRN были частично заменены на более эффективные Lockheed Martin Sniper XR, позволяющие Strike Eagle работать и как разведчику над постоянно меняющимся полем боя в Афганистане и в Ираке.
   Силовая установка сначала состояла из двух турбовентиляторных двигателей Pratt &Whitney F100-PW-220 с цифровой системой управления, но вскоре в рамках программы модернизации двигателей их заменили на F100-PW-229, которые устанавливались на все новые поставки, начиная с августа 1991 года. Машин с этим двигателем выпустили достаточно для вооружения трех эскадрилий.
   В 1988 году Тактическое авиационное командование создало на основе 405-го авиакрыла боевой подготовки (авиабаза Льюк, Аризона) подразделение подготовки летно-технического персонала для F-15E, а первые боевые машины поступили в 4-е авиакрыло тактических истребителей (авиабаза Джонсон, Северная Каролина). В операции "Буря в пустыне" F-15E выполнял различные боевые задачи, включая 5-6-часовой поиск пусковых площадок Scud. Боевые потери составили два F-15E.
   ВВС США закупили 236 F-15E, и хотя F-15E признается очень мощным ударным самолетом, критики отмечают низкую удельную нагрузку на крыло, что делает полет тяжелым, и меньшую полезную нагрузку, чем у замененного им F-111 .Тем не менее он стал основным многоцелевым ударным самолетом в ВВС, и большую часть боевой работы машина ведет на средних высотах вне досягаемости ПЗРК, обеспечивая доставку высокоточного оружия.
   F-15E способен нести 11 000 кг тактического вооружения, включая большинство видов, находящихся на вооружении ВВС США. Однако обычно это ракеты "воздух-поверхность" AGM-130, управляемые модульные боеприпасы GBU-10,-12,-15 MGWS, высокоточные управляемые GBU-24 и-28 PGM, управляемые GBU-29, -30, -31 и -32 JDAM, бомбы малого диаметра GBU-39/B и -40/8 SDB, ракеты средней дальности "воздух-воздух" AIM-7M, AIM-120 AMRAAM и AIM-9X Sidewinder. Самолет имеет шестиствольную пушку M61A1 Vulcan и может нести до 5 ядерных свободнопадающих бомб В57 или В61.
   С сентября 1995 года Саудовская Аравия получила 72 машины Strike Eagle под обозначением F-15S, фактически являющихся упрощенными F-15E. От Израиля был получен заказ на похожий, но гораздо более совершенный F-15I Ra'am ("Гром") в количестве 25 машин. Надежды на продолжение закупок исчезли, когда Израиль заказал F-16I Sufa, усовершенствованный вариант F-16D.
   Семилетний перерыв в заказах на F-15 закончился в 2002 году, когда поступил заказ от Южной Кореи на 40 машин F-15K Slam Eagle на сумму около 4 млрд долларов. Первые Slam Eagle оснащались двигателем General Electric F110-GE-129. Начиная с 2006 года, машины поставлялись с РЛС APG-63(V)I, комплексными нашлемными системами целеуказания (JHMCS), новым приборным оборудованием кабины, шиной данных по стандарту MIL STD 1760, высокоточными ракетами класса "воздух-поверхность" AGM-84E SLAM и ИК-системой поиска и наведения. 25 апреля 2008 года компания "Boeing" объявила о предстоящем подписании контракта еще на 21 F-15K, считающийся сегодня самым мощным вариантом самолета. Новые машины будут иметь двигатель Pratt & Whitney F100-PW-229EER Он обладает повышенной надежностью, испытывался в 2004 году, как сообщают, для ВВС США и выбран Саудовской Аравией для модернизации некоторых из ее F-15. Этот двигатель также выбрали для марокканских F-16. Тяга двигателя - 129,41 кН на форсаже.
   6 мая 2009 года Сингапур получил свой первый самолет из 24 заказанных F-15SG с двигателями F110 для тренировок на авиабазе Маунтин-Хоум. На сегодня SG является самым совершенным из экспортных Eagle, и известно, что его вооружение включает управляемые планирующие бомбы AGM-154 JSOW. На самолете стоит РЛС APG-63(V)3 с активной фазированной антенной решеткой с электронным сканированием (AESA), и - в зависимости от планов Сингапура на закупки F-35 - может быть закуплено еще до 80 F-15SG.
   "Boeing" продолжает предлагать экспортные варианты Strike Eagle. В ВВС США решили установить на 179 своих F-15E РЛС Raytheon APG-63(V)4 AESA, в которой объединены достоинства антенны APG-63(V)3 и антенны APG-79 самолета Super Hornet.
<...>


ТАКТИКО-ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

   Boeing (McDonnell Douglas) F-15E Eagle

   Тип: двухместный многоцелевой ударный истребитель
   Силовая установка: два турбовентиляторных двигателя Pratt & Whitney F100-PW-220 с тягой по 106,00 кН на форсаже
   Летные характеристики: максимальная скорость более 2655 км/ч или 2,5М на больших высотах; начальная скороподъемность более 15 240 м/мин; практический потолок 18290 м; радиус действия 1271 км в стандартной операции с полной боевой нагрузкой
   Масса: пустого 14379 кг; максимальная взлетная 36741 кг
   Размеры: размах крыла 13,05 м; длина 19,43 м; высота 5,63 м; площадь крыла 56,48 м'
Strike Eagle
The Strike Eagle Demonstrator took on several looks, shown here in complete camouflage paint.
This is the prototype Strike Eagle - actually the second two-seat F-15, serial 71-291, which was modified in 1979/80 and has been used to demonstrate the Eagle's potential in its new dual role. As well as four AIM-9 Sidewinders, it is here carrying a typical F-15E load of conventional HE bombs.
Демонстратор Strike Eagle, двухместный McDonnell Douglas F-15B (71-0291) был самолетом, способным произвести впечатление. На снимке он с максимальной боевой нагрузкой из кассетных боеприпасов Mk 7 Rockeye под крылом и фюзеляжем. Самолет нес двухцветный серый камуфляж.
Опытный истребитель F-15B AFCD "Страйк Игл"
The private-venture Strike Eagle all-weather interdiction development of the McDonnell Douglas F-15 seen with conformal fuel tanks and 22 500-lb (226,8-kg) Mk 82 bombs.
The Strike Eagle in flight
A production F-15B was modified to serve as the demonstrator for the F-15E Strike Eagle shown here with a full air-to-ground ordnance load.
The Strike Eagle at take-off. This prototype, first flown a year ago at St Louis, is a converted F-15B two-seater with the FAST Pack conformal fuel tanks on the fuselage, modified radar and an extended range of possible external weapon loads. The proposed production version for the USAF is likely to be designated F-15E.
USA
11 декабря 1986г.: первый полет выполнил ударный самолет F-15E Strike Eagle, предназначавшийся для замены в ВВС США снятых с вооружения истребителей-бомбардировщиков F-111.
The first production F-15E Eagle, which entered flight test on 11 December 1986, has now been joined by the second, and the third will reach Edwards AFB later this year. The No 1 aircraft is seen here with the two pods of the LANTIRN system under the fuselage - the navigation pod to starboard and the targeting pod to port.
Currently, two PACAF bases are due to receive the F-22A Raptor - Elmendorf in Alaska and Hickam on Hawaii. The first PACAF unit to get the type was the 90th Fighter Squadron which had been operating F-15E Strike Eagles. The two types are pictured in a formation over Alaska just prior to the unit relinquishing its last F-15Es.
Испытательный сброс четырех бомб GBU-31 с истребителя-бомбардировщика F-15E. Каждая такая бомба способна уничтожить свою, отдельную, цель, что позволяет снизить количество атакующих сил, требуемых для уничтожения нескольких объектов.
Like its Russian near contemporaries, the F-15 Eagle adopted an internal self-protective ECM suite when it entered service with the USAF in 1974. The entire system is known, therefore, as the Internal Countermeasures Set (ICS) and consists of the AN/ALQ-135 radar Jammer, AN/ALR-56 radar warning receiver and the AN/ALQ-45 countermeasures dispenser. This impressively loaded F-15E Strike Eagle demonstrates the benefit of not requiring pylon space for podded jammers, albeit still using two for the LANTIRN navigation and targeting system.
F-15E Strike Eagle 86-0184/’ET’ of the 40th Flight Test Squadron based at Eglin AFB, Florida, loaded with a single GBU-53/B SDB II.
2 февраля 2021г. в Сент-Луисе (шт. Миссури, США) совершил первый полет многофункциональный истребитель F-15EX. По уточненным данным, до конца 2025 г. ВВС США планируют приобрести 92 таких самолета, а в дальнейшем могут довести их количество до двухсот. «Боинг» также получил разрешение правительства США на проведение углубленных переговоров о продаже F-15EX Индии. 10 марта ВВС США официально приняли первый F-15EX на заводе в Сент-Луисе. Сначала 6-8 таких истребителей будут размещены на авиабазе Эглин (Флорида), где до 2023 г. будут использоваться для опытно-конструкторских и эксплуатационных испытаний.
The first US Air Force F-15EX, 20-0001 ‘ET‘/‘40 FTS’, already fully painted in 40th Flight Test Squadron markings, during its delivery flight from St Louis, Missouri, to Eglin AFB, Florida, on March 11, 2021. The aircraft had been formally handed over the previous day. It had made its maiden flight on February 2.
A KC-46A Pegasus aerial refuelling aircraft connects with an F-15E Strike Eagle test aircraft from Eglin Air Force Base, Florida in October 2018. The 418th Flight Test Squadron is conducting refuelling tests with the fighter at Edwards AFB in California
A KC-46A Pegasus connects with an F-15E Strike Eagle during an aerial refuelling mission flown from Edwards Air Force Base, California.
The United States Air Force in Europe has painted this F-15E Strike Eagle, 97-0219, of RAF Lakenheath's 48th Fighter Wing's 492nd Fighter Squadron in this eye-catching colour scheme to commemorate the Allied landings in Normandy on June 6,1944 - D-Day. The scheme is based on that worn by the squadron's fore-runners from when it was part of the United States Army Air Force's Ninth Air Force's 48th Fighter Group that was based at RAF Ibsley in Hampshire at the time of the invasion. Privately owned P-47D 'Nellie' G-THUN, the former 45-49192, was present at the early February roll-out resplendent in a similar colour scheme.
Strike Eagle на Liberty Wing. С начала 1960-х годов британская авиабаза Лейкенхит является важным звеном обороны Западной Европы. Здесь базируется американское 48-е TFW, последовательно сменившее на вооружении истребители F-84, F-86, F-100 и F-4, пока в 1977 году не были получены самолеты F-111F. После войны в Персидском заливе в 1991 году крыло начало сдавать свои F-111F, готовясь к поступлению F-15E. Первый из них был получен 21 февраля 1992 года. Две эскадрильи F-15E, 492-я и 494-я, регулярно проводили развертывание в итальянском Авиано, поддерживая силы ООН в Боснии, а также вплоть до марта 2003 года вели патрулирование в закрытых для полетах зонах на севере и юге Ирака. В настоящее время F-15E 48-го крыла регулярно проводят операции в Ираке и Афганистане (на снимке).
F-15E из 492-й FS ВВС США. Авиабаза Лэйкенхез (Великобритания), сентябрь 2003г.
F-15E Strike Eagle 01-2003/LN wears a red tail flash of the 494th Fighter Squadron, the host unit for the 95thh EFS during its UK deployment.
F-15 на 11-й международной аэрокосмической выставке Дубай Эйршоу 2009 (ноябрь 2009г.)
F-15E стали костяком ударных группировок Объединенных ВВС НАТО, использовавшихся против Югославии. 26 таких самолетов из состава 48-го истребительного авиакрыла переподчинили 31-му экспедиционному авиакрылу на авиабазе Авиано.
An image captured during an air refuelling mission flown by Royal Air Force Voyager KC3 from 10 Squadron based at RAF Brize Norton. Exercise Point Blank involved packages of fighter aircraft training in both offensive and defensive counter air operations against simulated threat systems.
F-15EC авиабазы Лейкенхит с двигателями F100-PW-229 очень активны в небе Ближнего Востока. Штатно они несут GBU-12 и AIM-120, а также контейнеры с прицельно-навигационным оборудованием.
GBU-28E/B Enhanced Paveway III
An image captured during an air refuelling mission flown by Royal Air Force Voyager KC3 from 10 Squadron based at RAF Brize Norton. Exercise Point Blank involved packages of fighter aircraft training in both offensive and defensive counter air operations against simulated threat systems.
Crew chiefs assigned to the end-of-runway inspection team check the aircraft for hot breaks, while a member of the weapons crew inspects the missiles.
Капитан Николь Малаховски во время службы в 48-м тиак ВВС США на фоне F-15E. Авиабаза Лакенхерт. Англия, начало 2000-х гг.
An F-15E Strike Eagle, assigned to the 366th Fighter Wing taxis at an undisclosed location in Southwest Asia.
An F-15E Strike Eagle disconnects from a KC-10A Extender after receiving fuel over Iraq in support of Combined Joint Task Force - Operation Inherent Resolve.
ВВС США планируют эксплуатировать B-1B минимум до 2040 года. Серия последовательных модернизаций будет способствовать росту эффективности самолета и его вооружения. На фотографии: B-1B и F-15E из 366-го авиакрыла, дислоцированного в Маунтейн Хоум, штат Айдахо, 2002 год.
Formation shot of each type of aircraft participating in Exercise Atlantic Challenge 2017.
A final blended five-ship formation flies over the Sawtooth Mountains in Idaho on November 1б 2006 as a farewell to the F-16 with the 366th Fighter Wing. Led by 366th FW commander Col Anthony Rock, the formation comprises two F-15E Strike Eagles, one F-15C and one F-16C, all from the 366th FW at Mountain Home AFB, Idaho, together with a US Navy EA-6B from the geographically separated 388th Electronic Control Squadron at NAS Whidbey Island, Washington. The 388th FW began drawdown with the F-16 on November 2, when the first five aircraft left Mountain Home as the Wing begins transition from an F-15E, F-15C and F-16 unit to an all-F-15E unit by 2011.
The USAF operates - nearly exclusively - twin-fin jet fighters such as the F-35 and F-15 types
Два британских Tornado GR.Mk 4 следуют в небе Ирака в группе с заправщиком KC-135, двумя F-16CG и одним F-15E ВВС США, операция "Iraqi Freedom". Вся ударная авиация в регионе действует с применением активных (с использованием оружия), пассивных (демонстрация силы) методов и нестандартных способов наблюдения, контроля и разведки (NTISR).
Air Combat Command’s 389th Expeditionary Fighter Squadron re-deployed to Mountain Home Air Force Base, Idaho in early April, 2017. The unit’s F-15E Strike Eagles made a stop at RAF Lakenheath, Suffolk on their journey home. F-15E 88-1707/MO with ‘366 OG' tail markings for the 366th Operations Group commander was one of the aircraft involved. Note the bomb-tally applied to the forward fuselage, giving an indication of the amount of munitions dropped by the squadron during its six-month deployment to the US Central Command area of operations in support of Operation Inherent Resolve.
F-15E 92-0366/MO has stylised tail markings for the 366th Fighter Wing. The Wing’s 'Gunfighters' name dates to the Vietnam War when the then Da Nang-based 366th Tactical Fighter Wing scored its first MiG kills with F-4C Phantoms armed with 20mm M61A1 cannons housed in SUU-16 pods.
The main component of the Red air force during Atlantic Trident was provided by F-15E Strike Eagles assigned to the 391 st Fighter Squadron based at Mountain Home Air Force Base, Idaho. Squadron aircraft have tiger-style fin flashes denoting the unit’s ‘Bold Tigers' name.
Maintained remove pins from, and check over, an F-15E as part of last chance checks at the end of runway ramp prior to departure.
Операция "Enduring Freedom". F-15E участвовали в операции "Enduring Freedom" против Афганистана после террористической атаки 11 сентября 2001 года. На авиабазу Али-Аль-Салем в Кувейте были переброшены самолеты из 391-й эскадрильи "Bold Tigers" 366-го крыла (на снимке), которые были готовы к боевым операциям к 17 октября 2001 года. Для нанесения высокоточных ударов чаще всего использовались 227-кг бомбы с лазерным наведением GBU-12.
F-15E Strike Eagle carrying targeting pod - an AN/AAQ-28 Litening III
F-15E Strike Eagle 92-0366/'OT’ assigned to the 422nd Test and Evaluation Squadron based at Nellis AFB, Nevada, prior to a test mission of the AIM-120 AMRAAM missile.
10-14 июня в 831-м Галацком истребительном авиаполку ВВС Украины (г.Миргород) с миссией "породненных авиабаз" находилась группа представителей 333-й авиаэскадрильи 4-го истребительного крыла ВВС США с авиабазы Сеймур Джонсон (штат Северная Каролина)
A USAF F-15E Strike Eagle from the 4th Fighter Wing takes off from Al Udeid Air Base, Qatar. This is a major hub for air operations over Iraq and Afghanistan.
F-15E Strike Eagles were deployed from Seymour Johnson Air Force Base, North Carolina to join the Red Force in Red Flag 15-1 at Nellis.
F-15E Strike Eagle 88-1708/’SJ’ of the 335th Fighter Squadron based at Seymour Johnson AFB, North Carolina - loaded with live ordnance - departs Nellis AFB, Nevada, on a Green Flag mission. The aircraft is carrying two 2,000lb GBU-31 JDAMs and two 500lb GBU-12s.
На снимке хорошо видны подвешенные на F-15E навигационный контейнер AAQ-13 (справа) и прицельный контейнер AAQ-28 Litening II (слева).
An F-15E Strike Eagle over the Grand Bay bombing and gunnery range at Moody Air Force Base, Georgia, during close air support and weapons training.
Истребитель-бомбардировщик F-15E
За последнее время самолеты 4-го истребительного авиакрыла с авиабазы Сеймур-Джонсон принимали участие в большем количестве боевых заданий, чем другие авиакрылья, вооруженные самолетами Strike Eagle. И хотя традиционно к боевым задачам первыми привлекают летчиков 492-й и 494-й истребительных эскадрилий (иаэ) 48-го авиакрыла, дислоцирующегося на британской авиабазе Лакенхит, именно истребители 335-й иаэ 4-го авиакрыла в 2001 году сменили F-15E из 391-й иаэ 336-го авиакрыла в небе над Афганистаном. В 2003 году к операции "Iraqi Freedom" привлекли 335-ю и 336-ю иаэ.
Универсальный Strike Eagle - ветеран нескольких войн, снискавший в них заслуженную репутацию. Самолет одинаково хорошо справлялся со всеми задачами, будь то штурмовые удары, разведка или координация атак. В 2009 году F-15E уничтожил БЛА MQ-9 Reaper, потерявший связь с центром управления и уходивший за границу Афганистана.
An F-15E Strike Eagle assigned to the 335th Fighter Squadron based at Seymour Johnson Air Force Base, North Carolina releases flares during a local training mission.
F-15E Strike Eagle 88-1668/’SJ’ of the 336th Fighter Squadron taxies out from the massive ramp at Seymour Johnson AFB, North Carolina.
Истребители-бомбардировщики F-15E из 4-го истребительного авиакрыла на летном поле авиабазы Эль-Хардж. F-15E нес феноменальную боевую нагрузку и мог поражать точечные цели круглосуточно.
Группа F-15E из 4-го TFW на саудовской авиабазе Аль Харж. Операция "Буря в пустыне", зима 1991г.
F-15E Strike Eagle carrying targeting pod - an AN/AAQ-33 Sniper.
Тяжелый многофункциональный истребитель F-15E американских ВВС.
Strike power. An F-15E Strike Eagle assigned to the 17th Weapons Squadron makes a flex departure from runway 03R at Nellis.
F-15E из 422-й испытательной и оценочной эскадрильи с авиабазы Неллис несет два учебных варианта атомной бомбы семейства B61.
F-15E Strike Eagle 90-0257/’WA' assigned to the 17th Weapons Squadron based at Nellis AFB, Nevada, landing at its home station. It is loaded with two 3,000lb AGM-130 powered stand-off weapons carried on the underwing stores pylons.
Испытания УАБ GBU-53/B SDB II на модернизированном F-15E 492-й аз ВВС США, июль 2018 г.
An armament system technician, performs a 60-day weapon check-out on an F-15E Strike Eagle. The future of the type is of concern for General Hawk Carlisle, Commander of Air Combat Command.
Airmen prepare an F-15E Strike Eagle at Bagram Airfield, Afghanistan.
The F-15EX will be a plug-and-play replacement for the F-15C, designed to have minimum impact on the pilot training pipeline.
Хотя к началу конфликта в Персидском заливе были развернуты две эскадрильи F-15E, для них имелось только пять контейнеров с лазерной системой целеуказания. Поэтому большинству самолетов пришлось использовать обычные бомбы. Но главной задачей F-15E была "охота" за ракетами Scud, лучшим оружием для поражения которых оказались кассетные бомбы, так что отсутствие контейнеров не слишком повлияло на результативность их действий.
This Boeing image features a current variant of the F-15 Strike Eagle tooled-up with enough munitions and missiles to fight a small conflict on its own.
An F-15E assigned to the 48th Fighter Wing starts to taxi for a mission in support of Operation Odyssey Dawn.
RAF Lakenheath's 492nd Fighter Squadron participated in Red Flag 19-3 operating from the revetments located on the southern side of the runways which enabled the F-15E crews to use live weapons.
F-15E Strike Eagle maintainers perform final checks before take-off January 18, 2011, from Eglin AFB, Florida. This F-15E 90-0252/ET assigned to the 46th Test Wing is equipped with the new APG-82 radar.
Ракеты AGM-158 под крылом и фюзеляжем истребителя‑бомбардировщика F-15E
Making an appearance at RIAT 22 was the 48th Fighter Wings new ‘Heritage Jet’ displaying the US flag and the Statue of Liberty on the tail. Included in the design was the myriad of aircraft types the 48th FW has operated since being established in 1952
F-15E Strike Eagles from the 48th FW at RAF Lakenheath are operating from Aviano. Seen returning after a mission is this example armed with both AIM-120B AMRAAM and AIM-9 Sidewinder air-to-air missiles. Although still carrying four LGBs, the rear racks are empty, indicating some success.

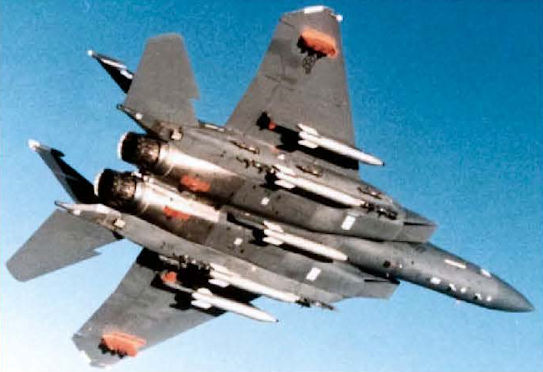

The production F-15E Eagle displays its underside, whilst flying with three 610-US gal (2 309-l) drop tanks, and LANTIRN pods, but without external weapons.
Strike Eagle хорошо вооружен, оснащен современным бортовым оборудованием и отличается большой дальностью полета. Он постоянно участвует в боевых операциях, в настоящее время - в Афганистане.
Разработанный "Lockheed Martin" усовершенствованный прицельный контейнер Sniper AT (на данном самолете - под левым воздухозаборником) оснащается ИК-системой переднего обзора, телекамерами на ПЗС-матрицах, лазерной системой подсветки цели и лазерным маркером.
F-15 - мощный ударный самолет. Но возможность его использования "на полную мощность" определяется не только индивидуальным обучением и практикой, но и согласованностью действий экипажа.
Two F-15E Strike Eagles leave the KC-135 Stratotanker after receiving fuel over Iraq during a mission in support of Operation Inherent Resolve.
F-15E Strike Eagle отстреливает тепловые ловушки над горами Афганистана. Такие ловушки являются важнейшим элементом бортовых защитных комплексов и предназначены для постановки помех тепловым ГСН управляемых ракет, однако ГСН современных ракет, таких как IRIS-T, обладают высокой помехозащищенностью - против них ловушки почти бесполезны.
Угроза со стороны средств ПВО противника постоянно довлеет над американскими летчиками даже в Афганистане, на снимке - F-15E Strike Eagle отстреливает тепловые ловушки над афганскими горами.
A B61-12 bomb goes through drop testing from an F-15E over Nevada in November 2015.
AGM-130 powered standoff weapon
Бомбардировщик В-2 с базы ВВС Уайтмэн, штат Миссури, летит над островом Гуам в сопровождении ударных машин Strike Eagle 391-й истребительной эскадрильи с базы ВВС Маунтин-Хоум, штат Айдахо.
At most airshows in the US the Raptor will fly in formation with another USAF demonstration fast-jet, like this F-15E Strike Eagle, and Heritage Flight aircraft such as the World War Two era P-51 Mustang pictured. At present there are no plans for the F-22A to fly in formation with other aircraft at the UK airshows.
F-15E снова появились в небе Ирака. Снимок сделан в 2006 году над густонаселенной местностью, в которой и разворачивались основные боевые действия. На F-15E подвешены УР "воздух-воздух" AIM-120, КАБ GBU-12 и контейнер Sniper ATP.
Операция "Allied Force". F-15 принимали участие в нескольких операциях на Балканах, включая "Deny Flight", с 1993 года, но в бой они вступили лишь в 1999 году во время операции "Allied Force". Еще в ноябре 1994 года НАТО планировало удары по силам сербов в Хорватии, но позднее привлеченные к этой миссии восемь F-15E (а также остальные 22 самолета) были отозваны. Еще раз F-15E были готовы к ударам в декабре 1994 года, но снова остались на земле. Только раз F-15E с британской базы Лейкенхит нанесли удар по сербскому ЗРК, обстрелявшему пару Sea Harrier. Операция "Allied Force" началась 24 марта 1999 года с ударов крылатыми ракетами по целям на территории Сербии. Вскоре в ней были задействованы F-15E из Лейкенхит, действовавшие под прикрытием F-15C с той же базы. В ходе конфликта F-15E использовали и ракеты AGM-130 и бомбы GBU-28.
As the sun glints off an unusually calm North Sea, a USAF/48th FW F-15E from Lakenheath receives 23,640 lit of fuel per min from the boom of 100th ARW/351st ARS KC-135R 62-3541/Holy Terror (flown by a 912nd ARS crew from Grand Forks AFB, North Dakota) on August 9. 1995, whilst another example waits its turn.
F-15E Strike Eagle из 4-го авиакрыла 335-й эскадрильи "The Chiefs" принимает топливо во время патрулирования над Афганистаном в ходе операции "Enduring Freedom". Несомненными достоинствами F-15E являются его большая продолжительность полета и внушительная боевая нагрузка.
An F-15E Strike Eagle receives fuel from a KC-135 Stratotanker over Iraq in support of Operation Inherent Resolve.
An F-15E Strike Eagle receives fuel from a KC-135 Stratotanker over Iraq. The image shows the visibility afforded to the two-man crew by the F-15E's cockpit layout.
An F-15E approaches the flying boom of a KC-10 Extender for aerial refuelling during a strike mission in support of Operation Inherent Resolve.
Системы обмена информацией стали важнейшим элементом БРЭО современных ударных самолетов. F-15E способен передавать видеоизображение с контейнера Sniper ATP сухопутным войскам. Линии передачи данных - основной элемент американской концепции "сетецентрической войны".
An F-15E Strike Eagle receives fuel from a KC-135 Stratotanker over northern Iraq after attacking ISIL targets in Syria on September 23, 2014, the first day of air operations in that country.
An F-15E Strike Eagle from the 494th Expeditionary Fighter Squadron refuels from a KC-135 Stratotanker during a training mission over the Mediterranean.
Tremendous heat-hazed image of Eagles landing at Souda Air Base.
Mission markings on a 391st F-15E applied during deployment to the US Central Command area of responsibility denoting weapons released over Iraq and Syria.
Whistl'n Dixie; Punisher; Joker - Why so serious?; Guardian; The Four Horsemen
An F-15E Strike Eagle sits on the flight line at Incirlik Air Base, Turkey during a deployment in support of Operation Inherent Resolve.
F-15E Strike Eagles with the 389th Fighter Squadron taxi to their shelters at Mountain Home Ar Force Base, Idaho, upon their return from a deployment to Southwest Asia.
Strike Eagles вернулись из очередного вылета в ходе операции "Iraqi Freedom". F-15E действовали с аэродрома Балад в Ираке, где раньше базировались иракские МиГ-23. Самолет на переднем плане несет типовую боевую нагрузку, включающую контейнер Sniper, управляемые бомбы и ракеты для самообороны.
F-15E Strike Eagles taxi in at Joint Base Balad, Iraq, after an Operation Iraqi Freedom mission.
South Korea
Republic of Korea Air Force F-15K Slam Eagles at Nellis AFB, Nevada during exercise Red Flag.
Republic of Korea Air Force Boeing F-15K Slam Eagles and Mitsubishi F-15J Eagles of the Japan Air Self-Defense Force lined up at Eielson AFB, Alaska, on August 12, 2013.
A US Air Force F-22 Raptor flanked by an F-16C Fighting Falcon and a Republic of Korea Air Force F-15 Slam Eagle at Osan Air Base following a 12-aircraft formation show of force.
Four US Air Force F-16 Fighting Falcons and four Republic of Korea Air Force F-15K Slam Eagles prepare to take off from Daegu Air Base for a joint training mission.
F-15K победил истребитель "Dassault Rafale" в конкурсе на поставку в ВВС Южной Кореи. Другие конкуренты, Су-35 и Eurofighter Typhoon, не дошли до последней стадии состязаний.
By the end of this year, the Republic of Korea Air Force should have received 20 of an order for 40 F-15K SIam Eagles. However, the option for 20 further examples may have been dropped as the Korean Government recently released plans to buy 20 next-generation fighters 'with a capacity equivalent to that of the F-15K' between 2010 and 2012.
F-15K 02-0038 is depicted taking off from a runway at Nellis AFB against the backdrop of Sun Rise Mountain in the distance. The Korean Slam Eagle carries practice bombs and a targeting pod under the fuselage.
Boeing’s F-15 production line has only been kept open in recent years by sales to international customers. This photograph shows one of the 40 aircraft ordered by the Republic of Korea Air Force, with potential for another 80.
An F-15K Slam Eagle from the Republic of Korea Air Force approaches a US Air Force KC-135 Stratotanker for aerial refuelling during Exercise Red Flag Alaska.
Republic of Korea Air Force F-15K Slam Eagle 02-036 is seen landing at Nellis AFB, Nevada during exercise Red Flag.
Saudi Arabia
F-15SA 12-1001 (c/n SA-1) is fitted with a large pitot tube, and is used for testing of the flight control systems. The aircraft is marked with the legend F-15SA FC System Test.
Aero L-39ZA Albatros NX109ZA operated by Air USA of Henderson, Nevada flies chase with F-15SA 12-1002 on final approach to Palmdale, California.
F-15SA 12-1002 (c/n SA-2) is used for flutter and aerodynamic testing at Palmdale Airport, California. The aircraft is marked with the legend F-15SA Fly-By-Wire just forward of the cockpit canopy.
This shot of F-15SA 12-1002 (c/n SA-2) landing at Palmdale, California, shows the aft-facing sensors fitted to the ends of the extended pylons form from each vertical stabiliser root.
The first three Advanced Eagles: the flight-testing programme of the F-15SA was longer and more involved than had been originally envisaged.
Boeing F-15S Eagle of the Royal Saudi Air Force (1997)
Первый полёт F-15SA - первого варианта F-15 с ЭДСУ. Сент-Луис, 20 февраля 2013 г.
Saudi F-15SA 12-1002 during its maiden flight from St Louis - Lambert Field on February 20, 2013.
Royal Saudi Air Force F-15SA 12-1009 on approach to RAF Lakenheath, Suffolk, on November 18, 2020 after a ferry flight from the USA. After being delayed in the UK, this was one of the final pair to be delivered and eventually arrived in Saudi Arabia on December 10, 2020
Boeing has not released an illustration of either the F-15X or the F-15IA, but this shows the first of the advanced Eagle designs, the F-15SA for Saudi Arabia, which would have much in common with them.
The RSAF’s fleet of 84 F-15SAs brings a powerful punch
Part of Saudi Arabia's December 2011 deal with the US Government for 84 new Eagles, includes upgrading the kingdom's fleet of F-15S fighters to F-15SA configuration. This is projected to begin in 2014.
Первый F-15S ВВС Саудовской Аравии, модернизированный до стандарта F-15SA
Многоцелевой истребитель F-15S
One of the F-15S fighters that will be converted to F-15SA standard over the next couple of years.
Поставленная ВВС Саудовской Аравии РЛС APG-70S получила только 60% от диапазона рабочих частот РЛС APG-70 США. Она обладает всего 16 каналами вместо 32-х, имеющихся у базовой РЛС.
US Air Force B-52H Stratofortress 60-0022 ‘LA’ from the 2nd Bomb Wing’s 96th Bomb Squadron ‘Red Devils’ at Barksdale Air Force Base, Louisiana, flies in formation with Royal Saudi Air Force (RSAF)/92 Squadron F-15SA Advanced Eagles 9241 and 9244 from Dhahran over the Middle East on December 10, 2020. The B-52H was one of two that flew an almost 40hr round-robin mission from Barksdale to train with the RSAF aircraft as part of a Dynamic Force Employment mission. They were later joined by two USAF/391 st Fighter Squadron F-15Es, 90-0242 'MO' and 90-0243 ‘MO’, on temporary deployment to Al Dhafra Air Base, UAE
Eight Boeing F-15S Eagles supported by a pair of Airbus Military A330-203 Multi-Role Tanker Transports arrived at Moron AB in Spain on February 10, 2014. The Eagles comprised four each from 6 and 55 Squadrons, with 605 belonging to the former. They were all on their way to the United States and are understood to be the first batch due to be upgraded as F-15SAs. Saudi Arabia will upgrade its 68 F-15Ss as F-15SAs, while a further 84 new-build aircraft will be acquired.
Многоцелевой истребитель F-15S
Singapore
3 ноября 2008г.: после первого полета 16 сентября первый F-15SG (серийный 05-0001) для ВВС Сингапура представлен на заводе "Boeing" в Сент-Луисе. В рамках программы Peace Carvin V Сингапур заказал 24 F-15SG, самолеты предназначены для замены A-4SU Skyhawk.
Pitch Black is a valuable training opportunity for South-East Asian nations such as Singapore, which this year sent F-15SGs and F-16C/Ds.
Последние 12 F-15E с механической проводкой системы управления были построены для ВВС Сингапура в варианте F-15SG. На фото: передача первых F-15SG в ноябре 2008 г.
Republic of Singapore Air Force weapon troops load a GBU-31 JDAM onto an F-15SG ready for a night sortie. The December 2017 edition of Forging Sabre was the Republic of Singapore Air Force’s debut event with the GBU-31 JDAM.
Bearing the badge of the new 142 Squadron, an F-15SG Eagle make the type's inaugural launch in Exercise Torrent.
An F-15SG departs from the LCK road.
With 58,800lb of thrust available from two F110-GE-129 engines, the pilot of this F-15SG demonstrates the type's power during a display at the Singapore airshow.
Some of the fast jet participants in Pitch Black 2014: two Royal Australian Air Force F/A-18 Hornets, a Royal Thai Air Force JAS39D Gripen, USAF F-16C, a UAE Air Force Mirage 2000 and a Royal Singapore Air Force F-15SG.
Lighting up the sky. The Republic of Singapore Air Force display by F-15SG 8338 and F-16Cs 608 and 645, included a salvo of flares dispensed from all three aircraft: happy 50th birthday RSAF.
On February 7, 2018, the Republic of Singapore Air Force unveiled two of its F-15SG Eagles painted in commemorative colour schemes to mark the 50th Anniversary of the RSAF. Aircraft involved are F-15SGs, serial numbers 8335 and 8338, from Paya Lebar Air Base.
Note the removal of the conformal fuel tanks. Smoke swirls from the tyres of an F-15SG as it lands on the LCK road. Other aircraft were concurrently landing on the main runway and taxiways inside Tengah Air Base.
An F-15SG lands at Luke Air Force Base.
Самолеты F-15SG поставлялись в Сингапур с самым новейшим оборудованием, что сделало их наиболее совершенными машинами Strike Eagle. Экипажи обучаются в США на базе ВВС Маунтин-Хоум.
Israel
Первый экземпляр F-15I для ВВС Израиля, 1998г.
Израильские F-15I (получившие местное обозначение Ra'am) неоднократно принимали участие в боевых операциях. В 2007 году F-15I были задействованы в операции "Orchard" по уничтожению вероятного ядерного центра на территории Сирии. Предполагается, что в рейде участвовали F-15I из 69-й эскадрильи, действовавшие совместно с F-16I.
F-15I Ra'am является самым эффективным ударным самолетом с большой дальностью полета на всем Ближнем Востоке. Самолет способен эффективно поражать как наземные, так и воздушные цели. На F-15I установлено БРЭО израильского производства, а в ассортимент средств поражения входят израильские боеприпасы.
Этот израильский F-15I вылетел из Неватима во время многонациональных учений в мае 2006 года. В ходе маневров ВВС Израиля наряду с самолетами F-15C частей ВВС Национальной гвардии штатов Монтана и Миссури вели учебные бои против эскадрилий "Flying Dragon" и "Knights of the North", а также истребителей F-16 ВВС США с авиабазы Авиано.
The F-15Is of 69 Squadron and the Sufas of 107 Squadron are both based at Hatzerim.
Boeing F-15I Ra'am in distinctive Israeli camouflage (1999)
Qatar
Истребитель F-15QA для ВВС Катара - новейший вариант хорошо известного «Игла». Его планер станет основой для американского истребителя F-15EX
BOEING’S F-15QA (Qatar Advanced) - the most advanced variant of the Eagle family to be manufactured so far - has taken to the skies for the first time.
The first Boeing F-15EX, serial number 20-0001, performs a 'Viking' departure, making an unrestricted vertical climb out of St Louis as it takes off for its maiden flight on February 2, 2021.
Details
В головной части контейнера AN/AAQ-13 LANTIRN (на снимке - он на самолете F-15E) расположена антенна РЛС следования рельефу местности, а над ней - окна ИК-системы переднего обзора (оранжевое окошко). Блок питания расположен в дальней части контейнера, позади аппаратуры ИК-станции переднего обзора.
A Strike Eagle fitted with an AN/AAQ-33 Sniper targeting pod and an AN/AAQ-13 LANTIRN navigation pod.
Airmen load an AN/AAQ-33 Sniper targeting pod onto a Strike Eagle at Eglin AFB, Florida.
Отличительной особенностью контейнера Sniper является то, что он позволяет F-15E находиться на значительном удалении от цели - это снижает шансы обнаружить себя и позволяет достичь внезапности атаки.
The AN/AAQ-33 Sniper Advanced Targeting Pod made its operational debut on January 7, 2007, on an F-15E Strike Eagle assigned to the 494th Fighter Squadron based at RAF Lakenheath.
A Legion IRST pod fitted to an F-15E.
Контейнер AAQ-28 немного большего диаметра и короче, чем AAQ-14, и имеет другой воздухозаборник системы охлаждения, расположенный в его задней части. Его также можно легко отличить по многочисленным металлическим замкам на корпусе.
КАБ "Пэйвуэй" с лазерным наведением подвешены под фюзеляж истребителя-бомбардировщика F-15E.
Airmen assigned to the 336th Aircraft Maintenance Unit load a 2,000lb GBU-31 JDAM onto an F-15E Strike Eagle.
Airmen load a GBU-31 Joint Direct Attack Munition onto an F-15E Strike during Coronet Warrior, an Operational Readiness Exercise, at Seymour Johnson.
Последним средством поражения, которое получили самолеты F-15E, стала авиабомба малого калибра GBU-39/B (или Small Diameter Bomb), первое боевое применение которой состоялось в Ираке в 2006 году - ее применили самолеты F-15E из состава 494-й истребительной эскадрильи 48-го истребительного авиакрыла. Бомба имеет калибр 113 кг и многоцелевую БЧ массой 23 кг. Форма бомбы позволяет проникать ей через железобетонное перекрытие толщиной 1,5 м, что сопоставимо с проникающей БЧ BRU-109 на 907-кг УАБ GBU-15 или УР AGM-130.
The 85th Test and Evaluation Squadron F-15E Strike Eagle loaded with six Joint Direct Attack Munitions on the port side of the aircraft for the test at Eglin AFB, Florida
Airmen load a live AIM-120C AMRAAM onto the underwing pylon of a Strike Eagle prior to a missile shot over the Gulf of Mexico range flown from Eglin AFB, Florida.
A weapons load crew team, from the 48th Aircraft Maintenance Squadron, load an AIM-120 onto an F-15E Strike Eagle after a sortie in support of the NATO Tactical Leadership Programme course at Los Llanos Air Base, Spain.
Airmen from the 379th Expeditionary Maintenance Squadron munitions flight load an AIM-120D Advanced Medium-Range Air-to-Air Missile onto an F-15E Strike Eagle at Al Udeid Air Base, Qatar, earlier this year
Armed for the air-to-air role, an F-15E loaded with an AIM-9 Sidewinder and an AIM-120 AMRAAM. The missiles are each carried on an LAU-128A/A guided missile launcher.
A member of a weapons load crew adjusts a mount on an F-15E Strike Eagle.
<...> time a USAF aircraft had broken the sound barrier using this mix of fuel.
Propulsion technicians service an F-15E Strike Eagle engine at Mountain Flome Air Force Base, Idaho.
Engine mechanics assigned to the 4th Component Maintenance Squadron perform routine maintenance on an F-15E Strike Eagle engine at Seymour Johnson Air Force Base, North Carolina.
An F-15E Strike Eagle engine running with the afterburner engaged in the propulsion flight test cell facility at Seymour Johnson Air Force Base.
Raytheon's APG-82 radar fitted on an advanced Eagle.
13 июля 2020г. был заключен контракт, согласно которому компания Boeing должна поставить в первом квартале 2022 г. восемь новых многоцелевых истребителей F-15EX.
The first F-15EX, serial number 20-0001, on the production line in St Louis, Missouri, is already structurally complete, even though the contract has only just been awarded. Manufacture of the second aircraft is also similarly well advanced.
Тренажер истребителя Advanced F-15

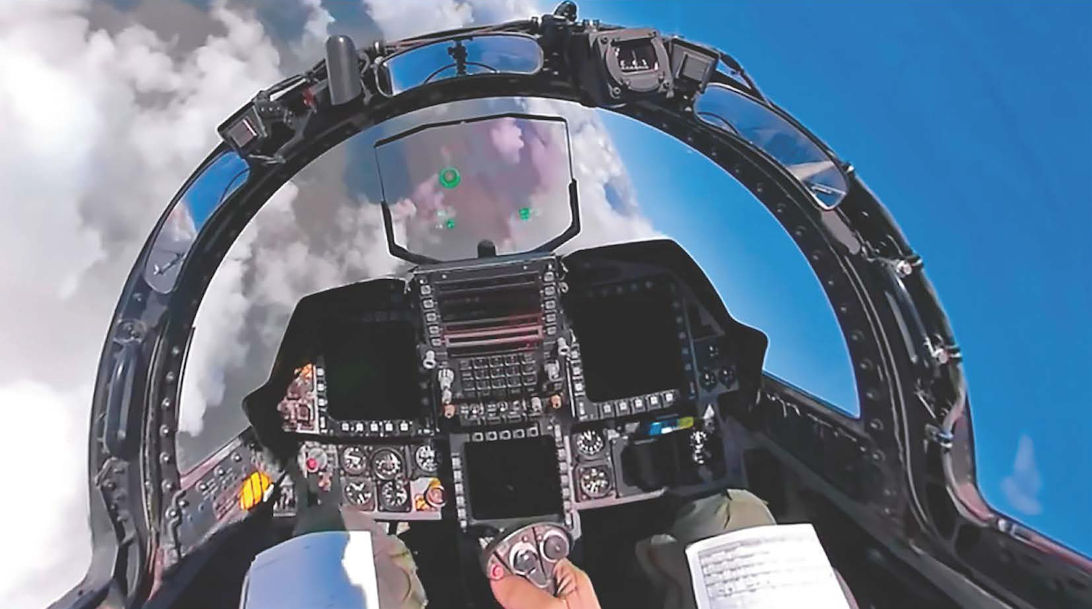

Qatar's F-15 is the first variant to have Boeing's advanced crew station featuring 10 x 19-inch colour displays produced by Elbit USA.
Нашлемный прицел дополненной реальности Elbit DEP, используемый на самолетах F-15E
